2010 HONDA INSIGHT engine coolant

Fluid Locations
Maint enance
347
RADIATOR CAP
ENGINE OIL DIPSTICK
(Orange loop)
WASHER FLUID
(Blue cap) AUTOMATIC
TRANSMISSION (CVT)
FLUID DIPSTICK
(Yellow loop)
ENGINE COOLANT
RESERVOIR BRAKE FLUID
(Black cap)
ENGINE OIL FILL CAP
—
—y


y
)"yy
2010 Insight

µµ
If the coolant level in the reserve
tank is at or below the MIN line, add
coolant to bring it up to between the
MIN and MAX lines. Inspect the
cooling system f or leaks. Always use Honda Long-lif e Anti-
f reeze/Coolant Type 2. This coolant
is pre-mixed with 50 percent
antif reeze and 50 percent distilled
water. Never add straight antif reeze
or plain water.
If Honda antif reeze/coolant is not
available, you may use another
major-brand non-silicate coolant as a
temporaryreplacement.Makesureit
is a high-quality coolant
recommended f or aluminum engines.
Continued use of any non-Honda
coolant can result in corrosion,
causing the cooling system to
malf unction or f ail. Have the cooling
system f lushed and ref illed with
Honda antif reeze/coolant as soon as
possible.
CONT INUED
A dding Engine Coolant
Engine Coolant
Maint enance
353
RESERVE TANK
If you regularly drive your vehicle
under severe conditions in very low
temperature (under 31°F, 35°C), a
higher concentration of coolant should
be used. Consult your Honda dealer
f or more inf ormation on the proper
coolant.
—
—y

y
)"yy
2010 Insight

If the reserve tank is completely
empty, you should also check the
coolant level in the radiator.The coolant level should be up to
the base of the f iller neck. Add
coolant if it is low.
Do not add any rust inhibitors or
other additives to your vehicle’s
cooling system. They may not be
compatible with the coolant or
engine components. Pour coolant into the reserve tank.
Fill it to half way between the MAX
and MIN marks. Put the cap back
on the reserve tank. Pourthecoolantslowlyand
caref ully so you do not spill any.
Clean up any spill immediately; it
could damage components in the
engine compartment.
Put the radiator cap back on, and
tighten it fully.
Remove the radiator cap by
pushing down and turning
counterclockwise. Relieve any pressure in the cooling
system by turning the radiator cap
counterclockwise, without
pressing down. Make sure the engine and radiator
are cool.
1.
2.
3. 4.
5.
6.
Engine Coolant
354

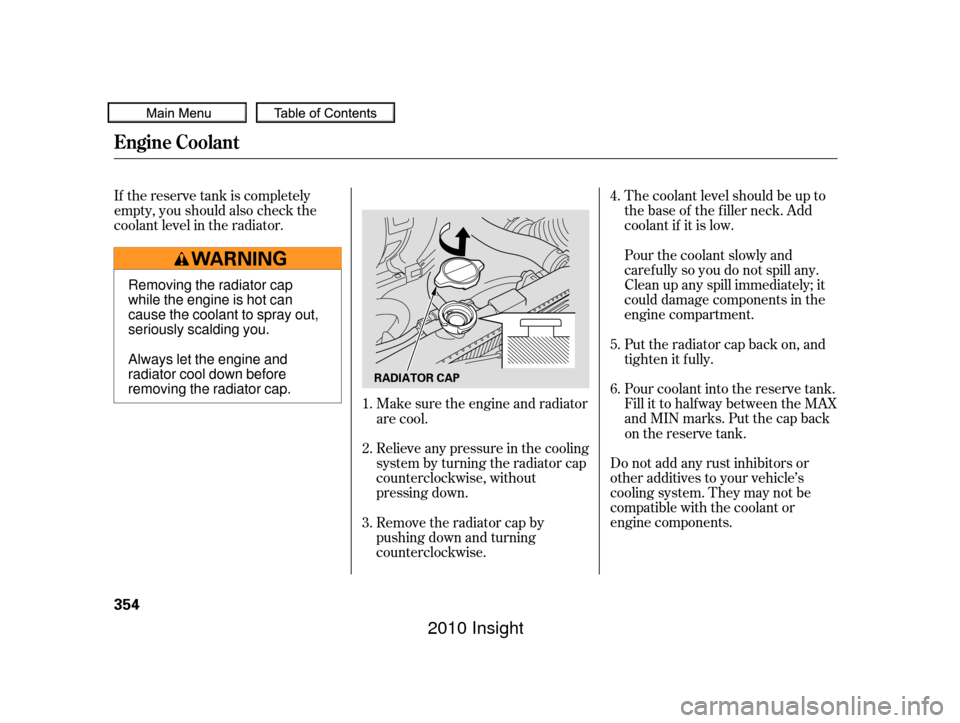

RADIATOR CAP
Removing the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.
—
—y

y
)"yy
2010 Insight

If your vehicle’s 12 volt battery is
disconnected or goes dead, the IMA
battery level gauge reading will not
be correct the next time you turn the
ignition switch to the ON (II)
position. It will show less than the
actual level temporarily. It will show
the correct level af ter you drive f or
at least 30 minutes.The high temperature indicator
should be of f under most conditions.
If the engine coolant temperature
gets higher than normal, the
indicator will blink. If it stays on, you
should determine the reason (hot
day, driving up a steep hill, etc.).
You will also see a ‘‘WATER TEMP
HOT’’ message on the multi-
inf ormation display (see page ).If the vehicle overheats, you should
take immediate action. The only
indication may be the high
temperature indicator blinking or
remaining on. Or you may see steam
or spray coming f rom under the
hood.
67
If the Engine Overheats
Jump Starting, If the Engine Overheats
398
Driving with the high temperature
indicator on can cause serious damage
to your engine.
—
—y


y
)"yy
2010 Insight

CONT INUED
Saf ely pull to the side of the road.
Put the transmission in Park, and
set the parking brake. Turn of f all
the accessories, and turn on the
hazard warning lights.If you see steam and/or spray
coming f rom under the hood, turn
of f the engine. Wait until you see
no more signs of steam or spray,
then open the hood.
If you do not see steam or spray,
leave the engine running, and
check the high temperature
indicator. If the high heat is due to
overloading, the engine should
start to cool down almost
immediately. If it does, wait until
the high temperature indicator
goes of f , then continue driving.
If the high temperature indicator
stays on, turn of f the engine.Look f or any obvious coolant leaks,
such as a split radiator hose.
Everything is still extremely hot,
so use caution. If you f ind a leak, it
must be repaired bef ore you
continue driving (see
on page ).
If you don’t f ind an obvious leak,
check the coolant level in the
radiator reserve tank (see page ). Add coolant if the level is
below the MIN mark.
If there was no coolant in the
reserve tank, you may need to add
coolant to the radiator. Let the
engine cool down until the high
temperature indicator goes of f
bef ore checking the radiator.
1. 2.
3.
4.5.
6.
7.
289 412
If theEngineOverheats
Emergency
Towing
T aking Care of t he Unexpect ed
399
Steam and spray from an
overheated engine can
seriously scald you.
Do not open the hood if steam
is coming out.
—
—y

y
)"yy
2010 Insight

Using gloves or a large heavy
cloth, turn the radiator cap
counterclockwise, without pushing
down, to the f irst stop. Af ter the
pressure releases, push down on
the cap, and turn it until it comes
off.If the temperature stays normal,
check the coolant level in the
radiator reserve tank. If it has
gone down, add coolant to the
MAX mark. Put the cap back on
tightly.
Start the engine, and set the
temperature to maximum heat
(climate control to AUTO at
‘‘ ’’). Add coolant to the
radiator up to the base of the f iller
neck. If you do not have the
proper coolant mixture available,
you can add plain water.
Remember to have the cooling
system drained and ref illed with
the proper mixture as soon as you
can.
Put the radiator cap back on
tightly. Run the engine, and check
the high temperature indicator. If
it begins to blink or comes on
again, the engine needs repair
(see
on page
).
8. 9.
10. 11.
412
If theEngineOverheats
Emergency T owing
400
Removing the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.
—
—y

y
)"yy
2010 Insight

Î
Î
Î
Î
Specif ications
418
Dimensions
Weights
Seating CapacitiesCapacities
Engine 172.3 in (4,377 mm)
66.7 in (1,695 mm)
56.2 in (1,427 mm)
100.4 in (2,550 mm)
58.7 in (1,492 mm)
58.1 in (1,475 mm)
Length
Width
Height
Wheelbase
Track
Gross vehicle weight rating See the certification label attached
to the driver’s doorjamb. 3.4 US qt (3.2
)
3.2 US qt (3.0)
4.0 US qt (3.8)
Total
Front
Rear 5
2
3
Excluding the oil remaining in the engine Including the coolant in the reserve tank and that remaining in the
engine
Reserve tank capacity: 0.116 US gal (0.44
)
2.6 US qt (2.5
)
5.12 US qt (4.85)
Fuel tank
Engine
coolant
Engine oil
Automatic
transmission
fluid (CVTF)
Windshield
washer
reservoir
Type
BorexStroke
Displacement
Compression ratio
Spark plugs DILFR6F11G10.8 : 1
82 cu-in (1,339 cm
)
2.87 x 3.15 in (73.0 x 80.0 mm) 3.0 US qt (2.8
)
5.5 US qt (5.2)
10.6 US gal (40
)
1.202 US gal (4.55)
1.332 US gal (5.04)
Water cooled 4-stroke SOHC i-VTEC gasoline engine with Hybrid Electric Motor
Front
Rear
Approx.
1:
2:
(NGK) Change
Total
Change
Including filter
Without filter
Total
Change
Total
U.S. Vehicles
Canada Vehicles
1
2
—
