2010 HONDA CR-V navigation system

Playing the FM/AM Radio (EX and EX-L models without navigation system)
Features
157

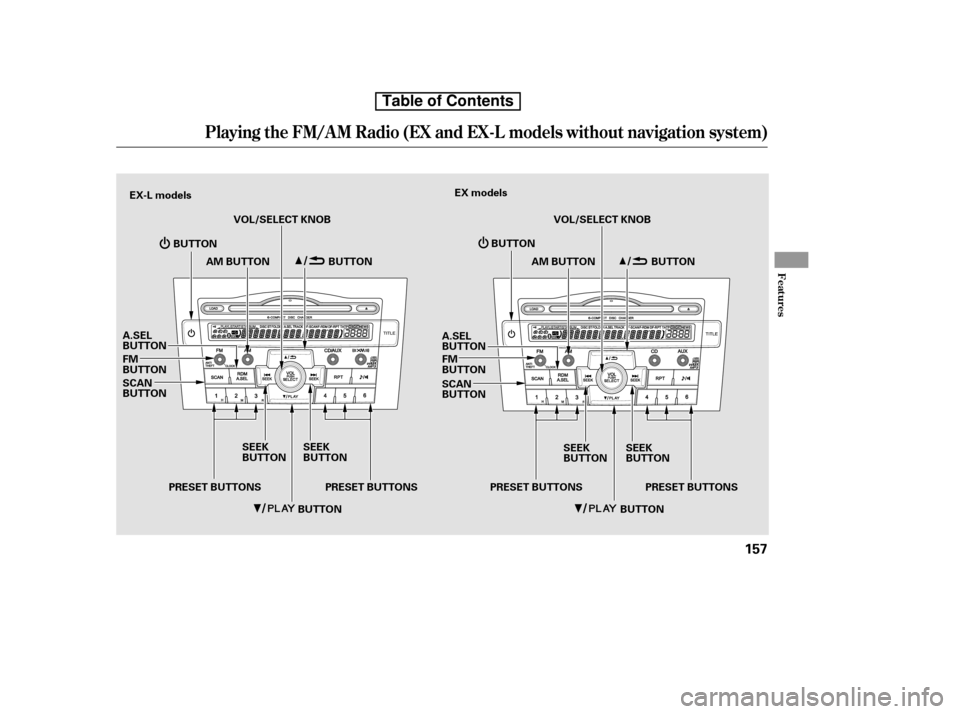

BUTTONBUTTON
BUTTON
EX-L models
EX models
AM BUTTON BUTTON
A.SEL
BUTTON FM
BUTTON
SCAN
BUTTON VOL/SELECT KNOB
VOL/SELECT KNOB
AM BUTTON
A.SEL
BUTTON FM
BUTTON
SCAN
BUTTON
SEEK
BUTTON SEEK
BUTTONSEEK
BUTTON
SEEK
BUTTON
PRESET BUTTONS PRESET BUTTONS PRESET BUTTONS
PRESET BUTTONS
BUTTON BUTTON
Table of Contents

µµµ
You can use any of f ive methods to
f ind radio stations on the selected
band: tune, seek, scan, the preset
buttons, and auto select. Use the SEEK button to
tune to a desired f requency. Press
the button to tune to a higher
f requency, and the button to
tune to a lower f requency.
You can also operate the tune
f unction by using the VOL/SELECT
knob. Press the VOL/SELECT knob
and you will see ‘‘SEL’’ in the display.
Turn the knob right to tune to a
higher f requency, or lef t to tune to a
lower f requency. To turn it of f , press
the VOL/SELECT knob or button, or button.
The system will return to the normal
display about 10 seconds af ter you
stop adjusting the tune mode. The SEEK f unction
searches up and down f rom the
current f requency to f ind a station
with a strong signal. To activate it,
press and hold the or side
of the SEEK button until you hear a
beep, then release it.
The scan f unction samples
all stations with strong signals on the
selected band. To activate it, press
the SCAN button, then release it.
You will see SCAN in the display.
When the system finds a strong
signal, it will stop and play that
station f or about 10 seconds.
If you do nothing, the system will
then scan f or the next strong station
and play it f or 10 seconds. When it
plays a station you want to listen to,
press the SCAN button again.
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Turn the system on by pushing the
FM or AM button. Adjust the volume
by turning the VOL/SELECT knob.
The band and f requency that the
radio was last tuned to are displayed.
To change bands, press the AM or
FM button. On the FM band, ST will
be displayed if the station is
broadcasting in stereo. Stereo
reproduction in AM is not available.
To Play the FM/AM Radio
To Select a Station T UNE SEEK
SCAN
Playing the FM/AM Radio (EX and EX-L models without navigation sys tem)
158
Table of Contents

µ
µ
µ If you are
traveling and can no longer receive
your preset stations, you can use the
auto select feature to find stations in
the local area.
Press the A. SEL button. ‘‘A. SEL’’
f lashes in the display, and the system
goes into scan mode f or several
seconds. It stores the f requencies of
six AM and twelve FM stations in
the preset buttons. You will see a ‘‘0’’ displayed af ter
pressing a preset button if auto
select cannot f ind a strong station f or
that preset button.
If you do not like the stations auto
select has stored, you can store
other f requencies on the preset
buttons as previously described.
press the
A. SEL button. This restores the
presets you originally set.
For inf ormation on FM/AM radio
f requencies and reception, see page .
Each preset button can
store one f requency on AM and two
f requencies on FM.
Select the desired band, AM or
FM.
Usethetune,seek,orscan
function to tune the radio to a
desired station.
Pick a preset number (1 6), and
hold it until you hear a beep.
Repeat steps 1 through 3 to store a
total of six stations on AM and
twelve stations on FM.
1. 2. 3. 4.
250
To turn of f auto select,
AUTO SELECT
Preset
Playing the FM/AM Radio (EX and EX-L models without navigation sys tem)
Features
159
Table of Contents

µ
µ µ
µ
µ
µ
You can use the instrument panel
brightness control knob to adjust the
illumination of the audio system (see
page ). The audio system
illuminates when the parking lights
are on, even if the system is turned
of f .
The SVC has f our modes; SVC OFF,
SVC LOW, SVC MID, and SVC
HIGH. Turn the VOL/SELECT knob
to adjust the setting to your liking. If
you f eel the sound is too loud,
choose low. If you f eel the sound is
too quiet, choose high.
This f unction is set to MID as the
def ault setting when the vehicle
leaves the factory.
The SVC mode controls the volume
based on vehicle speed. The f aster
you go, the louder the audio volume
becomes. As you slow down, the
audio volume decreases.
The system will return to the audio
display about 10 seconds af ter you
stop adjusting a mode.
Adjusts the volume level
basedonthevehiclespeed.
Eachmodeisshowninthedisplayas
it changes. Turn the VOL/SELECT
knob to adjust the setting to your
liking. When the level reaches the
center, you will see ‘‘C’’ in the display.
Press the sound ( ) button to
select an appropriate setting: bass,
treble, f ader, balance, subwoof er (if
equipped), and SVC (speed-sensitive
volume compensation). Turn the
VOL/SELECT knob to adjust the
setting.
Adjusts the strength of
sound f rom the subwoof er speaker. Adjusts the side-to-
side strength of the sound. Adjusts the front-to-back
strength of the sound. Adjusts the treble.
Adjusts the bass.
79
If equipped
Adjusting the Sound
A udio System L ighting
SVC
SUBW
BAL ANCE
FADER
TREBLE
BAS
Speed-sensit ive Volume
Compensat ion (SVC)
Playing the FM/AM Radio (EX and EX-L models without navigation sys tem)
160
Table of Contents

Your vehicle is capable of receiving XM
Radio anywhere in Canada and
the United States, except Hawaii,
Alaska,andPuertoRico.XM
CANADA
is a registered business
name of Canadian Satellite Radio Inc.,
and XM is a registered trademark of
Sirius XM Radio, Inc.
XM Radio receives signals f rom two
satellites to produce clear, high-
quality digital reception. It of f ers
many channels in several categories.
Along with a large selection of
dif f erent types of music, XM Radio
allows you to view channel and
category selections in the display.
Playing the XM
Radio
Playing t he XMRadio (EX-L model without navigation system)
Features
On EX-L without Navigation System
161
BUTTON
BUTTONBUTTON
SEEK
BUTTON
XM
BUTTON
PRESET BUTTONS
PRESET BUTTONS
SCAN
BUTTON
SEEK
BUTTON
VOL/SELECT KNOB
Table of Contents

µµ
Ûݵ
You may experience periods when
XM Radio does not transmit the
artist’s name and song title
inf ormation. If this happens, there is
nothing wrong with your system.
In channel mode, you can select all
of the available channels. In category
mode, such as Jazz, Rock, Classical,
etc., you can select all of the
channels within that category.
To listen to XM radio, turn the
ignition switch to the ACCESSORY
(I) or the ON (II) position. Push the
button to turn on the audio
system, and press the ‘‘XM’’ button.
Adjust the volume by turning the
VOL/SELECT knob. The last
channel you listened to will show in
the display. To switch between
channel mode and category mode,
press and hold the TITLE button
until the mode changes.
Each time you press and release the
TITLE button, the display changes in
the f ollowing sequence: channel
name, channel number, category,
artist name, and music title. Press the SEEK button to
change channel selections. Press
f or higher numbered channels
and f or lower numbered
channels. In the category mode, you
can only select channels within that
category.
In the
category mode, press either button
to select another category.
Operating the XM Radio MODE
TUNE
CAT EGORY ( or )
Playing t he XMRadio (EX-L model without navigation system)
162
Table of Contents

µµ µ
µ
µ
µ
The scan f unction gives
you a sampling of all channels while
in the channel mode. In the category
mode, only the channels within that
category are scanned. To activate
scan, press the SCAN button. The
system plays each channel in
numerical order f or a f ew seconds,
then selects the next channel. When
you hear a channel you want to
continue listening to, press the
button again. Usethetune,seek,orscan
function to tune to a desired
channel.
In category mode, only channels
within that category can be selected.
In channel mode, all channels can be
selected.
Repeat steps 2 and 3 to store the
f irst six channels.
Press the XM button again. Store
the next six channels using steps 2
and 3.
Youcanstoreupto12
preset channels using the six preset
buttons. Each button stores one
channel f rom the XM1 band and one
channel f rom the XM2 band.
To store a channel:
Press the XM button. Either XM1
or XM2 will show in the display. Pick the preset button you want
f or that channel. Press and hold
the button until you hear a beep.
Once a channel is stored, press and
release the proper preset button to
tune to it. XM is loading the
audio or program inf ormation.
The channel
currently selected is no longer
broadcasting.
The encryption
code is being updated. Wait until the
encryption code is f ully updated.
Channels 0 and 1 should still work
normally.
The signal is
currently too weak. Move the vehicle
to an area away from tall buildings,
and with an unobstructed view of the
southern horizon.
1. 2. 3. 4. 5.
CONT INUED
SCAN
XM Radio Display Messages
Preset ‘‘L OA DING’’
‘‘OFF A IR’’
‘‘UPDA T ING’’
‘‘NO SIGNA L ’’
Playing t he XMRadio (EX-L model without navigation system)
Features
163
Table of Contents

µµ
The XM satellites are in orbit over
the equator; therefore, objects south
of the vehicle may cause satellite
reception interruptions. To help
compensate f or this, ground-based
repeaters are placed in major
metropolitan areas. Satellite signals are more likely to be
blocked by tall buildings and
mountains the f arther north you
travel f rom the equator. Carrying
large items on a roof rack can also
block the signal.
The selected channel
number does not exist, or is not part
of your subscription, or this channel
has no artist or title inf ormation at
this time.
There is a problem
with the XM antenna. Please consult
your dealer.
‘‘----’’
‘‘A NT ENNA ’’
Playing t he XMRadio (EX-L model without navigation system)
164
Signal may be blocked by
mountains or large obstacles to
the south.
Signal weaker in
these areas.
SATELLITE GROUND REPEATER
