If you turn the system of f while a
disc is playing, either with the
power/volume knob or by turning
of f the ignition switch, the disc will
stay in the drive. When you turn the
system back on, the disc will begin
playing where it lef t of f .
Load the desired discs in the
magazine, and load the magazine in
the changer according to the
instructions that came with the unit.
To select the disc changer, press the
CD button. The disc and track
numbers will be displayed. To select
a dif f erent disc, use the preset 4
(DISC ) or the preset 1 (DISC )
on the preset button. To select the
previous disc, press the preset 4
(DISC ), or the preset 1 (DISC )
to select the next disc in sequence.If you select an empty slot in the
magazine, the changer will search
f or the next available disc to load and
play.
An optional six or eight disc changer
is available f or your vehicle. This
disc changer uses the same controls
used f or the in-dash disc player or
the radio.
For information on how to handle
and protect compact discs, see page
.
206
Operating the Optional Disc
Changer
Protecting Discs
Playing a Disc (Models without navigation system)
Features
127
09/07/15 10:46:42 31SNC640_132
2010 Civic Hybrid

Cause
Thechartontherightexplainsthe
error messages you may see in the
display while playing a disc.
If you see an error message in the
display while playing a disc, press
the eject button. After ejecting the
disc, check it for damage or
deformation. If there is no damage,
insert the disc again.
For additional information on
damaged discs, see page .
Theaudiosystemwilltrytoplaythe
disc. If there is still a problem, the
error message will reappear. Press
the eject button, and pull out the disc.
Insert a dif f erent disc. If the new
disc plays, there is a problem with
the f irst disc. If the error message
cycle repeats and you cannot clear it,
take your vehicle to a dealer. Error
Message Solution
207
High Temperature
Track/File format not
supported
Mechanical Error
Servo Error Will disappear when the temperature returns to
normal.
Current track will be skipped. The next
supported track or file plays automatically.
Press the EJECT button and pull out the disc(s).
Check the disc for serious damage, signs of
deformation, excessive scratches, and/or dirt
(see page
207). Insert the disc again. If the code
does not disappear, or the disc(s) cannot be
removed, consult your dealer. Do not try to
force the disc out the player.
Disc Player Error Messages (Models without navigation system)
128
HEAT ERROR
FORMAT
BAD DISC
PLEASE CHECK OWNER’S
MANUAL PUSH EJECT
BAD DISC
PLEASE CHECK OWNER’SMANUAL
09/07/15 10:46:48 31SNC640_133
2010 Civic Hybrid

Error
Message Solution
Cause
Thechartontherightexplainsthe
error messages you may see in the
display while playing a disc.
If you see an error message in the
display while playing a disc, press
the eject button. After ejecting the
disc, check it for damage or
deformation. If there is no damage,
insert the disc again.
If there is still a problem, the error
message will appear again. Press the
eject button, and pull out the disc.
Insert a dif f erent disc. If the new
disc plays, there is a problem with
the f irst disc. If the error message
cycle repeats and you cannot clear it,
take your vehicle to a dealer.
Press the magazine eject button, and pull the
magazine out. If the message does not
disappear or the magazine cannot be pulled out,
see your dealer.
Insert disc.
Press the magazine eject button, pull the
magazine out, check for an error message, then
insert the magazine again. If the message does
not disappear, or the magazine cannot be pulled
out, see your dealer.
Insert disc magazine.
Will disappear when the temperature returns to
normal.
FOCUS Error
No disc in the disc
magazine
Mechanical Error
No disc magazine in the
disc changer
High Temperature
Optional Disc Changer Error Messages (Models without navigation system)
Features
129
09/07/15 10:46:57 31SNC640_134
2010 Civic Hybrid

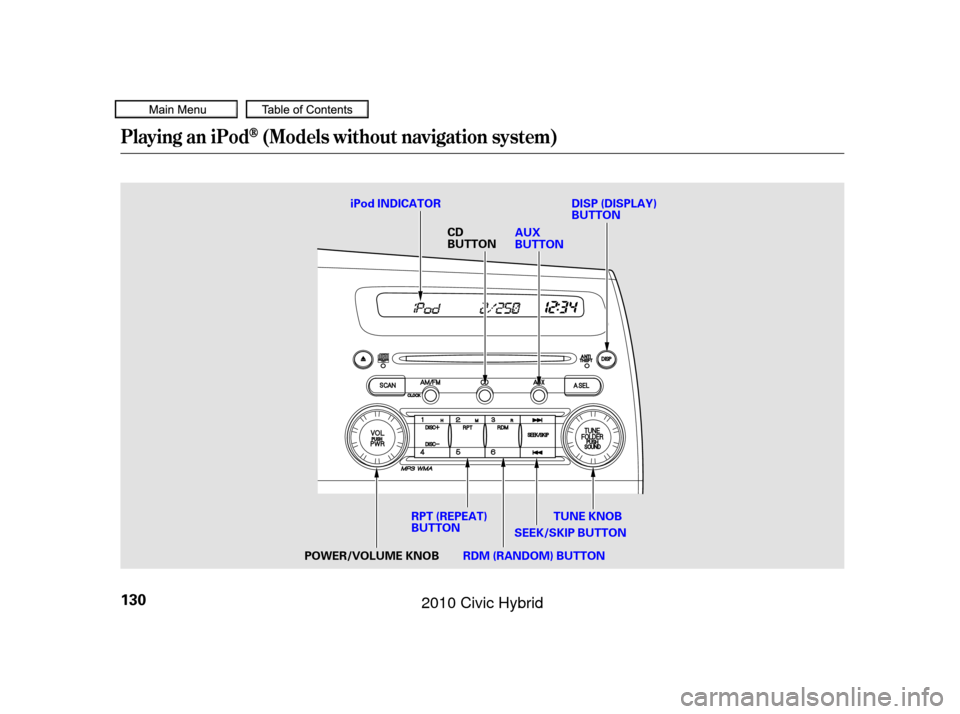

Playing an iPod(Models without navigation system)
130
SEEK/SKIP BUTTON
RDM (RANDOM) BUTTON
RPT (REPEAT)
BUTTON
iPod INDICATOR
AUX
BUTTON
CD
BUTTON
POWER/VOLUME KNOB TUNE KNOBDISP (DISPLAY)
BUTTON
09/07/15 10:47:01 31SNC640_135
2010 Civic Hybrid

The audio system reads and plays
playable sound f iles on the iPod. The
system cannot operate an iPod as a
mass storage device. The system will
only play songs stored on the iPod
with iTunes.
iPod and iTunes are registered
trademarks owned by Apple Inc.
This audio system can select and
play the audio f iles on the iPod
with
the same controls used f or the disc
player. To play an iPod, connect it to
the USB adapter cable in the console
compartment by using your dock
connector, then press the AUX
button. The ignition switch must be
in the ACCESSORY (I) or ON (II)
position. The iPod will also be
charged with the ignition switch in
these positions. iPods compatible with your audio
system using the USB adapter cable
are:
Use only compatible iPods with the
latest sof tware. iPods that are not
compatible will not work in this audio
unit.
CONT INUED
Model
iPod classic
iPod with video
(iPod
5th generation)
iPod nano
iPod nano
2nd generation
iPod nano
3rd generation
iPod nano
4th generation
iPod touch
iPod touch
2nd generation Sof tware
Ver. 1.0 or more
Ver. 1.2 or more
Ver. 1.2 or more
Ver. 1.1.2 or more
Ver. 1.0 or more
Ver. 1.0.2 or more
Ver. 1.1.1 or more
Ver. 2.1.1 or more
To Play an iPod
Playing an iPod(Models without navigation system)
Features
131
09/07/15 10:47:08 31SNC640_136
2010 Civic Hybrid

Do not connect your iPod using a
hub.
DonotkeeptheiPodinthe
vehicle. Direct sunlight and high
heat will damage it.
Do not use an extension cable
between the USB adapter cable
equipped with your vehicle and
your dock connector.
We recommend backing up your

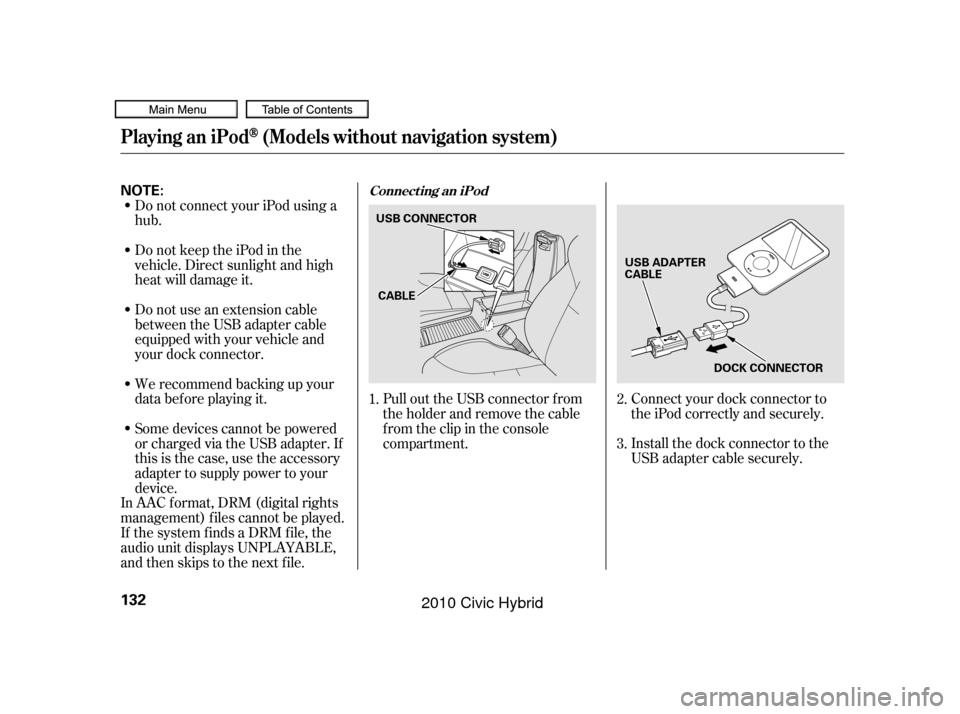

data bef ore playing it.Install the dock connector to the
USB adapter cable securely. Connect your dock connector to
the iPod correctly and securely.
Pull out the USB connector f rom
the holder and remove the cable
f rom the clip in the console
compartment.
In AAC f ormat, DRM (digital rights
management) f iles cannot be played.
If the system finds a DRM file, the
audio unit displays UNPLAYABLE,
andthenskipstothenextfile. Some devices cannot be powered
or charged via the USB adapter. If
this is the case, use the accessory
adapter to supply power to your
device.
1.
2.
3.
Playing an iPod(Models without navigation system)
Connect ing an iPod
132
NOTE:
DOCK CONNECTOR
USB CONNECTOR
USB ADAPTER
CABLE
CABLE
09/07/15 10:47:18 31SNC640_137
2010 Civic Hybrid

µ
¼
CONT INUED
If the iPod indicator does not appear
in the audio display, check the
connections, and try to reconnect the
iPod a f ew times.
If the audio system still does not
recognize the iPod, the iPod may
need to be reset. Follow the
instructions that came with your
iPod, or you can f ind reset
instructions online at Each time you press the DISP button,
the display mode switches between
the album name, the song/track
name, the artist name, or name of f
(which turns off the text display).
The display shows up to 16
characters of the selected data. If the
text data has more than 17
characters, you will see the first 15
characters and the indicator in
the display. Press and hold the DISP
button until the next 16 characters
are shown.You can use the SEEK/SKIP button
while an iPod is playing to select
passages and change f iles.
Each time you press and
release the side of the SEEK/
SKIP button, the system skips
f orward to the beginning of the next
f ile. Press and release the side
of thebuttontoskipbackwardtothe
beginning of the current f ile. Press it
again to skip to the beginning of the
previous f ile.
To move rapidly within a f ile, press
andholdeitherside( or )
of the SEEK/SKIP button.
www.apple.com/
ipod.
Playing an iPod(Models without navigation system)
T ext Dat a Display Funct ion T o Change or Select Files
SK IP
Features
133
09/07/15 10:47:26 31SNC640_138
2010 Civic Hybrid

µ
You can also select a f ile f rom the
iPod menu: ALBUM (albums),
SONG (songs), P-LIST (playlists),
and ARTIST (artists), by using the
TUNE knob. Push the TUNE
(SOUND) knob to switch the display
to an iPod menu, then turn the
TUNE knob to select a desired mode.
If you stop adjusting, the displayed
mode is selected af ter about f ive
seconds. The system begins to play
the f irst f ile stored in the selected mode.
Turn
the TUNE knob to select a dif f erent
item in the selected mode. The
selected item will be shown on the
display f or a f ew seconds. When you
stop turning, the system begins to
play the first file from the selected
item.
Playing an iPod(Models without navigation system)
T o Select a File f rom iPod Menu
Selection within a Mode
134
Push the TUNE knob. Turn the TUNE knob.
