2010 HONDA ACCORD COUPE Owners Manual

µµ
Î
Î
Î
Î
Specif ications (V6 models)
382
DimensionsSeating Capacities
Capacities
Weights
Air Conditioning
Engine
110.2 in (2,800 mm)
Length WidthHeightWheelbaseTrack
194.3 in (4,936 mm)72.7 in (1,847 mm)58.1 in (1,475 mm)
62.2 in (1,580 mm)
Total FrontRear
523
Fuel tank
Engine coolantEngine oil
Automatic transmissionfluidWindshieldwasherreservoir
1.74 US gal (6.6)2.27 US gal (8.6)
4.5 US qt (4.3)
5.3 US qt (5.0)3.5 US qt (3.3)7.9 US qt (7.5)
2.6 US qt (2.5)4.8 US qt (4.5)
Including the coolant in the reserve tank and that remaining in theengineReserve tank capacity:Excluding the oil remaining in the engine0.180 US gal (0.68)
Gross vehicle weight rating See the certification label attachedto the driver’s doorjamb.
Refrigerant typeCharge quantityLubricant type
HFC-134a (R-134a)14.1 15.9 oz (400 450 g)ND-OIL8
3.50 x 3.66 in (89.0 x 93.0 mm)212 cu-in (3,471 cm)10.5 : 1ILZKR7B11SXU22HCR11
18.5 US gal (70.0)
Water cooled 4-strokeSOHC i-VTEC 6-cylinder (V6)gasoline engine
4.2 US qt (4.0)
Type
BorexStroke DisplacementCompression ratioSpark plugs (U.S.)
Spark plugs (Canada)ILZKR7B11SXU22HCR11
Approx.
1:
2:
ChangeIncluding filter Without filterTotalChangeTotal
U.S. Canada
Change Total
Front/Rear
NGK:DENSO:NGK:DENSO:
2
1
——
y

y
)yy
2010 Accord Sedan

µ
Î
µ µ
µ µµµµµµµµµµµµµµ
Î
Specif ications (V6 models)
Technical Inf ormation
383
Fuses
Tires
Alignment
Lights
Battery
12 V 60 W (HB3) 12 V 51 W (HB4)12 V 21/5 W3CP12 V12 V 55 W12 V 21 W12 V 21 W
Interior
Under-hood
Size
Pressure
P225/50R17 93VT135/80D16 101M32 psi (220 kPa , 2.2 kgf/cm)60 psi (420 kPa , 4.2 kgf/cm)
Toe-in
Camber
Caster
0.00 in (0.0 mm) 0.08 in (2.0 mm)0°1°3°48’
Headlights
Front turn signal/parking lights Front side marker lightsFog lightsRear turn signal lightsBack-up lightsStop/taillightsLicense plate lightsHigh-mount brake lightCeiling lightSpotlightsTrunk lightFront door courtesy lightsVanity mirror lights
Capacity12 V 12 V60 AH/5 HR72 AH/20 HR
14 V 1.4 W12 V 2 CP12 V 5 W12 V 8 W12 V 8 W21 W12 V12 V 5 W12 V 21/5 W
See page373or the fuse labelattached on the side panel. See page374or the fuse labelattached to the inside of the fusebox door.See page372or the fuse boxcover.
HighLow
(Amber)
:
Front/RearSpareFront/RearSpare
Front RearFrontRearFront
Driver’s side
Passenger’s side
(H11)
If equipped
09/07/08 21:46:17 31TA5620_388
2010 Accord Sedan

Quality grades can be f ound where
applicable on the tire sidewall
between tread shoulder and
maximum section width. For
example:
The treadwear grade is a compara-
tive rating based on the wear rate of
the tire when tested under controlled
conditions on a specif ied government
test course. For example, a tire
graded 150 would wear one and one-
half (1 1/2) times as well on the
government course as a tire graded
100. The relative perf ormance of
tires depends upon the actual condi-
tions of their use, however, and may
depart signif icantly f rom the norm
due to variations in driving habits,
service practices and dif f erences in
road characteristics and climate.
The traction grades, f rom highest to
lowest, are AA, A, B, and C. Those
grades represent the tire’s ability to
stop on wet pavement as measured
under controlled conditions on
specif ied government test surf aces
of asphalt and concrete. A tire
marked C may have poor traction
perf ormance.
Warning: The traction grade
assignedtothistireisbasedon
straight-ahead braking traction tests,
and does not include acceleration,
cornering, hydroplaning, or peak
traction characteristics.
The tires on your vehicle meet all
U.S. Federal Saf ety Requirements.
All tires are also graded f or
treadwear, traction, and temperature
perf ormance according to
Department of Transportation
(DOT) standards. The f ollowing
explains these gradings.
All passenger car tires must conf orm
to Federal Saf ety Requirements in
addition to these grades.
Unif orm T ire Quality Grading
T readwear 200
Traction AA
Temperature A
T readwearT raction
DOT Tire Quality Grading (U.S. Vehicles)
384
——
y

y
)yy
2010 Accord Sedan

Warning: The temperature grade f or
this tire is established f or a tire that
is properly inf lated and not
overloaded. Excessive speed,
underinf lation, or excessive loading,
either separately or in combination,
can cause heat buildup and possible
tire f ailure.
The temperature grades are A (the
highest), B, and C, representing the
tire’s resistance to the generation of
heat and its ability to dissipate heat
when tested under controlled
conditions on a specif ied indoor
laboratory test wheel. Sustained high
temperature can cause the material
of the tire to degenerate and reduce
tire life, and excessive temperature
can lead to sudden tire f ailure. The
grade C corresponds to a level of
perf ormance which all passenger car
tires must meet under the Federal
Motor Vehicle Saf ety Standard No.
109. Grades B and A represent
higher levels of perf ormance on the
laboratory test wheel than the
minimum required by law.
Temperature
DOT Tire Quality Grading (U.S. Vehicles)
Technical Inf ormation
385
——
y


y
)yy
2010 Accord Sedan

µ
µ
µ
µ
µ
µ
µ
The tires that came on your vehicle
have a number of markings. Those
you should be aware of are described
below.
Load index (a numerical code
associated with the maximum
load the tire can carry).
Whenever tires are replaced, they
should be replaced with tires of the
same size. Following is an example
of tire size with an explanation of
what each component means.
Vehicletype(Pindicates
passenger vehicle).
Tire width in millimeters.
Aspect ratio (the tire’s section
height as a percentage of its
width).
Tire construction code (R
indicates radial).
Rim diameter in inches.
Speed symbol (an
alphabetical code indicating
the maximum speed rating).
P
R
V
225
50
93
17
Tire Labeling
Tire Size
386
(3)
(4)

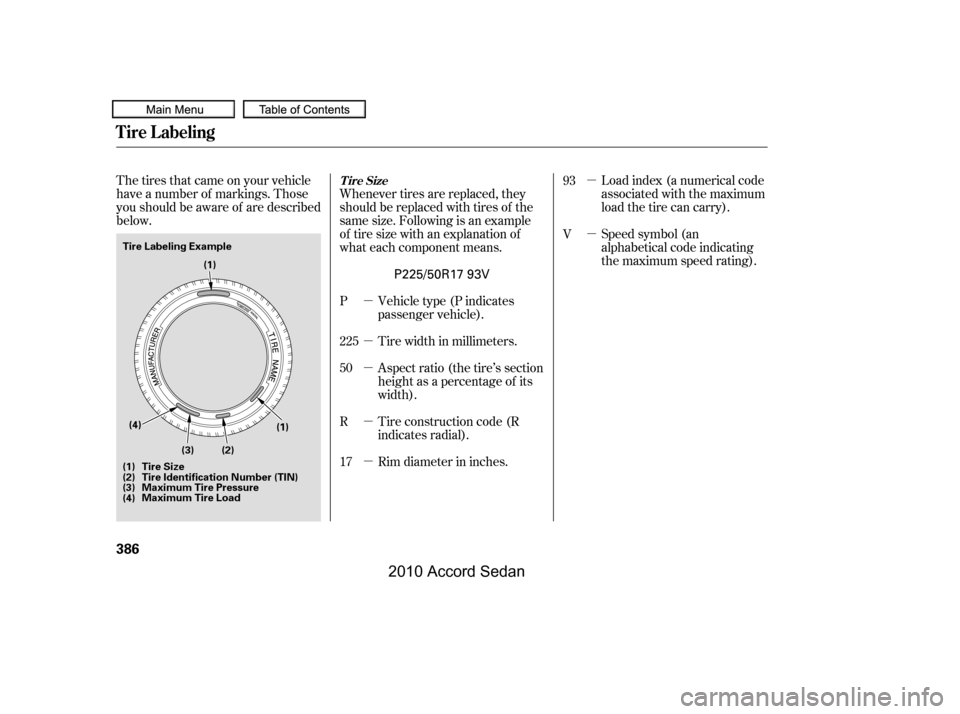

Tire Labeling Example
(1)
(2)
(1)
(2) (3)(4)
(1) Tire SizeTire Identification Number (TIN) Maximum Tire Pressure Maximum Tire Load
P225/50R17 93V
——
y

y
)y
y
2010 Accord Sedan

µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
Tire type code.
Date of manufacture.
Year
Week
The tire identif ication number (TIN)
is a group of numbers and letters
that look like the f ollowing example.
TIN is located on the sidewall of the
tire.
This indicates that the tire
meets all requirements of
the U.S. Department of
Transportation.
Manuf acturer’s
identification mark.
Recommended Inf lation Pressure
The cold tire inf lation pressure
recommended by the manuf acturer.
Treadwear Indicators (TWI)
Means the projections within the
principal grooves designed to give a
visual indication of the degrees of
wear of the tread.
Cold Tire Pressure The tire air
pressure when the vehicle has been
parked f or at least three hours or
driven less than 1 mile (1.6 km).
Load Rating Means the maximum
load that a tire is rated to carry for a
given inf lation pressure.
Maximum Inf lation Pressure The
maximum tire air pressure that the
tire can hold.
Maximum Load Rating Means the
load rating for a tire at the maximum
permissible inf lation pressure f or
that tire.FW6X
2202
DOT
B97R
Tire Labeling
T ire Ident if icat ion Number (T IN)Glossary of T ire T erminology
Technical Inf ormation
387
DOT B97R FW6X 2202
——
y

y
)yy
2010 Accord Sedan

µ
Each tire, including the spare (if
provided), should be checked
monthly when cold and inf lated to
the inf lation pressure recommended
by the vehicle manuf acturer on the
vehicle placard or tire inf lation
pressure label.
(If your vehicle has tires of a
dif f erent size than the size indicated
on the vehicle placard or tire
inf lation pressure label, you should
determine the proper tire inf lation
pressure f or those tires.)
Accordingly, when the low tire
pressure telltale illuminates, you
should stop and check your tires as
soon as possible, and inf late them to
the proper pressure.
Driving on a signif icantly under-
inf lated tire causes the tire to
overheat and can lead to tire failure.
Under-inf lation also reduces f uel
efficiency and tire tread life, and may
af f ect the vehicle’s handling and
stopping ability.
Please note that the TPMS is not a
substitute for proper tire
maintenance, and it is the driver’s
responsibility to maintain correct tire
pressure, even if under-inf lation has
not reached the level to trigger
illumination of the TPMS low tire
pressure telltale.
As an added safety feature, your
vehicle has been equipped with a tire
pressure monitoring system (TPMS)
that illuminates a low tire pressure
telltale
when one or more of your tires is
signif icantly under-inf lated.
Tire Pressure Monitoring System (TPMS) Required Federal Explanation
388
——
y

y
)yy
2010 Accord Sedan

µ
Always check the TPMS malf unction
telltale af ter replacing one or more
tires or wheels on your vehicle to
ensure that the replacement or
alternate tires and wheels allow the
TPMS to continue to f unction
properly.
Your vehicle has also been equipped
with a TPMS malf unction indicator
to indicate when the system is not
operating properly. The TPMS
malf unction indicator is provided by
a separate telltale, which displays the
symbol ‘‘TPMS’’ when illuminated.
When the malf unction indicator is
illuminated,
the system may not be able to detect
or signal low tire pressure as
intended.
TPMS malf unctions may occur f or a
variety of reasons, including the
installation of replacement or
alternate tires or wheels on the
vehicle that prevent the TPMS f rom
f unctioning properly.
Tire Pressure Monitoring System (TPMS) Required Federal Explanation
Technical Inf ormation
389
——
