2010 FORD TAURUS Owners Manual

Items CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification
Engine oil 5.5 quarts (5.2L)•Motorcraft SAE 5W-20
Premium Synthetic
Blend Motor Oil (US)
•Motorcraft SAE 5W-20
Full Synthetic Motor Oil
(US)
•Motorcraft SAE 5W-20
Super Premium Motor
Oil (Canada)
•Motorcraft SAE 5W-20
Synthetic Motor Oil
(Canada)
3
•XO-5W20-QSP (US)
•XO-5W-20-QFS (US)
•CXO-5W20- LSP12
(Canada)
•CXO-5W20-LFS12
(Canada) /
WSS-M2C930-A and API
Certification Mark
Engine coolant11.1 quarts
(10.5L)
Motorcraft Specialty
Green Engine Coolant
4
VC-10-A (US)
CVC -10-A (Canada) /
WSS-M97B55-A 11.4 quarts
(10.8L) – SHO
Power steering fluid
(except SHO engine)Between MAX and
MIN on reservoirMotorcraft
MERCON
VATFXT-5-QM /
MERCON
V
Windshield washer fluidTop-off fluid as
neededMotorcraft Premium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16-A2
Maintenance and Specifications
361
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)

Items CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification
Fuel tank19.0 gallons
(71.9 L)——
1Approximate dry fill capacity. Actual amount may vary during fluid changes.2Automatic transmissions that require MERCON
LV should only use MERCON
LV fluid. Refer to
scheduled maintenance informationto determine the correct service interval. Use of any fluid
other than the recommended fluid may cause transmission damage.3Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.4Add the coolant type originally equipped in your vehicle. To determine your vehicle’s coolant type
(color), check your coolant reservoir.5See your authorized dealer for fluid level checking or filling.
Maintenance and Specifications
362
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)

ENGINE DATA
Engine 3.5L V6 engine 3.5L V6 SHO engine
Cubic inches 214 214
FuelSeeOctane
recommendations
earlier in this chapter.SeeOctane
recommendationsearlier
in this chapter.
Firing order 1–4–2–5–3–6 1–4–2–5–3–6
Ignition system0.052–0.056 inch
(1.32–1.42 mm)0.033–0.037 inch
(.838–.939 mm)
Spark plug gap Coil on plug Coil on plug
Compression
ratio10.3:1 10.0:1
Engine drivebelt routing
3.5L V6 engine
1. Short drivebelt is on first pulley groove closest to engine (except
vehicles with electric power assisted steering).
2. Long drivebelt is on second pulley groove farthest from engine.
Maintenance and Specifications
363
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)

3.5L V6 SHO engine
IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
Maintenance and Specifications
364
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)

Vehicle identification number (VIN)
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
Devices and their location
3. Make, vehicle line, series, body
type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
XXXXXXXXXXXXXXXXX
Maintenance and Specifications
365
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)

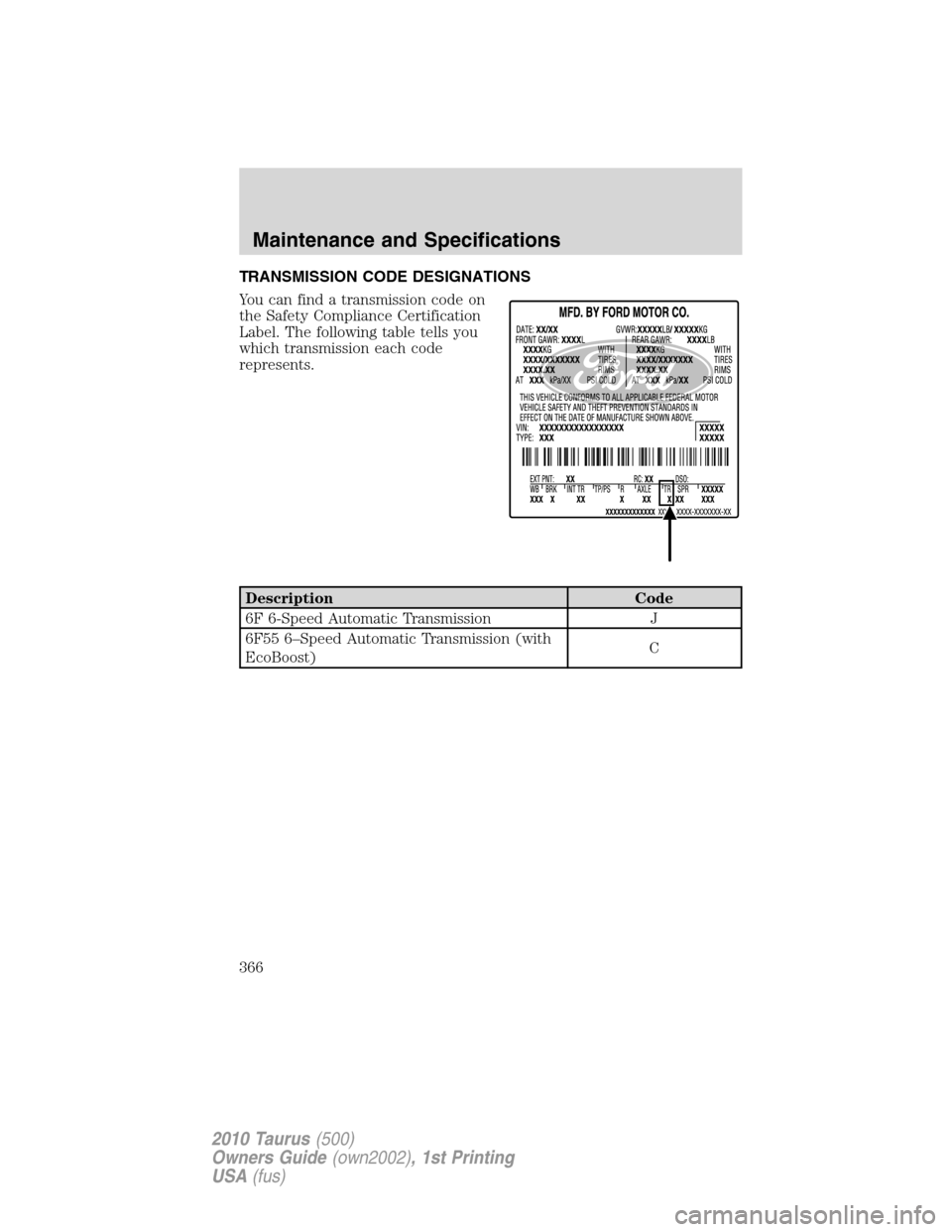

TRANSMISSION CODE DESIGNATIONS
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
6F 6-Speed Automatic Transmission J
6F55 6–Speed Automatic Transmission (with
EcoBoost)C
Maintenance and Specifications
366
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your
vehicle through your local Ford or Ford of Canada dealer. These quality
accessories have been specifically engineered to fulfill your automotive
needs; they are custom designed to complement the style and
aerodynamic appearance of your vehicle. In addition, each accessory is
made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Genuine Ford Accessories found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessories. The accessories will be warranted for whichever provides
you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
The following is a list of several Genuine Ford Accessories. Not all
accessories are available for all models. For a complete listing of the
accessories that are available for your vehicle, please contact your dealer
or visit our online store at: www.fordaccessories.com.
Exterior style
Bug shields
Moonroof deflector
Side window deflector
Splash guards
Interior style
All weather floor mats
Electrochromic compass/temperature interior mirrors
Carpeted floor mats
Lifestyle
Ash cup / smoker’s package
Cargo organization and management
Accessories
367
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)

Peace of mind
Remote start
Vehicle security systems
Wheel locks
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner may adversely affect
battery performance and durability.
Accessories
368
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)
