AWD OFF (if equipped)— Displayed when the AWD system has been
automatically disabled to protect itself. This is caused by operating the
vehicle with the compact spare tire installed or if the system is
overheating. The AWD system will resume normal function and clear this
message after driving a short distance with the road tire re-installed or
after the system is allowed to cool.
CHECK AWD (if equipped)— Displayed in conjunction with the
Throttle Control/Transmission/AWD
light when the AWD system is
not operating properly. If the warning stays on or continues to come on,
contact your authorized dealer as soon as possible.
OIL LIFE CHANGE SOON— Displayed when the engine oil life
remaining is 10% or less.
OIL CHANGE REQUIRED— Displayed when the oil life left reaches
0%.
BLIND SPOT SYSTEM FAULT (if equipped)— Displayed when a
fault with the blind spot information system has a fault. Contact your
authorized dealer as soon as possible.
CROSS TRAFFIC SYSTEM FAULT (if equipped)— Displayed when
a fault with the cross traffic alert system has a fault. Contact your
authorized dealer as soon as possible.
BLIND SPOT NOT AVAILABLE (if equipped)— Displayed when
blind spot information system is not available. SeeBlind Spot
Information System (BLIS
) with Cross Traffic Alertin theDriving
chapter.
CROSS TRAFFIC NOT AVAILABLE (if equipped)— Displayed
when cross traffic alert is not available. SeeBlind Spot Information
System (BLIS
) with Cross Traffic Alertin theDrivingchapter.
SENSOR BLOCKED SEE MANUAL (if equipped)— Displayed when
the blind spot information system/cross traffic alert system sensors are
blocked. SeeBlind Spot Information System (BLIS
) with Cross
Traffic Alertin theDrivingchapter.
VEHICLE COMING FROM LEFT (if equipped)— Displayed when
the blind spot information system with cross traffic alert (CTA) system is
operating and senses a vehicle. SeeBlind Spot Information System
(BLIS
) with Cross Traffic Alertin theDrivingchapter.
VEHICLE COMING FROM RIGHT (if equipped)— Displayed when
the blind spot information system with cross traffic alert (CTA) system is
operating and senses a vehicle. SeeBlind Spot Information System
(BLIS
) with Cross Traffic Alertin theDrivingchapter.
Instrument Cluster
26
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)

IDENTIFYING COMPONENTS IN THE ENGINE COMPARTMENT
3.5L V6 engine
1. Power steering fluid reservoir
2. Engine coolant reservoir
3. Brake fluid reservoir
4. Battery
5. Power distribution box
6. Air filter assembly
7. Automatic transmission fluid dipstick
8. Engine oil dipstick
9. Engine oil filler cap
10. Windshield washer fluid reservoir
Maintenance and Specifications
328
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)

3.5L V6 SHO engine
1. Engine coolant reservoir
2. Brake fluid reservoir
3. Battery
4. Power distribution box
5. Air filter assembly
6. Automatic transmission fluid dipstick (out of view)
7. Engine oil dipstick
8. Engine oil filler cap
9. Windshield washer fluid reservoir
Maintenance and Specifications
329
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)

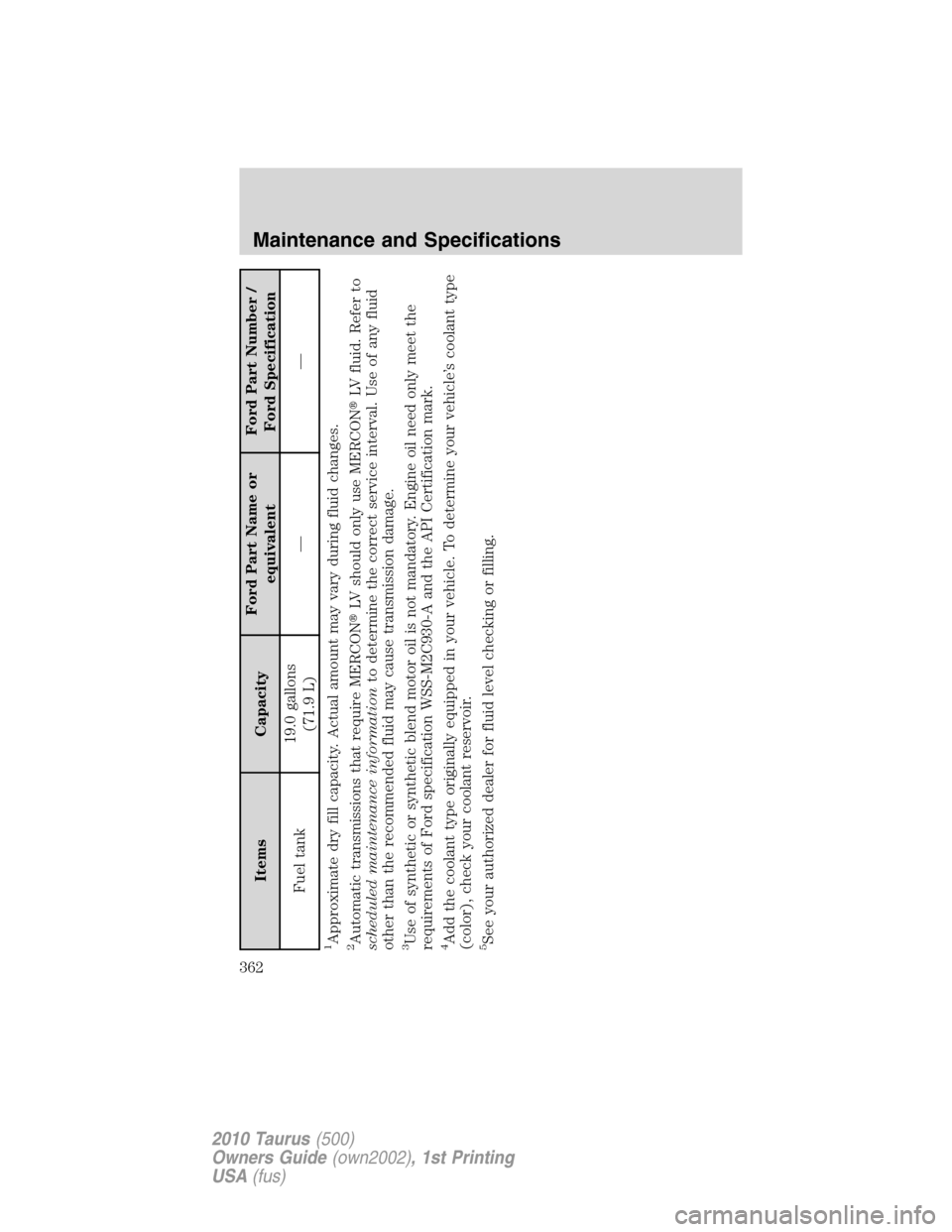

Items CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification
Fuel tank19.0 gallons
(71.9 L)——
1Approximate dry fill capacity. Actual amount may vary during fluid changes.2Automatic transmissions that require MERCON
LV should only use MERCON
LV fluid. Refer to
scheduled maintenance informationto determine the correct service interval. Use of any fluid
other than the recommended fluid may cause transmission damage.3Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.4Add the coolant type originally equipped in your vehicle. To determine your vehicle’s coolant type
(color), check your coolant reservoir.5See your authorized dealer for fluid level checking or filling.
Maintenance and Specifications
362
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)

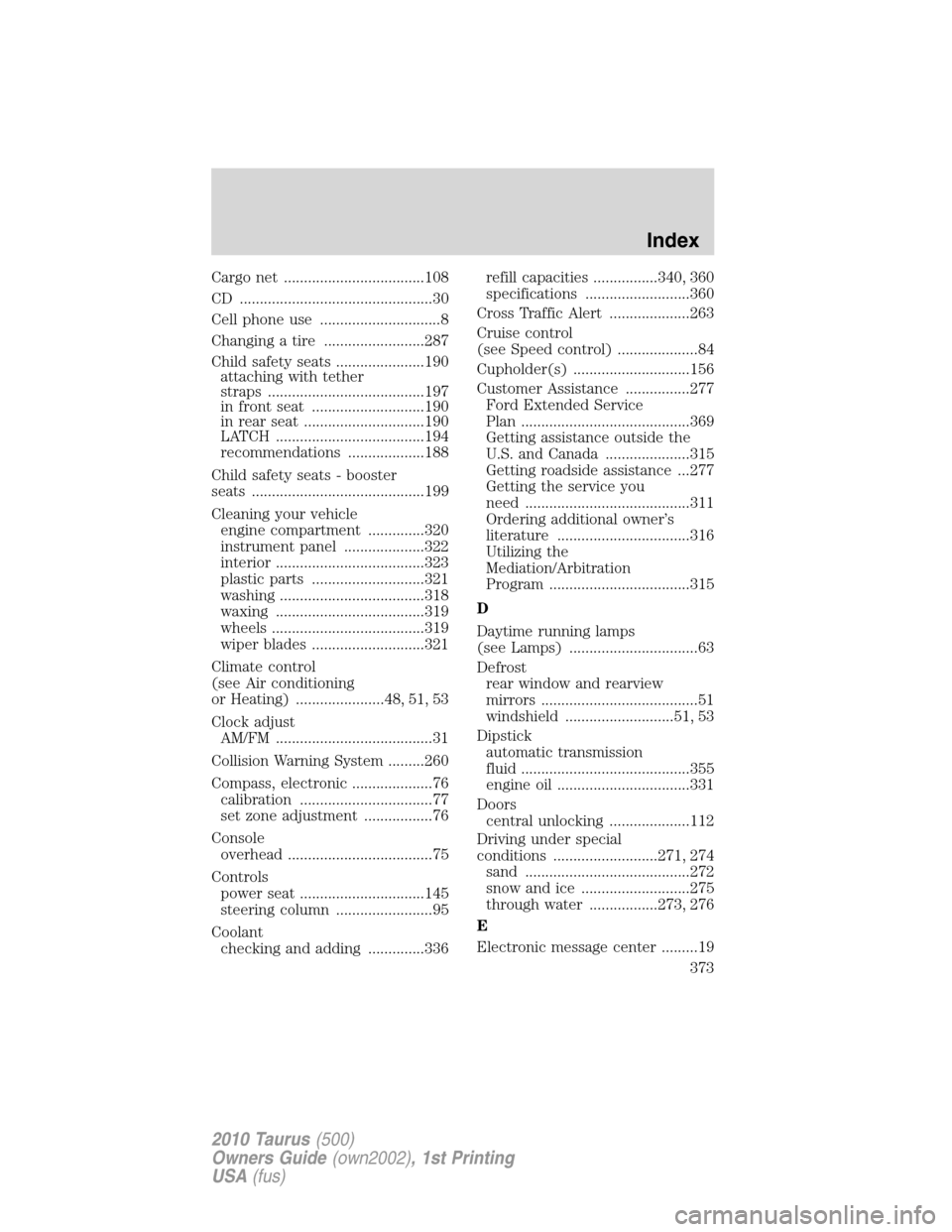

Cargo net ...................................108
CD ................................................30
Cell phone use ..............................8
Changing a tire .........................287
Child safety seats ......................190
attaching with tether
straps .......................................197
in front seat ............................190
in rear seat ..............................190
LATCH .....................................194
recommendations ...................188
Child safety seats - booster
seats ...........................................199
Cleaning your vehicle
engine compartment ..............320
instrument panel ....................322
interior .....................................323
plastic parts ............................321
washing ....................................318
waxing .....................................319
wheels ......................................319
wiper blades ............................321
Climate control
(see Air conditioning
or Heating) ......................48, 51, 53
Clock adjust
AM/FM .......................................31
Collision Warning System .........260
Compass, electronic ....................76
calibration .................................77
set zone adjustment .................76
Console
overhead ....................................75
Controls
power seat ...............................145
steering column ........................95
Coolant
checking and adding ..............336refill capacities ................340, 360
specifications ..........................360
Cross Traffic Alert ....................263
Cruise control
(see Speed control) ....................84
Cupholder(s) .............................156
Customer Assistance ................277
Ford Extended Service
Plan ..........................................369
Getting assistance outside the
U.S. and Canada .....................315
Getting roadside assistance ...277
Getting the service you
need .........................................311
Ordering additional owner’s
literature .................................316
Utilizing the
Mediation/Arbitration
Program ...................................315
D
Daytime running lamps
(see Lamps) ................................63
Defrost
rear window and rearview
mirrors .......................................51
windshield ...........................51, 53
Dipstick
automatic transmission
fluid ..........................................355
engine oil .................................331
Doors
central unlocking ....................112
Driving under special
conditions ..........................271, 274
sand .........................................272
snow and ice ...........................275
through water .................273, 276
E
Electronic message center .........19
Index
373
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)
