2010 FORD MUSTANG tow

Introduction
2
Shelby GT500 unique features
4
Driving your Shelby GT500
8
Alternate calibration 8
Transmission operation 8
AdvanceTrac
9
Driving through water 9
Ground clearance 10
Washing your vehicle 10
Tire information
11
Wheel lug nut torque 12
Roadside Emergencies
16
Wrecker towing 16
Maintenance and Specifications
20
Engine oil 21
Air filter(s) 25
Part numbers 26
Refill capacities 27
Warranty coverage
32
All rights reserved. Reproduction by any means, electronic or mechanical
including photocopying, recording or by any information storage and retrieval
system or translation in whole or part is not permitted without written
authorization from Ford Motor Company. Ford may change the contents without
notice and without incurring obligation.
Copyright © 2009 Ford Motor Company
Table of Contents
1
2010 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

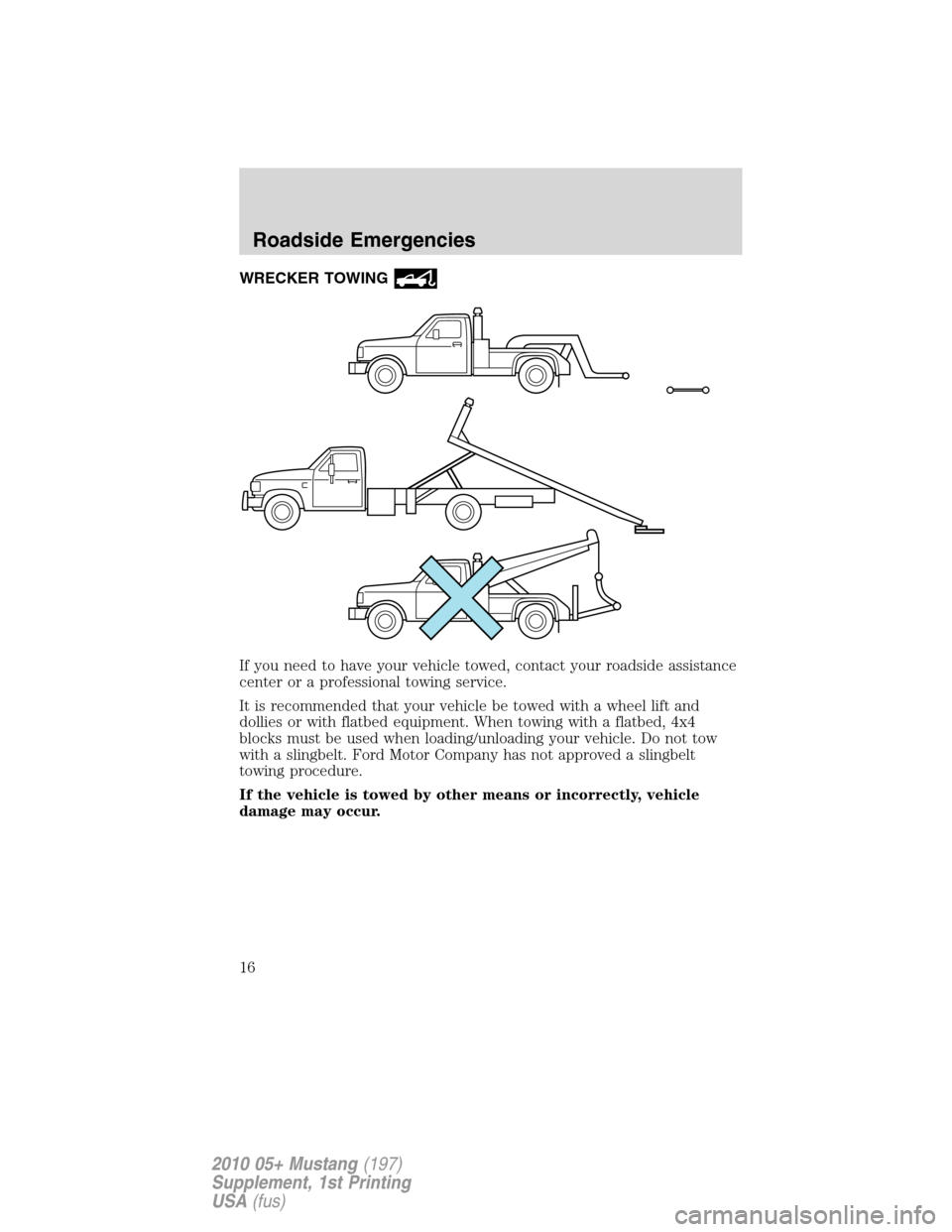

WRECKER TOWING
If you need to have your vehicle towed, contact your roadside assistance
center or a professional towing service.
It is recommended that your vehicle be towed with a wheel lift and
dollies or with flatbed equipment. When towing with a flatbed, 4x4
blocks must be used when loading/unloading your vehicle. Do not tow
with a slingbelt. Ford Motor Company has not approved a slingbelt
towing procedure.
If the vehicle is towed by other means or incorrectly, vehicle
damage may occur.
Roadside Emergencies
16
2010 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

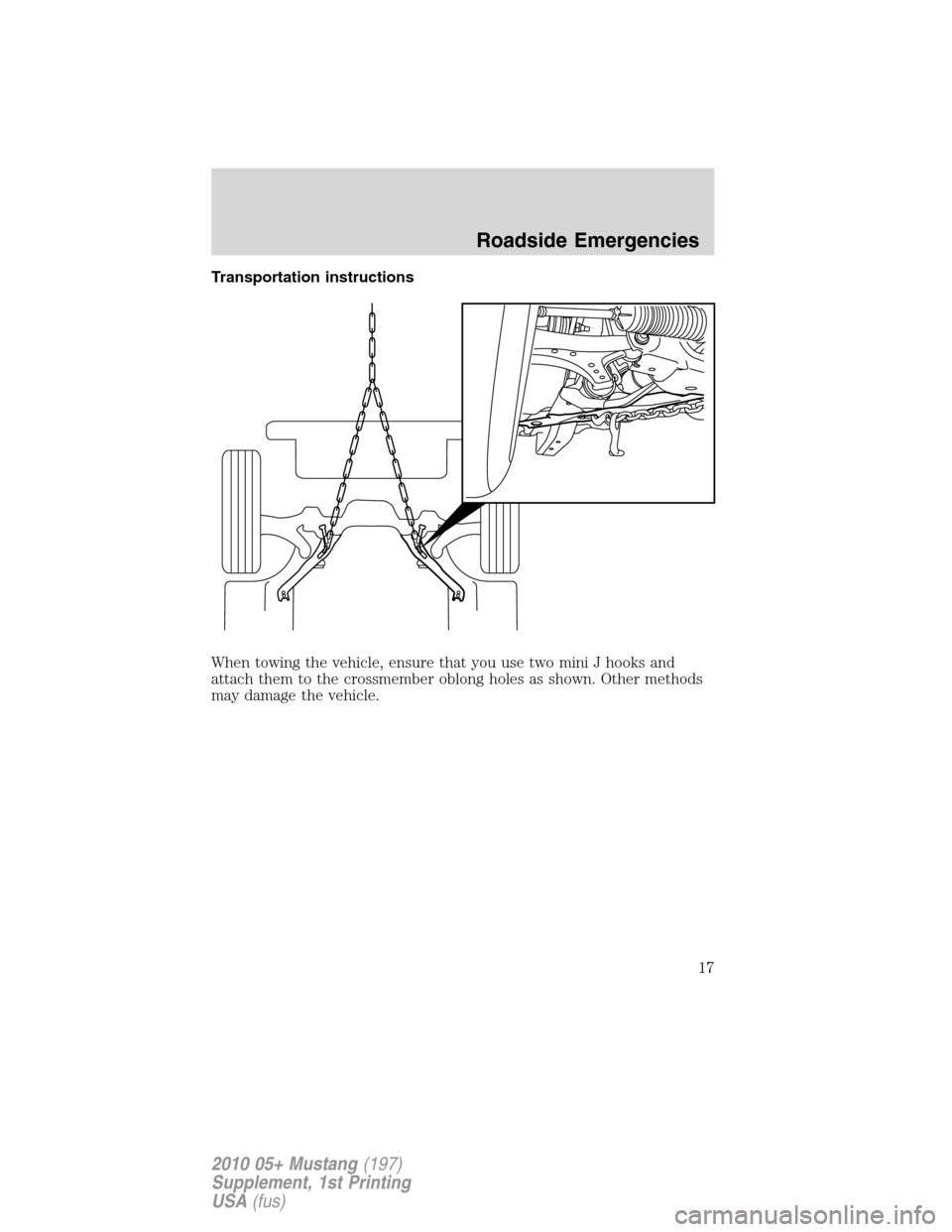

Transportation instructions
When towing the vehicle, ensure that you use two mini J hooks and
attach them to the crossmember oblong holes as shown. Other methods
may damage the vehicle.
Roadside Emergencies
17
2010 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

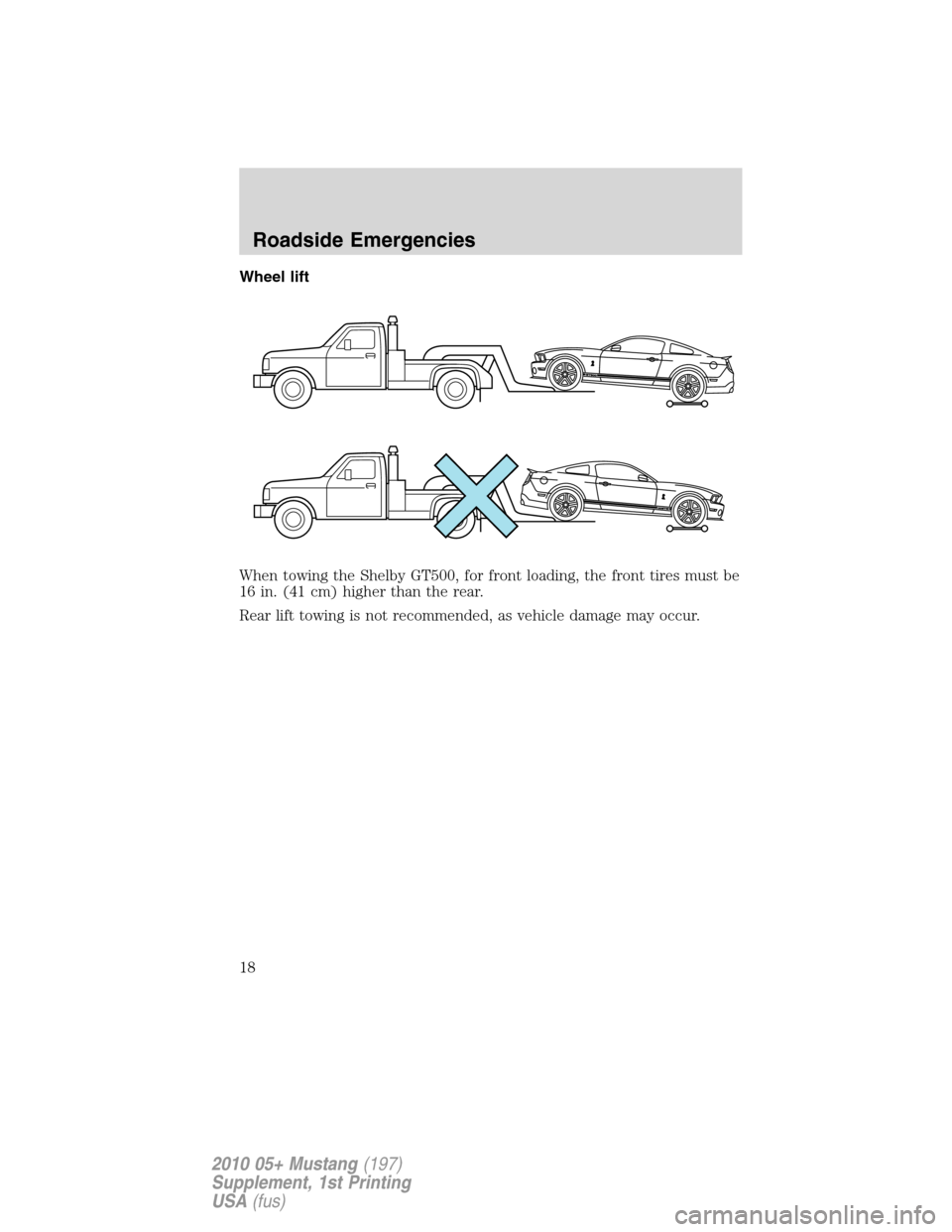

Wheel lift
When towing the Shelby GT500, for front loading, the front tires must be
16 in. (41 cm) higher than the rear.
Rear lift towing is not recommended, as vehicle damage may occur.
Roadside Emergencies
18
2010 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)
