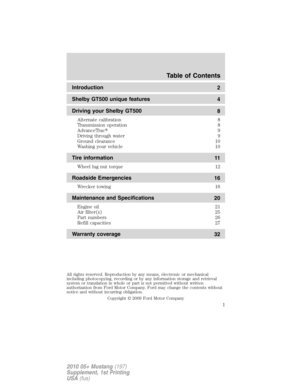

Page 1 of 32
Introduction
2
Shelby GT500 unique features
4
Driving your Shelby GT500
8
Alternate calibration 8
Transmission operation 8
AdvanceTrac9
Driving through water 9
Ground clearance 10
Washing your vehicle 10
Tire information
11
Wheel lug nut torque 12
Roadside Emergencies
16
Wrecker towing 16
Maintenance and Specifications
20
Engine oil 21
Air filter(s) 25
Part numbers 26
Refill capacities 27
Warranty coverage
32
All rights reserved. Reproduction by any means, electronic or mechanical
including photocopying, recording or by any information storage and retrieval
system or translation in whole or part is not permitted without written
authorization from Ford Motor Company. Ford may change the contents without
notice and without incurring obligation.
Copyright © 2009 Ford Motor Company
Table of Contents
1
2010 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)
Page 2 of 32

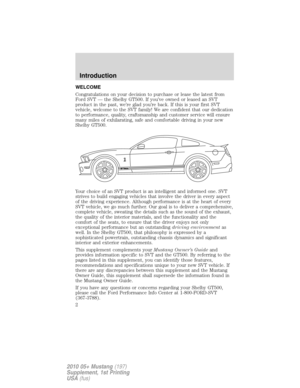

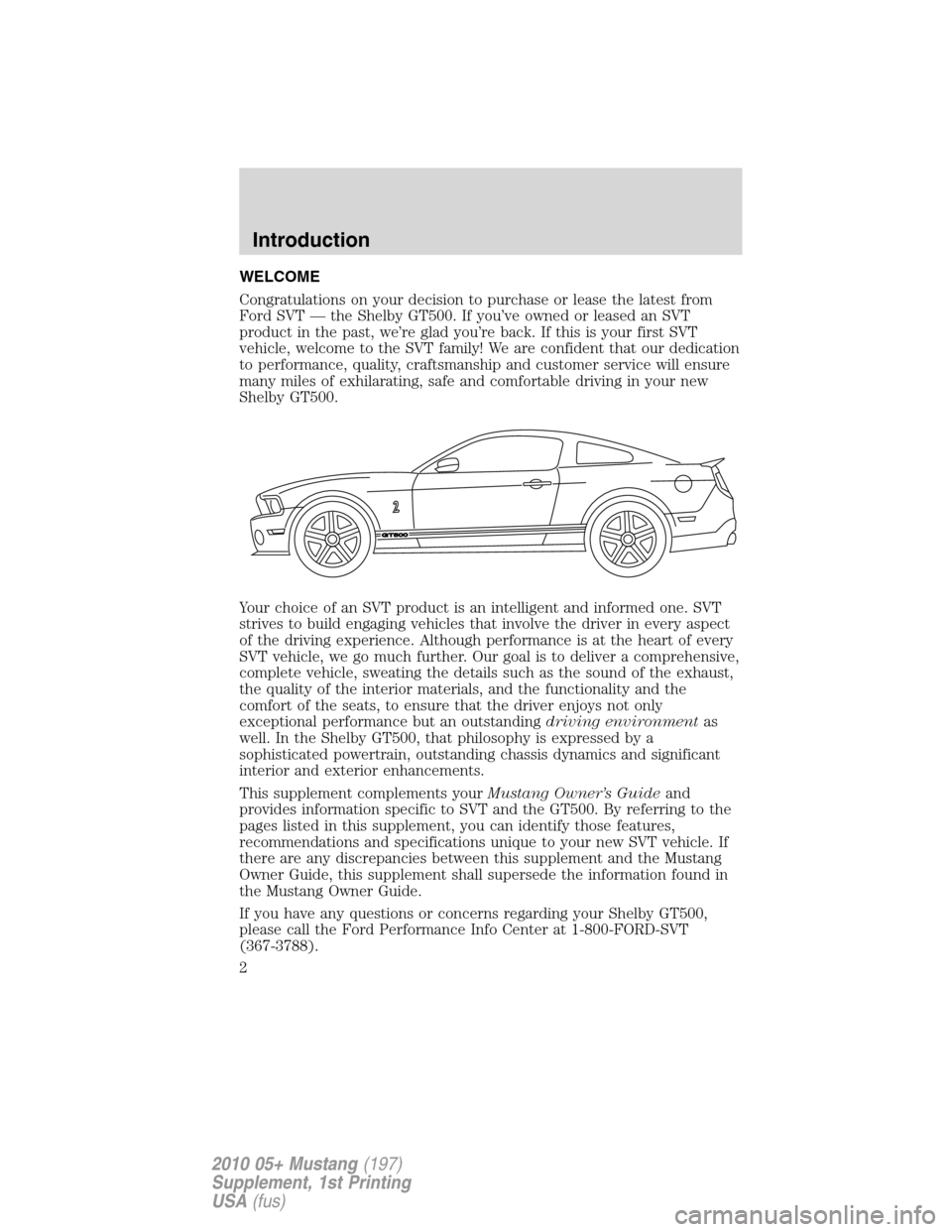

WELCOME
Congratulations on your decision to purchase or lease the latest from
Ford SVT — the Shelby GT500. If you’ve owned or leased an SVT
product in the past, we’re glad you’re back. If this is your first SVT
vehicle, welcome to the SVT family! We are confident that our dedication
to performance, quality, craftsmanship and customer service will ensure
many miles of exhilarating, safe and comfortable driving in your new
Shelby GT500.
Your choice of an SVT product is an intelligent and informed one. SVT
strives to build engaging vehicles that involve the driver in every aspect
of the driving experience. Although performance is at the heart of every
SVT vehicle, we go much further. Our goal is to deliver a comprehensive,
complete vehicle, sweating the details such as the sound of the exhaust,
the quality of the interior materials, and the functionality and the
comfort of the seats, to ensure that the driver enjoys not only
exceptional performance but an outstandingdriving environmentas
well. In the Shelby GT500, that philosophy is expressed by a
sophisticated powertrain, outstanding chassis dynamics and significant
interior and exterior enhancements.
This supplement complements yourMustang Owner’s Guideand
provides information specific to SVT and the GT500. By referring to the
pages listed in this supplement, you can identify those features,
recommendations and specifications unique to your new SVT vehicle. If
there are any discrepancies between this supplement and the Mustang
Owner Guide, this supplement shall supersede the information found in
the Mustang Owner Guide.
If you have any questions or concerns regarding your Shelby GT500,
please call the Ford Performance Info Center at 1-800-FORD-SVT
(367-3788).
Introduction
2
2010 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)
Page 3 of 32
SVT HISTORY
The Ford Special Vehicle Team (SVT) was established in 1991 to “Polish
the Ford Oval” by creating low-volume, factory-produced vehicles
designed for those select few whose idea of driving is a high-powered,
passionate experience — not just a means of getting from point A to
point B.
In a move to support this spirited enthusiasm, Ford Motor Company
carefully integrated the wide array of talent in the company into a small,
cross-functional group of engineers and product planners, housed
together under one roof with a common mission: to create vehicles
specifically designed to meet the unique needs and desires of the
knowledgeable driving enthusiast.
Each of nearly 150,000 SVT vehicles produced since the 1993 model year
has been designed and developed with the four SVT Hallmarks in mind:
Performance, Substance, Exclusivity and Value. These hallmarks have
driven the SVT Mustang Cobra and the Cobra R, the SVT F-150
Lightning, the SVT Contour, the SVT Focus, Ford GT, Shelby GT500 and
GT500KR.
We are proud and passionate about what we do, and we’re glad you have
made us your choice.
Introduction
3
2010 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)
Page 4 of 32

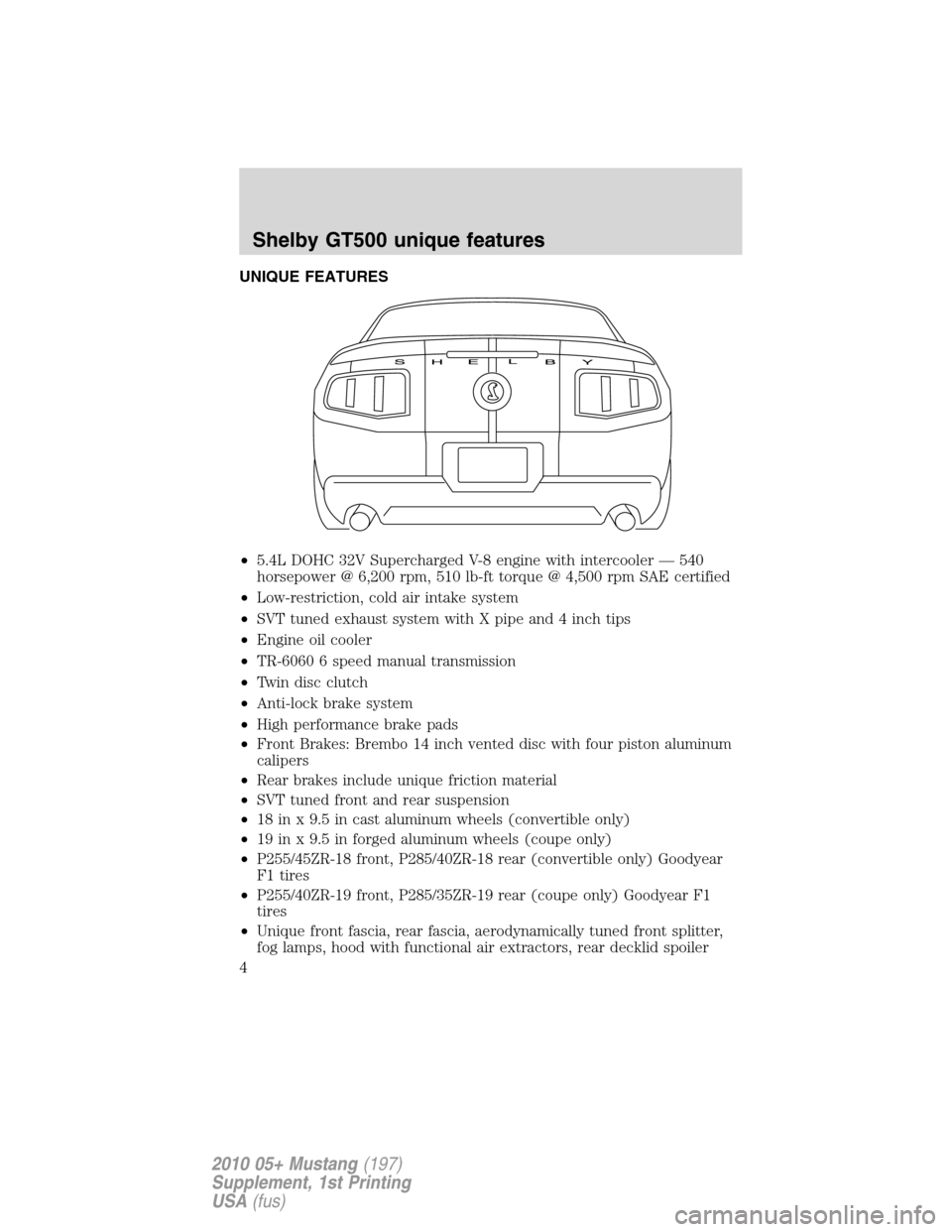

UNIQUE FEATURES
•5.4L DOHC 32V Supercharged V-8 engine with intercooler — 540
horsepower @ 6,200 rpm, 510 lb-ft torque @ 4,500 rpm SAE certified
•Low-restriction, cold air intake system
•SVT tuned exhaust system with X pipe and 4 inch tips
•Engine oil cooler
•TR-6060 6 speed manual transmission
•Twin disc clutch
•Anti-lock brake system
•High performance brake pads
•Front Brakes: Brembo 14 inch vented disc with four piston aluminum
calipers
•Rear brakes include unique friction material
•SVT tuned front and rear suspension
•18 in x 9.5 in cast aluminum wheels (convertible only)
•19 in x 9.5 in forged aluminum wheels (coupe only)
•P255/45ZR-18 front, P285/40ZR-18 rear (convertible only) Goodyear
F1 tires
•P255/40ZR-19 front, P285/35ZR-19 rear (coupe only) Goodyear F1
tires
•Unique front fascia, rear fascia, aerodynamically tuned front splitter,
fog lamps, hood with functional air extractors, rear decklid spoiler
Shelby GT500 unique features
4
2010 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)
Page 5 of 32
•Limited slip rear differential w/ 3.55 rear axle ratio
•Short throw shifter
•Flat blade wiper system
•AdvanceTrac Stability Enhancement System with sport mode
specifically calibrated and race track tuned. To engage, refer to the
Drivingsection in your owner’s guide.
•Unique cluster with boost gauge and programmable performance shift
indicator
•Unique Shelby GT500 seats
•Leather-wrapped sport steering wheel, shift boot and parking brake
handle
•I/P appliques, door panels, and scuff plates

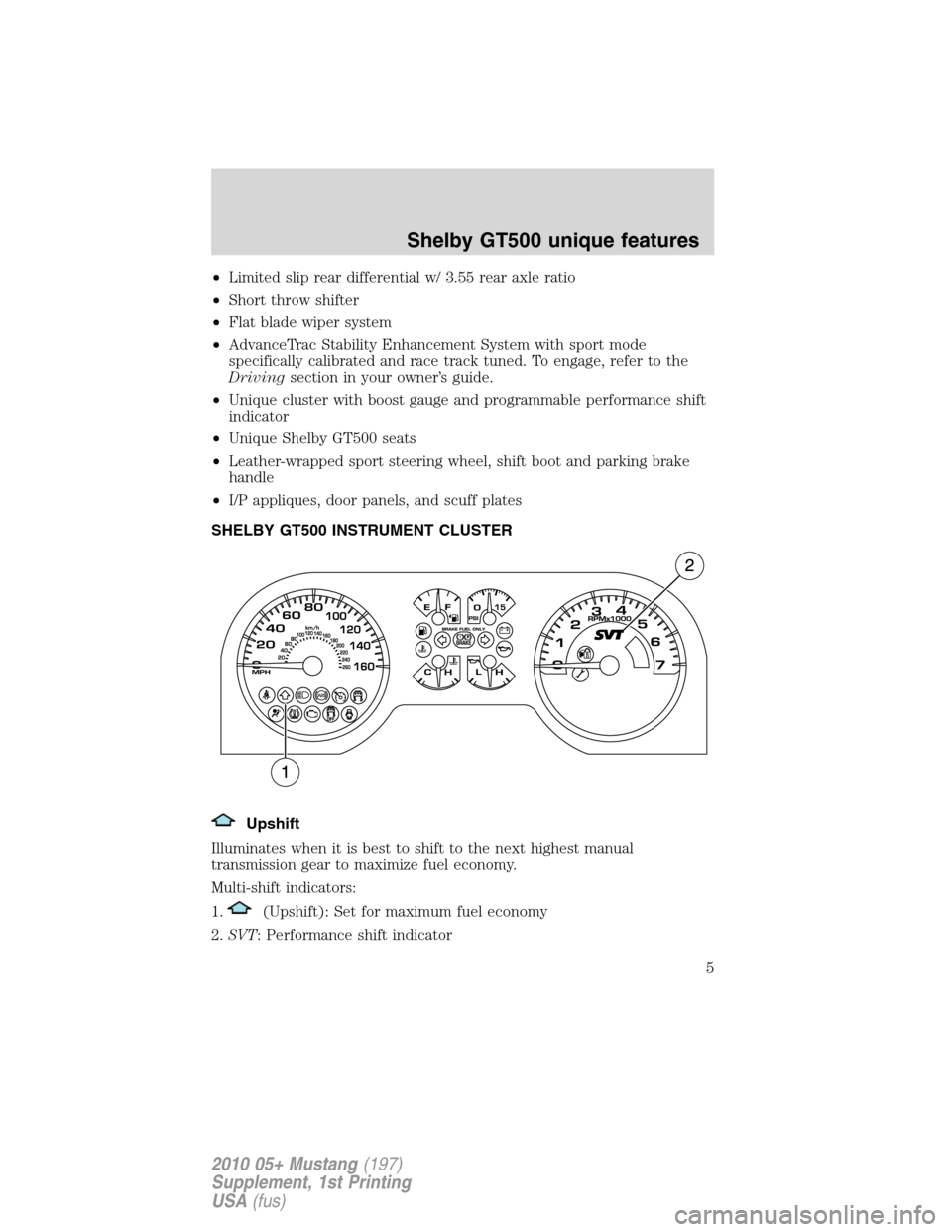

SHELBY GT500 INSTRUMENT CLUSTER
Upshift
Illuminates when it is best to shift to the next highest manual
transmission gear to maximize fuel economy.
Multi-shift indicators:
1.
(Upshift): Set for maximum fuel economy
2.SVT: Performance shift indicator
Shelby GT500 unique features
5
2010 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)
Page 6 of 32
Performance shift indicator
Your vehicle is equipped with a programmable performance shift
indicator. When activated, this feature provides a visual (SHIFTLAMP)
and/or audible (SHIFTTONE) cue to shift to the next highest gear at an
engine rpm specified by the driver.
The SHIFTLAMP feature uses the SVT logo on the tachometer to notify
you when the desired shiftpoint is reached. The SVT symbol is backlit in
red under normal driving conditions (SHIFTLAMP OFF). When the
SHIFTLAMP is set to ON, the red backlighting is turned off and the SVT
logo will turn bright orange when the desired shift point is reached.
The SHIFTTONE feature uses an audible tone to notify you when the
desired shiftpoint is reached.
SHIFTLAMP and SHIFTTONE can be used separately, together, or
turned off completely.
To use the performance shift indicator feature,first bring the vehicle
to a complete stopthen use the message center controls as follows:
Note:The vehicle’s headlamps or park lamps must be on to
perform/check light functions.
1. Press SETUP repeatedly until
PRESS RESET TO SET
SHIFTPOINT appears in the display.
2. Press RESET to choose between
SHIFTLAMP ON/OFF. Press SETUP
when finished.
3. Press RESET to choose between
SHIFTTONE ON/OFF. Press SETUP
when finished.
4. Press and hold INFO to lower the
desired SHIFTPOINT in increments
of 100 rpm.
Shelby GT500 unique features
6
2010 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)
Page 7 of 32

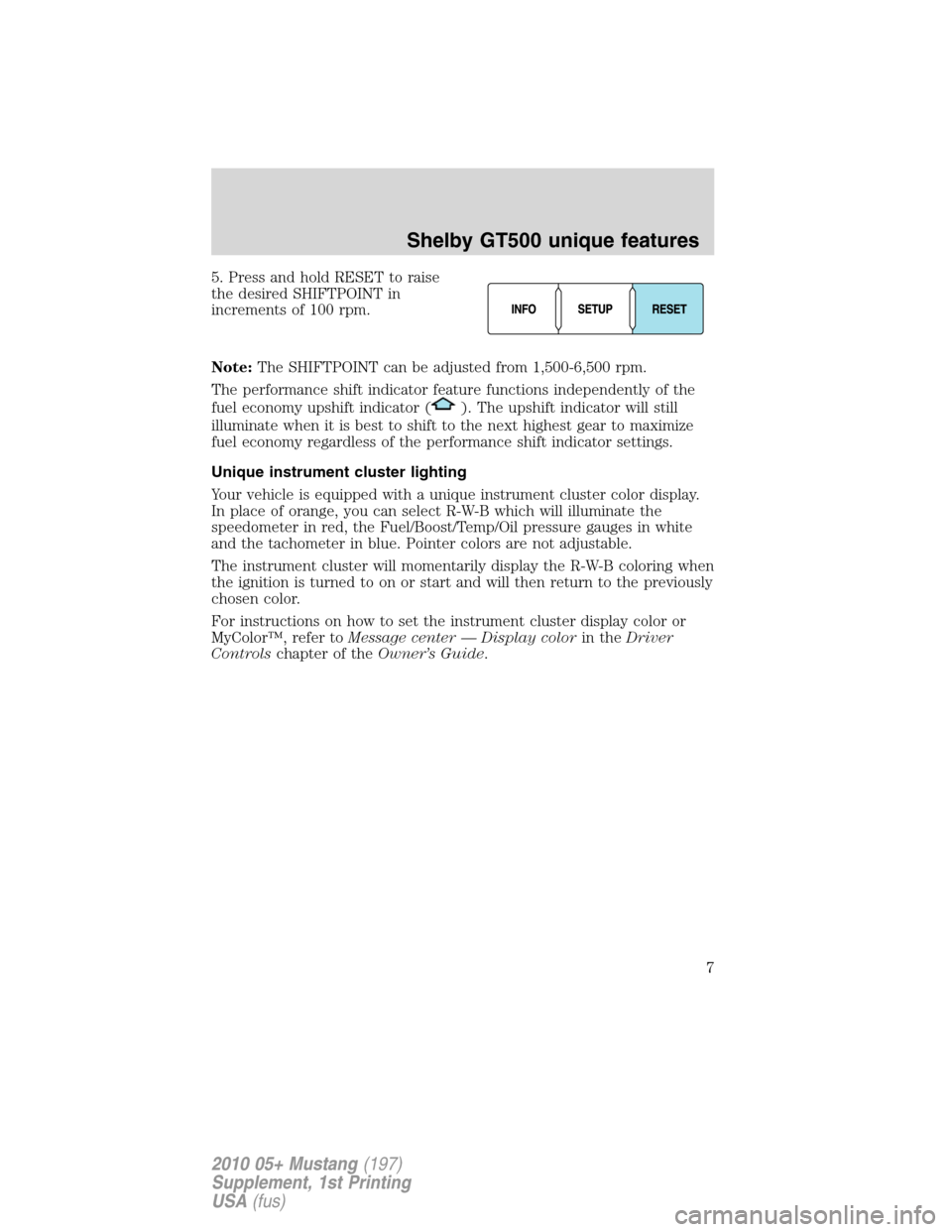

5. Press and hold RESET to raise
the desired SHIFTPOINT in
increments of 100 rpm.
Note:The SHIFTPOINT can be adjusted from 1,500-6,500 rpm.
The performance shift indicator feature functions independently of the
fuel economy upshift indicator (
). The upshift indicator will still
illuminate when it is best to shift to the next highest gear to maximize
fuel economy regardless of the performance shift indicator settings.
Unique instrument cluster lighting
Your vehicle is equipped with a unique instrument cluster color display.
In place of orange, you can select R-W-B which will illuminate the
speedometer in red, the Fuel/Boost/Temp/Oil pressure gauges in white
and the tachometer in blue. Pointer colors are not adjustable.
The instrument cluster will momentarily display the R-W-B coloring when
the ignition is turned to on or start and will then return to the previously
chosen color.
For instructions on how to set the instrument cluster display color or
MyColor™, refer toMessage center — Display colorin theDriver
Controlschapter of theOwner’s Guide.
Shelby GT500 unique features
7
2010 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)
Page 8 of 32

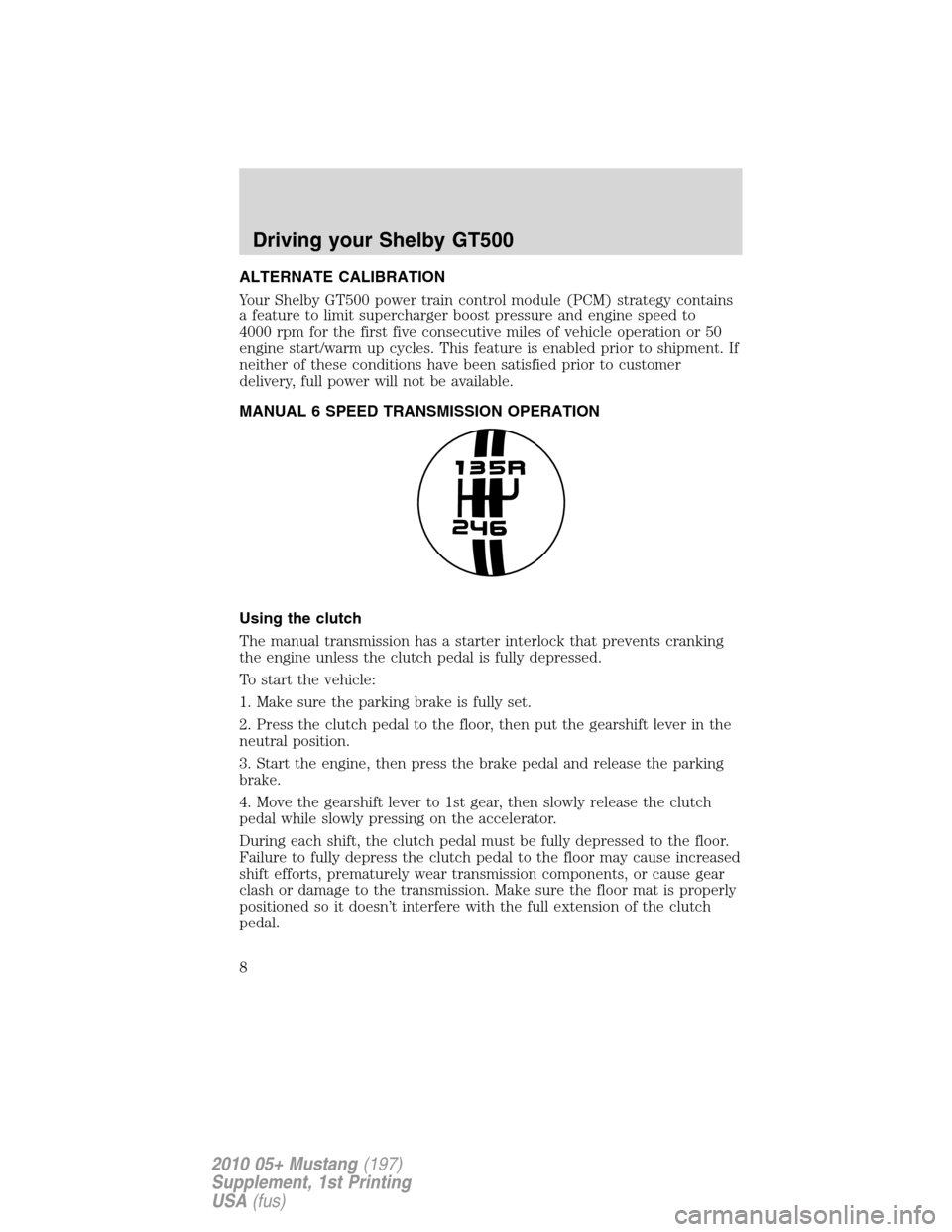

ALTERNATE CALIBRATION
Your Shelby GT500 power train control module (PCM) strategy contains
a feature to limit supercharger boost pressure and engine speed to
4000 rpm for the first five consecutive miles of vehicle operation or 50
engine start/warm up cycles. This feature is enabled prior to shipment. If
neither of these conditions have been satisfied prior to customer
delivery, full power will not be available.
MANUAL 6 SPEED TRANSMISSION OPERATION
Using the clutch
The manual transmission has a starter interlock that prevents cranking
the engine unless the clutch pedal is fully depressed.
To start the vehicle:
1. Make sure the parking brake is fully set.
2. Press the clutch pedal to the floor, then put the gearshift lever in the
neutral position.
3. Start the engine, then press the brake pedal and release the parking
brake.
4. Move the gearshift lever to 1st gear, then slowly release the clutch
pedal while slowly pressing on the accelerator.
During each shift, the clutch pedal must be fully depressed to the floor.
Failure to fully depress the clutch pedal to the floor may cause increased
shift efforts, prematurely wear transmission components, or cause gear
clash or damage to the transmission. Make sure the floor mat is properly
positioned so it doesn’t interfere with the full extension of the clutch
pedal.
Driving your Shelby GT500
8
2010 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)
