2010 FORD MUSTANG Shelby GT500 Supplement Manual

Transportation instructions
When towing the vehicle, ensure that you use two mini J hooks and
attach them to the crossmember oblong holes as shown. Other methods
may damage the vehicle.
Roadside Emergencies
17
2010 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

Wheel lift
When towing the Shelby GT500, for front loading, the front tires must be
16 in. (41 cm) higher than the rear.
Rear lift towing is not recommended, as vehicle damage may occur.
Roadside Emergencies
18
2010 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

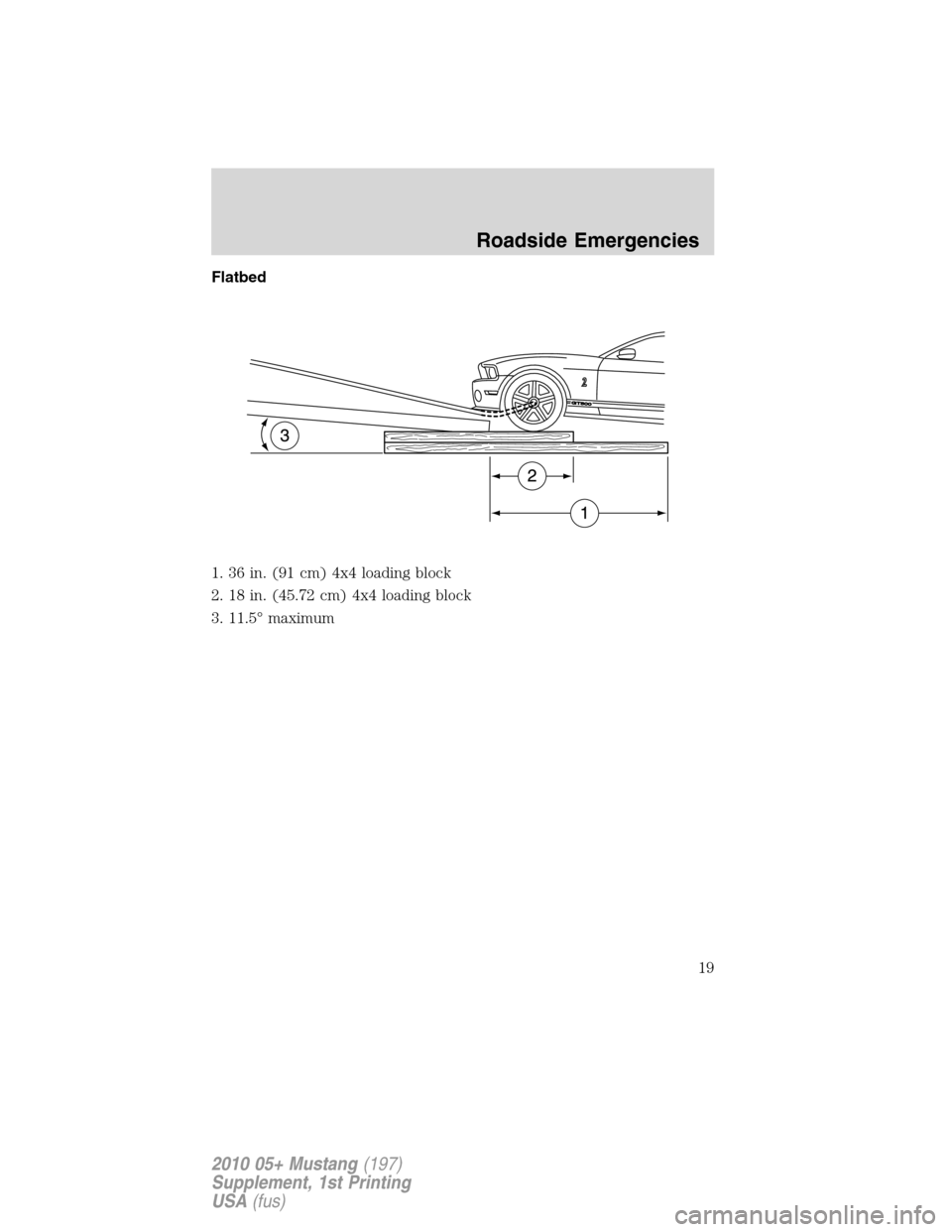

Flatbed
1. 36 in. (91 cm) 4x4 loading block
2. 18 in. (45.72 cm) 4x4 loading block
3. 11.5° maximum
Roadside Emergencies
19
2010 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

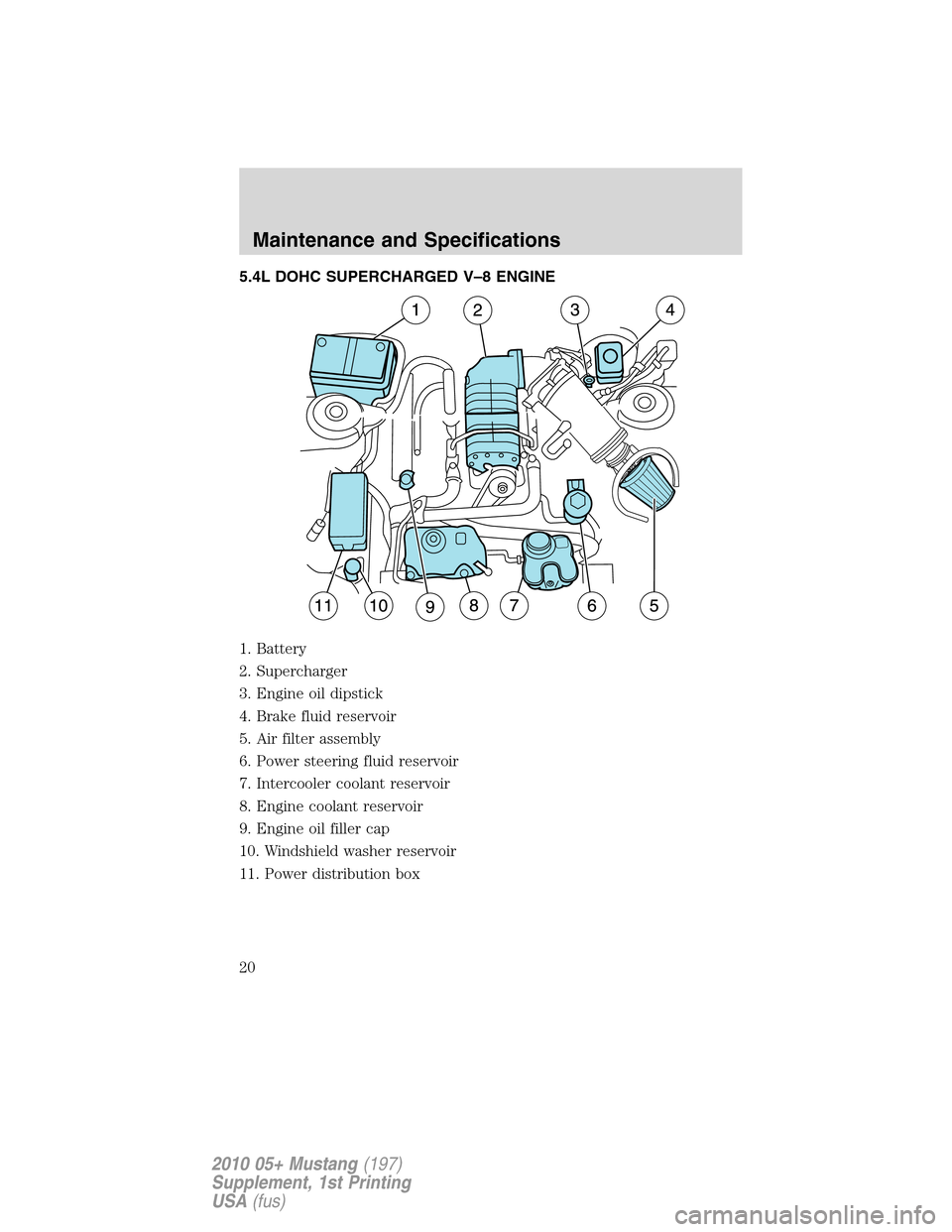

5.4L DOHC SUPERCHARGED V–8 ENGINE
1. Battery
2. Supercharger
3. Engine oil dipstick
4. Brake fluid reservoir
5. Air filter assembly
6. Power steering fluid reservoir
7. Intercooler coolant reservoir
8. Engine coolant reservoir
9. Engine oil filler cap
10. Windshield washer reservoir
11. Power distribution box
Maintenance and Specifications
20
2010 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

ENGINE OIL RECOMMENDATION
Use Motorcraft SAE 5W-50 full synthetic or an equivalent SAE 5W-50 full
synthetic oil meeting Ford specification WSS-M2C931-B.
Do not use supplemental engine oil additives, cleaners or other engine
treatments. They are unnecessary and could lead to engine damage that
is not covered by Ford warranty.
Change your engine oil and filter according to the appropriate schedule
listed in thescheduled maintenance information.
ENGINE AND INTERCOOLER COOLANT
The concentration and level of coolant should be checked at the mileage
intervals listed in thescheduled maintenance information.The coolant
concentration should be maintained at 50/50 coolant and water, which
equates to a freeze point of -36°C (-34°F). Coolant concentration testing
is possible with a hydrometer or antifreeze tester (such as the Rotunda
Battery and Antifreeze Tester, 0014–R1060). The level of coolant should
be maintained at the “cold fill range” level in the coolant reservoir. If the
level falls below, add coolant per the instructions in theAdding coolant
section.
Your vehicle was factory-filled with a 50/50 coolant and water
concentration. If the concentration of coolant falls below 40% or above
60%, the engine parts could become damaged or not work properly.A
50/50 mixture of coolant and water provides the following:
•freeze protection down to -36°C (-34°F).
•boiling protection up to 129°C (265°F).
•protection against rust and other forms of corrosion.
•an accurate temperature readout from the engine coolant
gauge.
Maintenance and Specifications
21
2010 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

When the engine is cold, check the
level of the engine coolant in the
reservoir.
•The coolant should be at the “cold fill range” as listed on the engine
coolant reservoir and intercooler coolant reservoir.
•Refer to thescheduled maintenance informationfor service interval
schedules.
•Be sure to read and understandPrecautions when servicing your
vehiclein yourOwner’s Guide.
If the coolant has not been checked at the recommended interval, the
engine or intercooler coolant reservoir may become low or empty. If the
reservoir is low or empty, add coolant to the reservoir. Refer toAdding
coolantin this chapter.
Note:Automotive fluids are not interchangeable; do not use engine
coolant, antifreeze or windshield washer fluid outside of its specified
function and vehicle location.
Adding coolant
When adding coolant, make sure it is a 50/50 mixture of coolant and
distilled water. Add the mixture to the coolant reservoir,when the
engine is cool, until the appropriate fill level is obtained.
Maintenance and Specifications
22
2010 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

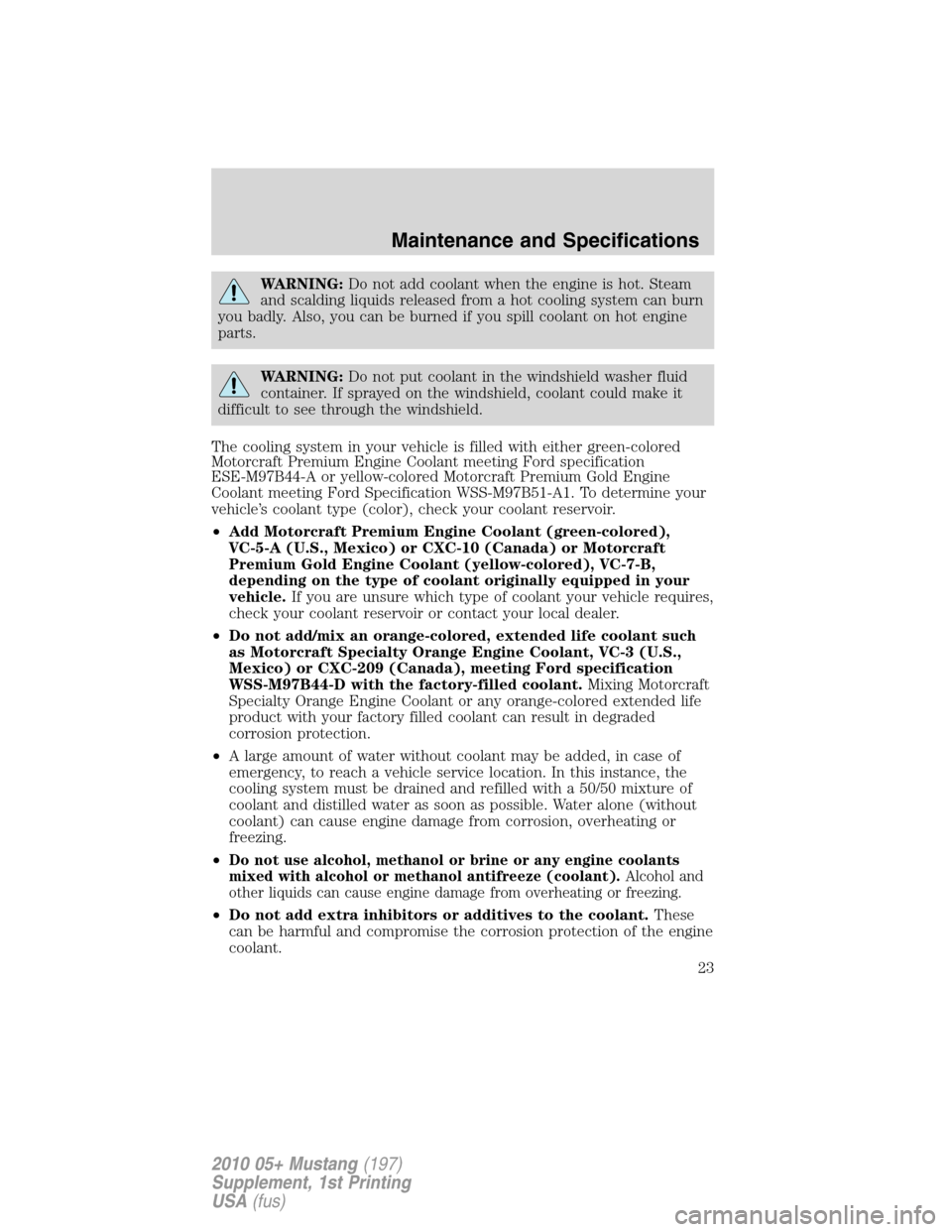

WARNING:Do not add coolant when the engine is hot. Steam
and scalding liquids released from a hot cooling system can burn
you badly. Also, you can be burned if you spill coolant on hot engine
parts.
WARNING:Do not put coolant in the windshield washer fluid
container. If sprayed on the windshield, coolant could make it
difficult to see through the windshield.
The cooling system in your vehicle is filled with either green-colored
Motorcraft Premium Engine Coolant meeting Ford specification
ESE-M97B44-A or yellow-colored Motorcraft Premium Gold Engine
Coolant meeting Ford Specification WSS-M97B51-A1. To determine your
vehicle’s coolant type (color), check your coolant reservoir.
•Add Motorcraft Premium Engine Coolant (green-colored),
VC-5-A (U.S., Mexico) or CXC-10 (Canada) or Motorcraft
Premium Gold Engine Coolant (yellow-colored), VC-7-B,
depending on the type of coolant originally equipped in your
vehicle.If you are unsure which type of coolant your vehicle requires,
check your coolant reservoir or contact your local dealer.
•Do not add/mix an orange-colored, extended life coolant such
as Motorcraft Specialty Orange Engine Coolant, VC-3 (U.S.,
Mexico) or CXC-209 (Canada), meeting Ford specification
WSS-M97B44-D with the factory-filled coolant.Mixing Motorcraft
Specialty Orange Engine Coolant or any orange-colored extended life
product with your factory filled coolant can result in degraded
corrosion protection.
•A large amount of water without coolant may be added, in case of
emergency, to reach a vehicle service location. In this instance, the
cooling system must be drained and refilled with a 50/50 mixture of
coolant and distilled water as soon as possible. Water alone (without
coolant) can cause engine damage from corrosion, overheating or
freezing.
•
Do not use alcohol, methanol or brine or any engine coolants
mixed with alcohol or methanol antifreeze (coolant).Alcohol and
other liquids can cause engine damage from overheating or freezing.
•Do not add extra inhibitors or additives to the coolant.These
can be harmful and compromise the corrosion protection of the engine
coolant.
Maintenance and Specifications
23
2010 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

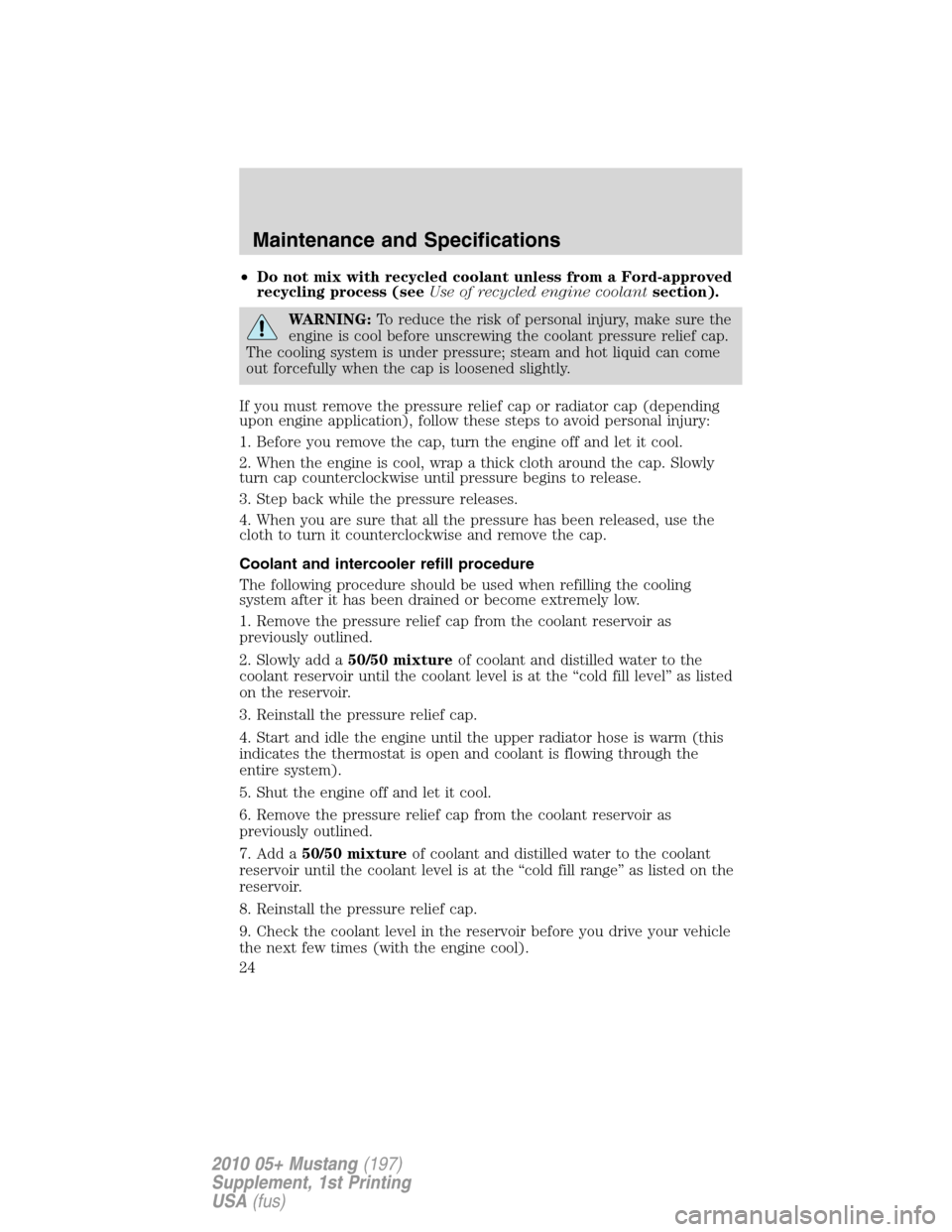

•Do not mix with recycled coolant unless from a Ford-approved
recycling process (seeUse of recycled engine coolantsection).
WARNING:To reduce the risk of personal injury, make sure the
engine is cool before unscrewing the coolant pressure relief cap.
The cooling system is under pressure; steam and hot liquid can come
out forcefully when the cap is loosened slightly.
If you must remove the pressure relief cap or radiator cap (depending
upon engine application), follow these steps to avoid personal injury:
1. Before you remove the cap, turn the engine off and let it cool.
2. When the engine is cool, wrap a thick cloth around the cap. Slowly
turn cap counterclockwise until pressure begins to release.
3. Step back while the pressure releases.
4. When you are sure that all the pressure has been released, use the
cloth to turn it counterclockwise and remove the cap.
Coolant and intercooler refill procedure
The following procedure should be used when refilling the cooling
system after it has been drained or become extremely low.
1. Remove the pressure relief cap from the coolant reservoir as
previously outlined.
2. Slowly add a50/50 mixtureof coolant and distilled water to the
coolant reservoir until the coolant level is at the “cold fill level” as listed
on the reservoir.
3. Reinstall the pressure relief cap.
4. Start and idle the engine until the upper radiator hose is warm (this
indicates the thermostat is open and coolant is flowing through the
entire system).
5. Shut the engine off and let it cool.
6. Remove the pressure relief cap from the coolant reservoir as
previously outlined.
7. Add a50/50 mixtureof coolant and distilled water to the coolant
reservoir until the coolant level is at the “cold fill range” as listed on the
reservoir.
8. Reinstall the pressure relief cap.
9. Check the coolant level in the reservoir before you drive your vehicle
the next few times (with the engine cool).
