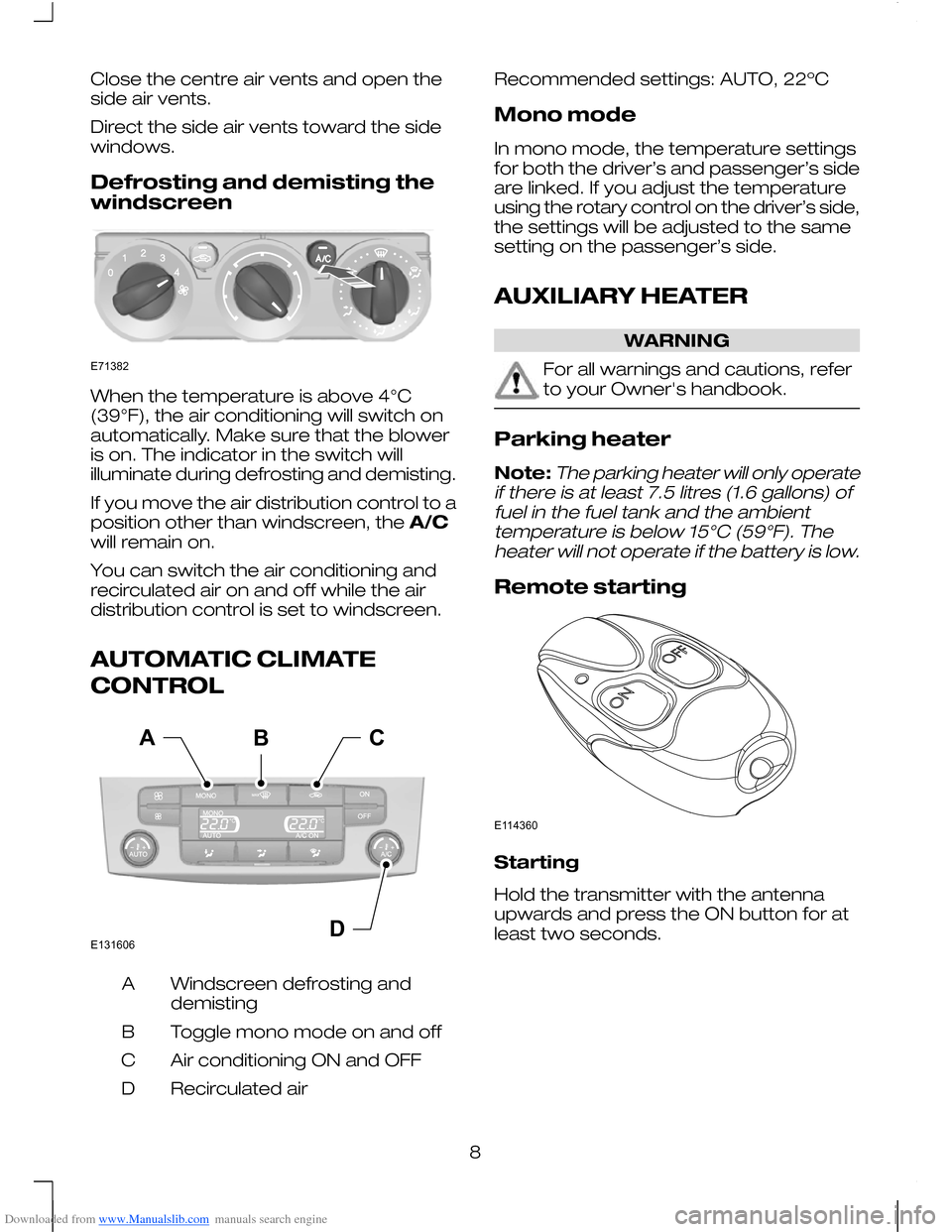

Downloaded from www.Manualslib.com manuals search engine Close the centre air vents and open the
side air vents.
Direct the side air vents toward the side
windows.
Defrosting and demisting the
windscreen
When the temperature is above 4°C
(39°F), the air conditioning will switch on
automatically. Make sure that the blower
is on. The indicator in the switch will
illuminate during defrosting and demisting.
If you move the air distribution control to a
position other than windscreen, the
A/C
will remain on.
You can switch the air conditioning and
recirculated air on and off while the air
distribution control is set to windscreen.
AUTOMATIC CLIMATE
CONTROL Windscreen defrosting and
demisting
A
Toggle mono mode on and off
B
Air conditioning ON and OFF
C
Recirculated air
D Recommended settings: AUTO, 22ºC
Mono mode
In mono mode, the temperature settings
for both the driver’s and passenger’s side
are linked. If you adjust the temperature
using the rotary control on the driver’s side,
the settings will be adjusted to the same
setting on the passenger’s side.
AUXILIARY HEATER
WARNING
For all warnings and cautions, refer
to your Owner's handbook.
Parking heater
Note:The parking heater will only operate
if there is at least 7.5 litres (1.6 gallons) of fuel in the fuel tank and the ambienttemperature is below 15°C (59°F). Theheater will not operate if the battery is low.
Remote starting Starting
Hold the transmitter with the antenna
upwards and press the ON button for at
least two seconds.
8E71382 E131606DACB E114360

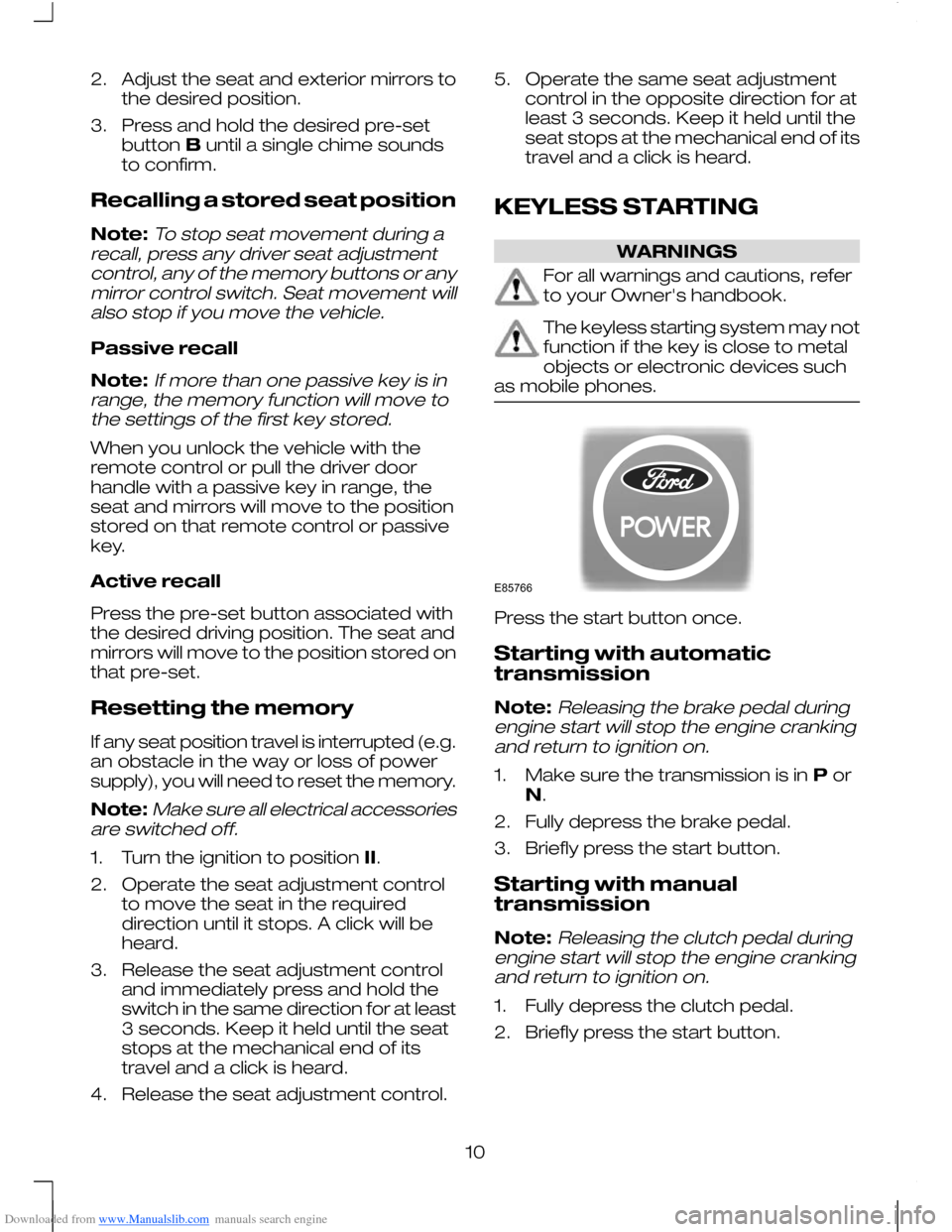

Downloaded from www.Manualslib.com manuals search engine 2. Adjust the seat and exterior mirrors to
the desired position.
3. Press and hold the desired pre-set button Buntil a single chime sounds
to confirm.
Recalling a stored seat position
Note:To stop seat movement during a
recall, press any driver seat adjustment control, any of the memory buttons or anymirror control switch. Seat movement willalso stop if you move the vehicle.
Passive recall
Note:
If more than one passive key is in
range, the memory function will move to the settings of the first key stored.
When you unlock the vehicle with the
remote control or pull the driver door
handle with a passive key in range, the
seat and mirrors will move to the position
stored on that remote control or passive
key.
Active recall
Press the pre-set button associated with
the desired driving position. The seat and
mirrors will move to the position stored on
that pre-set.
Resetting the memory
If any seat position travel is interrupted (e.g.
an obstacle in the way or loss of power
supply), you will need to reset the memory.
Note:
Make sure all electrical accessories
are switched off.
1. Turn the ignition to position II.
2. Operate the seat adjustment control to move the seat in the required
direction until it stops. A click will be
heard.
3. Release the seat adjustment control and immediately press and hold the
switch in the same direction for at least
3 seconds. Keep it held until the seat
stops at the mechanical end of its
travel and a click is heard.
4. Release the seat adjustment control. 5. Operate the same seat adjustment
control in the opposite direction for at
least 3 seconds. Keep it held until the
seat stops at the mechanical end of its
travel and a click is heard.
KEYLESS STARTING WARNINGS
For all warnings and cautions, refer
to your Owner's handbook.
The keyless starting system may not
function if the key is close to metal
objects or electronic devices such
as mobile phones. Press the start button once.
Starting with automatic
transmission
Note:
Releasing the brake pedal during
engine start will stop the engine cranking and return to ignition on.
1. Make sure the transmission is in Por
N.
2. Fully depress the brake pedal.
3. Briefly press the start button.
Starting with manual
transmission
Note:
Releasing the clutch pedal during
engine start will stop the engine cranking and return to ignition on.
1. Fully depress the clutch pedal.
2. Briefly press the start button.
10E85766
