WASHING THE EXTERIOR
Wash your vehicle regularly with cool or lukewarm water and a neutral
pH shampoo, such as Motorcraft
Detail Wash (ZC-3-A), which is
available from your authorized dealer.
• Never use strong household detergents or soap, such as dish washing
or laundry liquid. These products can discolor and spot painted
surfaces.
• Never wash a vehicle that is “hot to the touch” or during exposure to
strong, direct sunlight.
• Always use a clean sponge or car wash mitt with plenty of water for
best results.
• Dry the vehicle with a chamois or soft terry cloth towel in order to
eliminate water spotting.
• It is especially important to wash the vehicle regularly during the
winter months, as dirt and road salt are difficult to remove and cause
damage to the vehicle.
• Immediately remove items such as gasoline, diesel fuel, bird droppings
and insect deposits because they can cause damage to the vehicle’s
paintwork and trim over time. Use Motorcraft
Bug and Tar Remover
(ZC-42), which is available from your authorized dealer.
• Remove any exterior accessories, such as antennas, before entering a
car wash.
• Suntan lotions and insect repellents can damage any painted
surface; if these substances come in contact with your vehicle,
wash off as soon as possible.
• If your vehicle is equipped with running boards, do not use
rubber, plastic and vinyl protectant products on the running
board surface, as the area may become slippery.
Exterior chrome
• Wash the vehicle first, using cool or lukewarm water and a neutral pH
shampoo, such as Motorcraft
Detail Wash (ZC-3-A).
• Use Motorcraft
Custom Bright Metal Cleaner (ZC-15), available from
your authorized dealer. Apply the product as you would a wax to
clean bumpers and other chrome parts; allow the cleaner to dry for a
few minutes, then wipe off the haze with a clean, dry rag.
• Never use abrasive materials such as steel wool or plastic pads
as they can scratch the chrome surface. Cleaning
345
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)

5. Following this, wipe area dry with a clean, white, cotton cloth.
INSTRUMENT PANEL AND CONSOLE (HARLEY-DAVIDSON ONLY)
Your vehicle’s instrument panel and console are uniquely painted with
both high and low gloss paints that require special care. The high gloss
area is similar to that of the vehicle’s exterior; the low gloss area is
designed to help protect the driver from undesirable windshield
reflection.
High gloss paint area
In order to maintain the finish of the instrument panel and console, the
high gloss areas should be treated similar to the that of exterior paint or
glossy plastic surfaces. When cleaning the high gloss areas:
• Do not use paper towels or newspaper.
• Do not use silicone or Teflont
(PTFE)-based products.
Dust the high gloss areas with a clean, dry cloth, or use Motorcraft

Dusting Cloth (ZC-24 or ZC-25) or Motorcraft
Dusting Cloth Mitts
(ZC-47).
For general cleaning, use mild, soapy water and a soft, damp cloth, then
dry with a clean, dry cloth; or Motorcraft
Ultra-Clear Spray Glass
Cleaner (ZC-23).
For removal of fine scuffs and scratches, use Scotch-Brite Microfiber
Cloth or cheese cloth along with Motorcraft
Premium Liquid Wax
(ZC-53-A), Motorcraft
Paint Sealant (ZC-45), or Motorcraft
Custom
Clear Coat Polish (ZC-8-A). Note: Removal of deep scuffs and scratches
should be performed by an authorized dealer or an experienced repair
facility.
Low gloss paint area
The low gloss area of the instrument panel’s upper dash should be
cleaned with mild, soapy water and a soft, damp cloth, then dried with a
clean, dry cloth. When cleaning the low gloss areas:
• Do not use paper towels or newspaper.
• Do not use silicone or Teflont
(PTFE)-based products.
• Do not use exterior paint waxes or sealants.
Dust the low gloss areas with a clean, dry cloth, or use Motorcraft

Dusting Cloth (ZC-24 or ZC-25) or Motorcraft
Dusting Cloth Mitts
(ZC-47).Cleaning
350
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)

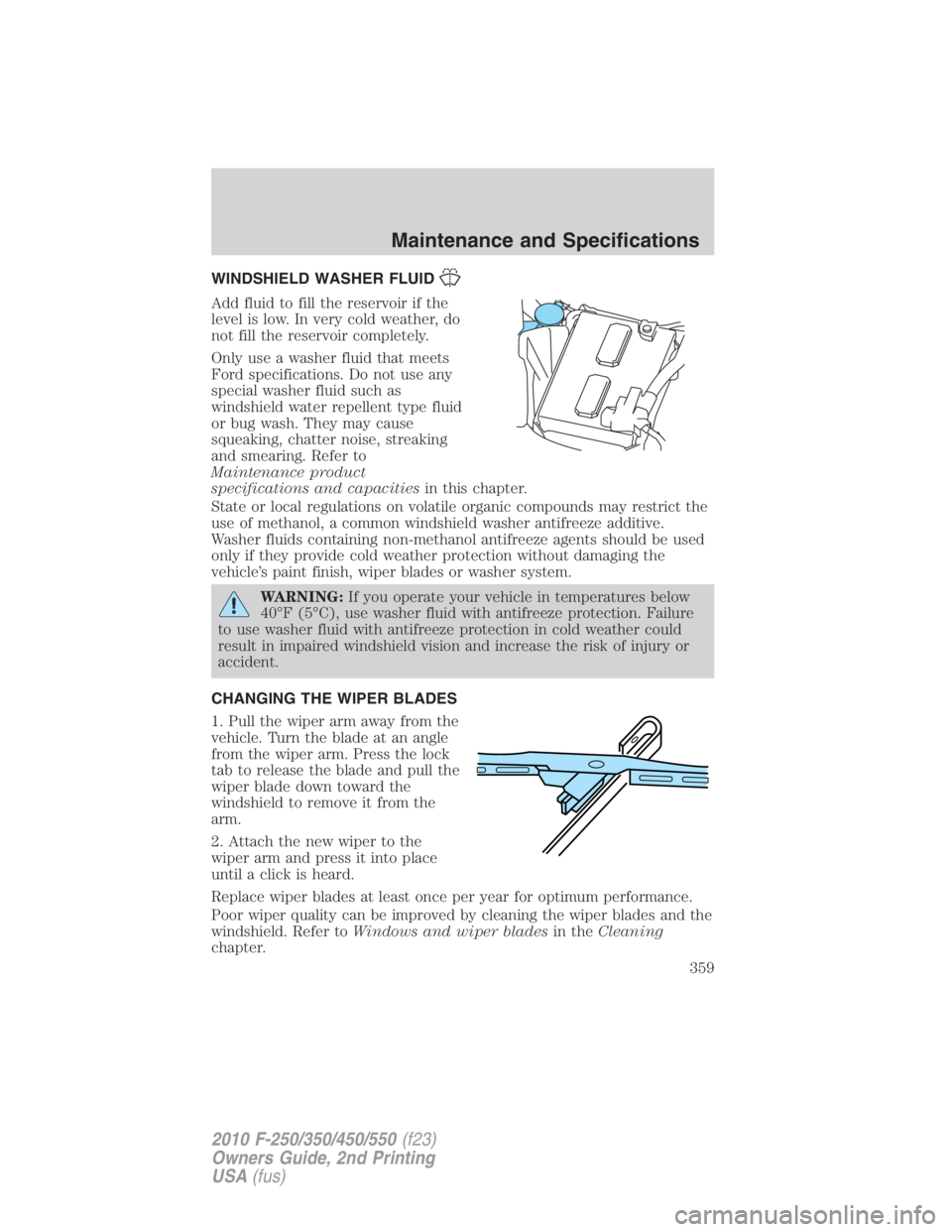

WINDSHIELD WASHER FLUID
Add fluid to fill the reservoir if the
level is low. In very cold weather, do
not fill the reservoir completely.
Only use a washer fluid that meets
Ford specifications. Do not use any
special washer fluid such as
windshield water repellent type fluid
or bug wash. They may cause
squeaking, chatter noise, streaking
and smearing. Refer to
Maintenance product
specifications and capacities in this chapter.
State or local regulations on volatile organic compounds may restrict the
use of methanol, a common windshield washer antifreeze additive.
Washer fluids containing non-methanol antifreeze agents should be used
only if they provide cold weather protection without damaging the
vehicle’s paint finish, wiper blades or washer system.
WARNING: If you operate your vehicle in temperatures below
40°F (5°C), use washer fluid with antifreeze protection. Failure
to use washer fluid with antifreeze protection in cold weather could
result in impaired windshield vision and increase the risk of injury or
accident.
CHANGING THE WIPER BLADES
1. Pull the wiper arm away from the
vehicle. Turn the blade at an angle
from the wiper arm. Press the lock
tab to release the blade and pull the
wiper blade down toward the
windshield to remove it from the
arm.
2. Attach the new wiper to the
wiper arm and press it into place
until a click is heard.
Replace wiper blades at least once per year for optimum performance.
Poor wiper quality can be improved by cleaning the wiper blades and the
windshield. Refer to Windows and wiper blades in the Cleaning
chapter. Maintenance and Specifications
359
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)

• Idling for long periods of time (greater than one minute) may waste
fuel.
• Anticipate stopping; slowing down may eliminate the need to stop.
• Sudden or hard accelerations may reduce fuel economy.
• Slow down gradually.
• Driving at reasonable speeds (traveling at 55 mph [88 km/h] uses 15%
less fuel than traveling at 65 mph [105 km/h]).
• Revving the engine before turning it off may reduce fuel economy.
• Using the air conditioner or defroster may reduce fuel economy.
• You may want to turn off the speed control in hilly terrain if
unnecessary shifting between the top gears occurs. Unnecessary
shifting of this type could result in reduced fuel economy.
• Warming up a vehicle on cold mornings is not required and may
reduce fuel economy.
• Resting your foot on the brake pedal while driving may reduce fuel
economy.
• Combine errands and minimize stop-and-go driving.
Maintenance
• Keep tires properly inflated and use only recommended size.
• Operating a vehicle with the wheels out of alignment will reduce fuel
economy.
• Use recommended engine oil. Refer to Maintenance product
specifications and capacities in this chapter.
• Perform all regularly scheduled maintenance items. Follow the
recommended maintenance schedule and owner maintenance checks
found in scheduled maintenance information.
Conditions
• Heavily loading a vehicle or towing a trailer may reduce fuel economy
at any speed.
• Carrying unnecessary weight may reduce fuel economy (approximately
1 mpg [0.4 km/L] is lost for every 400 lb [180 kg] of weight carried).
• Adding certain accessories to your vehicle (for example bug
deflectors, rollbars/light bars, running boards, ski/luggage racks) may
reduce fuel economy.
• To maximize the fuel economy, drive with the tonneau cover installed
(if equipped).Maintenance and Specifications
378
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)

The following procedure is for vehicles equipped with a gasoline engine.
If your vehicle is equipped with a diesel engine, refer to the 6.0 and 6.4
Liter Power Stroke Direct Injection Turbo Diesel Owner’s Guide
Supplement.
Note: Do not start your engine with the air cleaner removed and do not
remove it while the engine is running.
Changing the air filter element
1. Loosen clamp and disconnect
sensor.
2. Release three retainer clamps.
3. Pull air filter cover toward passenger side of vehicle and up to release
the tabs. Lift air filter element up and out of housing.
The air filter box needs to be free of any debris before installing a new
air filter.
4. Install a new air filter element into the tray assembly. Maintenance and Specifications
389
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)

Lifestyle
Ash cup / smoker’s package
Bedliners and bedmats
Cargo organization and management
Towing mirrors
Trailer hitches, wiring harnesses and accessories
Peace of mind
Keyless entry keypad
Remote start
Vehicle security systems
Wheel locks
Not all accessories are available for all models.
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
• When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification Label). Consult your authorized dealer for
specific weight information.
• The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by your authorized dealer.
• Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
• To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
• Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner may adversely affect
battery performance and durability. Accessories
399
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)

FORD ESP EXTENDED SERVICE PLANS
More than 30 million Ford, Lincoln, and Mercury owners have discovered
the powerful protection of Ford ESP. It is the only extended service plan
backed by Ford Motor Company, and provides “peace of mind”
protection beyond the New Vehicle Limited Warranty coverage.
Up to 500+ Covered Vehicle Components
There are four, new-vehicle Extended Service Plans with different levels
of coverage. Ask you dealer for details.
PremiumCare – Our most comprehensive coverage. With over 500
covered components, this plan is so complete that we generally only
discuss what’s not covered!
ExtraCare – Covers 113 components, and includes many high-tech
items.
BaseCare – Covers 84 components.
PowertrainCare – Covers 29 critical components.
Ford ESP is honored by all Ford, Lincoln and Mercury Dealers in
the U.S. and Canada It’s the only extended service plan authorized and
backed by Ford Motor Company. That means you get:
• Reliable, quality service anywhere you go.
• Factory-trained technicians.
• Genuine Ford and Motorcraft
Parts.
Rental car reimbursement
If your vehicle is kept overnight for covered repairs, you are
eligible for rental car coverage, including Bumper-to-Bumper warranty
repairs, or manufacturer’s recalls.
Transferable coverage
If you sell your vehicle before your Ford ESP coverage expires, you can
transfer any remaining coverage to the new owner. Whenever you’re
ready to sell your car, prospective buyers may feel better about taking a
risk on your used vehicle. Ford ESP may add resale value!
Plus, exclusive 24/7 roadside assistance, including:
• Towing, flat-tire change and battery jump starts.
• Out-of-fuel and lock-out assistance.
• Travel expense reimbursement for lodging, meals and rental car.
• Destination assistance for taxi, shuttle, rental car coverage and
emergency transportation.Ford Extended Service Plan
400
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)

tilting .......................................121
SYNC
..........................................97
T
Tailgate ......................................143
Temperature control (see
Climate control) ..........................98
Tilt steering wheel ....................121
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....237
Tires ...................................219–220
alignment ................................229
care ..........................................225
changing ..........................318, 320
checking the pressure ............224
inflating ...................................221
label .........................................236
replacing ..................................227
rotating ....................................229
safety practices .......................228
sidewall information ...............231
snow tires and chains ............243
spare tire .................................316
terminology .............................220
tire grades ...............................220
treadwear ........................219, 226
Towing .......................................251
recreational towing .................262
Trailer Brake
Controller-Integrated ..............256
trailer towing ..........................251
wrecker ....................................336
Traction control ........................271
Trailer Brake
Controller-Integrated ................256 Transfer case
fluid checking .........................388
Transmission
automatic operation ...............275
brake-shift interlock (BSI) ....274
fluid, checking and adding
(automatic) .............................384
fluid, checking and adding
(manual) .................................387
fluid, refill capacities ..............391
manual operation ....................278
Turn signal ................................112
U
Upfitter controls .......................137
USB port ......................................60
V
Vehicle Identification Number
(VIN) ..........................................396
Vehicle loading ..........................244
Ventilating your vehicle ...........267
W
Warning lights (see Lights) .......14
Washer fluid ..............................359
Water, Driving through .............299
Windows
power .......................................124
Windshield washer fluid and
wipers ........................................120
checking and adding fluid .....359
replacing wiper blades ...........359
Wrecker towing .........................336Index
408
2010 F-250/350/450/550 (f23)
Owners Guide, 2nd Printing
USA (fus)
