Item CapacityFord part name or
equivalentFord part number /
Ford specification
Cooling system stop
leak pellets—Motorcraft
Cooling
System Stop Leak PelletsVC-6 /
WSS-M99B37-B6
Front axle (4X4) 3.5 pints (1.8L)Motorcraft
SAE 80W-90
Premium Rear Axle
LubricantXY-80W-90-QL /
WSP-M2C197-A
Rear 8.8/9.75 inch axle
fluid5.5 pints (2.6L)
3
Motorcraft
SAE
75W-140 Rear Synthetic
Axle Lubricant
4
XY-75W140-QL /
WSL-M2C192-A
Transmission
/steering/parking brake
linkages and pivots,
brake pedal shaft—Premium Long-Life
GreaseXG-1-C /
ESA-M1C75-B
Hinges, latches, striker
plates, seat tracks, fuel
filler door hinge and
door check arm—Motorcraft

Multi-Purpose GreaseXG-4 or XL-5 /
ESB-M1C93-B
Power steering fluidFill to between
MIN and MAX
lines on reservoirMotorcraft

MERCON
V
AT FXT-5-QM /
MERCON
V
Transfer case fluid
(4X4 / AWD)1.6 quarts (1.5L)
5
Motorcraft
Transfer
Case FluidXL-12 /
—
Automatic transmission
fluid (4R75E)13.9 quarts
(13.2L)
6
(4.6L 2V engine)Motorcraft

MERCON
LV
AT F
7
XT-10-QLV /
MERCON
LV
Maintenance and Specifications
401
2010 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

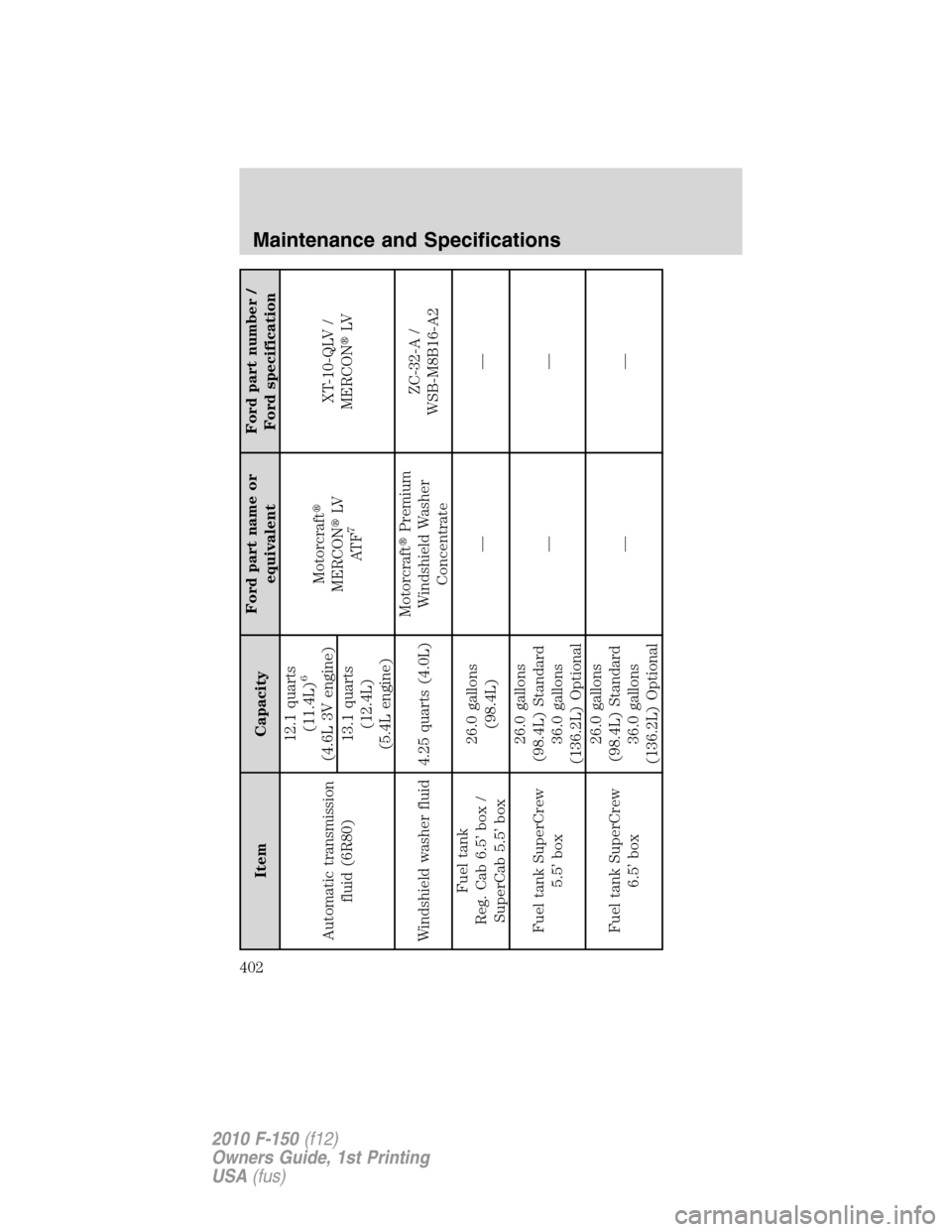

Item CapacityFord part name or
equivalentFord part number /
Ford specification
Automatic transmission
fluid (6R80)12.1 quarts
(11.4L)
6
(4.6L 3V engine)Motorcraft

MERCON
LV
AT F
7
XT-10-QLV /
MERCON
LV
13.1 quarts
(12.4L)
(5.4L engine)
Windshield washer fluid 4.25 quarts (4.0L)Motorcraft
Premium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16-A2
Fuel tank
Reg. Cab 6.5’ box /
SuperCab 5.5’ box26.0 gallons
(98.4L)——
Fuel tank SuperCrew
5.5’ box26.0 gallons
(98.4L) Standard
36.0 gallons
(136.2L) Optional——
Fuel tank SuperCrew
6.5’ box26.0 gallons
(98.4L) Standard
36.0 gallons
(136.2L) Optional——
Maintenance and Specifications
402
2010 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

Item CapacityFord part name or
equivalentFord part number /
Ford specification
Fuel tank
Reg. Cab 8’ box /
SuperCab 6.5’ box /
SuperCab 8’ box26.0 gallons
(98.4L) Standard
36.0 gallons
(136.2L) Optional——
1Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.2Add the coolant type originally equipped in your vehicle.3Service refill capacity is determined by filling the axle to 1/4-9/16 inch (6-14 mm) below the
bottom of the filler hole with the vehicle on a level surface.
Add 4 oz. (118 ml) of Additive Friction Modifier XL-3 or equivalent meeting Ford specification
EST-M2C118-A, for complete fill of 8.8 inch and 9.75 inch Traction-Lok axles.4Your vehicle’s rear axle is filled with a synthetic rear axle lubricant and is considered lubricated
for life. These lubricants do not need to be checked or changed unless a leak is suspected, service
is required or the axle assembly has been submerged in water. The axle lubricant should be
changed any time the rear axle has been submerged in water.5Service refill capacity is determined by filling the transfer case to the bottom of the filler hole
with the vehicle on a level surface.6Approximate dry fill capacity including transmission fluid cooling system, actual refill capacities
will vary based on vehicle application and transmission fluid cooling system (i.e. coolers size,
cooling lines, auxiliary cooler capacities). The amount of transmission fluid and fluid level should
be set by the indication on the dipstick’s normal operating range.7Automatic transmissions that require MERCON
LV should only use MERCON
LV fluid. Refer to
scheduled maintenance informationto determine the correct service interval. Use of any fluid
other than the recommended fluid may cause transmission damage.
Maintenance and Specifications
403
2010 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

ENGINE DATA
Engine4.6L 2V V8
engine4.6L 3V V8
engine5.4L V8 engine
Cubic inches 281 281 330
Fuel87 octane 87 octane 87 octane or
Ethanol (E85)
Firing order 1-3-7-2-6-5-4-8 1-3-7-2-6-5-4-8 1-3-7-2-6-5-4-8
Ignition system Coil on plug Coil on plug Coil on plug
Spark plug gap0.052–0.056 inch
(1.32–1.42mm)0.039–0.043 inch
(1.0–1.1mm)0.039–0.043 inch
(1.0–1.1mm)
Compression
ratio9.4:1 9.8:1 9.8:1
Maintenance and Specifications
404
2010 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

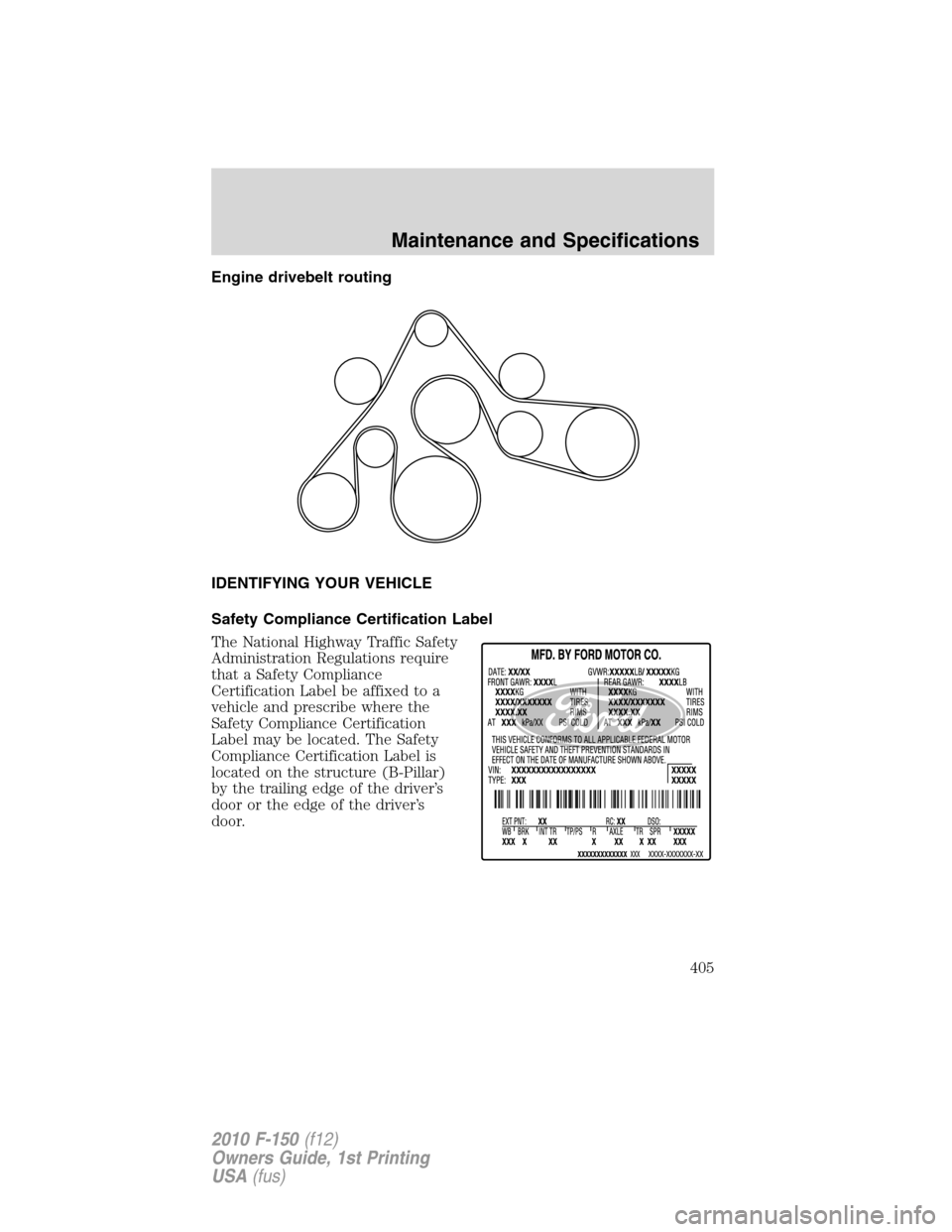

Engine drivebelt routing
IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
Maintenance and Specifications
405
2010 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

Vehicle identification number (VIN)
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
Devices and their location
3. Make, vehicle line, series, body
type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
XXXXXXXXXXXXXXXXX
Maintenance and Specifications
406
2010 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

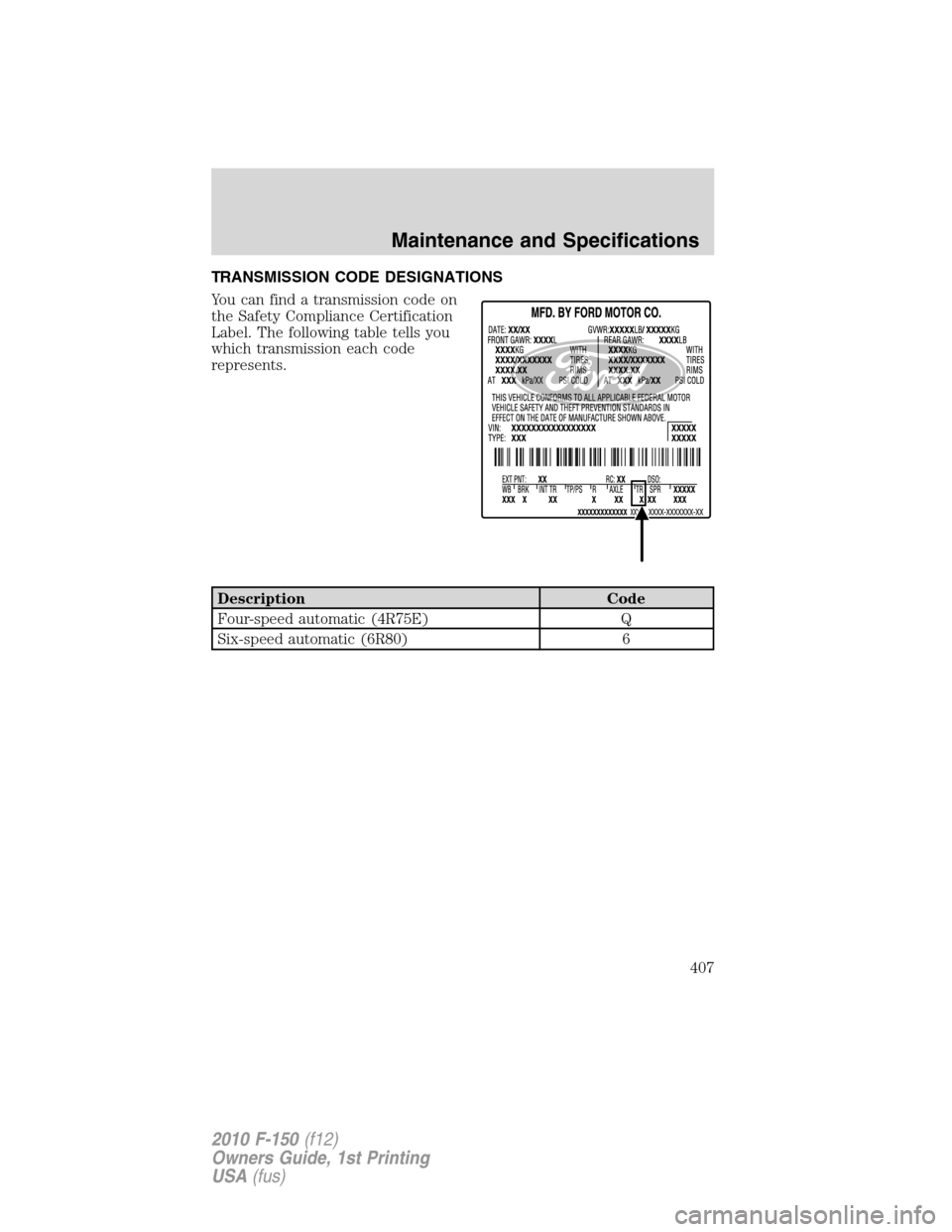

TRANSMISSION CODE DESIGNATIONS
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
Four-speed automatic (4R75E) Q
Six-speed automatic (6R80) 6
Maintenance and Specifications
407
2010 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

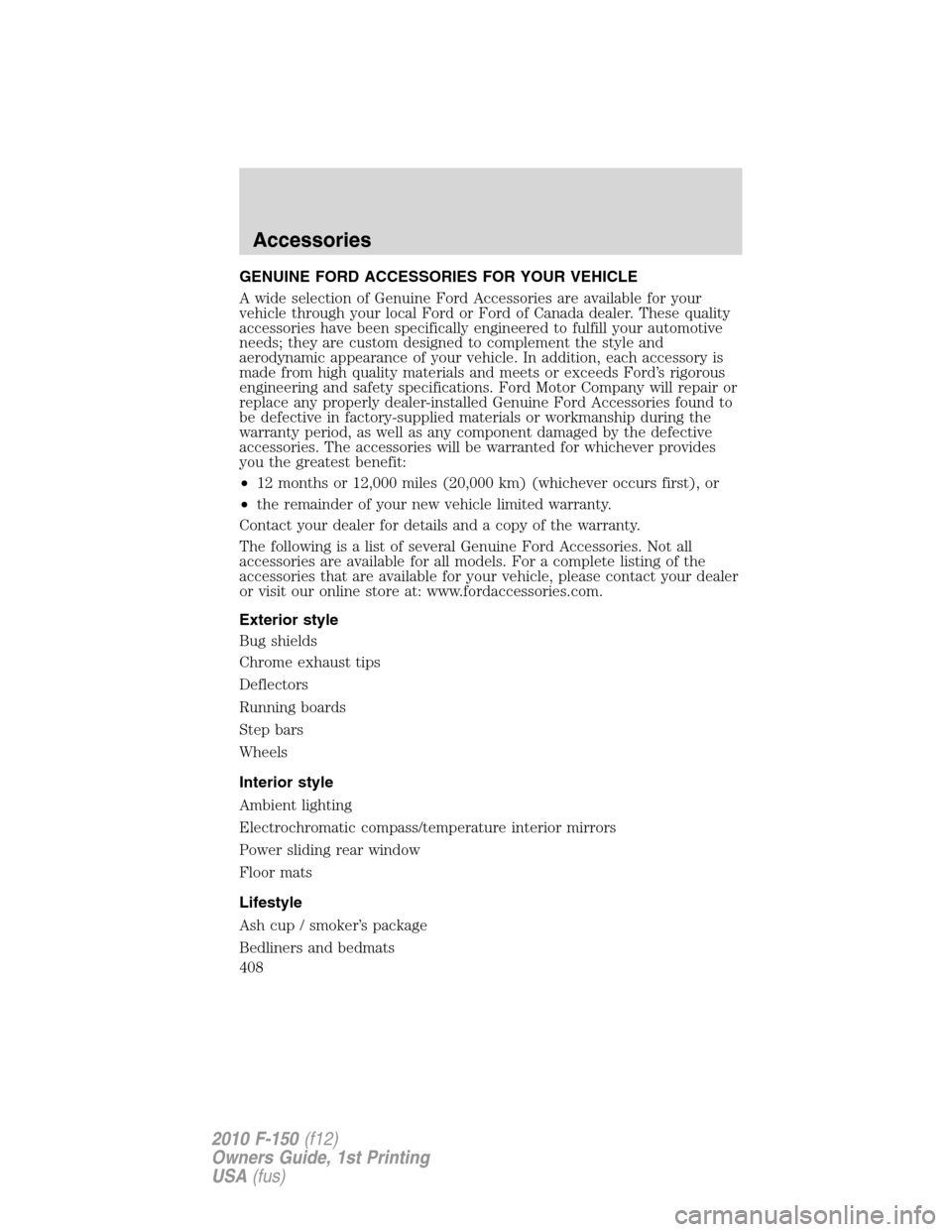

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your
vehicle through your local Ford or Ford of Canada dealer. These quality
accessories have been specifically engineered to fulfill your automotive
needs; they are custom designed to complement the style and
aerodynamic appearance of your vehicle. In addition, each accessory is
made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Genuine Ford Accessories found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessories. The accessories will be warranted for whichever provides
you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
The following is a list of several Genuine Ford Accessories. Not all
accessories are available for all models. For a complete listing of the
accessories that are available for your vehicle, please contact your dealer
or visit our online store at: www.fordaccessories.com.
Exterior style
Bug shields
Chrome exhaust tips
Deflectors
Running boards
Step bars
Wheels
Interior style
Ambient lighting
Electrochromatic compass/temperature interior mirrors
Power sliding rear window
Floor mats
Lifestyle
Ash cup / smoker’s package
Bedliners and bedmats
