2010 FORD F150 Owners Manual

Troubleshooting
Condition Potential Causes
Can’t create a MyKey™•Key in the ignition is already a
MyKey™
•Key in the ignition is the last
remaining Admin key (there always
has to be at least one Admin key)
•SecuriLock
Passive Anti-Theft
System is disabled or in unlimited
mode
•Vehicle has been started using a
remote start system that is
programmed as MyKey™. Refer to
MyKey™ with Remote Start Systems
section.
Cannot program the MyKey™
optional settings•Key in the ignition is a MyKey™
•No MyKeys™ are programmed to
the vehicle. Refer toCreate a
MyKey™section
•Vehicle has been started using a
remote start system that is
programmed as MyKey™. Refer to
MyKey™ with Remote Start Systems
section.
Cannot disable MyKey™•Key in the ignition is a MyKey™
•No MyKeys™ are programmed to
the vehicle. Refer toCreate a
MyKey™section
•Vehicle has been started using a
remote start system that is
programmed as MyKey™. Refer to
MyKey™ with Remote Start Systems
section.
Lost the only Admin key•Purchase a new key from your
authorized dealer
Locks and Security
145
2010 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

Condition Potential Causes
Lost any key•For programming spare keys, refer
to theProgramming spare keys
section in this chapter.
I accidentally programmed all
keys as MyKeys™•Vehicle has a remote start system
that is recognized as an Admin key.
Refer to theUsing MyKey™ with
Remote Start Systemssection to reset
all MyKeys™ as Admin keys.
MyKey™ Programmed total
includes one additional key•Unknown key has been programmed
to the vehicle as a MyKey™.
•Vehicle is equipped with a remote
start system. Refer toMyKey™ with
Remote Start Systemssection.
Admin Keys Programmed total
includes one additional key•Unknown key has been programmed
to the vehicle as Admin key.
•Vehicle is equipped with a remote
start system. Refer toMyKey™ with
Remote Start Systemssection.
MyKey™ miles does not
accumulate•MyKey™ is not being used by the
intended user.
•MyKey™ system has been recently
cleared.
Locks and Security
146
2010 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

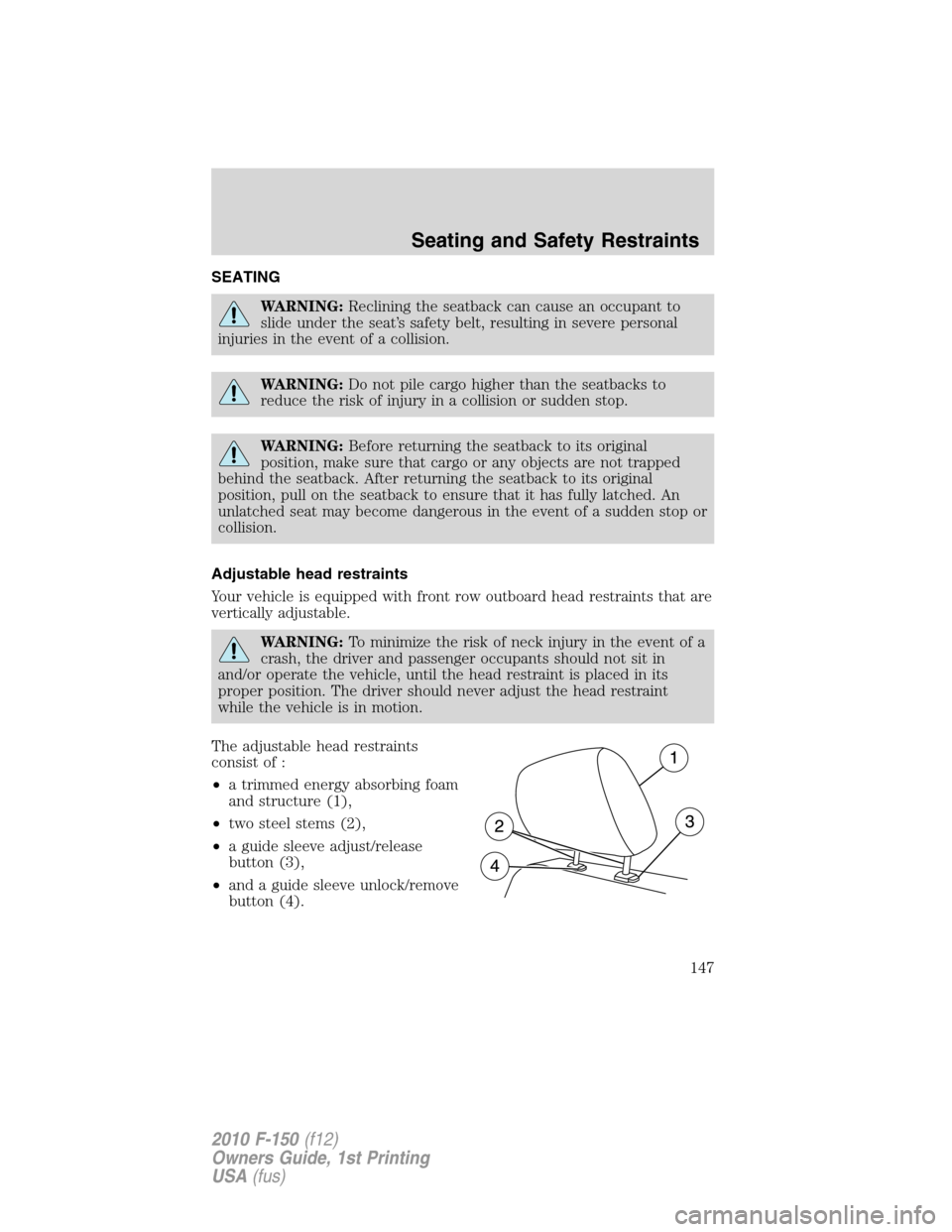

SEATING
WARNING:Reclining the seatback can cause an occupant to
slide under the seat’s safety belt, resulting in severe personal
injuries in the event of a collision.
WARNING:Do not pile cargo higher than the seatbacks to
reduce the risk of injury in a collision or sudden stop.
WARNING:Before returning the seatback to its original
position, make sure that cargo or any objects are not trapped
behind the seatback. After returning the seatback to its original
position, pull on the seatback to ensure that it has fully latched. An
unlatched seat may become dangerous in the event of a sudden stop or
collision.
Adjustable head restraints
Your vehicle is equipped with front row outboard head restraints that are
vertically adjustable.
WARNING:To minimize the risk of neck injury in the event of a
crash, the driver and passenger occupants should not sit in
and/or operate the vehicle, until the head restraint is placed in its
proper position. The driver should never adjust the head restraint
while the vehicle is in motion.
The adjustable head restraints
consist of :
•a trimmed energy absorbing foam
and structure (1),
•two steel stems (2),
•a guide sleeve adjust/release
button (3),
•and a guide sleeve unlock/remove
button (4).
Seating and Safety Restraints
147
2010 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

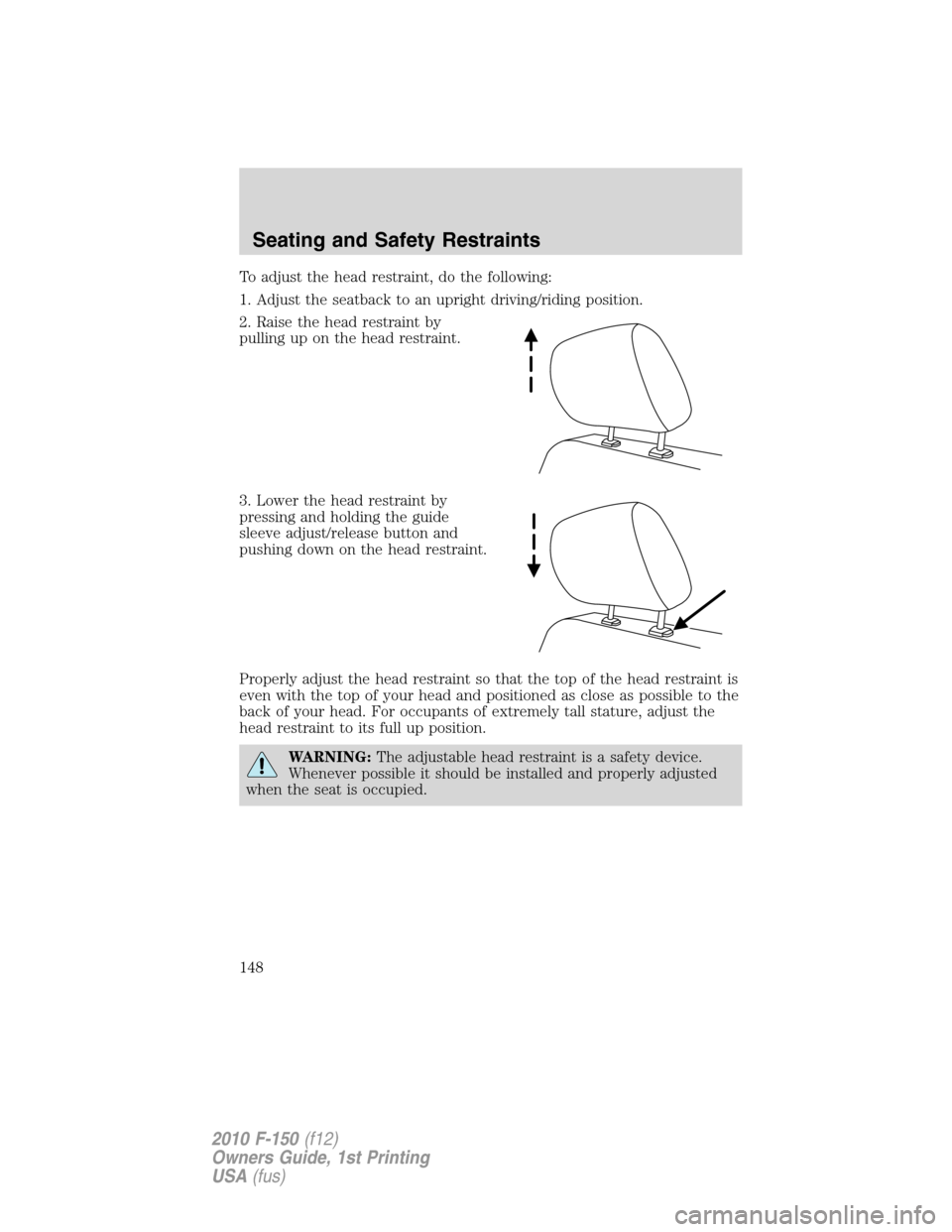

To adjust the head restraint, do the following:
1. Adjust the seatback to an upright driving/riding position.
2. Raise the head restraint by
pulling up on the head restraint.
3. Lower the head restraint by
pressing and holding the guide
sleeve adjust/release button and
pushing down on the head restraint.
Properly adjust the head restraint so that the top of the head restraint is
even with the top of your head and positioned as close as possible to the
back of your head. For occupants of extremely tall stature, adjust the
head restraint to its full up position.
WARNING:The adjustable head restraint is a safety device.
Whenever possible it should be installed and properly adjusted
when the seat is occupied.
Seating and Safety Restraints
148
2010 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

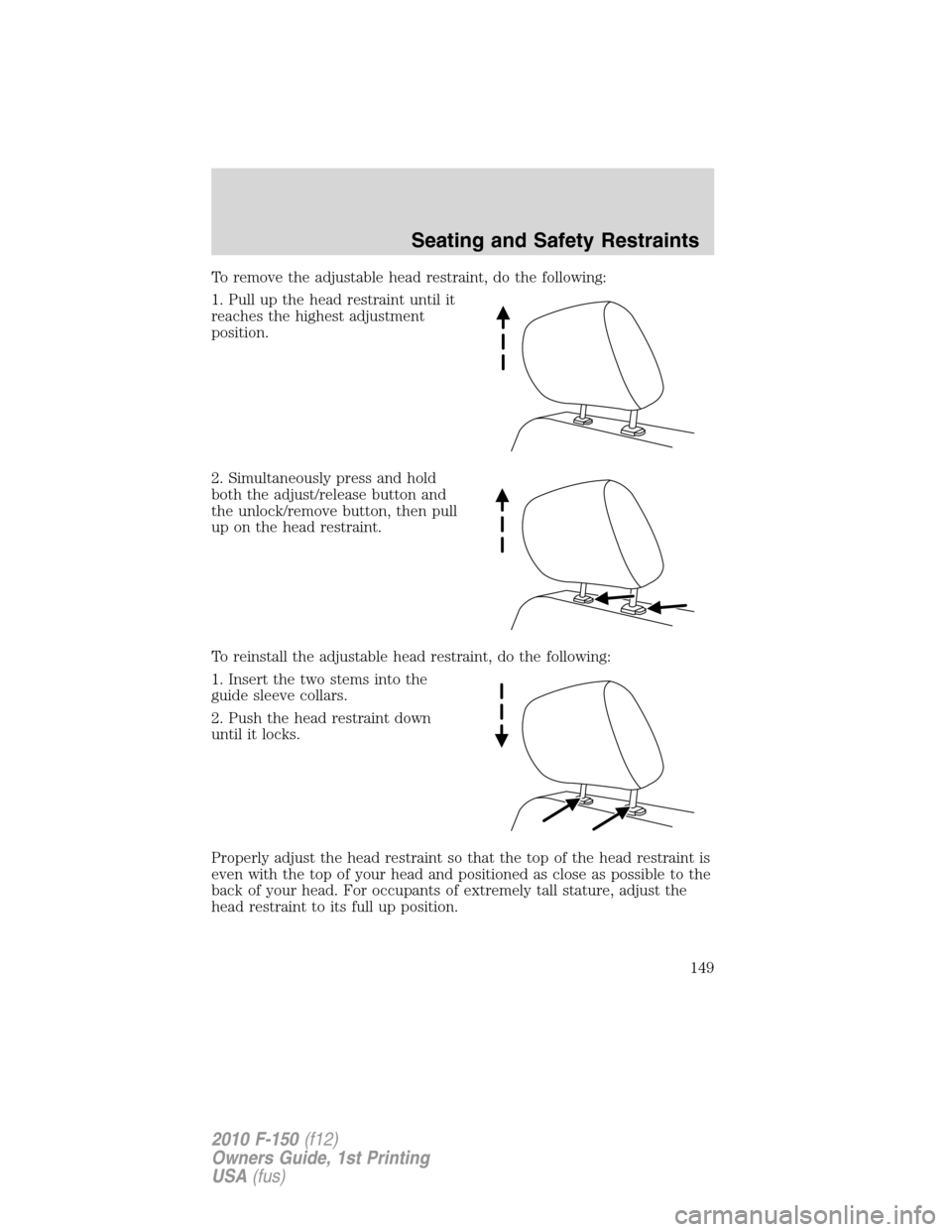

To remove the adjustable head restraint, do the following:
1. Pull up the head restraint until it
reaches the highest adjustment
position.
2. Simultaneously press and hold
both the adjust/release button and
the unlock/remove button, then pull
up on the head restraint.
To reinstall the adjustable head restraint, do the following:
1. Insert the two stems into the
guide sleeve collars.
2. Push the head restraint down
until it locks.
Properly adjust the head restraint so that the top of the head restraint is
even with the top of your head and positioned as close as possible to the
back of your head. For occupants of extremely tall stature, adjust the
head restraint to its full up position.
Seating and Safety Restraints
149
2010 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

WARNING:To minimize the risk of neck injury in the event of a
crash, head restraints must be installed properly.

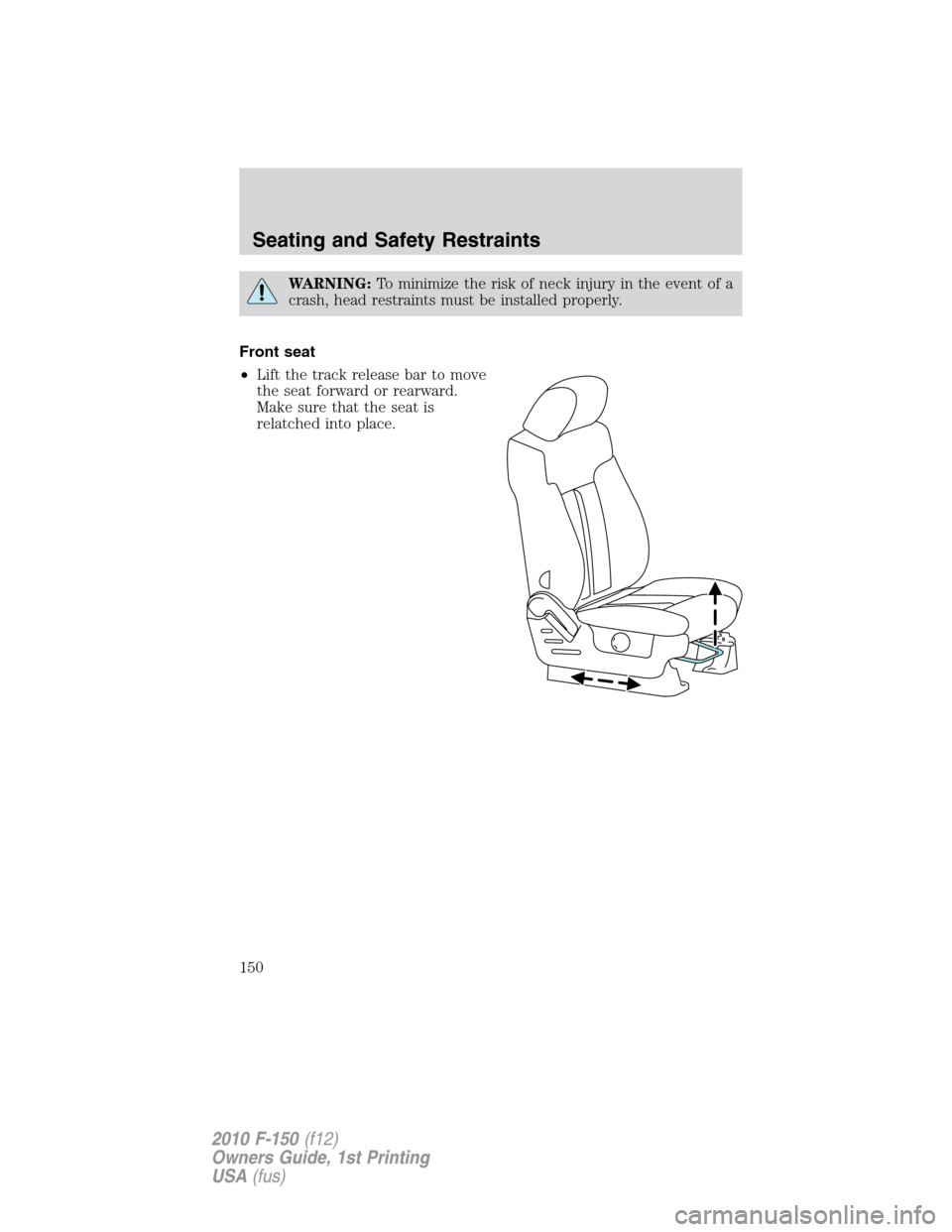

Front seat
•Lift the track release bar to move
the seat forward or rearward.
Make sure that the seat is
relatched into place.
Seating and Safety Restraints
150
2010 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

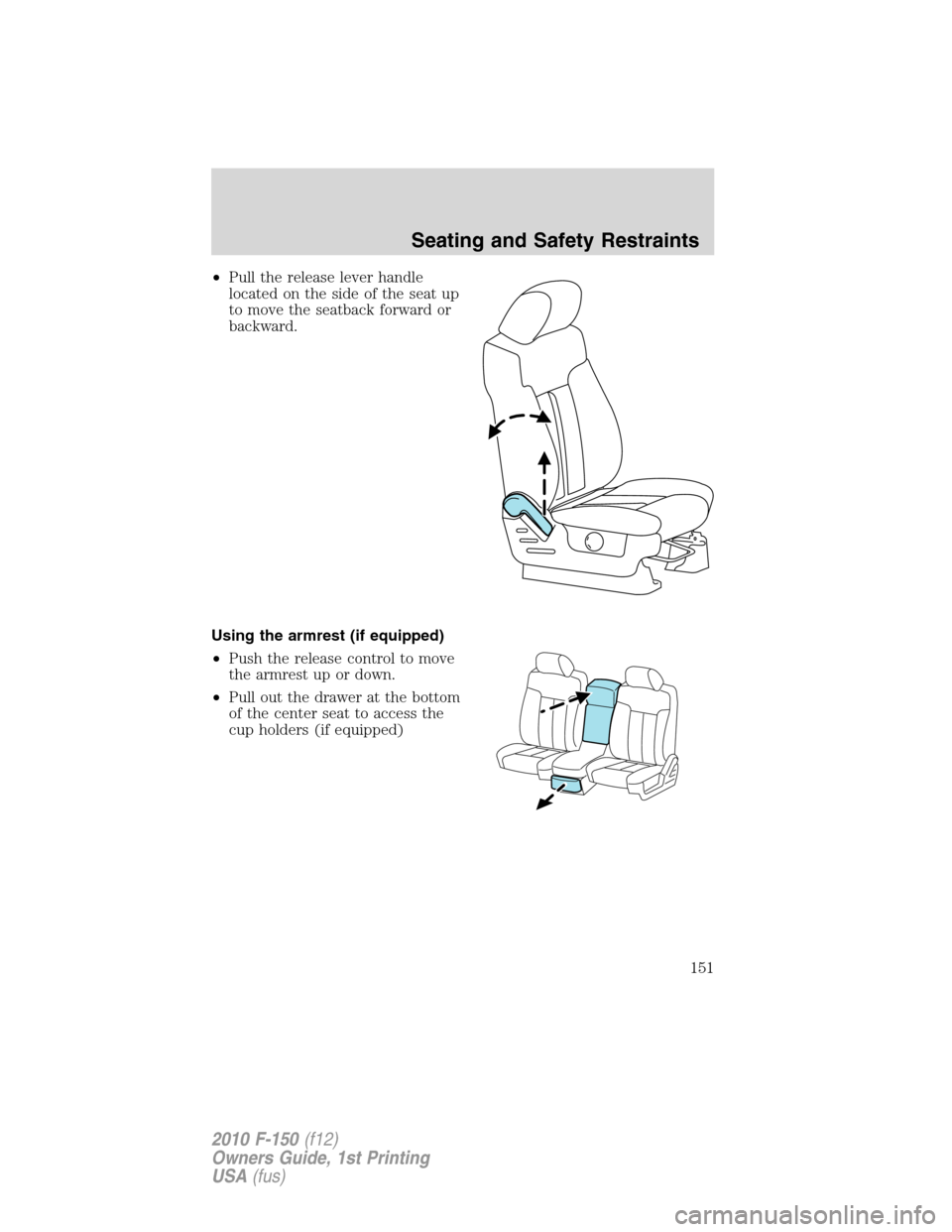

•Pull the release lever handle
located on the side of the seat up
to move the seatback forward or
backward.
Using the armrest (if equipped)
•Push the release control to move
the armrest up or down.
•Pull out the drawer at the bottom
of the center seat to access the
cup holders (if equipped)
Seating and Safety Restraints
151
2010 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

•To gain access to the storage
compartment (if equipped) in
your armrest, lift the latch to
open the lid.
Using the manual lumbar support
For more lumbar support, turn the
lumbar support control toward the
front of vehicle.
For less lumbar support, turn the
lumbar support control toward the
rear of vehicle.
Seating and Safety Restraints
152
2010 F-150(f12)
Owners Guide, 1st Printing
USA(fus)
