Window lock
The window lock feature allows only
the driver to operate the power
windows.
To lock out all the window controls
(except for the driver’s) press the
right side of the control. Press the
left side to restore the window
controls.
Accessory delay
With accessory delay, the audio system, power windows and moon roof
(if equipped) operate for up to 10 minutes after the ignition switch is
turned from the on to the off position or until either front door is
opened.
INTERIOR MIRROR
The interior rear view mirror has two pivot points on the support arm
which lets you adjust the mirror up or down and from side to side.
WARNING:Do not adjust the mirror while the vehicle is in
motion.
Automatic dimming interior rear view mirror (if equipped)
Your vehicle may be equipped with an interior rear view mirror which
has an auto-dimming function. The electronic day/night mirror will
change from the normal (high reflective) state to the non-glare
(darkened) state when bright lights (glare) reach the mirror. When the
mirror detects bright light from behind the vehicle, it will automatically
adjust (darken) to minimize glare.
The mirror will automatically return to the normal state whenever the
vehicle is placed in R (Reverse) to ensure a bright clear view when
backing up.
Do not block the sensors on the front and back of the interior
rear view mirror since this may impair proper mirror
performance.
Do not clean the housing or glass of any mirror with harsh
abrasives, fuel or other petroleum-based cleaning products.
Driver Controls
124
2010 Explorer(exp)
Owners Guide(own2002), 1st Printing
USA(fus)

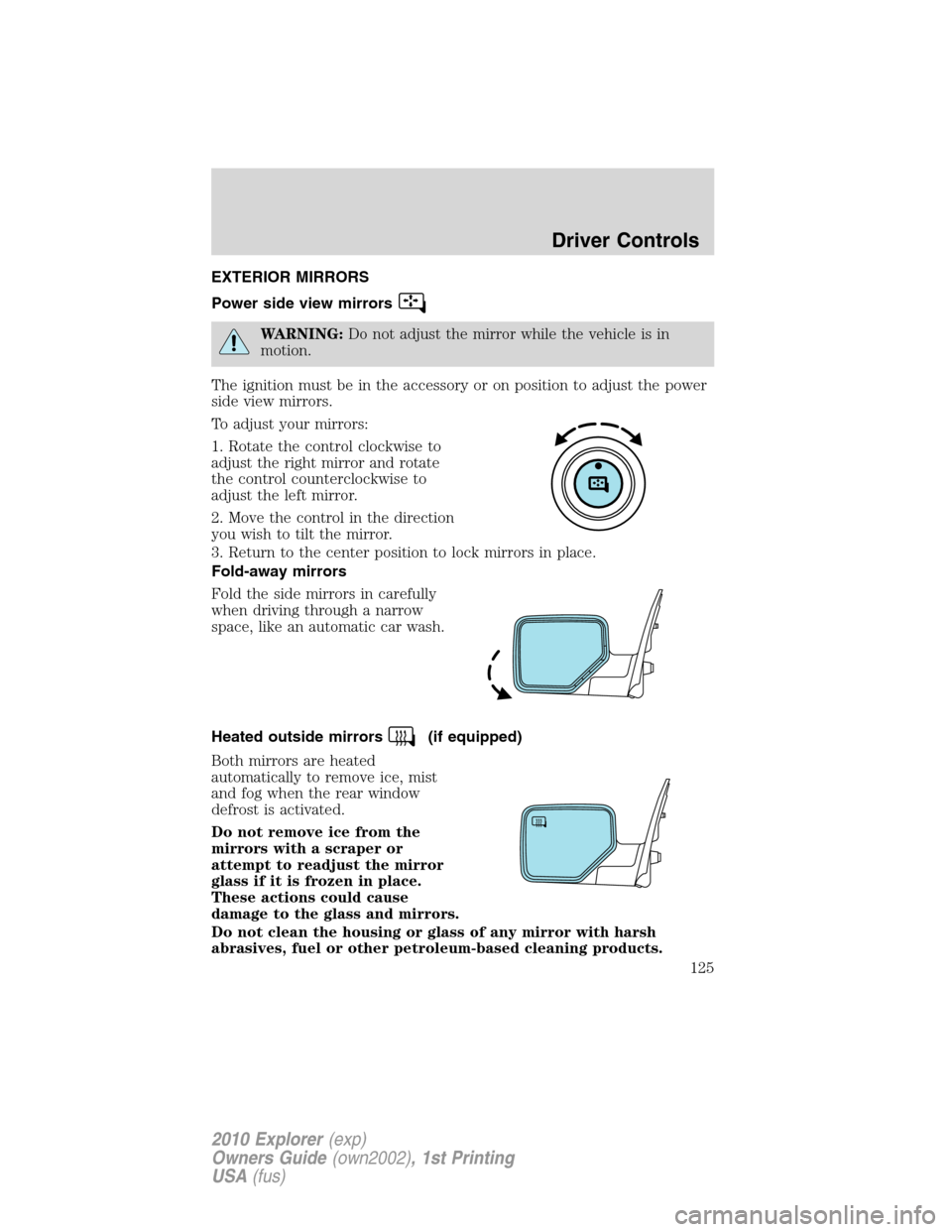

EXTERIOR MIRRORS
Power side view mirrors
WARNING:Do not adjust the mirror while the vehicle is in
motion.
The ignition must be in the accessory or on position to adjust the power
side view mirrors.
To adjust your mirrors:
1. Rotate the control clockwise to
adjust the right mirror and rotate
the control counterclockwise to
adjust the left mirror.
2. Move the control in the direction
you wish to tilt the mirror.
3. Return to the center position to lock mirrors in place.
Fold-away mirrors
Fold the side mirrors in carefully
when driving through a narrow
space, like an automatic car wash.
Heated outside mirrors
(if equipped)
Both mirrors are heated
automatically to remove ice, mist
and fog when the rear window
defrost is activated.
Do not remove ice from the
mirrors with a scraper or
attempt to readjust the mirror
glass if it is frozen in place.
These actions could cause
damage to the glass and mirrors.
Do not clean the housing or glass of any mirror with harsh
abrasives, fuel or other petroleum-based cleaning products.
Driver Controls
125
2010 Explorer(exp)
Owners Guide(own2002), 1st Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
5 5A Moon roof, Door lock switch
illumination, Auto dimming rear
view mirror
6 20A Liftglass release motor, Door
unlock/lock
7 15A Trailer stop/turn
8 15A Ignition switch power, Passive
anti-theft system (PATS), Cluster
9 2A 6R Transmission control
module/Powertrain control
module (Ignition RUN/START),
Fuel pump relay
10 5A Front wiper RUN/ACC relay in
power distribution box (PDB)
11 5A Radio start
12 5A Rear wiper motor RUN/ACC,
Trailer battery charge relay in
PDB, Radio
13 15A Heated mirror, Manual climate
rear defrost indicator
14 20A Horn
15 10A Reverse lamps
16 10A Trailer reverse lamps
17 10A Restraints control module,
Passenger occupancy
18 10A Reverse park aid, Roll Stability
Control™ (RSC
) switch, RSC
,
4x4 module, 4x4 switch, Heated
seat switches, Auxiliary climate
control
19 — Not used
20 10A Climate control system, Brake
shift
Roadside Emergencies
310
2010 Explorer(exp)
Owners Guide(own2002), 1st Printing
USA(fus)

Hood ..........................................349
How to get going ........................39
I
Ignition ...............................270, 390
Illuminated visor mirror ...........118
Infant seats
(see Safety seats) .....................218
Inspection/maintenance (I/M)
testing ........................................379
Instrument panel
cleaning ...................................344
cluster ........................................12
J
Jack ....................................315, 318
positioning .......................315, 320
storage .............................315, 318
Jump-starting your vehicle ......325
K
Keyless entry system
autolock ...........................150, 152
keypad .....................................161
locking and unlocking
doors ........................................162
programming entry code .......161
Keys ...........................................164
positions of the ignition .........270
L
Lamps
bulb replacement
specifications chart ........111–112
daytime running light .............107
fog lamps .................................107headlamps ...............................106
interior lamps .........................110
LATCH anchors .........................222
Liftgate ......................................147
remote release ........................157
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........276
Load limits .................................255
Loading instructions .................262
Locks
autolock ...........................150, 152
childproof ................................155
doors ........................................150
Lubricant specifications ...........385
Lug nuts ....................................324
Luggage rack .............................148
Lumbar support, seats .....170, 172
M
Message center .....................21, 30
english/metric button .........27, 36
system check button ..........27, 36
warning messages ...............27, 36
Mirrors ...............................124–125
automatic dimming rearview
mirror ......................................124
fold away .................................125
heated ......................................125
side view mirrors (power) .....125
Moon roof ..................................132
Motorcraft parts ........346, 367, 384
N
Navigation system .......................98
O
Octane rating ............................371
