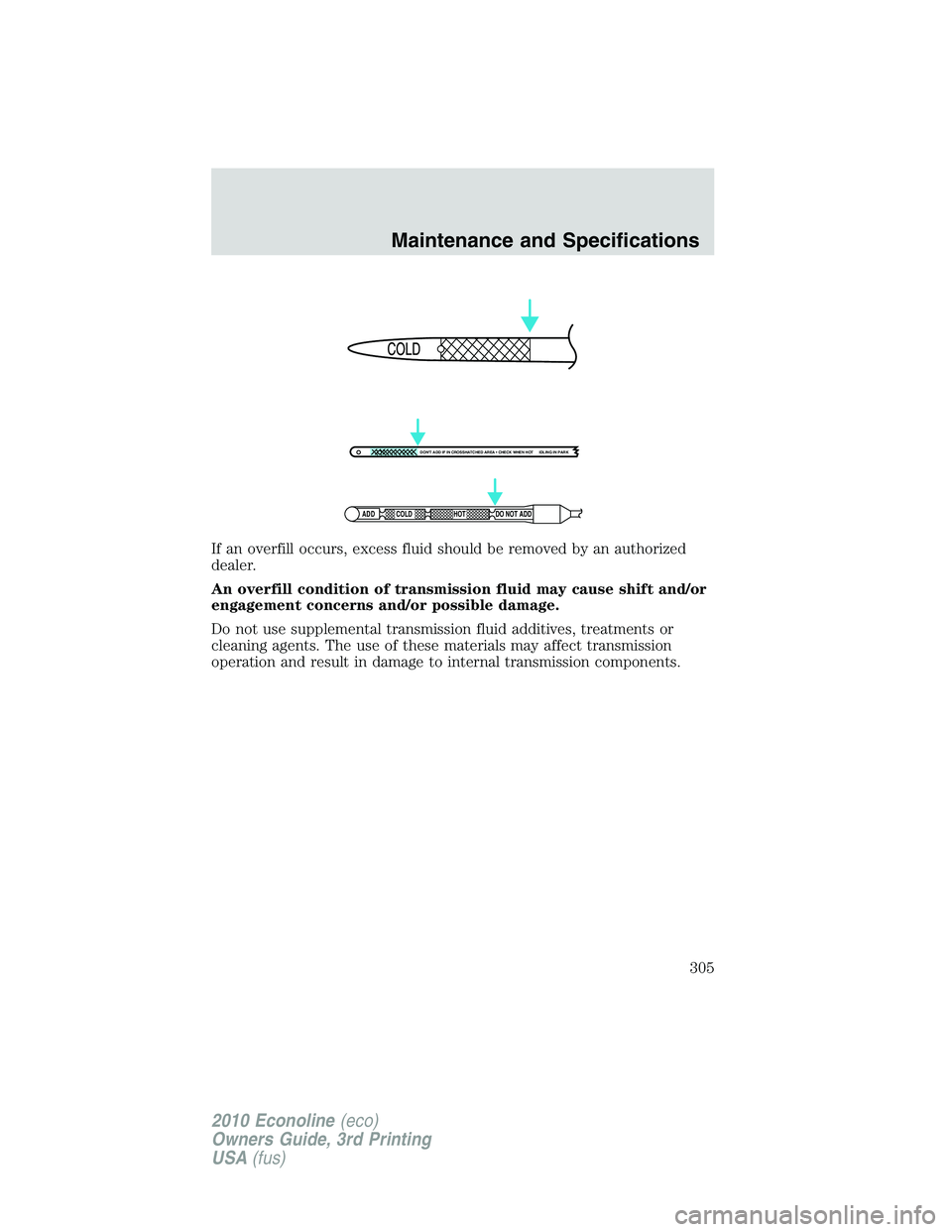

If an overfill occurs, excess fluid should be removed by an authorized
dealer.
An overfill condition of transmission fluid may cause shift and/or
engagement concerns and/or possible damage.
Do not use supplemental transmission fluid additives, treatments or
cleaning agents. The use of these materials may affect transmission
operation and result in damage to internal transmission components.
IDLING IN PARK
ADD COLD HOT DO NOT ADD
Maintenance and Specifications
305
2010 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)

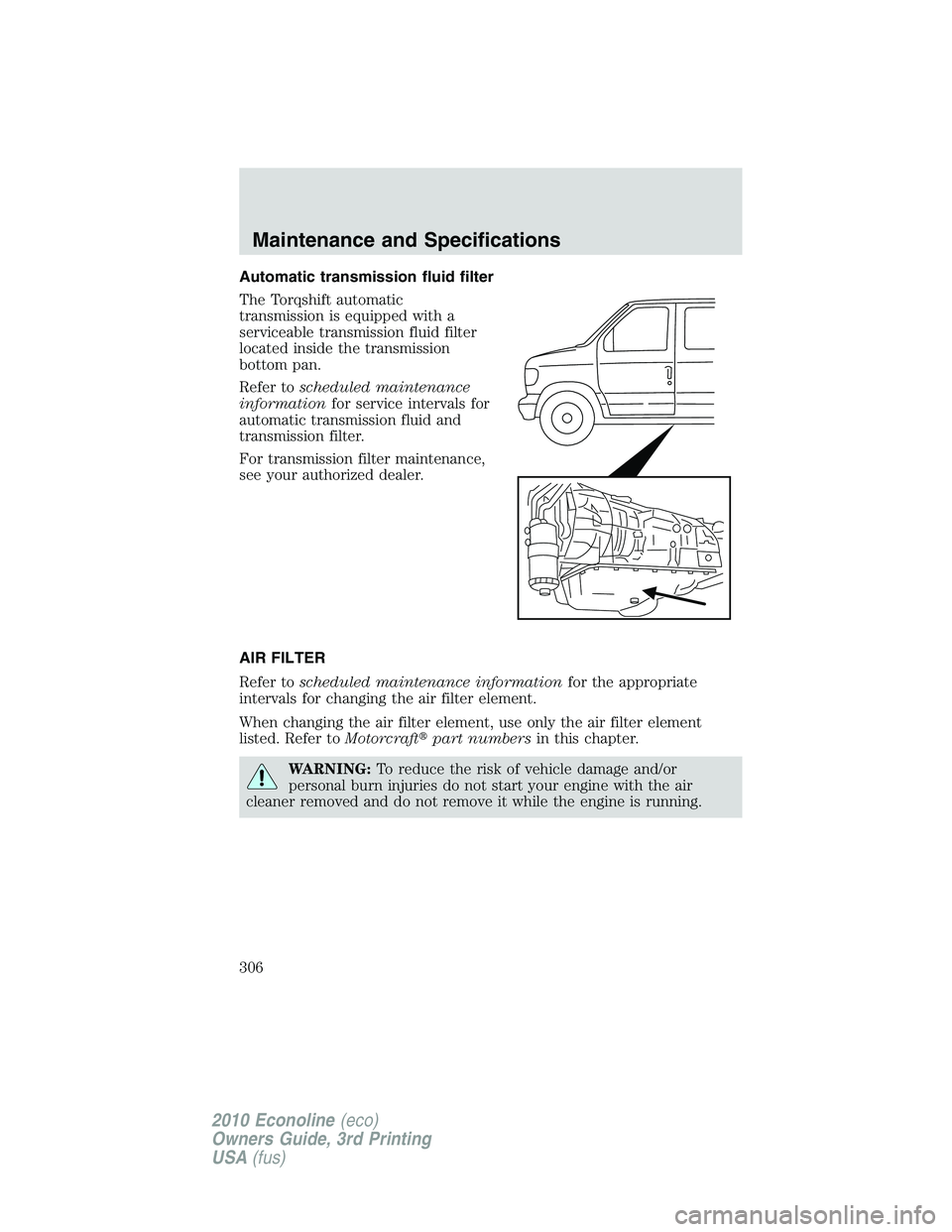

Automatic transmission fluid filter
The Torqshift automatic
transmission is equipped with a
serviceable transmission fluid filter
located inside the transmission
bottom pan.
Refer toscheduled maintenance
informationfor service intervals for
automatic transmission fluid and
transmission filter.
For transmission filter maintenance,
see your authorized dealer.
AIR FILTER
Refer toscheduled maintenance informationfor the appropriate
intervals for changing the air filter element.
When changing the air filter element, use only the air filter element
listed. Refer toMotorcraftpart numbersin this chapter.
WARNING:To reduce the risk of vehicle damage and/or
personal burn injuries do not start your engine with the air
cleaner removed and do not remove it while the engine is running.
Maintenance and Specifications
306
2010 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)

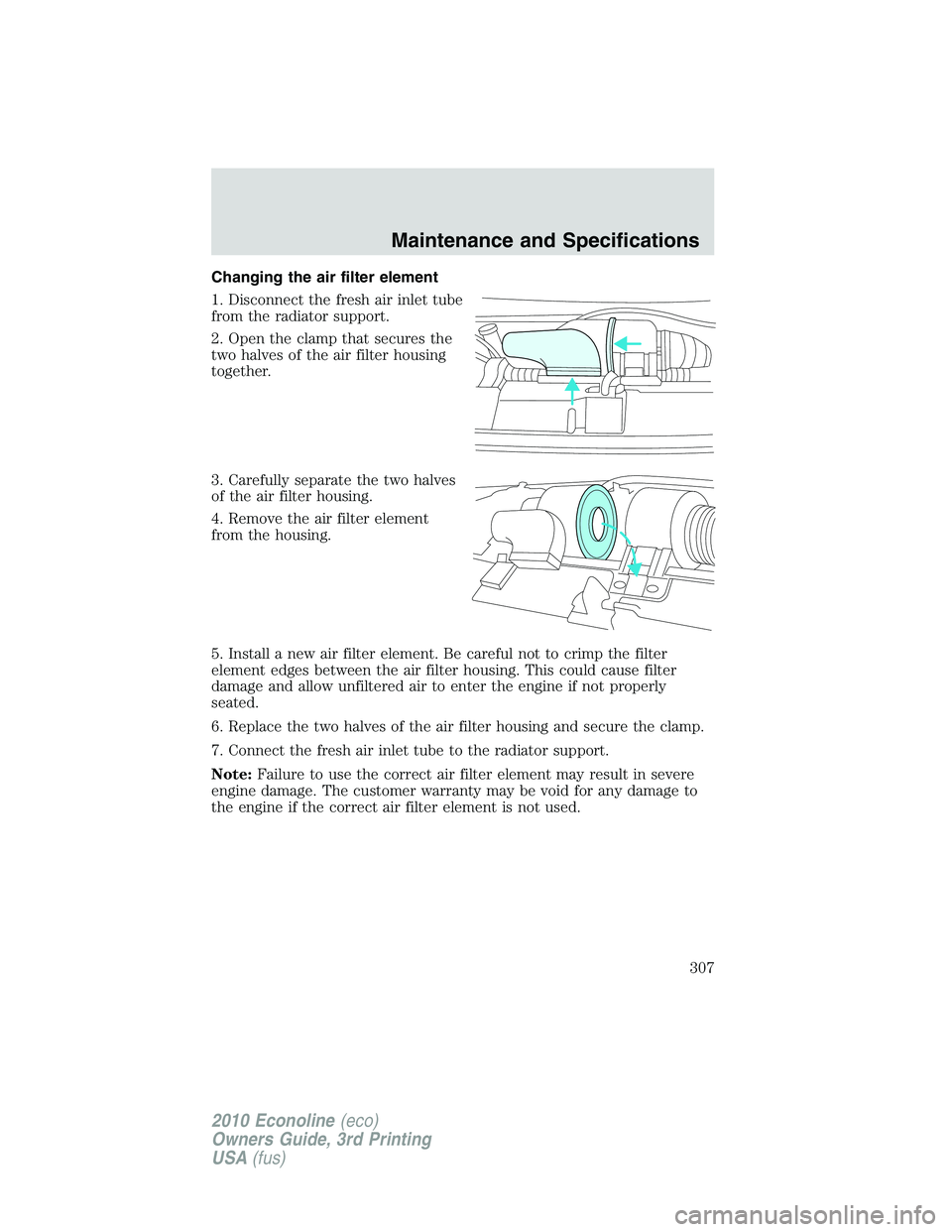

Changing the air filter element
1. Disconnect the fresh air inlet tube
from the radiator support.
2. Open the clamp that secures the
two halves of the air filter housing
together.
3. Carefully separate the two halves
of the air filter housing.
4. Remove the air filter element
from the housing.
5. Install a new air filter element. Be careful not to crimp the filter
element edges between the air filter housing. This could cause filter
damage and allow unfiltered air to enter the engine if not properly
seated.
6. Replace the two halves of the air filter housing and secure the clamp.
7. Connect the fresh air inlet tube to the radiator support.
Note:Failure to use the correct air filter element may result in severe
engine damage. The customer warranty may be void for any damage to
the engine if the correct air filter element is not used.
Maintenance and Specifications
307
2010 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)

MOTORCRAFT PART NUMBERS
Component* 4.6L V8 engine 5.4L V8 engine6.8L V10
engine
Air filter element FA-1632 FA-1632 FA-1632
Battery-
standard /
(auxiliary)BXT-65-650 /
(BXT-65-750)BXT-65-650 /
(BXT-65-750)BXT-65-650 /
(BXT-65-750)
Oil filter FL-820-S FL-820-S FL-820-S
Spark plugs
1
Torqshift
automatic
transmission
internal
bottom–pan
filter
2
— FT-180 FT-180
*Refer to the6.0 and 6.4 Liter Power Stroke Direct Injection Turbo
Diesel Owner’s Guide Supplementfor Motorcraftdiesel engine service
part numbers.
1For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraftor
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
2Also available with 6.0L diesel engine/TorqShift transmission.
Maintenance and Specifications
308
2010 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)

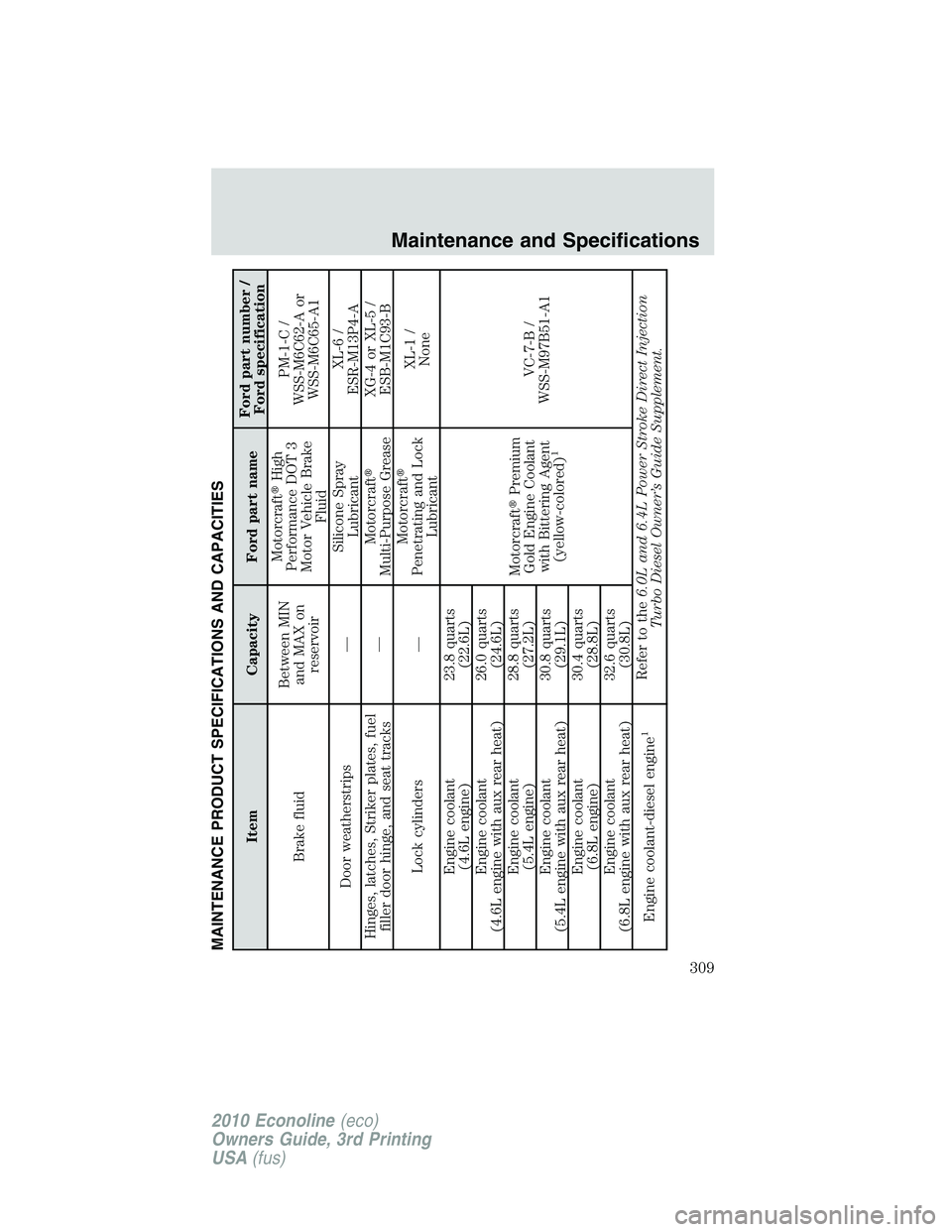

MAINTENANCE PRODUCT SPECIFICATIONS AND CAPACITIES
Item Capacity Ford part nameFord part number /
Ford specification
Brake fluidBetween MIN
and MAX on
reservoirMotorcraftHigh
Performance DOT 3
Motor Vehicle Brake
FluidPM-1-C /
WSS-M6C62-A or
WSS-M6C65-A1
Door weatherstrips —Silicone Spray
LubricantXL-6 /
ESR-M13P4-A
Hinges, latches, Striker plates, fuel
filler door hinge, and seat tracks—Motorcraft
Multi-Purpose GreaseXG-4 or XL-5 /
ESB-M1C93-B
Lock cylinders —Motorcraft
Penetrating and Lock
LubricantXL-1 /
None
Engine coolant
(4.6L engine)23.8 quarts
(22.6L)
MotorcraftPremium
Gold Engine Coolant
with Bittering Agent
(yellow-colored)
1
VC-7-B /
WSS-M97B51-A1 Engine coolant
(4.6L engine with aux rear heat)26.0 quarts
(24.6L)
Engine coolant
(5.4L engine)28.8 quarts
(27.2L)
Engine coolant
(5.4L engine with aux rear heat)30.8 quarts
(29.1L)
Engine coolant
(6.8L engine)30.4 quarts
(28.8L)
Engine coolant
(6.8L engine with aux rear heat)32.6 quarts
(30.8L)
Engine coolant-diesel engine
1
Refer to the6.0L and 6.4L Power Stroke Direct Injection
Turbo Diesel Owner’s Guide Supplement.
Maintenance and Specifications
309
2010 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)

Item Capacity Ford part nameFord part number /
Ford specification
Cooling system stop leak pellets —MotorcraftCooling
System Stop Leak
PelletsVC-6 /
WSS-M99B37-B6
Engine oil6.0 quarts
(5.7L)•MotorcraftSAE
5W-20 Premium
Synthetic Blend Motor
Oil (US)
•MotorcraftSAE
5W-20 Full Synthetic
Motor Oil (US)
•MotorcraftSAE
5W-20 Super Premium
Motor Oil (Canada)
•MotorcraftSAE
5W-20 Synthetic
Motor Oil (Canada)
2
•XO-5W20-QSP (US)
•XO-5W20-QFS (US)
•CXO-5W20-LSP12
(Canada)
•CXO-5W20-LFS12
(Canada) /
WSS-M2C930-A with
API Certification Mark
Engine oil-diesel engineRefer to the6.0L and 6.4L Power Stroke Direct Injection
Turbo Diesel Owner’s Guide Supplement.
Power steering fluidKeep in FULL
range on
dipstickMotorcraft
MERCONVATFXT-5-QM /
MERCONV
Automatic transmission fluid
(4R75E)13.9 quarts
(13.1L)
3
Motorcraft
MERCONLV AT F
4
XT-10-QLV /
MERCONLV
Automatic transmission fluid
TorqShift (5–speed)18.8 quarts
(17.7L)
3
Motorcraft
MERCONLV AT F
4
XT-10-QLV /
MERCONLV
Limited Slip axle fluid
M60 (M248)
E-350 with 4.10 axle ratio5.9 pints
(2.8L)
5,7
SAE 75W-140
Synthetic Rear Axle
Lubricant
6
XY-75W140-QL /
WSL-M2C192-A
Maintenance and Specifications
310
2010 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)

Item Capacity Ford part nameFord part number /
Ford specification

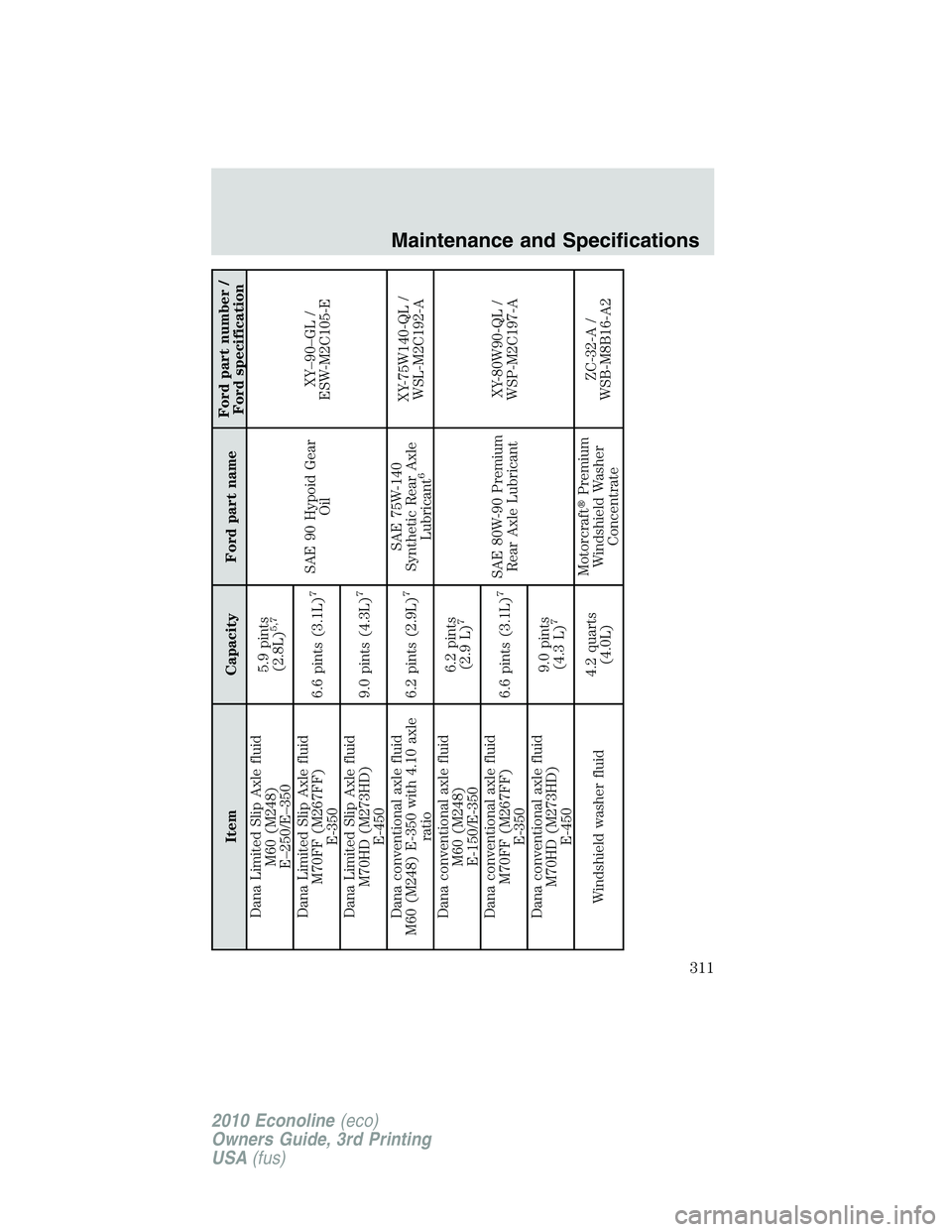

Dana Limited Slip Axle fluid
M60 (M248)
E–250/E–3505.9 pints
(2.8L)
5,7
SAE 90 Hypoid Gear
OilXY–90–GL /
ESW-M2C105-E Dana Limited Slip Axle fluid
M70FF (M267FF)
E-3506.6 pints (3.1L)
7
Dana Limited Slip Axle fluid
M70HD (M273HD)
E-4509.0 pints (4.3L)
7
Dana conventional axle fluid
M60 (M248) E-350 with 4.10 axle
ratio6.2 pints (2.9L)
7
SAE 75W-140
Synthetic Rear Axle
Lubricant
6
XY-75W140-QL /
WSL-M2C192-A
Dana conventional axle fluid
M60 (M248)
E-150/E-3506.2 pints
(2.9 L)
7
SAE 80W-90 Premium
Rear Axle LubricantXY-80W90-QL /
WSP-M2C197-A Dana conventional axle fluid
M70FF (M267FF)
E-3506.6 pints (3.1L)
7
Dana conventional axle fluid
M70HD (M273HD)
E-4509.0 pints
(4.3 L)
7
Windshield washer fluid4.2 quarts
(4.0L)MotorcraftPremium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16-A2
Maintenance and Specifications
311
2010 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)

Item Capacity Ford part nameFord part number /
Ford specification
Fuel tank–all regular and extended
length vans and wagons35.0 gallons
(132.4L)
—— Fuel tank–138 inch wheelbase
(except E-Super Duty)40.0 gallons
(151.0L)
Fuel tank–158 inch wheelbase
(except E-Super Duty)40.0 gallons
(151.0L)
8
Fuel tank–176 inch wheelbase
(except E-Super Duty)40.0 gallons
(151.0L)
8
Fuel tank–158 inch and 176 inch
wheelbase (E-Super Duty)55.0 gallons
(208.0L)
