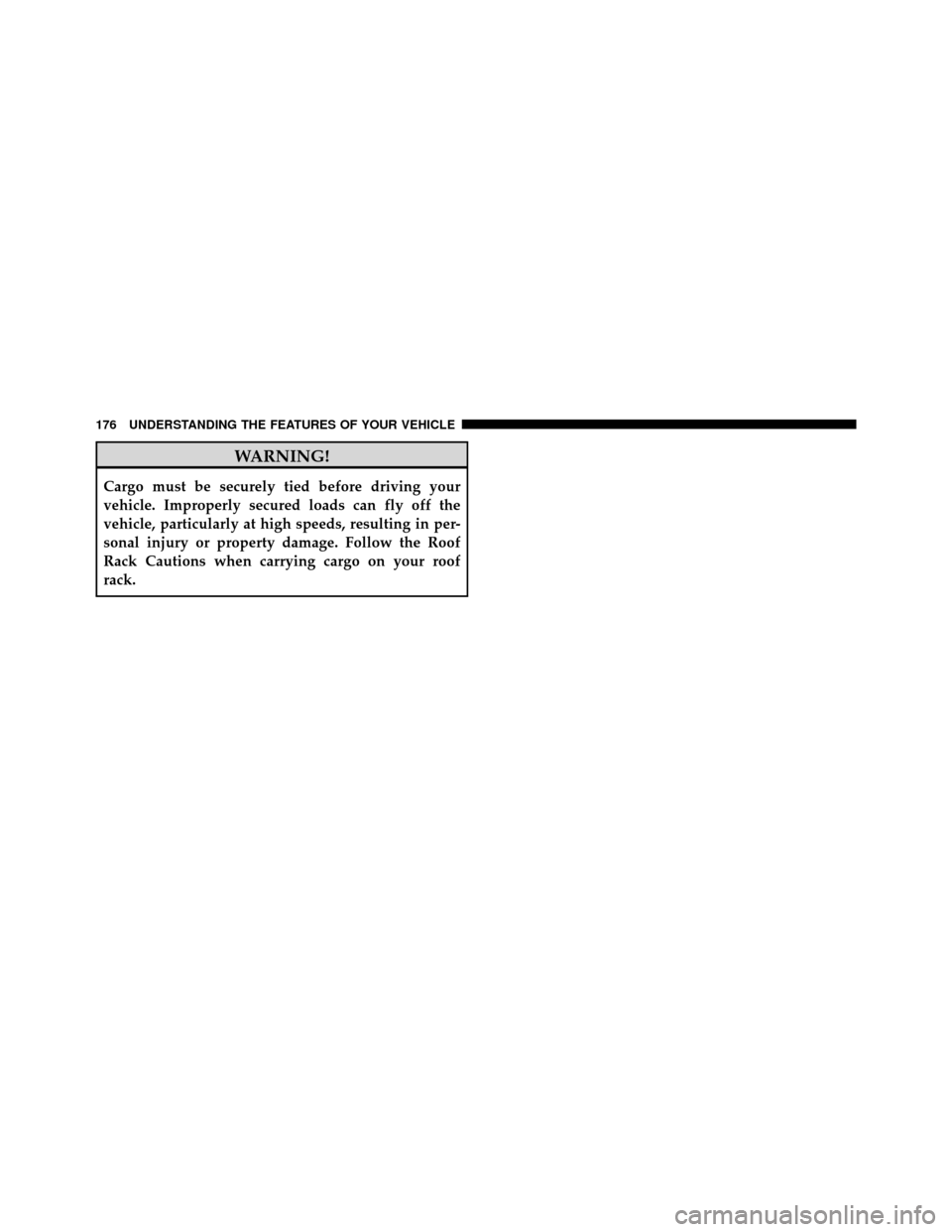

WARNING!
Cargo must be securely tied before driving your
vehicle. Improperly secured loads can fly off the
vehicle, particularly at high speeds, resulting in per-
sonal injury or property damage. Follow the Roof
Rack Cautions when carrying cargo on your roof
rack.
176 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
Instrument Panel Features ............... 181
 Instrument Cluster .................... 182
 Instrument Cluster Descriptions ........... 183
 Compass Mini-Trip Computer (CMTC) — If
Equipped ............................ 198
▫ CMTC Reset Buttons .................. 198
▫ Compass/Temperature Display .......... 200
 Electronic Vehicle Information Center
(EVIC) — If Equipped ................... 202 ▫
Electronic Vehicle Information Center (EVIC)
Displays ........................... 204
▫ Oil Change Required .................. 205
▫ Trip Functions ...................... 206
▫ Compass Display / ECO (Fuel Saver Mode)
— If Equipped ...................... 208
▫ Personal Settings (Customer-Programmable
Features) .......................... 210
 Media Center 230 (REQ) — AM/FM Stereo
Radio And 6–Disc CD/DVD Changer
(MP3/WMA AUX Jack) .................. 214
4

▫Operating Instructions - Radio Mode ...... 214
▫ Operation Instructions - (Disc Mode For CD
And MP3/WMA Audio Play, DVD-Video) . . . 222
▫ Notes On Playing MP3/WMA Files ....... 224
▫ List Button (Disc Mode For
MP3/WMA Play) .................... 227
▫ Info Button (Disc Mode For MP3/WMA
Play) ............................. 227
 Media Center 130 (RES) — AM/FM Stereo
Radio With CD Player (MP3 AUX Jack) ....... 230
▫ Operating Instructions — Radio Mode ..... 230
▫ Operation Instructions — CD Mode For CD
And MP3 Audio Play ................. 233
▫ Notes On Playing MP3 Files ............ 235
▫ Operation Instructions - Auxiliary Mode .... 238
Media Center 130 (RES/RSC) — AM/FM
Stereo Radio With CD Player (MP3 AUX Jack)
And Sirius Radio ...................... 239
▫ Operating Instructions — Radio Mode ..... 239
▫ Operation Instructions — CD Mode For CD
And MP3 Audio Play ................. 245
▫ Notes On Playing MP3 Files ............ 247
▫ List Button (CD Mode For MP3 Play) ...... 250
▫ Info Button (CD Mode For MP3 Play) ...... 250
 Media Center 830N (REU) — AM/FM Stereo
Radio And 6–Disc CD/DVD/HDD/NAV
Changer — If Equipped .................. 251
▫ Operating Instructions — Uconnect™
Multimedia (Satellite Radio) ............. 252
178 UNDERSTANDING YOUR INSTRUMENT PANEL

▫Operating Instructions —
Uconnect™ Phone .................... 252
▫ Clock Setting Procedure ............... 252
 Uconnect™ Multimedia (Satellite Radio) —
If Equipped (REN/REQ/RER/RES/REU/RBZ
Radios Only) ......................... 256
▫ System Activation .................... 256
▫ Electronic Serial Number/Sirius
Identification Number (ESN/SID) ......... 256
▫ Selecting Uconnect™ Multimedia (Satellite)
Mode ............................. 257
▫ Satellite Antenna ..................... 257
▫ Reception Quality .................... 257
▫ Operating Instructions — Uconnect™
Multimedia (Satellite) Mode ............. 258▫
Operating Instructions — Uconnect™ Phone
(If Equipped) ....................... 261
▫ Operating Instructions — Video
Entertainment System (VES)™
(If Equipped) ....................... 261
 Uconnect™ Multimedia
(Sirius Backseat TV™) — If Equipped ........ 261
 Video Entertainment System (VES)™ —
If Equipped .......................... 261
 Universal Consumer Interface (UCI) 0.5 —
If Equipped .......................... 263
▫ Connecting The iPod Device........... 263
▫ Controlling The iPod Using
Radio Buttons ....................... 263
▫ Play Mode ......................... 264
4
UNDERSTANDING YOUR INSTRUMENT PANEL 179

▫List Or Browse Mode ................. 265
 Remote Sound System Controls —
If Equipped .......................... 267
▫ Right-Hand Switch Functions ............ 267
▫ Left-Hand Switch Functions For Radio
Operation .......................... 268
▫ Left-Hand Switch Functions For Media (i.e.,
CD) Operation ...................... 268
 CD/DVD Disc Maintenance .............. 268
 Radio Operation And Cellular Phones ....... 269
Climate Controls ...................... 269
▫ Manual Heating And Air Conditioning
System ............................ 270
▫ Three-Zone Manual Air Conditioning And
Heating Systems — If Equipped .......... 274
▫ Two- And Three-Zone Automatic
Temperature Control (ATC) Systems — If
Equipped .......................... 277
▫ Operating Tips ...................... 286
180 UNDERSTANDING YOUR INSTRUMENT PANEL

INSTRUMENT PANEL FEATURES
1 — Side Window Demist Outlet5 — Hazard Switch9 — Climate Control
2 — Air Outlet 6 — Switch Bank10 — Radio
3 — Instrument Cluster 7 — Beverage Cooler/Storage Compartment* 11 — Ignition Switch
4 — Storage Compartment or Remote Display
Panel* 8 — Glove Box
* If Equipped
4
UNDERSTANDING YOUR INSTRUMENT PANEL 181

INSTRUMENT CLUSTER
182 UNDERSTANDING YOUR INSTRUMENT PANEL

INSTRUMENT CLUSTER DESCRIPTIONS
1. Coolant Temperature Gauge
The temperature gauge indicates engine coolant tem-
perature. Any reading within the normal range indicates
that the cooling system is operating satisfactorily. The
gauge pointer will likely indicate a high temperature
when driving in hot weather, up mountain grades, in
heavy traffic, or when towing a trailer. If the pointer rises
to the “H” mark, safely pull over and stop the vehicle. If
the Air Conditioning A/C system is on, turn it off. Also,
shift the transmission into NEUTRAL and idle the ve-
hicle. If the needle remains on the “H” mark, turn the
engine OFF immediately and call for service.
NOTE:The gauge pointer will remain near its last
reading when the engine is turned off. It will return to a
true reading when the engine is restarted.
CAUTION!
Do not leave your vehicle unattended with the en-
gine running, as you would not be able to react to the
temperature indicator light if the engine overheats.
2. Fuel Gauge
The fuel gauge shows the level of fuel in the tank when
ignition switch is in the ON position.
3. Fuel Cap Indicator This symbol indicates the side of the vehicle
where the fuel filler cap is located.
4. Coolant Temperature Warning Light This light warns of an overheated engine condi-
tion. If the light turns on while driving, safely pull
over and stop the vehicle. If the A/C system is on,
turn it off. Also, shift the transmission into NEUTRAL
4
