2010 DODGE DAKOTA remote start

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
A Word About Your Keys ................. 12
▫ Ignition Key Removal .................. 12
▫ Locking Doors With A Key .............. 15
 Steering Wheel Lock — If Equipped ......... 15
▫ To Manually Lock The Steering Wheel ...... 15
▫ To Release The Steering Wheel Lock ........ 15
▫ Automatic Transmission Ignition Interlock
System ............................. 15
 Sentry Key — If Equipped ............... 16 ▫
Replacement Keys ..................... 17
▫ Customer Key Programming ............. 17
 Vehicle Security Alarm — If Equipped ........ 19
▫ To Set The Alarm ..................... 19
▫ To Disarm The System ................. 19
 Illuminated Entry ...................... 20
▫ Vehicles Equipped With Power Door Locks . . . 20
 Remote Keyless Entry (RKE) .............. 21
▫ To Unlock The Doors .................. 22
2

▫To Lock The Doors .................... 22
▫ Using The Panic Alarm ................. 24
▫ General Information ................... 24
▫ Programming Additional Transmitters ...... 25
▫ Battery Replacement ................... 25
 Remote Starting System — If Equipped ....... 26
▫ How To Use Remote Start ............... 26
 Door Locks ........................... 29
▫ Manual Door Locks ................... 29
▫ Power Door Locks .................... 30
▫ Child Protection Door Lock .............. 33
 Windows ............................ 34
▫ Power Windows ...................... 34 ▫
Auto-Down — Driver’s Side Only ......... 35
▫ Window Lockout Switch ................ 35
▫ Wind Buffeting ....................... 36
 Occupant Restraints ..................... 36
▫ Lap/Shoulder Belts .................... 37
▫ Adjustable Upper Shoulder Belt Anchorage . . . 42
▫ Automatic Locking Retractors (ALR) Mode
— If Equipped ....................... 43
▫ Center Lap Belts ...................... 44
▫ Seat Belt Pretensioners — If Equipped ...... 44
▫ Enhanced Seat Belt Use Reminder System
(BeltAlert) ......................... 45
▫ Seat Belts And Pregnant Women .......... 46
▫ Seat Belt Extender ..................... 46
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

SENTRY KEY— IF EQUIPPED
The Sentry Key prevents unauthorized vehicle opera-
tion by disabling the engine. The system does not need to
be armed or activated. Operation is automatic, regardless
of whether the vehicle is locked or unlocked.
The system uses ignition keys that have an embedded
electronic chip (transponder) to prevent unauthorized
vehicle operation. Therefore, only keys that are pro-
grammed to the vehicle can be used to start and operate
the vehicle. The system will shut the engine off in two
seconds if someone uses an invalid key to try to start the
engine.
NOTE: A key that has not been programmed is also
considered an invalid key, even if it is cut to fit the
ignition switch lock cylinder for that vehicle.
During normal operation, after turning on the ignition
switch, the Vehicle Security Light will turn on for three
seconds for a bulb check. If the light remains on after the bulb check, it indicates that there is a problem with the
electronics. In addition, if the light begins to flash after
the bulb check, it indicates that someone used an invalid
key to try to start the engine. Either of these conditions
will result in the engine being shut off after two seconds.
If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10 sec-
onds), it indicates that there is a fault in the electronics.
Should this occur, have the vehicle serviced as soon as
possible by an authorized dealer.
NOTE:
The Sentry Key Immobilizer System is not
compatible with some aftermarket remote starting sys-
tems. Use of these systems may result in vehicle starting
problems and loss of security protection.
All of the keys provided with your new vehicle have
been programmed to the vehicle electronics.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

3. Insert the second valid key into the ignition switch.
Turn the ignition switch to the ON position within
15 seconds. After 10 seconds, a chime will sound. In
addition, the Vehicle Security Light will begin to flash.
Turn the ignition switch to the LOCK position and
remove the second key.
4. Insert a blank Sentry Keyinto the ignition switch.
Turn the ignition switch to the ON position within
60 seconds. After 10 seconds, a single chime will sound.
In addition, the Vehicle Security Light will stop flashing.
To indicate that programming is complete, the Vehicle
Security Light will turn on again for three seconds and
then turn off. The new Sentry Key
is programmed.The Remote
Keyless Entry (RKE) transmitter will also be pro-
grammed during this procedure.
Repeat this procedure to program up to eight keys. If you
do not have a programmed Sentry Key, contact your
authorized dealer for details.
NOTE: If a programmed key is lost, see your authorized
dealer to have all remaining keys erased from the sys-
tem’s memory. This will prevent the lost key from
starting your vehicle. The remaining keys must then be
reprogrammed. All vehicle keys must be taken to an
authorized dealer at the time of service to be
reprogrammed.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

VEHICLE SECURITY ALARM — IF EQUIPPED
The Vehicle Security Alarm monitors the vehicle doors
and ignition for unauthorized operation. When the Ve-
hicle Security Alarm is activated it will provide both
audible and visible signals. The horn will sound repeat-
edly for the three minutes and the headlights, park lamps
and/or turn signals and Vehicle Security Light will flash
for an additional 15 minutes. The engine will not run
until the Vehicle Security Alarm is disarmed
To Set the Alarm
The Vehicle Security Alarm will set when you use the
power door locks, or use the Remote Keyless Entry (RKE)
transmitter to lock the doors. After all the doors are
locked and closed, the Vehicle Security Light in the
instrument cluster will flash rapidly for approximately
15 seconds to signal that the Vehicle Security Alarm is
arming. After the Vehicle Security Alarm is set, the
Vehicle Security Light will flash at a slower rate to
indicate that the Vehicle Security Alarm is armed.NOTE:
If the Vehicle Security Light stays on continu-
ously during vehicle operation, have the Vehicle Security
Alarm checked by an authorized dealer.
To Disarm the System
Use the RKE transmitter to unlock the door. If something
has triggered the Vehicle Security Alarm in your absence,
the horn will sound three times when you unlock the
doors. Check the vehicle for tampering.
The Vehicle Security Alarm will also disarm if the vehicle
is started with a programmed Sentry Key. If an unpro-
grammed Sentry Key is used to start a vehicle, the
engine will run for two seconds and then shut down.
After six unsuccessful attempts at starting the engine, the
Vehicle Security Alarm will shut down until the correct
key is used. To exit alarming mode, press the RKE
transmitter UNLOCK button or start the vehicle with a
programmed Sentry Key.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19

The Vehicle Security Alarm is designed to protect your
vehicle; however, you can create conditions where the
Vehicle Security Alarm will arm unexpectedly. If you
remain in the vehicle and lock the doors with the RKE
transmitter, the alarm will sound when you pull the door
handle to exit.
NOTE:You may accidentally activate the Vehicle Secu-
rity Alarm (horn sounds and lights flash) by entering the
vehicle without using the RKE transmitter to unlock the
door(s). The Vehicle Security Alarm can be disarmed with
the RKE transmitter unlock button or by inserting a
programmed Sentry Key into the ignition and turning
the key to the ON position.ILLUMINATED ENTRY
Vehicles Equipped With Power Door Locks
All interior lights will illuminate in the vehicle when the
doors are unlocked using the Remote Keyless Entry
(RKE) transmitter.
The interior lights will remain on for 30 seconds after the
last door is closed, or until all doors are closed and either
the ignition is turned to the ON position or a RKE
transmitter LOCK button is pressed.
There is also a battery saver feature that will turn the
interior lights off after eight minutes if the ignition is OFF
and a door is left open or the dimmer control is in the
interior lights ON position.
NOTE: None of the courtesy lights will operate if the
dimmer control is in the “defeat” position (extreme
downward position), unless the overhead map/reading
lights are turned on manually.
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

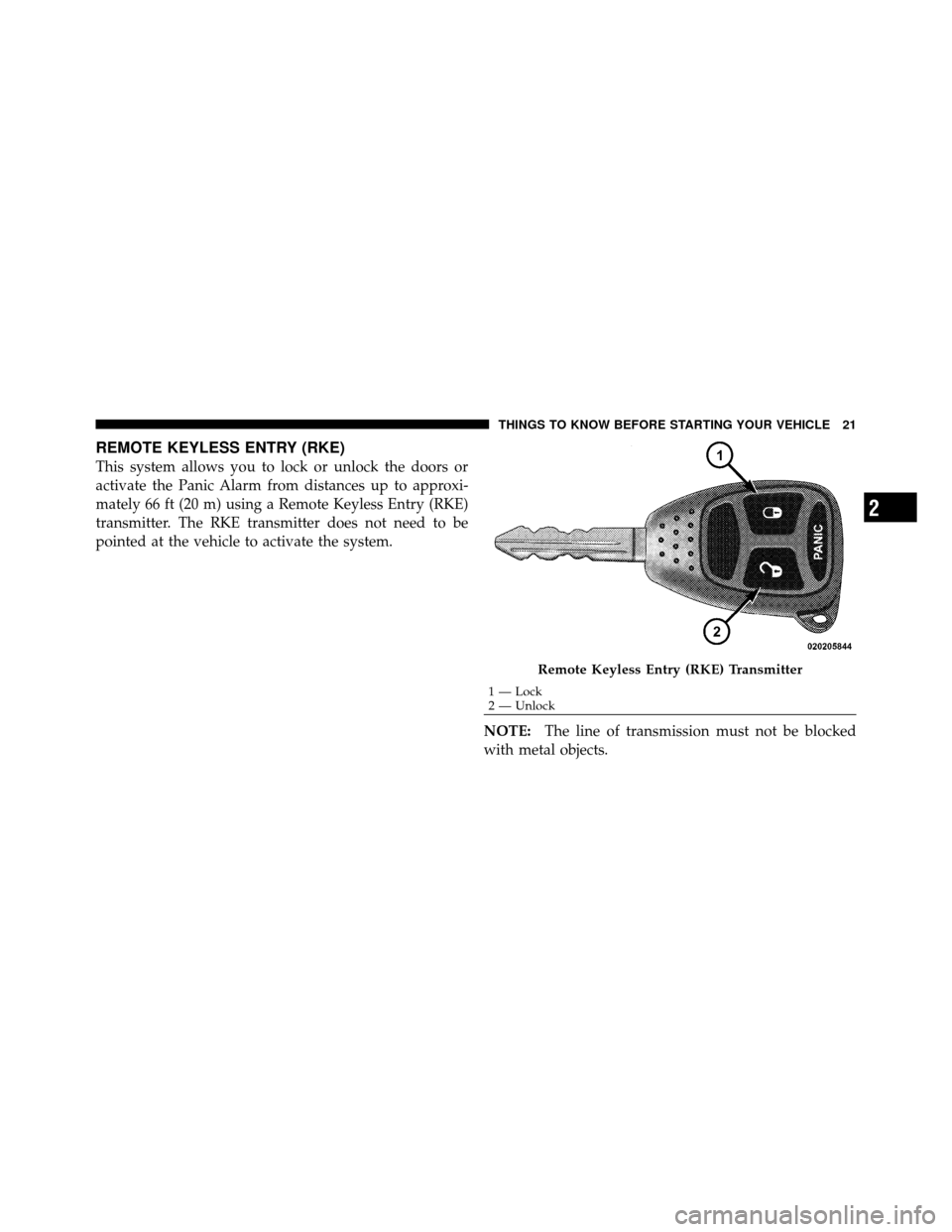

REMOTE KEYLESS ENTRY (RKE)
This system allows you to lock or unlock the doors or
activate the Panic Alarm from distances up to approxi-
mately 66 ft (20 m) using a Remote Keyless Entry (RKE)
transmitter. The RKE transmitter does not need to be
pointed at the vehicle to activate the system.NOTE:The line of transmission must not be blocked
with metal objects.
Remote Keyless Entry (RKE) Transmitter
1 — Lock
2 — Unlock
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21

2. Remove and replace the battery. When replacing the
battery, match the + sign on battery to the + sign on the
inside of the battery clip, located on the back cover. Avoid
touching the new battery with your fingers. Skin oils may
cause battery deterioration. If you touch a battery, clean it
with rubbing alcohol.
3. To reassemble the RKE transmitter case, snap the two
halves of the case together. Make sure there is an even
“gap” between the two halves. If equipped, install and
tighten the screw until snug. Test the RKE transmitter
operation.
REMOTE STARTING SYSTEM — IF EQUIPPED
This system uses the Remote Keyless Entry
(RKE) transmitter to start the engine conve-
niently from outside the vehicle while still
maintaining security. The system has a range of
approximately 328 ft (100 m). NOTE:
The vehicle must be equipped with an auto-
matic transmission to be equipped with Remote Start.
How to Use Remote Start
All of the following conditions must be met before the
engine will remote start:
•Shift lever in PARK
•Doors closed
•Hood closed
•Hazard switch off
•Brake switch inactive (brake pedal not pressed)
•Ignition key removed from ignition switch
•Battery at an acceptable charge level
•RKE PANIC button not pressed
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
