2010 DODGE DAKOTA remote start

WARNING!
•Do not start or run an engine in a closed garage or
confined area. Exhaust gas contains Carbon Mon-
oxide (CO) which is odorless and colorless. Car-
bon Monoxide is poisonous and can cause serious
injury or death when inhaled.
•Keep Remote Keyless Entry (RKE) transmitters
away from children. Operation of the Remote Start
System, windows, door locks or other controls
could cause serious injury or death.
To Enter Remote Start
Press and release the REMOTE START button
on the RKE transmitter twice, within five sec-
onds. The parking lights will flash and the horn
will chirp twice (if programmed). Then, the
engine will start and the vehicle will remain in the
Remote Start mode for a 15-minute cycle. NOTE:
•The park lamps will turn on and remain on during
Remote Start mode.
•For security, power window and power sunroof op-
eration (if equipped) are disabled when the vehicle is
in the Remote Start mode.
•The engine can be started two consecutive times (two
15-minute cycles) with the RKE transmitter. However,
the ignition switch must be cycled to the ON position
before you can repeat the start sequence for a third
cycle.
Remote start will also cancel if any of the following occur:
•The engine stalls or RPM exceeds 2500
•Any engine warning lamps come on
•The hood is opened
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27

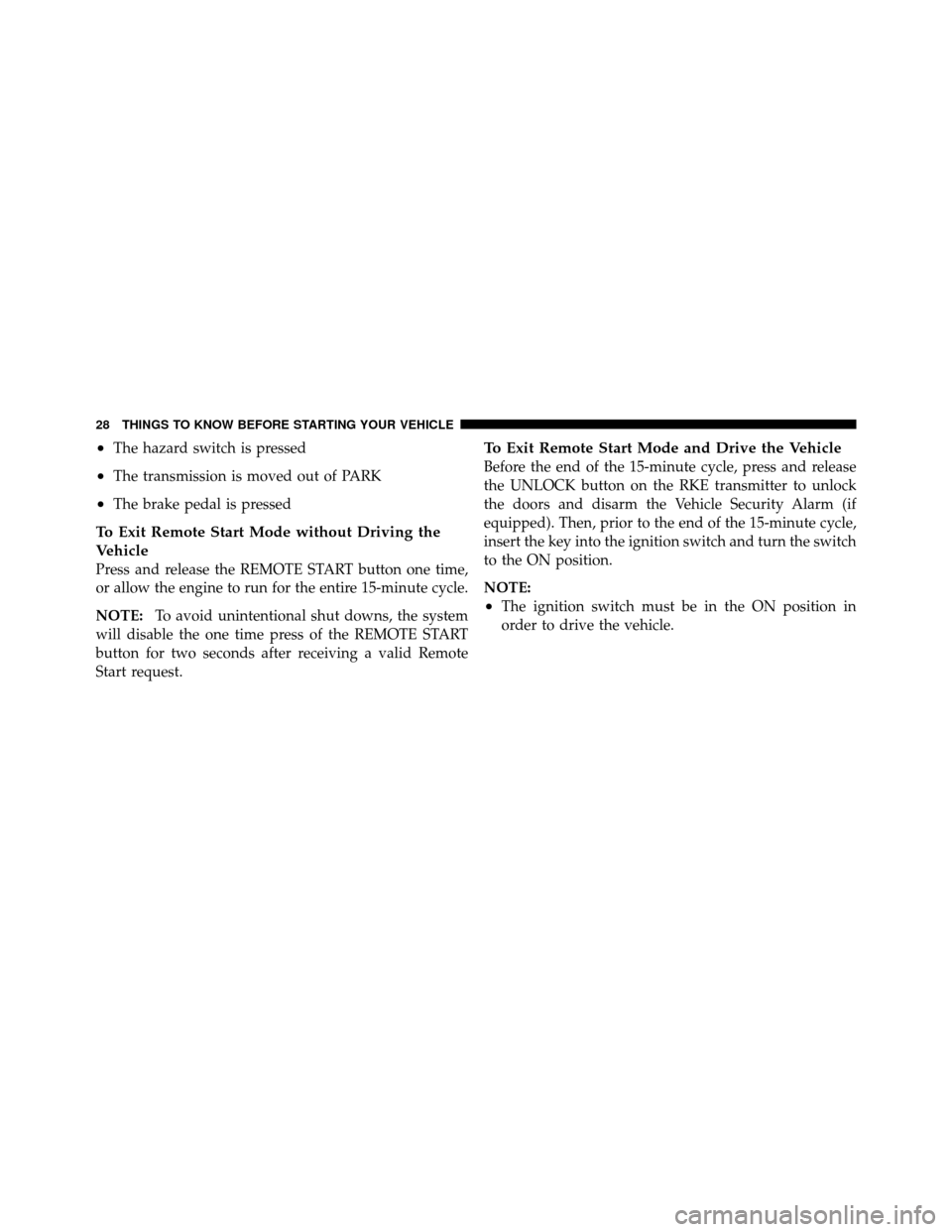

•The hazard switch is pressed
•The transmission is moved out of PARK
•The brake pedal is pressed
To Exit Remote Start Mode without Driving the
Vehicle
Press and release the REMOTE START button one time,
or allow the engine to run for the entire 15-minute cycle.
NOTE:To avoid unintentional shut downs, the system
will disable the one time press of the REMOTE START
button for two seconds after receiving a valid Remote
Start request.
To Exit Remote Start Mode and Drive the Vehicle
Before the end of the 15-minute cycle, press and release
the UNLOCK button on the RKE transmitter to unlock
the doors and disarm the Vehicle Security Alarm (if
equipped). Then, prior to the end of the 15-minute cycle,
insert the key into the ignition switch and turn the switch
to the ON position.
NOTE:
•The ignition switch must be in the ON position in
order to drive the vehicle.
28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

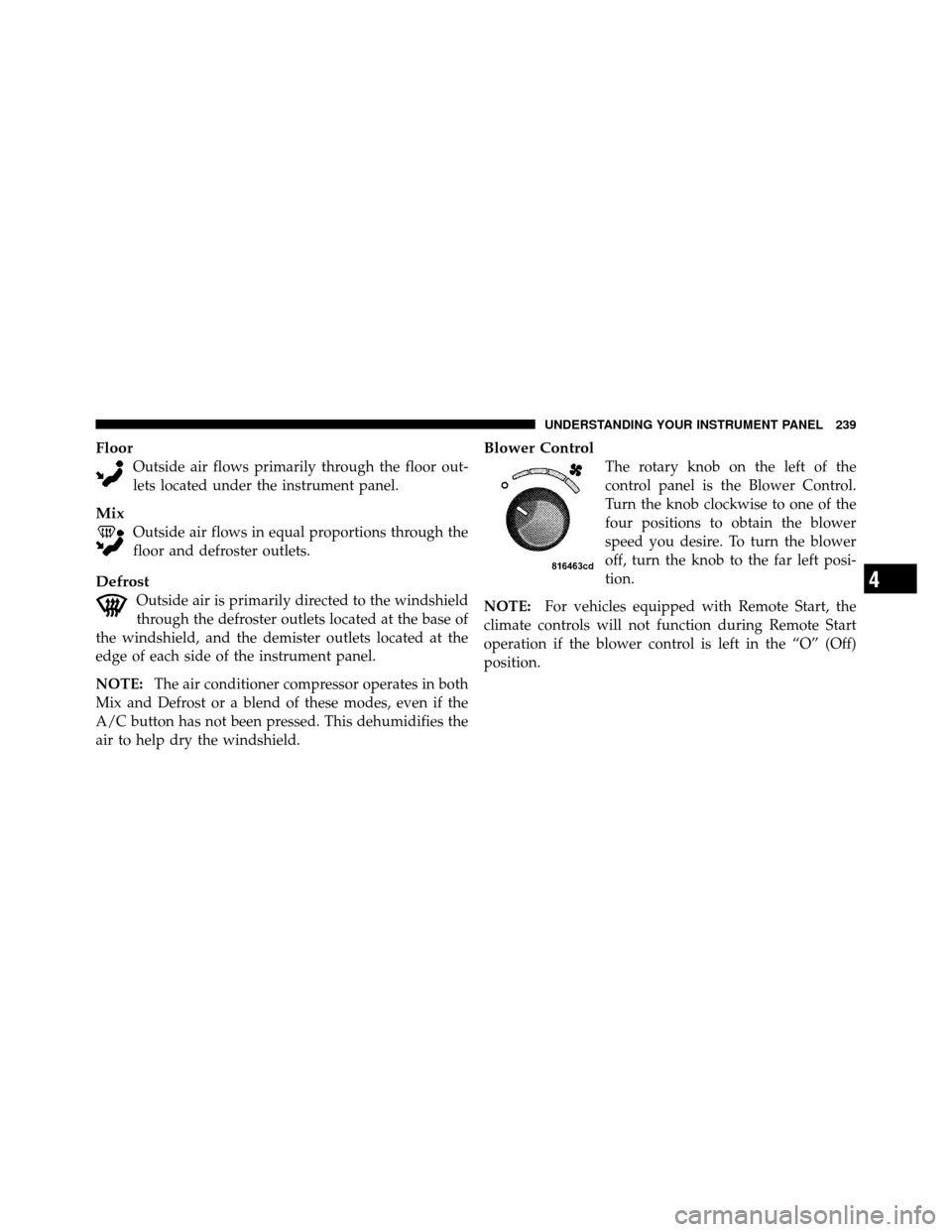

Floor
Outside air flows primarily through the floor out-
lets located under the instrument panel.
Mix
Outside air flows in equal proportions through the
floor and defroster outlets.
Defrost
Outside air is primarily directed to the windshield
through the defroster outlets located at the base of
the windshield, and the demister outlets located at the
edge of each side of the instrument panel.
NOTE: The air conditioner compressor operates in both
Mix and Defrost or a blend of these modes, even if the
A/C button has not been pressed. This dehumidifies the
air to help dry the windshield.
Blower Control
The rotary knob on the left of the
control panel is the Blower Control.
Turn the knob clockwise to one of the
four positions to obtain the blower
speed you desire. To turn the blower
off, turn the knob to the far left posi-
tion.
NOTE: For vehicles equipped with Remote Start, the
climate controls will not function during Remote Start
operation if the blower control is left in the “O” (Off)
position.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 239

Daytime Running Lights................... 132
Dealer Service .......................... 358
Defroster, Rear Window ................... 162
Defroster, Windshield ................... 76,239
Delay (Intermittent) Wipers ................. 135
Diagnostic System, Onboard ................ 355
Differential, Limited-Slip .................. 264
Dimmer Switch, Headlight ................. 175
Dipsticks Automatic Transmission ................. 376
Oil (Engine) .......................... 359
Power Steering ........................ 268
Disposal Antifreeze (Engine Coolant) ............... 372
Door Locks ............................. 29
Door Opener, Garage ..................... 148
Driving Through Flowing, Rising, or Shallow Standing
Water .............................. 265 E-85 Fuel
............................. 303
Electric Remote Mirrors .................... 85
Electrical Power Outlets ................... 154
Electronic Speed Control (Cruise Control) ...... 138
Emergency, In Case of Freeing Vehicle When Stuck ............... 347
Jacking ............................. 337
Jump Starting ......................... 343
Tow Hooks .......................... 348
Towing ............................. 349
Emission Control System Maintenance ......356,404
Engine Air Cleaner .......................... 362
Block Heater ......................... 251
Break-In Recommendations ................ 74
Coolant (Antifreeze) .................... 400
Exhaust Gas Caution .................. 75,302
Flooded, Starting ...................... 250
Fuel Requirements ..................... 399
10
INDEX 435

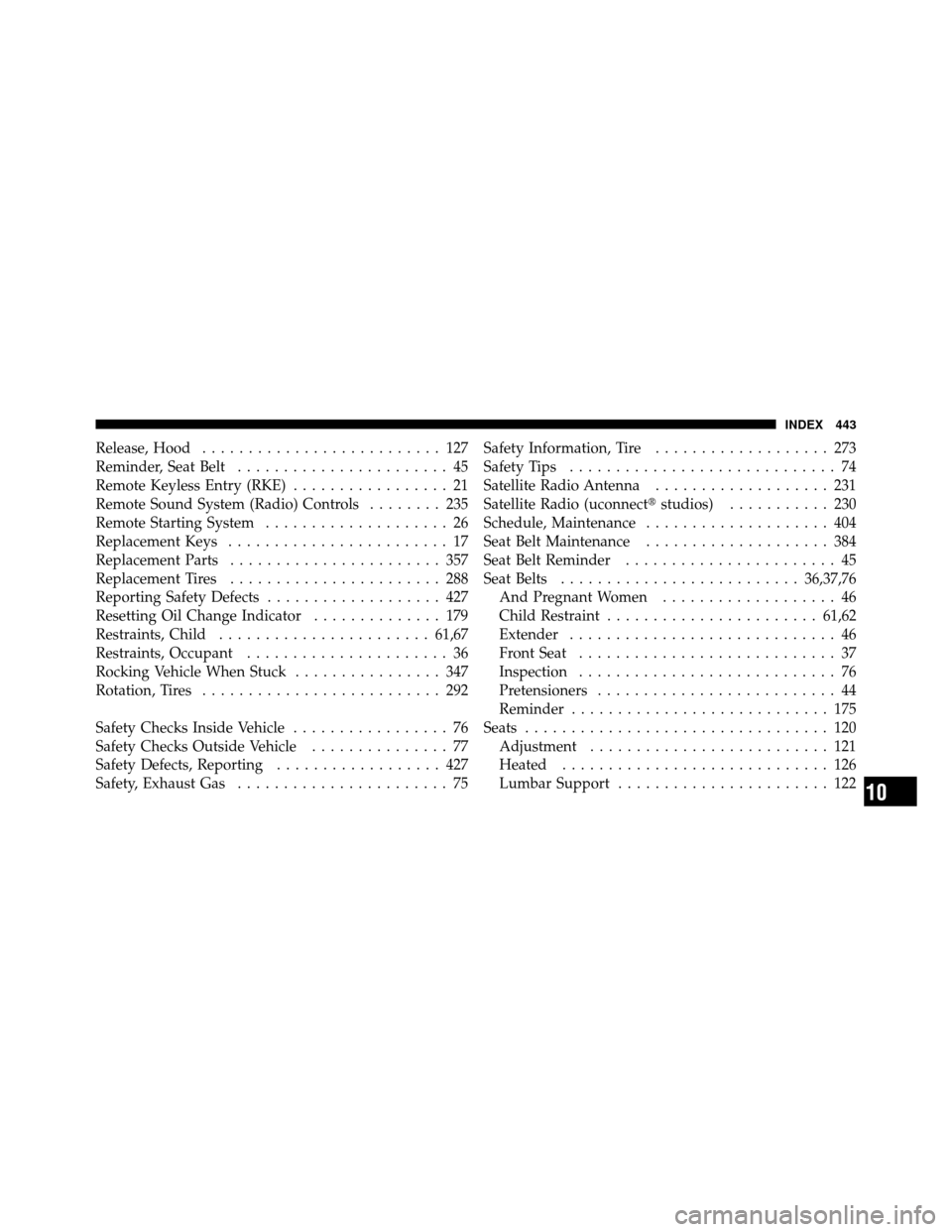

Release, Hood.......................... 127
Reminder, Seat Belt ....................... 45
Remote Keyless Entry (RKE) ................. 21
Remote Sound System (Radio) Controls ........ 235
Remote Starting System .................... 26
Replacement Keys ........................ 17
Replacement Parts ....................... 357
Replacement Tires ....................... 288
Reporting Safety Defects ................... 427
Resetting Oil Change Indicator .............. 179
Restraints, Child ....................... 61,67
Restraints, Occupant ...................... 36
Rocking Vehicle When Stuck ................ 347
Rotation, Tires .......................... 292
Safety Checks Inside Vehicle ................. 76
Safety Checks Outside Vehicle ............... 77
Safety Defects, Reporting .................. 427
Safety, Exhaust Gas ....................... 75 Safety Information, Tire
................... 273
Safety Tips ............................. 74
Satellite Radio Antenna ................... 231
Satellite Radio (uconnect studios)........... 230
Schedule, Maintenance .................... 404
Seat Belt Maintenance .................... 384
Seat Belt Reminder ....................... 45
Seat Belts .......................... 36,37,76
And Pregnant Women ................... 46
Child Restraint ....................... 61,62
Extender ............................. 46
Front Seat ............................ 37
Inspection ............................ 76
Pretensioners .......................... 44
Reminder ............................ 175
Seats ................................. 120
Adjustment .......................... 121
Heated ............................. 126
Lumbar Support ....................... 122
10
INDEX 443

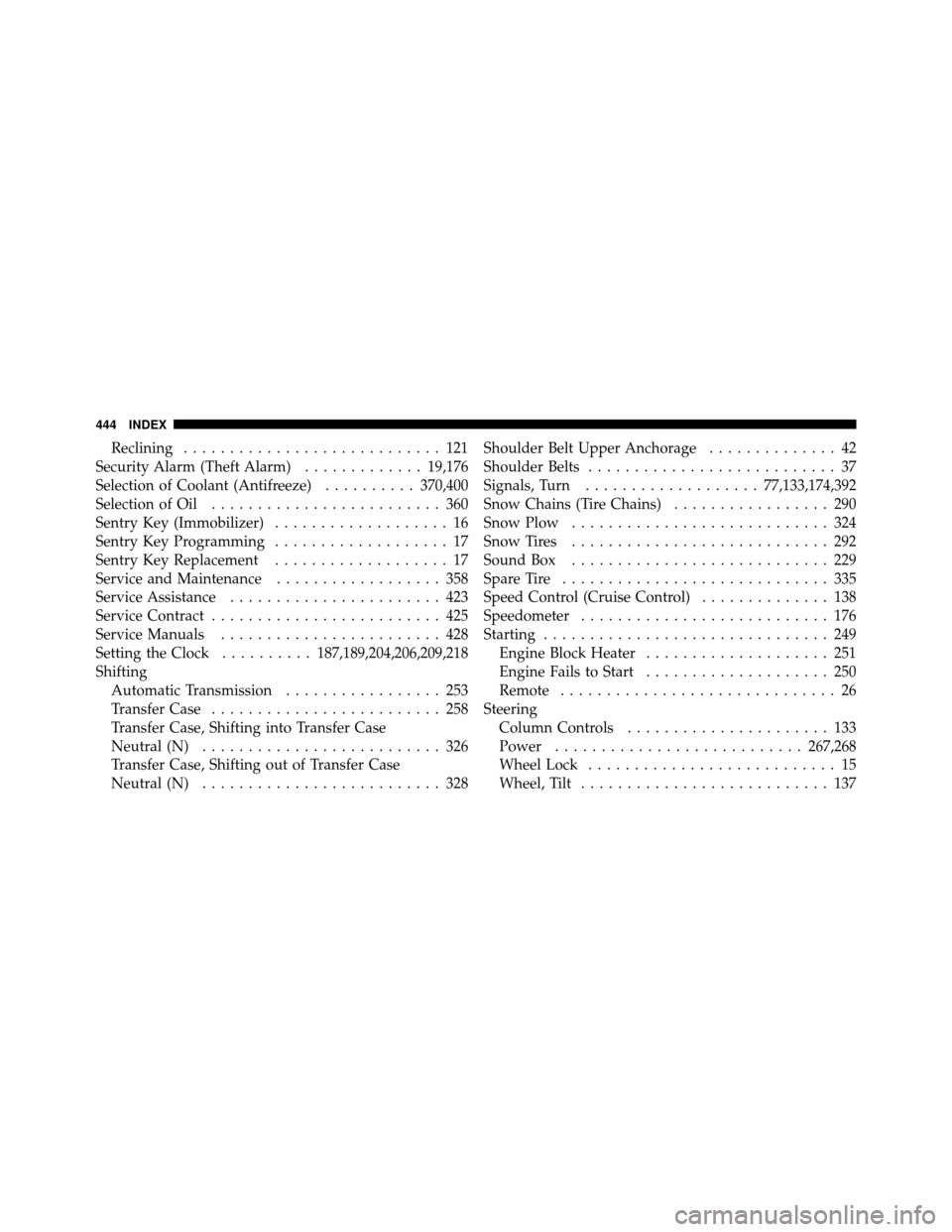

Reclining............................ 121
Security Alarm (Theft Alarm) .............19,176
Selection of Coolant (Antifreeze) ..........370,400
Selection of Oil ......................... 360
Sentry Key (Immobilizer) ................... 16
Sentry Key Programming ................... 17
Sentry Key Replacement ................... 17
Service and Maintenance .................. 358
Service Assistance ....................... 423
Service Contract ......................... 425
Service Manuals ........................ 428
Setting the Clock ..........187,189,204,206,209,218
Shifting Automatic Transmission ................. 253
Transfer Case ......................... 258
Transfer Case, Shifting into Transfer Case
Neutral (N) .......................... 326
Transfer Case, Shifting out of Transfer Case
Neutral (N) .......................... 328 Shoulder Belt Upper Anchorage
.............. 42
Shoulder Belts ........................... 37
Signals, Turn ................... 77,133,174,392
Snow Chains (Tire Chains) ................. 290
Snow Plow ............................ 324
Snow Tires ............................ 292
Sound Box ............................ 229
Spare Tire ............................. 335
Speed Control (Cruise Control) .............. 138
Speedometer ........................... 176
Starting ............................... 249
Engine Block Heater .................... 251
Engine Fails to Start .................... 250
Remote .............................. 26
Steering Column Controls ...................... 133
Power ........................... 267,268
Wheel Lock ........................... 15
Wheel, Tilt ........................... 137
444 INDEX

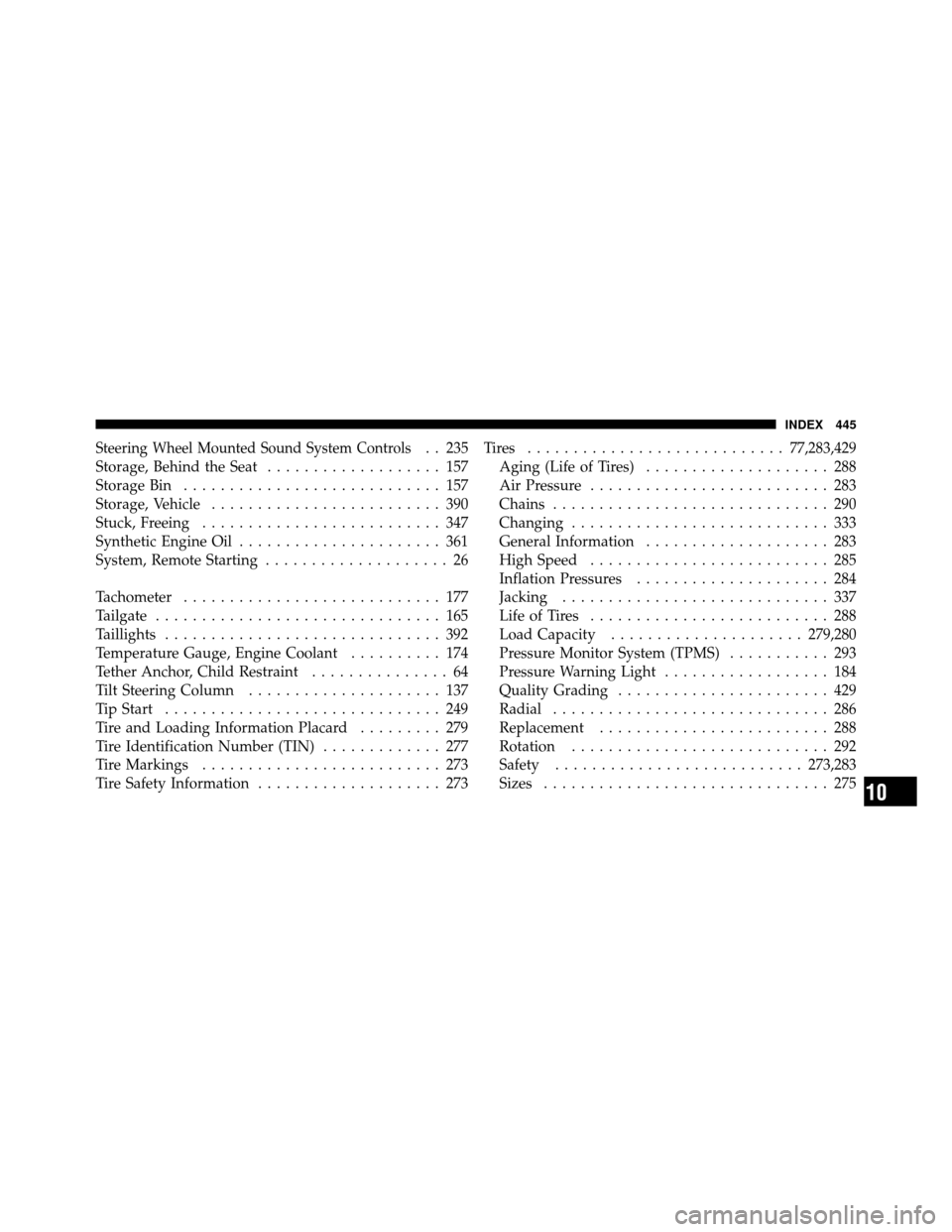

Steering Wheel Mounted Sound System Controls. . 235
Storage, Behind the Seat ................... 157
Storage Bin ............................ 157
Storage, Vehicle ......................... 390
Stuck, Freeing .......................... 347
Synthetic Engine Oil ...................... 361
System, Remote Starting .................... 26
Tachometer ............................ 177
Tailgate ............................... 165
Taillights .............................. 392
Temperature Gauge, Engine Coolant .......... 174
Tether Anchor, Child Restraint ............... 64
Tilt Steering Column ..................... 137
Tip Start .............................. 249
Tire and Loading Information Placard ......... 279
Tire Identification Number (TIN) ............. 277
Tire Markings .......................... 273
Tire Safety Information .................... 273 Tires ............................
77,283,429
Aging (Life of Tires) .................... 288
Air Pressure .......................... 283
Chains .............................. 290
Changing ............................ 333
General Information .................... 283
High Speed .......................... 285
Inflation Pressures ..................... 284
Jacking ............................. 337
Life of Tires .......................... 288
Load Capacity ..................... 279,280
Pressure Monitor System (TPMS) ........... 293
Pressure Warning Light .................. 184
Quality Grading ....................... 429
Radial .............................. 286
Replacement ......................... 288
Rotation ............................ 292
Safety ........................... 273,283
Sizes ............................... 275
10
INDEX 445
