2010 DODGE CARAVAN Owners Manual

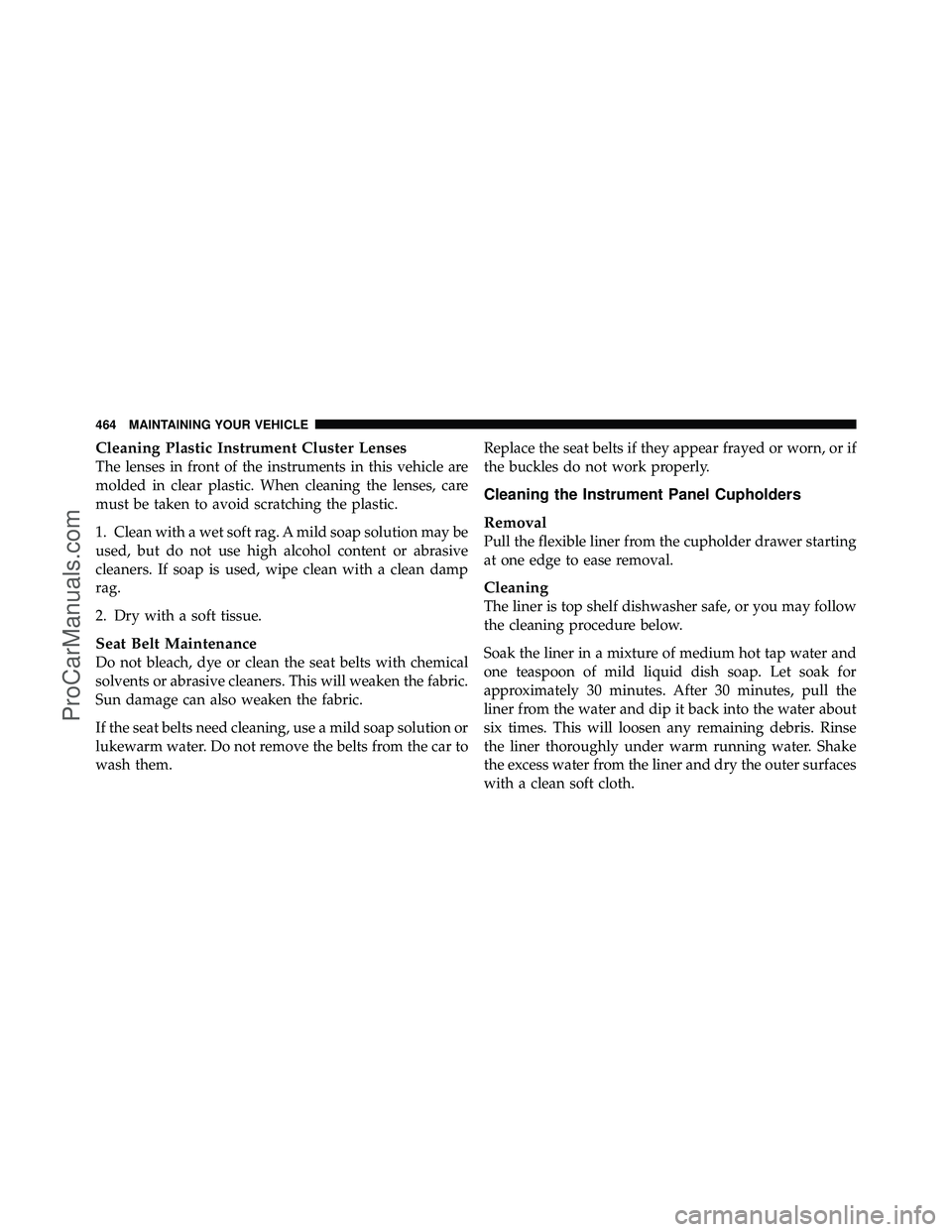

Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
1. Clean with a wet soft rag. A mild soap solution may be
used, but do not use high alcohol content or abrasive
cleaners. If soap is used, wipe clean with a clean damp
rag.
2. Dry with a soft tissue.
Seat Belt Maintenance
Do not bleach, dye or clean the seat belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage can also weaken the fabric.
If the seat belts need cleaning, use a mild soap solution or
lukewarm water. Do not remove the belts from the car to
wash them.Replace the seat belts if they appear frayed or worn, or if
the buckles do not work properly.
Cleaning the Instrument Panel Cupholders
Removal
Pull the flexible liner from the cupholder drawer starting
at one edge to ease removal.
Cleaning
The liner is top shelf dishwasher safe, or you may follow
the cleaning procedure below.
Soak the liner in a mixture of medium hot tap water and
one teaspoon of mild liquid dish soap. Let soak for
approximately 30 minutes. After 30 minutes, pull the
liner from the water and dip it back into the water about
six times. This will loosen any remaining debris. Rinse
the liner thoroughly under warm running water. Shake
the excess water from the liner and dry the outer surfaces
with a clean soft cloth.
464 MAINTAINING YOUR VEHICLE
ProCarManuals.com

Installation
Place the liner into the cupholder drawer and press the
liner into place so that the retention tabs seat into the
corresponding openings in the drawer.
FUSES
Totally Integrated Power Module (TIPM)
The Totally Integrated Power Module (TIPM) is located
in the engine compartment near the battery. Refer to the
applicable “Engine Compartment” illustration in this
section. This center contains cartridge fuses and mini-
fuses. A label that identifies each component may be
printed or embossed on the inside of the cover.
Totally Integrated Power Module (TIPM)
7
MAINTAINING YOUR VEHICLE 465
ProCarManuals.com

CAUTION!
•When installing the Totally Integrated Power
Module cover, it is important to ensure the cover is
properly positioned and fully latched. Failure to
do so may allow water to get into the Integrated
Power Module, and possibly result in a electrical
system failure.
•When replacing a blown fuse, it is important to
use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated
may result in a dangerous electrical system over-
load. If a properly rated fuse continues to blow, it
indicates a problem in the circuit that must be
corrected.
The numbers inside the TIPM cover correspond to the
following table.
FUSES/TIPM
Cavity Cartridge
Fuse Mini-Fuse Description
J1 40 Amp Green — Power Folding Seat
J2 30 Amp Pink — Power Liftgate
Module
J3 30 Amp Pink — Rear Door Module
(RR Door Node)
J4 25 Amp Natural — Driver Door Node
J5 25 Amp Natural — Passenger Door
Node
J6 40 Amp Green — Antilock Brakes
Pump/Stability
Control System
J7 30 Amp Pink — Antilock Brakes
Valve/Stability
Control System
466 MAINTAINING YOUR VEHICLE
ProCarManuals.com

FUSES/TIPM
Cavity Cartridge
Fuse Mini-Fuse Description
J8 40 Amp Green — Power Memory
Seat – If Equipped
J9 40 Amp Green — Partial Zero Emis-
sions Vehicle
Motor/Flex Fuel
J10 30 Amp Pink — Headlamp Wash
Relay/Manifold
Tuning Valve
J11 30 Amp Pink — Power Sliding Door
Module/Anti–Theft
Module Relay Lock
Feed
J13 60 Amp Yellow — Ignition Off Draw
(IOD) – Main
J14 40 Amp Green — Rear Window De-
foggerFUSES/TIPM
Cavity Cartridge
Fuse Mini-Fuse Description
J15 30 Amp Pink — Rear Blower
J17 40 Amp Green — Starter Solenoid
J18 20 Amp Blue — Powertrain
Control Module
Trans Range
J19 60 Amp Yellow — Radiator Fan
J20 30 Amp Pink — Front Wiper LO/HI
J21 20 Amp Blue — Front/Rear Washer
J22 25 Amp Natural — Sunroof Module
7
MAINTAINING YOUR VEHICLE 467
ProCarManuals.com

FUSES/TIPM
Cavity Cartridge
Fuse Mini-Fuse Description
M1 — 15 Amp BlueRear Center Brake
Lamp/Brake
Switch
M2———
M3 — 20 Amp YellowSpare Fuse
M4 — 10 Amp RedTrailer Tow
M5 — 25 Amp NaturalInverter
M6 — 20 Amp YellowPower Outlet #1
(ACC), Rain Sensor
M7 — 20 Amp YellowPower Outlet #2
(BATT/ACC
SELECT)FUSES/TIPM
Cavity Cartridge
Fuse Mini-Fuse Description
M8 — 20 Amp YellowFront Heated
Seat – If Equipped
M9 — 20 Amp YellowRear Heated
Seat – If Equipped
M10 — 15 Amp BlueIgnition Off
Draw — Video Sys-
tem, Satellite Ra-
dio, DVD, Hands-
Free Module,
Universal Garage
Door Opener, Van-
ity Lamp, Stream-
ing Video Module
M11 — 10 Amp RedIgnition Off
Draw – Climate
Control System
468 MAINTAINING YOUR VEHICLE
ProCarManuals.com

FUSES/TIPM
Cavity Cartridge
Fuse Mini-Fuse Description
M12 — 30 Amp GreenAmplifier (AMP)/
Radio
M13 — 20 Amp YellowIgnition Off
Draw— Instrument
Cluster, SIREN,
Clock Module,
Multi-Function
Control Switch/
ITM
M14 — 20 Amp YellowSpare FuseFUSES/TIPM
Cavity Cartridge
Fuse Mini-Fuse Description
M15 — 20 Amp YellowRear View Mirror,
Instrument Cluster,
Multi-Function
Control Switch,
Tire Pressure Moni-
tor, Glow Plug
Module – Export
Diesel Only, Assy-
Shifter (Hall Effect),
Acoustic Noise
Cancellation
M16 — 10 Amp RedAirbag Module/
Occupant Classifi-
cation Module
M17 — 15 Amp BlueLeft Tail/License/
Park Lamp, Run-
ning Lamps
7
MAINTAINING YOUR VEHICLE 469
ProCarManuals.com

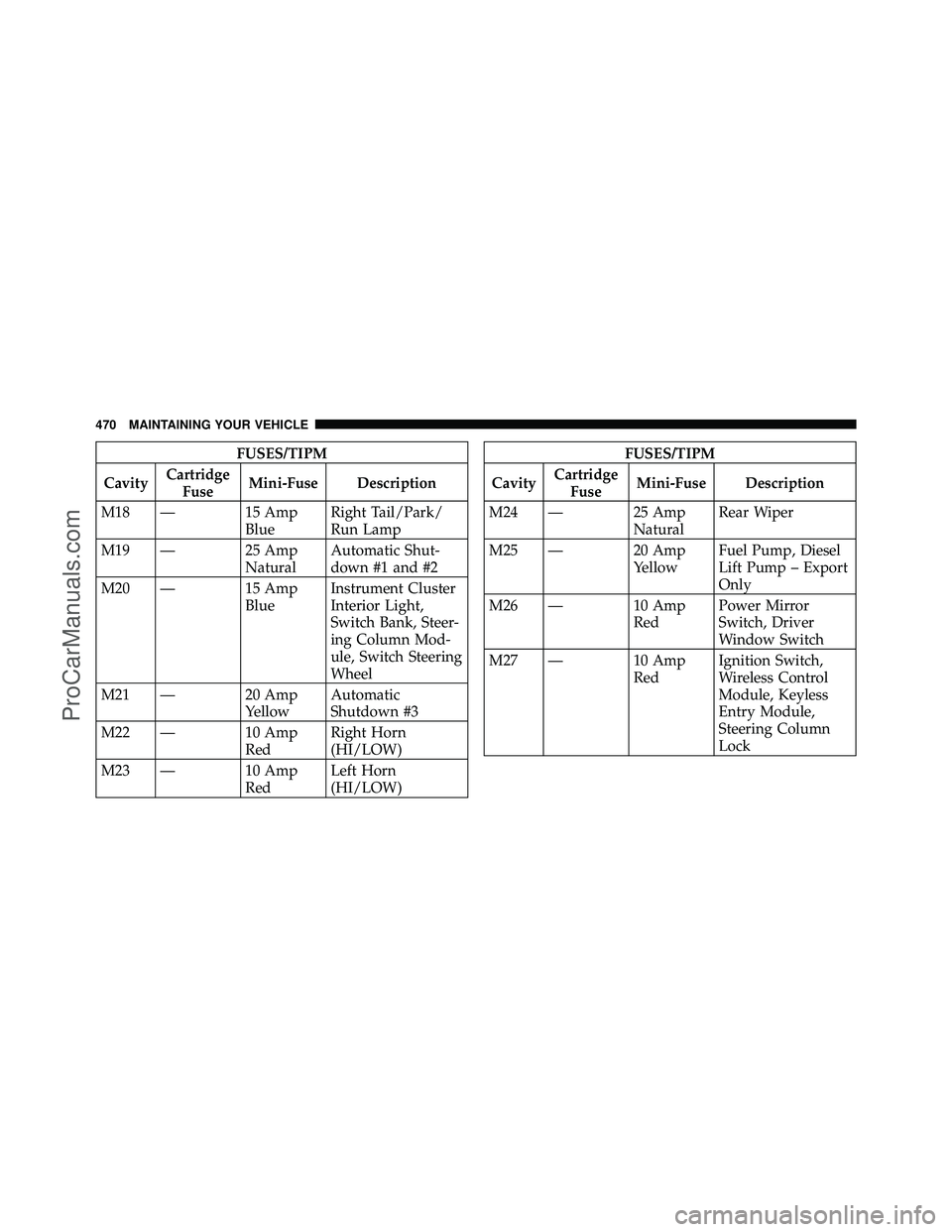

FUSES/TIPM
Cavity Cartridge
Fuse Mini-Fuse Description
M18 — 15 Amp BlueRight Tail/Park/
Run Lamp
M19 — 25 Amp NaturalAutomatic Shut-
down #1 and #2
M20 — 15 Amp BlueInstrument Cluster
Interior Light,
Switch Bank, Steer-
ing Column Mod-
ule, Switch Steering
Wheel
M21 — 20 Amp YellowAutomatic
Shutdown #3
M22 — 10 Amp RedRight Horn
(HI/LOW)
M23 — 10 Amp RedLeft Horn
(HI/LOW)FUSES/TIPM
Cavity Cartridge
Fuse Mini-Fuse Description
M24 — 25 Amp NaturalRear Wiper
M25 — 20 Amp YellowFuel Pump, Diesel
Lift Pump – Export
Only
M26 — 10 Amp RedPower Mirror
Switch, Driver
Window Switch
M27 — 10 Amp RedIgnition Switch,
Wireless Control
Module, Keyless
Entry Module,
Steering Column
Lock
470 MAINTAINING YOUR VEHICLE
ProCarManuals.com

FUSES/TIPM
Cavity Cartridge
Fuse Mini-Fuse Description
M28 — 10 Amp RedPowertrain Control
Module, Transmis-
sion Feed, Trans-
mission Control
Module
M29 — 10 Amp RedOccupant Classifi-
cation Module
M30 — 15 Amp BlueRear Wiper Mod-
ule, Power Folding
Mirror, J1962 Diag-
nostic Feed
M31 — 20 Amp YellowBack-Up Lamps
M32 — 10 Amp RedAirbag Module, TT
EUROPEFUSES/TIPM
Cavity Cartridge
Fuse Mini-Fuse Description
M33 — 10 Amp RedPowertrain Control
Module, Transmis-
sion Control Mod-
ule
M34 — 10 Amp RedPark Assist, Heater
Climate Control
System Module,
Headlamp Wash,
Compass, IR Sen-
sor, Rear Camera,
Lamp Door FT
Drv/Pass, Lamp
Flashlight, AHLM,
Relay Diesel Cabin
Heater, Rad Fan
Diesel
7
MAINTAINING YOUR VEHICLE 471
