2010 DODGE CARAVAN Owners Manual

WARNING!
Do not adjust the pedals while the vehicle is moving.
You could lose control and have an accident. Always
adjust the pedals while the vehicle is parked.
ELECTRONIC SPEED CONTROL — IF EQUIPPED
When engaged, Electronic Speed Control takes over the
accelerator operation at speeds greater than 25 mph
(40 km/h).NOTE:In order to ensure proper operation, the Elec-
tronic Speed Control System has been designed to shut
down if multiple Speed Control functions are operated at
the same time. If this occurs, the Electronic Speed Control
System can be reactivated by pushing the Electronic
Speed Control ON/OFF button and resetting the desired
vehicle set speed.
Electronic Speed Control Lever
168 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
ProCarManuals.com

To Activate
Push the ON/OFF button (located in the end of the lever)
once, and the cruise indicator light (located in the mes-
sage window of the odometer) will illuminate, showing
that the Electronic Speed Control system is on. To turn
the Electronic Speed Control system off, push the ON/
OFF button a second time, and both the Electronic Speed
Control system and indicator will turn off.
WARNING!
Leaving the Electronic Speed Control system on
when not in use is dangerous. You could accidently
set the system or cause it to go faster than you want.
You could lose control and have an accident. Always
leave the Electronic Speed Control system off when
you are not using it.
To Set At A Desired Speed
Turn the Electronic Speed Control ON. When the vehicle
has reached the desired speed, press the SET lever
downward and then release. Lift your foot off the accel-
erator and the vehicle will operate at the selected speed.
Deactivating Electronic Speed Control
A soft tap on the brake pedal or pulling the Electronic
Speed Control lever (CANCEL) toward you will deacti-
vate the Electronic Speed Control without erasing the set
speed memory. Pushing the ON/OFF button to the OFF
position or turning OFF the ignition erases the set speed
memory.
Resuming Speed
To resume a previously set speed, raise the Electronic
Speed Control lever (RESUME ACCEL) upward, and
release. Resume can be used at any speed above 25 mph
(40 km/h).
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 169
ProCarManuals.com

Varying The Speed Setting
When the Electronic Speed Control is set, you can in-
crease speed by pushing up and holding the RESUME
ACCEL lever. If the lever is continually held in the
RESUME ACCEL position, the set speed will continue to
increase until the lever is released, then the new set speed
will be established.
Tapping the Electronic Speed Control lever to RESUME
ACCEL once will result in a 1 mph (1.6 km/h) speed
increase. Each time the lever is tapped speed increases, so
tapping the lever three times will increase speed by
3 mph (4.8 km/h), etc.
To decrease speed while Electronic Speed Control is set,
push down and hold the Electronic Speed Control lever
in SET DECEL. If the lever is continually held in the SET
DECEL position, the set speed will continue to decrease
until the lever is released. Release the lever when the
desired speed is reached, and a new set speed will be
established.Tapping the Electronic Speed Control lever to SET DE-
CEL once will result in a 1 mph (1.6 km/h) speed
decrease. Each time the lever is tapped, speed decreases.
Accelerating To Pass
Press the accelerator as you normally would. When the
pedal is released, the vehicle will return to the set speed.
NOTE:
The Electronic Speed Control system maintains
speed up and down hills. A slight speed change on
moderate hills is normal.
Your vehicle may experience a downshift (automatic
transmissions only) while climbing uphill or descending
downhill. This downshift is necessary to maintain vehicle
set speed.
On steep hills, a greater speed loss or gain may occur, so
it may be preferable to drive without Electronic Speed
Control.
170 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
ProCarManuals.com

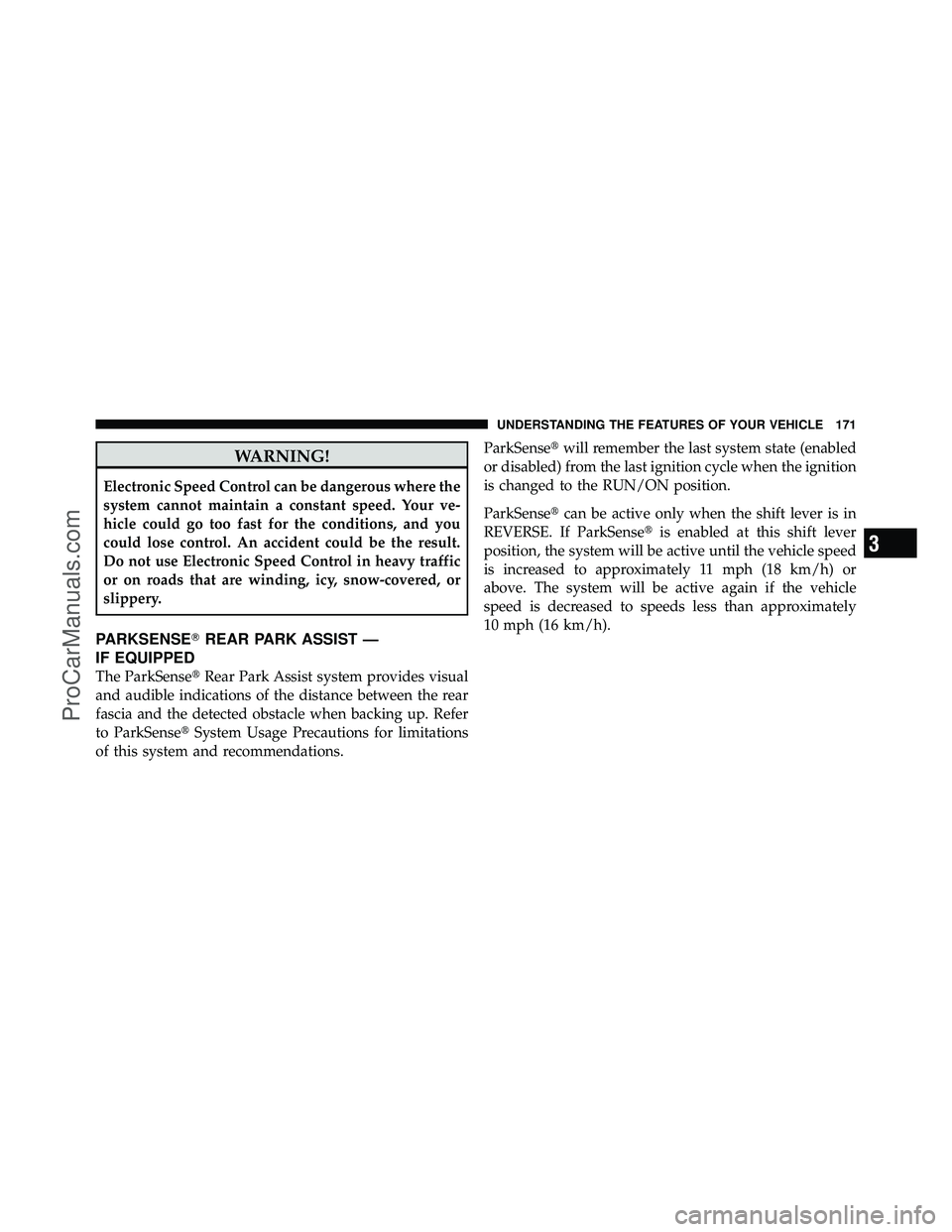

WARNING!
Electronic Speed Control can be dangerous where the
system cannot maintain a constant speed. Your ve-
hicle could go too fast for the conditions, and you
could lose control. An accident could be the result.
Do not use Electronic Speed Control in heavy traffic
or on roads that are winding, icy, snow-covered, or
slippery.
PARKSENSEREAR PARK ASSIST —
IF EQUIPPED
The ParkSense Rear Park Assist system provides visual
and audible indications of the distance between the rear
fascia and the detected obstacle when backing up. Refer
to ParkSense System Usage Precautions for limitations
of this system and recommendations. ParkSense
will remember the last system state (enabled
or disabled) from the last ignition cycle when the ignition
is changed to the RUN/ON position.
ParkSense can be active only when the shift lever is in
REVERSE. If ParkSense is enabled at this shift lever
position, the system will be active until the vehicle speed
is increased to approximately 11 mph (18 km/h) or
above. The system will be active again if the vehicle
speed is decreased to speeds less than approximately
10 mph (16 km/h).
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 171
ProCarManuals.com

ParkSenseSensors
The ParkSense sensors, located in the rear fascia/
bumper, monitor the area behind the vehicle that is
within the sensors’ field of view.
The sensors can detect obstacles from approximately
12 in (30 cm) up to 79 in (200 cm) from the rear
fascia/bumper in the horizontal direction, depending on
the location, type and orientation of the obstacle.
ParkSense Warning Display
The ParkSense Warning screen will only be displayed if
Sound and Display is selected from the Customer-
Programmable Features section of the Electronic Vehicle
Information Center (EVIC). Refer to “Electronic Vehicle
Information Center (EVIC)/Personal Settings (Customer-
Programmable Features)” in “Understanding Your In-
strument Panel” for further information. The ParkSense
Warning Display is located in the Instru-
ment cluster ’s EVIC display. It provides both visual and
audible warnings to indicate the distance between the
rear fascia/bumper and the detected obstacle.
ParkSense Warning Display
172 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
ProCarManuals.com

ParkSenseDisplay
When the vehicle is in REVERSE, the warning display
will turn ON indicating the system status.
Park Assist ON
Park Assist Disabled
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 173
ProCarManuals.com

The system will indicate a detected obstacle by showing
three solid arcs and will produce a12second tone. As the
vehicle moves closer to the object the EVIC display will
show fewer arcs and the sound tone will change from
slow, to fast, to continuous.
Slow Tone
174 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
ProCarManuals.com

The vehicle is close to the obstacle when the EVIC display
shows one flashing arc and sounds a continuous tone.
Fast ToneContinuous Tone
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 175
