2010 Citroen C4 Owner's Manual

4
F A M I L I A R I S A T I O N
E X T E R I O R

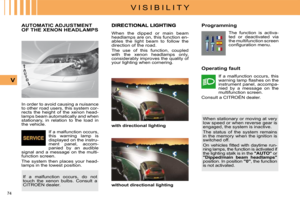

Directional headlamps
This lighting function automatically
improves forward vision when cor-
nering. Lane departure warning
system
Above 50 mph, this system is acti-
vated automatically if you inadvert-
ently wander from your lane. Front/rear parking sensors
This system warns you if an obsta-
cle is detected when manoeuvring
the vehicle.
Guide-me-home lighting
The headlamps stay on for a short
period after switching off the ignition.
 74

 73
 121
Vehicle maintenance
When washing your vehicle with a
high-pressure jet, keep the end of
the lance at least 30 centimetres
from any fi lm fi nishers.
Temporary tyre repair kit
This kit is a complete system, com-
prised of a compressor and a sealant
product, to carry out a temporary tyre
repair.

 120

 136

5
F A M I L I A R I S A T I O N
A C C E S S
Remote control

A. Unfolding/folding the key.

B. Unlocking the vehicle.

C. Locking the vehicle.

 56, 57
A long press on button
C locks the
vehicle and closes the windows.
Two successive presses on button C
deadlocks the vehicle. Press once to lock the vehicle.
Press again to unlock the vehicle.

 65
Manual central locking

D.
Activating/deactivating guide-me-home
lighting.
A heavy object (key fob...), attached to
the key and weighing down on its shaft
in the ignition switch, could cause a
malfunction.

6
F A M I L I A R I S A T I O N
A C C E S S

 Unlock the vehicle with the remote
control or the key.

 Press up on the handle and lift the
tailgate.
Tailgate Spare wheel
Access to the spare wheel

 Lift the carpet, then remove the tool
holder to gain access to the wheel.

 133
Locking filler cap

 Turn the key a quarter turn to lock
and unlock the fi ller cap.
When refuelling, place the cap on the
carrier on the inside face of the fi ller
fl ap.

 68  67

B. Removing the fi ller cap.
Fuel tank capacity: approximately
60 litres.

A. Opening the fuel fi ller fl ap.
To open the fuel fi ller fl ap, pull at its
notched edge. There is a fuel label on
the inside of the fl ap.
Fuel tank

7
F A M I L I A R I S A T I O N
I N T E R I O R
Translucent instrument panel
This system gives optimum contrast,
whatever the ambient light level. Cruise control/Speed limiter
These two systems allow the vehicle’s
speed to be maintained at a programmed
level. Scented air freshener
The air freshener distributes scented
air throughout the cabin. It is located
in the centre air vent

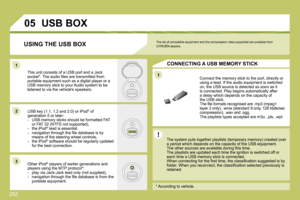

Audio and communication
systems
These systems make use of the lat-
est technologies: Audio system, USB
port, Bluetooth ®
telephone, NaviDrive
MyWay
 23

 116, 118
 48

 171

8
F A M I L I A R I S A T I O N
D A S H B O A R D

1. Controls:
- Mirrors.
- Windows.
- Child safety

2. Headlamp adjustment.

3. Control switches:
- ESP.
- Parking sensors.
- Lane departure warning system.
- Anti-intrusion alarm.

4. Steering lock and ignition switch.

5. Control stalk:
- Windscreen wiper.
- Screen wash.
- Rear screen wiper.
- Trip computer.

6. Fixed centred controls.

7. Direction indicator warning lamps.

8. Speedometer

9. Controls:
- Trip mileage recorder reset button.
- Display lighting rheostat.
- Display of alerts and status of functions.

10. Centre air vents.

11. Driver’s airbag.

12. Horn

13. Gear lever.

14. Parking brake.

9
F A M I L I A R I S A T I O N
D A S H B O A R D

1. Bonnet release.

2. Fusebox cover.

3. Storage drawer (left and right).

4. Lateral air vent (left and right).

5. Side window demister vent
(left and right).

6. Loudspeaker (Tweeter)
(left and right).

7. Passenger’s airbag.

8. Control for central locking of doors
and boot.

9. Multifunction screen.

10. Hazard warning lamps control.

11. Scented air freshener.

12. Controls:
- Lighting.
- Direction indicators.
- Front foglamps
- Rear foglamps.

13. Steering column adjustment lever.

14. Radio-CD or NaviDrive radio
navigation.

15. Air conditioning or heating/
ventilation.

16. Cigar lighter.

17. 12-volt accessory socket
(120 W max). or USB port.

18. Ashtray.

19. Key-operated switch:
- Passenger’s airbag activation/ deactivation.

20. Lower glovebox.
- Handbook pack storage.

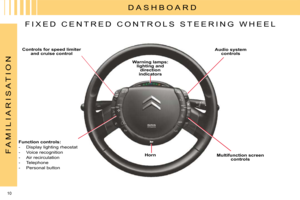

10
F A M I L I A R I S A T I O N
D A S H B O A R D

Controls for speed limiter
and cruise control
Audio system
controls

Warning lamps:
lighting and direction
indicators

Function controls:
- Display lighting rheostat
- Voice recognition
- Air recirculation
- Telephone
- Personal button
Multifunction screen
controls

Horn
F I X E D C E N T R E D C O N T R O L S S T E E R I N G W H E E L

11
F A M I L I A R I S A T I O N
D A S H B O A R D
Controls for speed limiter and cruise control Audio system controls
See "Audio and Telematics"

Selection of speed
limiter or cruise control
Activation of speed
limiter and Deactivation/ Reactivation of cruise
control and speed limiter
Search for higher
radio frequencies
Scroll through
memorised stations

Decrease
speed/Activate cruise control
Increase
speed/Activate cruise control
Increase sound
volume
Reduce
sound
volume
Mute
