2010 Citroen C3 Owner's Manual

11
PRACTICAL INFORMATION
AUDIO PRE-EQUIPMENT
Your vehicle is equipped with certain
factory-fi tted audio equipment:
- a dual-function aerial at the rear of the roof,
- a coaxial aerial cable,
- basic interference suppression,
- cabling for speakers in the front doors and tweeters in the dash-
board,
- cabling for speakers in the rear doors
- two 8-way connectors. Fitting an audio unit
The audio unit is fi tted in place of one
of the storage boxes located below the
heating and air conditioning control
panel.
Fitting speakers
It is possible to fi t:
- 165 mm diameter speakers in the
front doors,
- 130 mm diameter speakers in the rear doors,
- 22.5 mm diameter tweeters in the top of the dashboard. Connectors

8-way connector (A)
A1: -
A2: -
A3: -
A4: -
A5: -
A6: (+) Ignition positive (in this case, the audio equipment only oper-
ates when the ignition is on)
A7: (+) Permanent
A8: Earth
Never use a separate wire to
connect the (+) of your audio
equipment (risk of discharging of
the battery).

8-way connector (B)
B1: (+) Rear right speaker
B2: (-) Rear right speaker
B3: (+) Front right speaker and tweeter
B4: (-) Front right speaker and tweeter
B5: (+) Front left speaker and tweeter
B6: (-) Front left speaker and tweeter
B7: (+) Rear left speaker
B8: (-) Rear left speaker
Before installing a radio unit or
speakers in your vehicle, contact
a CITROËN dealer to obtain a
suitable wiring harness.

 Unclip the storage box on each side
using a screwdriver and pull out.
You will then have access to an aerial co-
axial cable and two 8-way connectors.
Then refer to the instructions provided
with your audio unit.

11
PRACTICAL INFORMATION
* To avoid any risk of jamming of the pedals:
- ensure that the mat is positioned and secured correctly,
- never fi t one mat on top of another.
ACCESSORIES
They are all adapted to your vehicle and
benefi t from CITROËN's recommenda-
tion and warranty.
"Comfort":
sun blinds, door defl ectors, isotherm mod-
ule, smoking kit, fragrance cartridges, front
centre armrest, moveable mirror, reading
lamp...
"Style":
leather steering wheel, gear lever knobs,
interior styling kit, aluminium footrest, al-
loy wheels, wheel trims, chrome tailgate
fi nisher, chrome tailpipe fi nisher, chrome
mirror shells, chrome door handles...
A wide range of accessories and gen-
uine parts is offered by the CITROËN
dealer network.
These accessories and parts have been
tested and approved for reliability and
safety.
Conversion kits
You can obtain an "Enterprise" kit to
convert a trade vehicle to a private car
and vice-versa.
"Transport solutions":
child seats and booster cushions, boot
tray, boot carpet, boot net, boot con-
tainers, transverse roof bars, bicycle
carrier, ski carrier, roof boxes, towbars,
wiring harnesses...
The towbar and its harness must be fi tted
by a CITROËN dealer.
"Safety":
anti-theft alarm, wheel security bolts,
stolen vehicle tracking system, breath-
alyser, fi rst aid kit, warning triangle, high
visibility safety jacket, dog guard, snow
chains, non-skid covers, foglamps kit,
parking sensors, transluscent bumper
protection strips...

"Protection":
mats * , mudfl aps, seat covers, door sill
protectors...

11
PRACTICAL INFORMATION

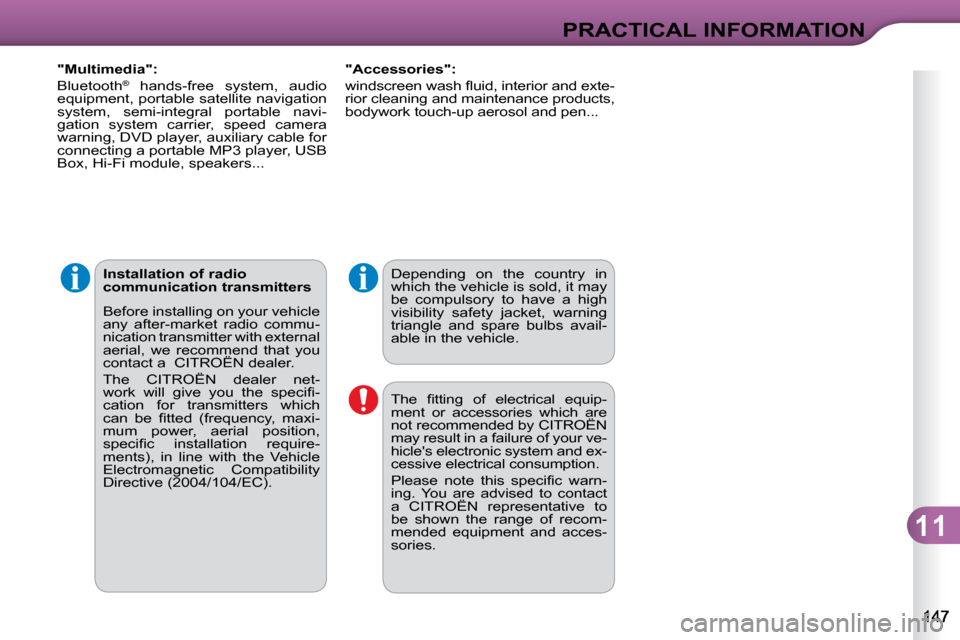

Depending on the country in
which the vehicle is sold, it may
be compulsory to have a high
visibility safety jacket, warning
triangle and spare bulbs avail-
able in the vehicle.
The fi tting of electrical equip-
ment or accessories which are
not recommended by CITROËN
may result in a failure of your ve-
hicle's electronic system and ex-
cessive electrical consumption.
Please note this specifi c warn-
ing. You are advised to contact
a CITROËN representative to
be shown the range of recom-
mended equipment and acces-
sories.
Installation of radio
communication transmitters
Before installing on your vehicle
any after-market radio commu-
nication transmitter with external
aerial, we recommend that you
contact a CITROËN dealer.
The CITROËN dealer net-
work will give you the specifi -
cation for transmitters which
can be fi tted (frequency, maxi-
mum power, aerial position,
specifi c installation require-
ments), in line with the Vehicle
Electromagnetic Compatibility
Directive (2004/104/EC).

"Multimedia":
Bluetooth ®
hands-free system, audio
equipment, portable satellite navigation
system, semi-integral portable navi-
gation system carrier, speed camera
warning, DVD player, auxiliary cable for
connecting a portable MP3 player, USB
Box, Hi-Fi module, speakers...
"Accessories":
windscreen wash fl uid, interior and exte-
rior cleaning and maintenance products,
bodywork touch-up aerosol and pen...

1 2
TECHNICAL DATA

MODELS:
ENGINES AND GEARBOXES

Model codes:

SC...
HFV0 KFT0 8FR0 5FS0 5FS9

PETROL ENGINES 1.1 i 1.4 i VTi 95 VTi 120
Cubic capacity (cc) 1 124 1 360 1 397 1 598
Bore x stroke (mm) 72 x 69 75 x 77 77 x 75 77 x 85.8
Max power: EU standard (kW) 44 54 72 88
Max power engine speed (rpm) 5 500 5 200 6 000 6 000
Max torque: EU standard (Nm) 94 118 136 160
Max torque engine speed (rpm) 3 300 3 300 4 000 4 250
Fuel Unleaded Unleaded Unleaded Unleaded
Catalytic converter yes yes yes yes

GEARBOX Manual
(5-speed) Manual
(5-speed) Manual
(5-speed) Manual
(5-speed) Auto
(4-speed)

OIL CAPACITIES (in litres)

Engine (with fi lter replacement) 3.0 3.0 4.2 4.2 4.2
Gearbox - Final drive 2.0 2.0 2.0 2.0 -

1 2
TECHNICAL DATA

MODELS:
ENGINES AND GEARBOXES

Model codes:
SC...
8HZC - 9HXC - 9HP0 9HR8

DIESEL ENGINES HDi 70 HDi 70 PEF HDi 90
HDi 90
PEF 99g
HDi 90
PEF
HDi 110 PEF
Cubic capacity (cc) 1 398 1 560 1 560
Bore x stroke (mm) 73.7 x 82 - x - 75 x 88.3 75 x 88.3
Max power: EU standard (kW) 50 - 66 68 68 8 2
Max power engine speed (rpm) 4 000 - 4 000 3 600
Max torque: EU standard (Nm) 160 - 215 230 230 270
Max torque engine speed (rpm) 2 000 - 1 750 1 75 0
Fuel Diesel Diesel Diesel
Catalytic converter yes yes yes
Particle emissions fi lter (PEF) no yes no yes yes yes

GEARBOX Manual
(5-speed) Manual
(5-speed) Manual
(6-speed)

OIL CAPACITIES (in litres)

Engine (with fi lter replacement) 3.75 3.75 3.75 - 3.75 3.75
Gearbox - Final drive 2.0 2.0 1.9 - 1.9 2.2

1 2
TECHNICAL DATA

WEIGHTS AND TOWED LOADS (in kg)

Petrol engines
1.1 i 1.4 i

Gearbox
Manual Manual

Model codes:
SC...
HFV0 KFT0
- Unladen weight 1 010 1 030
- Kerb weight 1 085 1 105
- Gross vehicle weight (GVW) 1 527 1 529
- Gross train weight (GTW)
on a 12 % gradient 1 975 2 329
- Braked trailer (within GTW limit)
on a 12 % gradient 450 800
- Braked trailer * (with load transfer within the GTW limit) 775 1 105
- Unbraked trailer 450 550
- Recommended nose weight 31 44
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mention ed
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
* The weight of the braked trailer can be increased, w
ithin the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount. Warning: towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.

1 2
TECHNICAL DATA
* The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is re duced by an
equal amount. Warning: towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mention ed
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
WEIGHTS AND TOWED LOADS (in kg)

Petrol engines
VTi 95 VTi 120

Gearboxes
Manual Manual Auto

Model codes:
SC...
8FR0 5FS0 5FS9
- Unladen weight 1 075 1 075 1 135
- Kerb weight 1 150 1 150 1 210
- Gross vehicle weight (GVW) 1 576 1 579 1 612
- Gross train weight (GTW)
on a 12 % gradient 2 476 2 479 2 512
- Braked trailer (within the GTW limit)
on a 12 % gradient 900 900 900
- Braked trailer * (with load transfer within the GTW limit) 1 150 1 150 1 150
- Unbraked trailer 570 570 570
- Recommended nose weight 46 46 46

1 2
TECHNICAL DATA
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mention ed
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
WEIGHTS AND TOWED LOADS (in kg)

Diesel engines HDi 70
HDi 70
PEF
HDi 90
HDi 90
PEF 99g
HDi 90
PEF
HDi 110
PEF

Gearbox
Manual Manual Manual

Model codes:
SC...
8HZC - 9HXC - 9HP0 9HR8
- Unladen weight 1 065 - 1 080 1 080 1 080 1 090
- Kerb weight 1 140 - 1 155 1 155 1 155 1 165
- Gross vehicle weight (GVW) 1 564 - 1 607 1 583 1 608 1 632
- Gross train weight (GTW)
on a 12 % gradient 2 464 - 2 507 2 083 2 508 2 532
- Braked trailer (within GTW limit)
on 12 % gradient 900 - 900 500 900 900
- Braked trailer * (with load transfer with the GTW limit) 1 150 - 1 150 500 1 150 1 150
- Unbraked trailer 570 - 570 500 570 570
- Recommended nose weight 46 - 46 46 4 6 46
* The weight of the braked trailer can be increased, w ithin the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount. Warning: towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.
