2010 Citroen BERLINGO MULTISPACE Owner's Manual

147
QUICK HELP
7
Changing a fuse
CHANGING A FUSE
The fuse boxes are placed:
- in the lower part of the dashboard on the left-hand side (behind the
cover),
- under the bonnet (near the battery).
The information given concerns only
those fuses which can be changed by
the user using the pliers and the spare
fuses, located behind the dashboard
storage compartment on the right-
hand side. For any other work, visit a
CITROËN dealer.
Removing and fitting a fuse
Always replace a faulty fuse with a
fuse of the same rating.
Trade professionals: for complete
information on the fuses and
relays, consult the "Repair
Manual" diagrams via the dealer
network.
CITROËN will not accept responsibility
for the cost incurred in repairing
your vehicle or for rectifying the
malfunctions resulting from the
installation of accessories not
supplied and not recommended by the
CITROËN network and not installed
in accordance with its instructions,
in particular when the combined
consumption of all of the additional
equipment connected exceeds
10 milliamperes. Before replacing a fuse, the cause
of the incident must be found and
rectifi ed.
- Use the pliers.

148
Changing a fuse
DASHBOARD FUSES
Tilt the cover to gain access to the
fuses. Fuses
F Amperes
A Allocation
1 15 Rear wiper
2 - Spare
3 5 Air bag
4 10 Air conditioning, diagnostic socket, mirror control,
headlamp beam
5 30 Electric windows
6 30 Locks
7 5 Rear courtesy lamp front map reading lamp,
roof console
8 20 Audio equipment, display, tyre under-infl ation
detection, alarm and siren
9 30 Front and rear 12 V socket
10 15 Central column
11 15 Low current ignition switch
12 15 Rain and brightness sensor, airbag
13 5 Instrument panel
14 15 Parking assistance, automatic air conditioning
controls, hands-free phone kit
15 30 Locks
16 - Spare
17 40 Rear screen/mirrors demist/defrost

149
QUICK HELP
7
Changing a fuse
PASSENGER COMPARTMENT FUSES
Fuses F Amperes
A Allocation
1 - Spare
2 20 Heated seats
3 - Spare
4 15 Folding mirrors relay
5 15 Refrigeration equipment socket relay

150
Changing a fuse
FUSES UNDER THE BONNET
After opening the bonnet, unclip and tilt
the corresponding box to gain access
to the fuses. Fuses
F Amperes
A Allocation
1 20 Engine management
2 15 Horn
3 10 Front and rear wash-wipe pump
4 20 Headlamp wash pump
5 15 Engine components
6 10 Steering wheel angle sensor, ESP
7 10 Brake switch, clutch switch
8 25 Starter
9 10 Headlamp beam motor, parc management unit
10 30 Engine components 11 40 Spare
12 30 Wipers
13 40 Built-in systems interface
14 30 Pump
15 10 Right-hand main beam headlamp
16 10 Left-hand main beam headlamp
17 15 Right-hand dipped headlamp
18 15 Left-hand dipped headlamp

151
7
Changing a wiper blade
Placing the wiper blades in the
special position
- Less than a minute after switching off the ignition, press the wipers
stalk downwards to position the
wiper blades along the windscreen
uprights (special position). Changing a front wiper blade
- Lift the wiper arm.
- Unclip the blade and remove it.
- Fit the new blade.
- Push back the wiper arm.
To return the windscreen wipers to their
normal position, switch on the ignition
and operate the wipers stalk. Changing the rear wiper blade
- Lift the wiper arm, then unclip the
blade and remove it.
- Fit the new blade and push back the wiper arm.
CHANGING A WINDSCREEN WIPER BLADE

152
Having your vehicle towed
Without lifting
(4 wheels on the road)
You should always use a towbar.

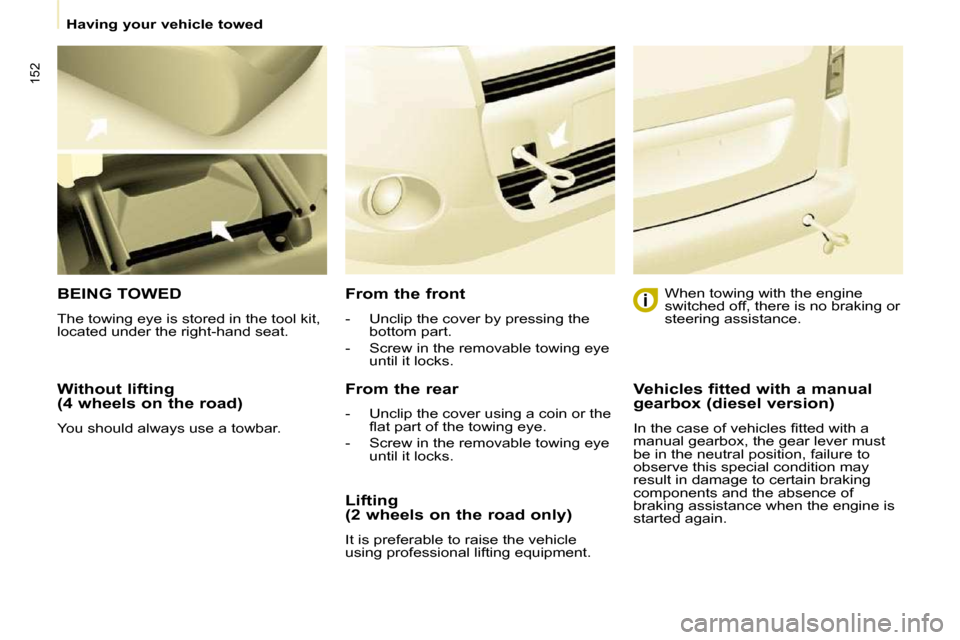

BEING TOWED
The towing eye is stored in the tool kit,
located under the right-hand seat. From the front
- Unclip the cover by pressing the
bottom part.
- Screw in the removable towing eye until it locks.
From the rear
- Unclip the cover using a coin or the fl at part of the towing eye.
- Screw in the removable towing eye until it locks. When towing with the engine
switched off, there is no braking or
steering assistance.
Lifting
(2 wheels on the road only)
It is preferable to raise the vehicle
using professional lifting equipment. Vehicles fitted with a manual
gearbox (diesel version)
In the case of vehicles fi tted with a
manual gearbox, the gear lever must
be in the neutral position, failure to
observe this special condition may
result in damage to certain braking
components and the absence of
braking assistance when the engine is
started again.

154
Dimensions

155
Dimensions
TECHNICAL DATA
8

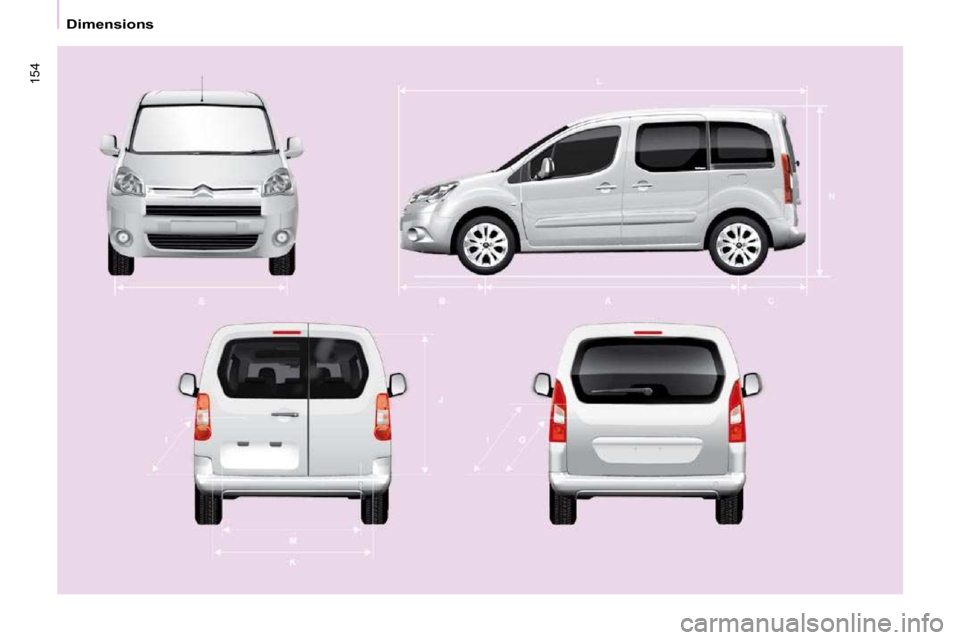

DIMENSIONS (MM)
L Overall length 4 380
H Overall height 1 801-1 862
A Wheelbase 2 728
B Front overhang 925
C Rear overhang 727
D Width over panels: without mirrors
1 810
with mirrors 2 112
E Width of front tracks 1 505-1 507
F Width of rear tracks 1 554-1 556
- Length of the loading surface to
the seat Row 2
990
Row 2, seat fully folded 1 343
With front passenger seat folded 3 000
