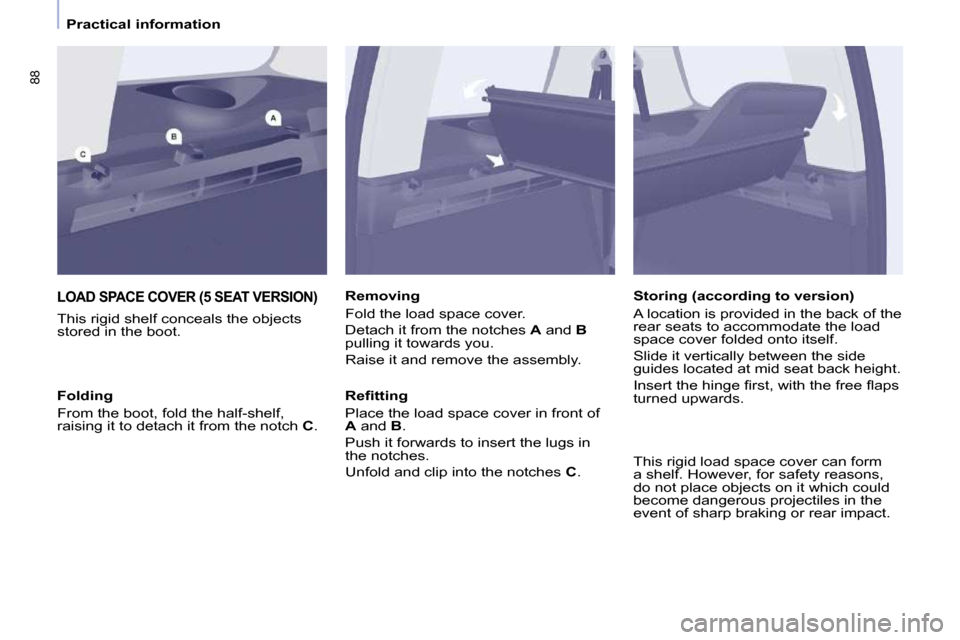

LOAD SPACE COVER (5 SEAT VERSION)
This rigid shelf conceals the objects
stored in the boot. Removing
Fold the load space cover.
Detach it from the notches
A and B
pulling it towards you.
Raise it and remove the assembly.
Refi tting
Place the load space cover in front of

A and B .
Push it forwards to insert the lugs in
the notches.
Unfold and clip into the notches C .
Folding
From the boot, fold the half-shelf,
raising it to detach it from the notch
C . Storing (according to version)
A location is provided in the back of the
rear seats to accommodate the load
space cover folded onto itself.
Slide it vertically between the side
guides located at mid seat back height.
Insert the hinge fi rst, with the free fl aps
turned upwards.
This rigid load space cover can form
a shelf. However, for safety reasons,
do not place objects on it which could
become dangerous projectiles in the
event of sharp braking or rear impact.

89
EASE OF USE
and
COMFORT
3
Practical information
12 Volt socket (120 W Max)
It is advisable to limit the use of this
socket to avoid discharging the battery. Protective net
Open the cover located in the hook
support.
Fix the top of the net in the notches,
having fi rst turned the bar 1/4 of a turn.
Ensure that the end of the bar engages
correctly in the metal part of its
location.
Fix the straps in the locations provided
on the fl oor.
Tighten the net using the straps.
Stowing rings
Use these rings to secure loads on the
fl oor.

90
Practical information
REAR FITTINGS (7 SEAT VERSION)
Cup holder
Any liquid carried in a cup (mug or
other) on board which could spill,
presents a risk.
Take care. 12 volt socket (120 W max)
It is advisable to limit the use of this
socket to avoid discharging the battery.
Stowing rings
Use the stowing rings on the fl oor to
secure and retain your loads fi rmly.
The seat belt anchorages must not be
used for this purpose.
It is recommended that the load is
immobilised by securing it fi rmly
using the stowing rings on the
fl oor.

91
EASE OF USE
and
COMFORT
3
Practical information
Storage flaps
Raise the corresponding fl ap. Next to the boot sill, the recess is
intended to receive the roller tube
containing the load space cover.
Seat belts
Ensure that the centre seat belt is
rolled up correctly in its strengthener
on the roof.
Prevent the row 3 seat belt buckles
from knocking by raising them as close
as possible to the stowages, located
on the roof.
The seat belt buckle attachment rings
on each side of the boot must not be
used to retain loads.

92
Practical information
LOAD SPACE SCREEN, LOAD
SPACE COVER
The load space screen is a load space
cover of the blind type with roller. Take
care not to place heavy objects on the
load space cover when unrolled. Position the load space screen so as to
present the rear load space cover fl aps
towards you.
Engage the left-hand lug of the roller in
the support A .
To install it
Place the row 3 seats in the fully folded
position.
Raise the storage fl ap at the boot sill.
Take hold of the roller in the centre and
compress it towards the left-hand pillar.
Raise the assembly.
Compress then place the right-hand
lug facing the support
B .
Release to engage the roller in its
support.
Unroll the load space cover to the rear
side pillars.
Engage the ends in the rear notches to
keep it taut.

93
EASE OF USE
and
COMFORT
3
Practical information
To remove it
From the boot, pull the load space
cover towards you to release it from
the side pillars.
Guide the load space cover as it rolls up.
Remove the clips of the three fl aps
from the base of each row 2 head
restraint.
Compress the roller to the left to
remove it from the support B .
Raise it and pivot it forwards. To store it
Store it in the recess at the boot sill,
with the two rear fl aps uppermost.
First, compress the load space screen
to the left.
Release.
Arrange the two fl aps and close the
storage fl ap.
The roller is fi tted with three fl aps
permitting concealment of the
boot, whether the row 2 seats
are in the normal position or the
comfort position.
Each fl ap has two clips which are
hooked on the base of each head
restraint.

94
Practical information
The interior rack consists of two
bars to be installed at the top of the
space leaving the lower area of the
passenger compartment free.
It permits the transportation of long
loads (2 metres maximum) with the
doors or tailgate closed. The long load
must rest on the overhead storage
compartment and the two bars. Maximum load: 10 kilogrammes per
bar.
The two interior bars are covered
with rubber and incorporate a strap
passage to secure the loaded objects.
However, be sure to comply with the
loads and weights permitted.

95
EASE OF USE
and
COMFORT
3
Practical information
The interior rack is not compatible
with the Modutop roof.
Fitting the bars
- Unclip the plastic covers
C .
- Unscrew the knurled wheels located at the ends of the bars fully.
- Take hold of the bar by the ends to slide them towards the inside to
retract them.
- Extract the metal end piece A
taking hold of the end of the bar like
a syringe.
- Insert the end piece A on one side
then lower it to fi x it in the base of
the notch B . Storing
When the bars are not in use:
- partially loosen the knurled wheels,
- lift the bar slightly,
- pivot it upwards by 180°,
- tighten the knurled wheel.
Good practice
In the event of a front impact, the rack
is disengaged to avoid injury to the
occupants of the vehicle. The slight
clearance observed in the bar is linked
with this safety disengagement.
Do not loosen or place the bars in a
position other than those described
above.
The load on the rack must rest on the
overhead storage compartment and
be strapped using the strap passages
provided on the bars.
The bars are not grab handles for the
passengers.
- Carry out the same operations on
the other side.
- Ensure that they are engaged correctly at the base of the notch.
- Tighten the knurled wheels and check the tightening by pushing the
bar sideways.
To remove, proceed in the reverse
order.
