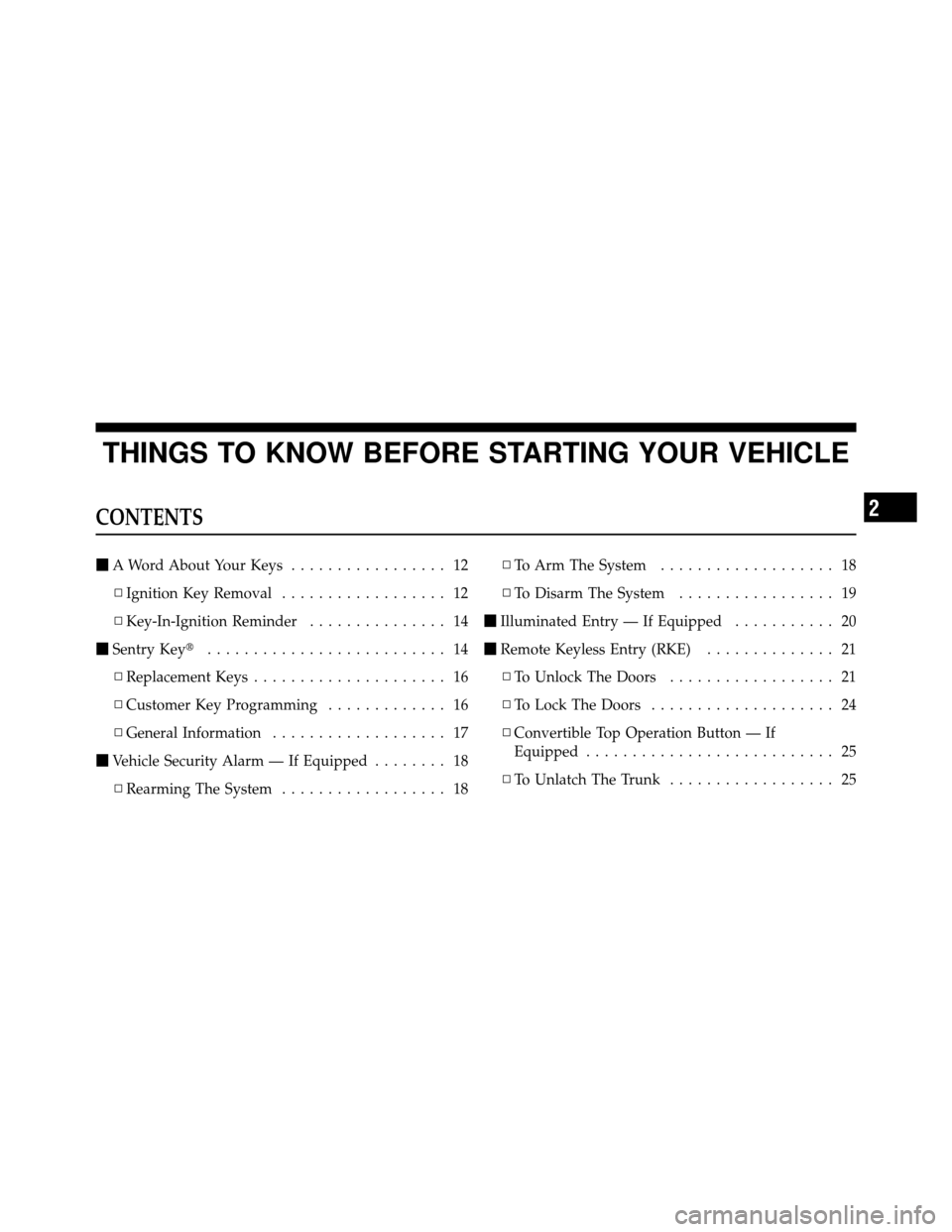

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
A Word About Your Keys ................. 12
▫ Ignition Key Removal .................. 12
▫ Key-In-Ignition Reminder ............... 14
 Sentry Key .......................... 14
▫ Replacement Keys ..................... 16
▫ Customer Key Programming ............. 16
▫ General Information ................... 17
 Vehicle Security Alarm — If Equipped ........ 18
▫ Rearming The System .................. 18 ▫
To Arm The System ................... 18
▫ To Disarm The System ................. 19
 Illuminated Entry — If Equipped ........... 20
 Remote Keyless Entry (RKE) .............. 21
▫ To Unlock The Doors .................. 21
▫ To Lock The Doors .................... 24
▫ Convertible Top Operation Button — If
Equipped ........................... 25
▫ To Unlatch The Trunk .................. 25
2

▫Remote Open Window Feature — If
Equipped ........................... 25
▫ Using The Panic Alarm ................. 25
▫ Programming Additional Transmitters ...... 26
▫ Battery Replacement ................... 26
▫ General Information ................... 27
 Remote Starting System — If Equipped ....... 27
▫ How To Use Remote Start ............... 27
 Door Locks ........................... 29
▫ Manual Door Locks ................... 29
▫ Power Door Locks .................... 30
 Windows ............................ 32
▫ Power Windows ...................... 32 ▫
Wind Buffeting ....................... 35
 Trunk Lock And Release ................. 35
 Trunk Safety Warning ................... 37
▫ Trunk Internal Emergency Release ......... 37
 Occupant Restraints ..................... 37
▫ Lap/Shoulder Belts .................... 39
▫ Lap/Shoulder Belt Untwisting Procedure .... 44
▫ Automatic Locking Retractors (ALR) Mode
— If Equipped ....................... 44
▫ Seat Belt Pretensioners — If Equipped ...... 45
▫ Supplemental Active Head Restraints (AHR) . . 46
▫ Enhanced Seat Belt Use Reminder System
(BeltAlert) ......................... 50
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

The system uses ignition keys, which have an embedded
electronic chip (transponder), to prevent unauthorized
vehicle operation. Therefore, only keys that are pro-
grammed to the vehicle can be used to start and operate
the vehicle. The system will shut the engine off in two
seconds if someone uses an invalid key to start the
engine.
NOTE:A key, which has not been programmed, is also
considered an invalid key even if it is cut to fit the
ignition switch lock cylinder for that vehicle.
During normal operation, after turning the ignition
switch ON, the Vehicle Security Light will turn on for
three seconds for a bulb check. If the light remains after
the bulb check, it indicates that there is a problem with
the electronics. In addition, if the light begins to flash
after the bulb check, it indicates that someone used an
invalid key to start the engine. Either of these conditions
will result in the engine being shut off after two seconds. If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10 sec-
onds), it indicates that there is a fault in the electronics.
Should this occur, have the vehicle serviced as soon as
possible by an authorized dealer.
CAUTION!
Always remove the Sentry Key
from the vehicle and
lock all doors when leaving the vehicle unattended.
NOTE: The Sentry Key Immobilizer System is not
compatible with some aftermarket remote starting sys-
tems. Use of these systems may result in vehicle starting
problems and loss of security protection.
All of the keys provided with your new vehicle have
been programmed to the vehicle electronics.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15

4. Insert a blank Sentry Keyinto the ignition switch.
Turn the ignition switch to the ON position within
60 seconds. After 10 seconds, a single chime will sound.
In addition, the Vehicle Security Light will stop flashing.
To indicate that programming is complete, the Vehicle
Security Light will turn on again for three seconds and
then turn off.
The new Sentry Key is programmed.The Remote
Keyless Entry (RKE) transmitter will also be pro-
grammed during this procedure.
Repeat this procedure to program up to eight keys. If you
do not have a programmed Sentry Key, contact your
authorized dealer for details.
NOTE: If a programmed key is lost, see your authorized dealer to have all remaining keys erased from the sys-
tems memory. This will prevent the lost key from starting
your vehicle. The remaining keys must then be repro-
grammed. All vehicle keys must be taken to an autho-
rized dealer at the time of service to be reprogrammed.
General Information
The Sentry Key
system complies with FCC rules part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
•This device may not cause harmful interference.
•This device must accept any interference that may be
received, including interference that may cause undes-
ired operation.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17

VEHICLE SECURITY ALARM — IF EQUIPPED
The Vehicle Security Alarm monitors the doors and trunk
for unauthorized entry and ignition switch for unautho-
rized operation.
If something triggers the alarm, the Vehicle Security
Alarm will signal for about 18 minutes. For the first three
minutes, the horn will sound intermittently and the
headlights, park lamps and/or turn signals will flash and
the Vehicle Security Light in the cluster will flash. Then
the exterior lights will flash for another 15 minutes.
Rearming The System
If something triggers the alarm, and no action is taken to
disarm it, the Vehicle Security Alarm will turn off the
horn after three minutes, turn off all of the visual signals
after 15 minutes, and then the Vehicle Security Alarm will
rearm itself.
To Arm The System
1. Remove the keys from the ignition switch and get out
of the vehicle.
2. Lock the door using either the power door lock switch
(one door must be open) or the LOCK button on the
Remote Keyless Entry (RKE) transmitter (doors can be
open or closed), and close all doors.
NOTE:The Vehicle Security Alarm will not arm if you
lock the doors with the manual door lock plungers.
3. The Vehicle Security Light in the instrument cluster
will flash for 16 seconds. This shows that the Vehicle
Security Alarm is arming. During this period, if a door is
opened, the ignition switch is turned ON, or the power
door locks are unlocked in any manner, the Vehicle
Security Alarm will automatically disarm.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

If the Vehicle Security Alarm is armed and the battery
becomes disconnected the Vehicle Security Alarm will
remain armed when the battery is reconnected. The
exterior lights will flash, and the horn will sound. If this
occurs, disarm the Vehicle Security Alarm.
Tamper Alert
If the alarm was triggered, but the warning signals have
timed out, the park and taillights flash three times
(instead of the normal twice), and the horn will chirp
three times, when unlocking the vehicle with a valid RKE
transmitter to alert the driver.
ILLUMINATED ENTRY — IF EQUIPPED
The courtesy/reading lights will turn on when you use
the Remote Keyless Entry (RKE) transmitter or open
either door.This feature also turns on the approach lighting (if
equipped). Refer to “Electronic Vehicle Information Cen-
ter (EVIC)/Personal Settings (Customer-Programmable
Features)” in “Understanding Your Instrument Panel” for
further information.
The interior lights will fade to off after approximately
30 seconds or they will immediately fade to off once the
ignition switch is turned ON.
NOTE:
The illuminated entry system will not operate
the interior lights if the dimmer control is in the “defeat”
position (extreme downward position).
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

REMOTE KEYLESS ENTRY (RKE)
This system allows you to lock or unlock the doors, open
the trunk, open the convertible top (if equipped), lower
both door and rear quarter windows (if equipped), or
activate the Panic Alarm from distances up to 66 ft (20 m)
using a hand-held Remote Keyless Entry (RKE) transmit-
ter. The RKE transmitter does not need to be pointed at
the vehicle to activate the system.
NOTE:
•The line of transmission must not be blocked with
metal objects when using the RKE transmitter.
•Inserting the key into the ignition switch disables all
buttons on the RKE transmitter.
To Unlock the Doors
Press and release the UNLOCK button on the RKE
transmitter once to unlock the driver’s door or twice to
unlock both doors. The turn signal lights will flash to
acknowledge the unlock signal. The Illuminated Entry
system (if equipped) will also turn on.
RKE Transmitter with Integrated Key
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21

Remote Key Unlock, Driver Door/All Doors First
Press
This feature lets you program the system to unlock either
the driver’s door or both doors on the first press of the
UNLOCK button on the RKE transmitter. To change the
current setting, proceed as follows:
•For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), refer to “Electronic Vehicle
Information Center (EVIC)/Personal Settings
(Customer-Programmable Features)” in “Understand-
ing Your Instrument Panel” for further information.
•For vehicles not equipped with the EVIC, perform the
following procedure:
1. Press and hold the LOCK button on a programmed
RKE transmitter for at least four seconds, but not longer
than 10 seconds. Then, press and hold the UNLOCK
button while still holding the LOCK button. 2. Release both buttons at the same time.
3. Test the feature while outside of the vehicle, by
pressing the LOCK/UNLOCK buttons on the RKE trans-
mitter with the ignition in the LOCK position, and the
key removed.
4. Repeat these steps if you want to return this feature to
its previous setting.
NOTE:
Pressing the LOCK button on the RKE transmit-
ter while you are inside the vehicle will activate the
Vehicle Security Alarm System. Opening a door with the
Vehicle Security Alarm activated will cause the alarm to
sound. Press the UNLOCK button to deactivate the
Vehicle Security Alarm System.
