▫Cooling System ..................... 382
▫ Brake System ....................... 387
▫ Automatic Transmission ............... 390
▫ Rear Axle .......................... 391
▫ Appearance Care And Protection From
Corrosion .......................... 392
 Fuses .............................. 398
▫ Integrated Power Module .............. 398
▫ Rear Power Distribution Center .......... 400
 Vehicle Storage ....................... 405
 Replacement Bulbs .................... 406
Bulb Replacement ..................... 407
▫ Low Beam Headlamp, High Beam
Headlamp, And Park/Turn Lamp ......... 407
▫ Tail/Stop, Tail, Turn Signal Lamp, And
Backup Lamp ....................... 407
▫ License Lamp ....................... 410
 Fluid Capacities ...................... 412
 Fluids, Lubricants, And Genuine Parts ....... 413
▫ Engine ............................ 413
▫ Chassis ........................... 414
364 MAINTAINING YOUR VEHICLE

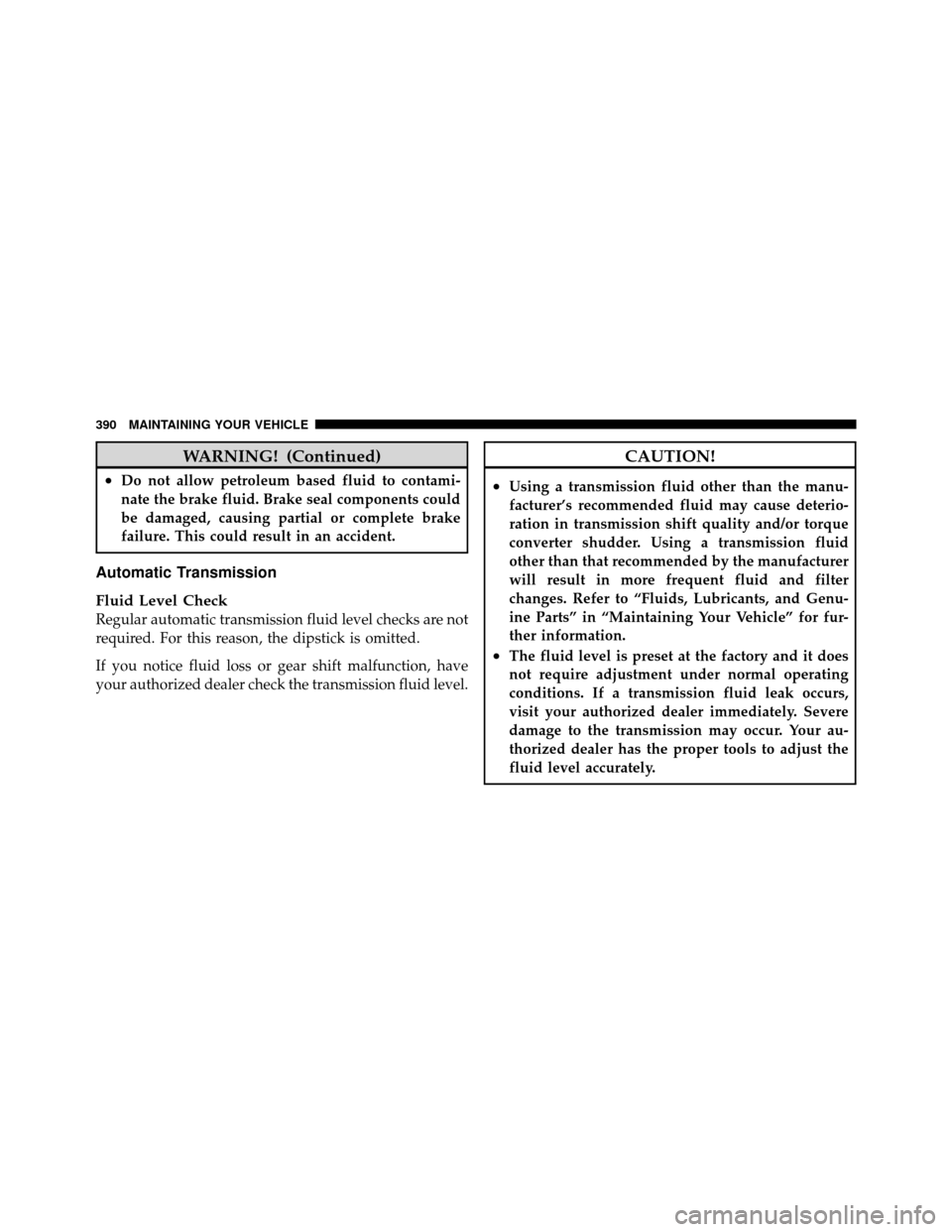

WARNING! (Continued)
•Do not allow petroleum based fluid to contami-
nate the brake fluid. Brake seal components could
be damaged, causing partial or complete brake
failure. This could result in an accident.
Automatic Transmission
Fluid Level Check
Regular automatic transmission fluid level checks are not
required. For this reason, the dipstick is omitted.
If you notice fluid loss or gear shift malfunction, have
your authorized dealer check the transmission fluid level.
CAUTION!
•Using a transmission fluid other than the manu-
facturer’s recommended fluid may cause deterio-
ration in transmission shift quality and/or torque
converter shudder. Using a transmission fluid
other than that recommended by the manufacturer
will result in more frequent fluid and filter
changes. Refer to “Fluids, Lubricants, and Genu-
ine Parts” in “Maintaining Your Vehicle” for fur-
ther information.
•The fluid level is preset at the factory and it does
not require adjustment under normal operating
conditions. If a transmission fluid leak occurs,
visit your authorized dealer immediately. Severe
damage to the transmission may occur. Your au-
thorized dealer has the proper tools to adjust the
fluid level accurately.
390 MAINTAINING YOUR VEHICLE

Fluid and Filter Changes
Refer to “Maintenance Schedule” for further information.
If the transmission is disassembled for any reason, the
fluid and filter should be changed.
Selection of Lubricant
It is important that the proper lubricant is used in the
transmission to assure optimum transmission perfor-
mance. Use only manufacturer ’s recommended transmis-
sion fluid. Refer to “Fluids, Lubricants, and Genuine
Parts” in “Maintaining Your Vehicle” for further informa-
tion. It is important that the transmission fluid be main-
tained at the prescribed level using the recommended
fluid. No chemical flushes should be used in any trans-
mission; only the approved lubricant may be used.
Special Additives
Automatic Transmission Fluid (ATF) is an engineered
product and its performance may be impaired by supple-
mental additives. Therefore, do not add any fluid addi-
tives to the transmission. The only exception to this
policy is the use of special dyes to aid in detecting fluid
leaks. In addition, avoid using transmission sealers as
they may adversely affect seals.
CAUTION!
Do not use chemical flushes in your transmission as
the chemicals can damage your transmission compo-
nents. Such damage is not covered by the New
Vehicle Limited Warranty.
Rear Axle
For normal service, periodic fluid level checks are not
required. When the vehicle is serviced for other reasons
the exterior surfaces of the axle assembly should be
7
MAINTAINING YOUR VEHICLE 391

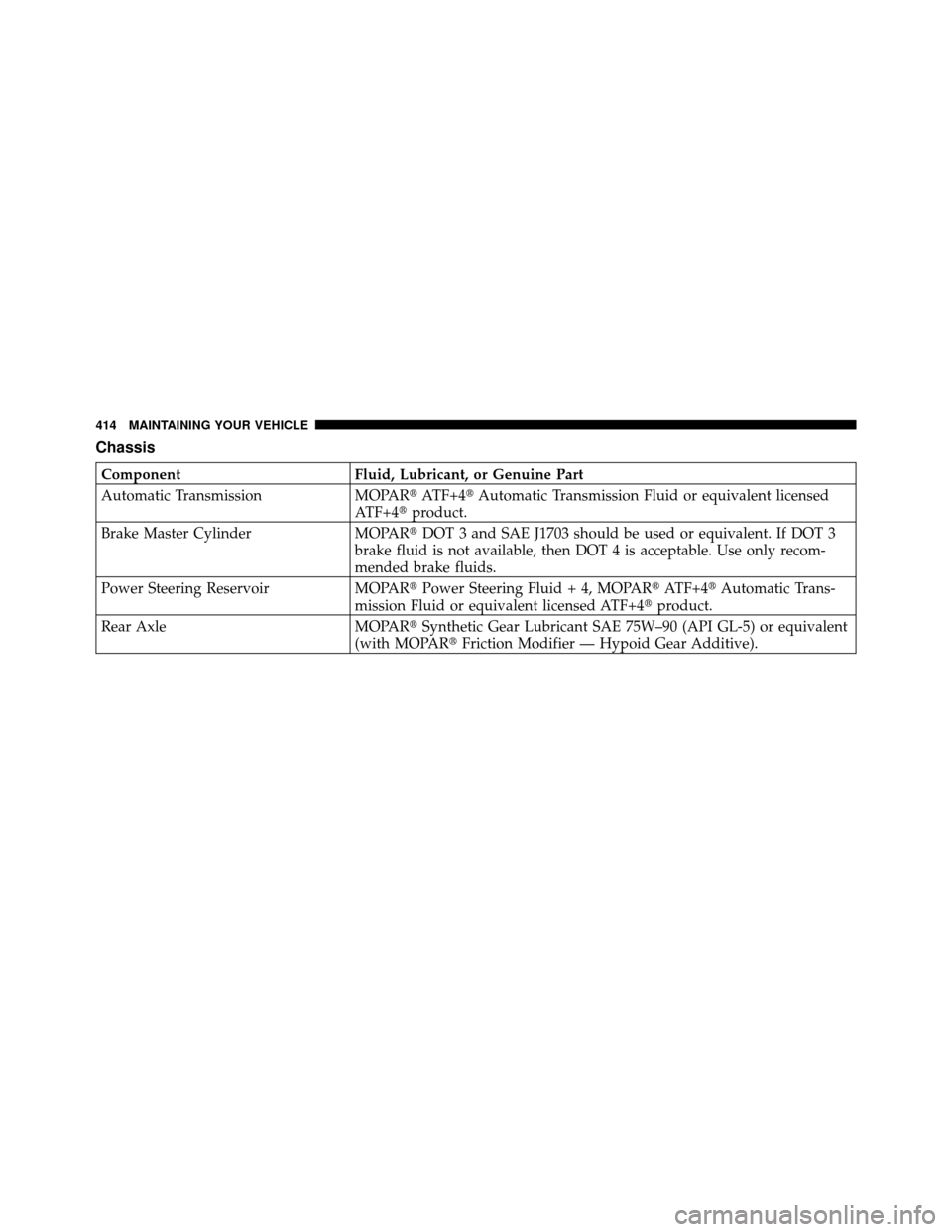

Chassis
ComponentFluid, Lubricant, or Genuine Part
Automatic Transmission MOPARATF+4Automatic Transmission Fluid or equivalent licensed
ATF+4 product.
Brake Master Cylinder MOPARDOT 3 and SAE J1703 should be used or equivalent. If DOT 3
brake fluid is not available, then DOT 4 is acceptable. Use only recom-
mended brake fluids.
Power Steering Reservoir MOPARPower Steering Fluid + 4, MOPAR ATF+4Automatic Trans-
mission Fluid or equivalent licensed ATF+4 product.
Rear Axle MOPARSynthetic Gear Lubricant SAE 75W–90 (API GL-5) or equivalent
(with MOPAR Friction Modifier — Hypoid Gear Additive).
414 MAINTAINING YOUR VEHICLE

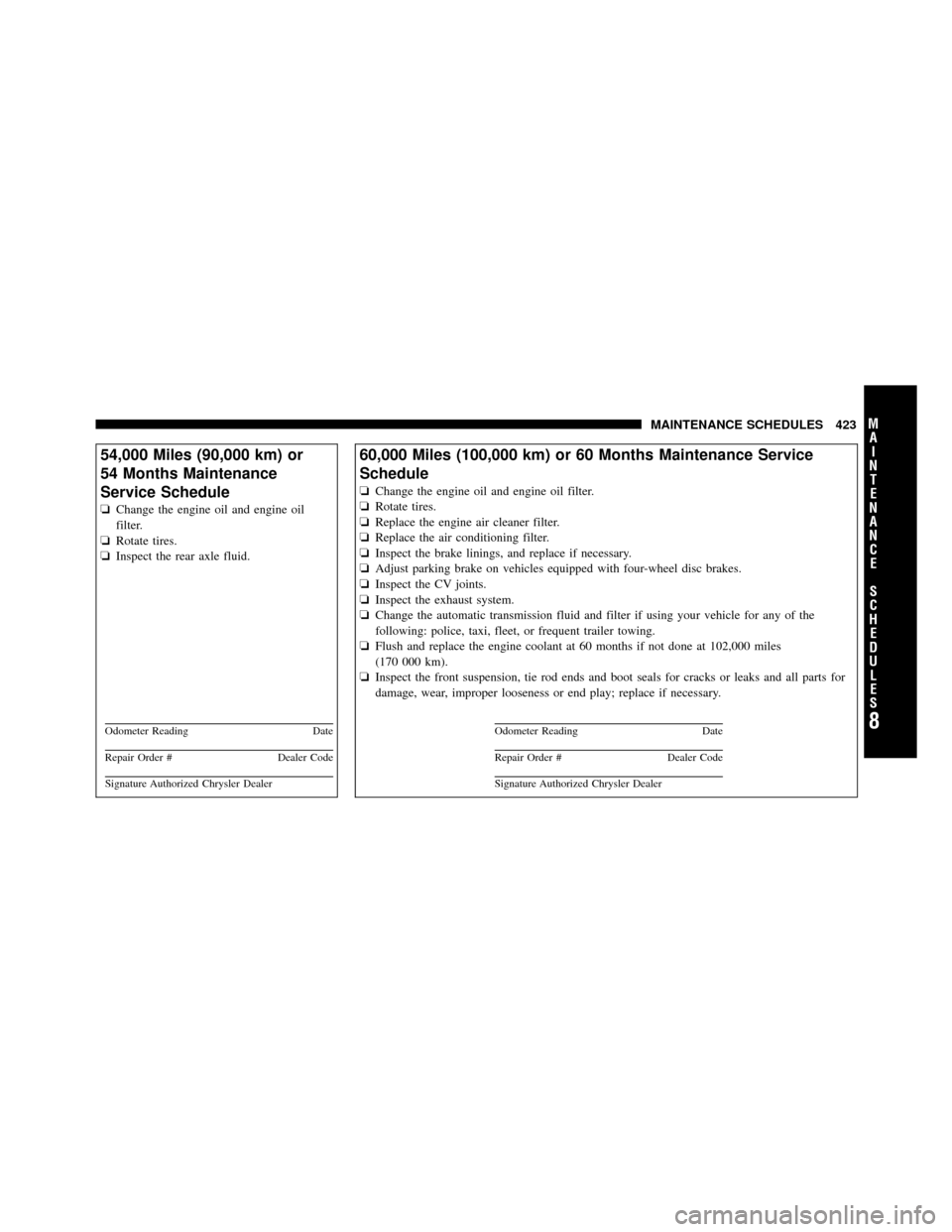

54,000 Miles (90,000 km) or
54 Months Maintenance
Service Schedule
❏Change the engine oil and engine oil
filter.
❏ Rotate tires.
❏ Inspect the rear axle fluid.
Odometer Reading Date
Repair Order #Dealer Code
Signature Authorized Chrysler Dealer
60,000 Miles (100,000 km) or 60 Months Maintenance Service
Schedule
❏Change the engine oil and engine oil filter.
❏ Rotate tires.
❏ Replace the engine air cleaner filter.
❏ Replace the air conditioning filter.
❏ Inspect the brake linings, and replace if necessary.
❏ Adjust parking brake on vehicles equipped with four-wheel disc brakes.
❏ Inspect the CV joints.
❏ Inspect the exhaust system.
❏ Change the automatic transmission fluid and filter if using your vehicle for any of the
following: police, taxi, fleet, or frequent trailer towing.
❏ Flush and replace the engine coolant at 60 months if not done at 102,000 miles
(170 000 km).
❏ Inspect the front suspension, tie rod ends and boot seals for cracks or leaks and all parts for
damage, wear, improper looseness or end play; replace if necessary.
Odometer Reading Date
Repair Order #Dealer Code
Signature Authorized Chrysler Dealer
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
SMAINTENANCE SCHEDULES 423

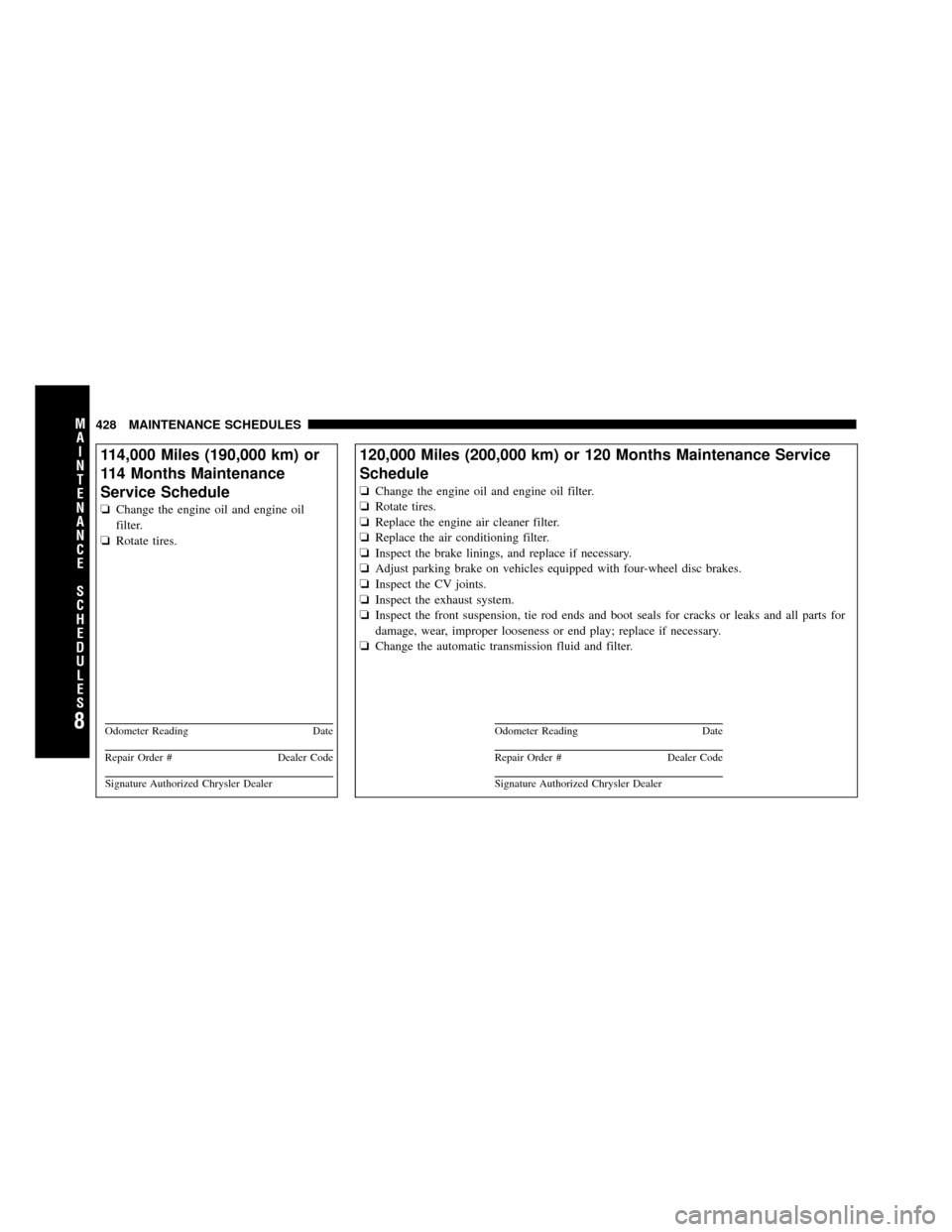

114,000 Miles (190,000 km) or
114 Months Maintenance
Service Schedule
❏Change the engine oil and engine oil
filter.
❏ Rotate tires.
Odometer Reading Date
Repair Order #Dealer Code
Signature Authorized Chrysler Dealer
120,000 Miles (200,000 km) or 120 Months Maintenance Service
Schedule
❏Change the engine oil and engine oil filter.
❏ Rotate tires.
❏ Replace the engine air cleaner filter.
❏ Replace the air conditioning filter.
❏ Inspect the brake linings, and replace if necessary.
❏ Adjust parking brake on vehicles equipped with four-wheel disc brakes.
❏ Inspect the CV joints.
❏ Inspect the exhaust system.
❏ Inspect the front suspension, tie rod ends and boot seals for cracks or leaks and all parts for
damage, wear, improper looseness or end play; replace if necessary.
❏ Change the automatic transmission fluid and filter.
Odometer Reading Date
Repair Order #Dealer Code
Signature Authorized Chrysler Dealer
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S428 MAINTENANCE SCHEDULES

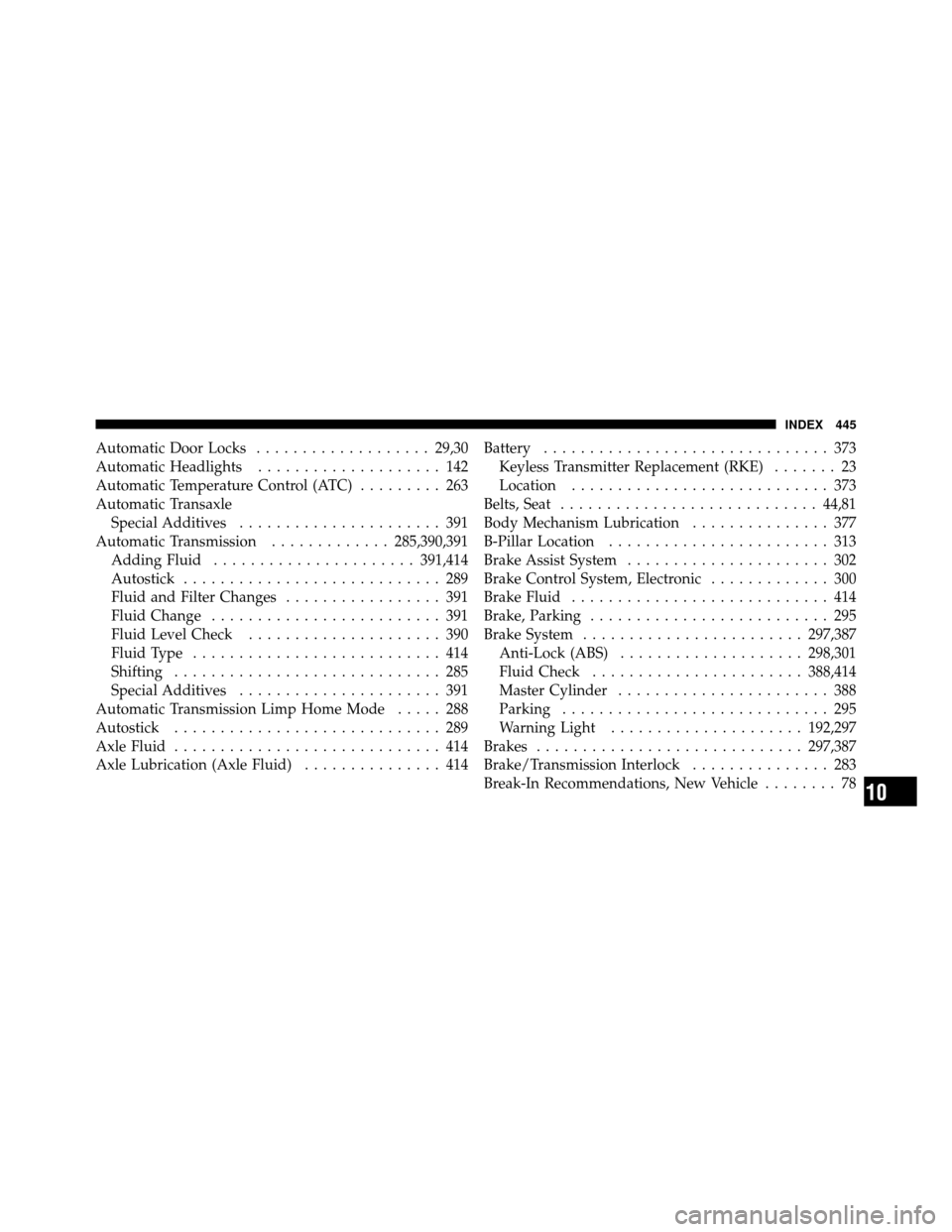

Automatic Door Locks................... 29,30
Automatic Headlights .................... 142
Automatic Temperature Control (ATC) ......... 263
Automatic Transaxle Special Additives ...................... 391
Automatic Transmission .............285,390,391
Adding Fluid ...................... 391,414
Autostick ............................ 289
Fluid and Filter Changes ................. 391
Fluid Change ......................... 391
Fluid Level Check ..................... 390
Fluid Type ........................... 414
Shifting ............................. 285
Special Additives ...................... 391
Automatic Transmission Limp Home Mode ..... 288
Autostick ............................. 289
Axle Fluid ............................. 414
Axle Lubrication (Axle Fluid) ............... 414Battery
............................... 373
Keyless Transmitter Replacement (RKE) ....... 23
Location ............................ 373
Belts, Seat ............................ 44,81
Body Mechanism Lubrication ............... 377
B-Pillar Location ........................ 313
Brake Assist System ...................... 302
Brake Control System, Electronic ............. 300
Brake Fluid ............................ 414
Brake, Parking .......................... 295
Brake System ........................ 297,387
Anti-Lock (ABS) .................... 298,301
Fluid Check ....................... 388,414
Master Cylinder ....................... 388
Parking ............................. 295
Warning Light ..................... 192,297
Brakes ............................. 297,387
Brake/Transmission Interlock ............... 283
Break-In Recommendations, New Vehicle ........ 78
10
INDEX 445

Fluid Capacities......................... 412
Fluid Leaks ............................. 83
Fluid Level Checks Automatic Transmission ................. 390
Brake .............................. 388
Cooling System ....................... 382
Engine Oil ........................... 370
Power Steering ........................ 294
Fluids ................................ 413
Fluids, Lubricants and Genuine Parts .......... 413
Fog Lights .......................... 145,189
Folding Rear Seat ........................ 134
Freeing A Stuck Vehicle ................... 359
Fuel ................................. 333
Adding ............................. 337
Additives ............................ 335
Clean Air ............................ 333
Ethanol ............................. 334
Filler Cap (Gas Cap) .................... 337 Gasoline
............................ 333
Gauge .............................. 195
Materials Added ....................... 335
Methanol ............................ 334
Octane Rating ...................... 333,413
Requirements ......................... 333
Specifications ......................... 413
Tank Capacity ........................ 412
Fuel System Caution ..................... 338
Fueling ............................... 337
Fuses ................................ 398
Garage Door Opener (HomeLink) ........... 164
Gas Cap (Fuel Filler Cap) ...............337,366
Gasoline, Clean Air ...................... 333
Gasoline (Fuel) ......................... 333
Gasoline, Reformulated ................... 333
Gauges Coolant Temperature ................... 193
450 INDEX
