2010 CHRYSLER 300 SRT Owners Manual

If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10 sec-
onds), it indicates that there is a fault in the electronics.
Should this occur, have the vehicle serviced as soon as
possible by an authorized dealer.
NOTE:The Sentry Key Immobilizer System is not
compatible with aftermarket remote starting systems.
Use of these systems may result in vehicle starting
problems and loss of security protection.
All of the Key Fobs provided with your new vehicle have
been programmed to the vehicle electronics.
Replacement Keys
NOTE: Only Key Fobs that are programmed to the
vehicle electronics can be used to start and operate the
vehicle. Once a Key Fob is programmed to a vehicle, it
cannot be programmed to any other vehicle.
CAUTION!
•Always remove the Key Fobs from the vehicle and
lock all doors when leaving the vehicle unat-
tended.
•For vehicles equipped with Keyless Go, always
remember to place the ignition in OFF.
At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
Keep the PIN in a secure location. This number is
required for authorized dealer replacement of Key Fobs.
Duplication of Key Fobs may be performed at an autho-
rized dealer, this procedure consists of programming a
blank Key Fob to the vehicle electronics. A blank Key Fob
is one that has never been programmed.
NOTE: When having the Sentry Key Immobilizer
System serviced, bring all vehicle Key Fobs with you to
the authorized dealer.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Customer Key Programming
Programming Key Fobs or RKE transmitters may be
performed at an authorized dealer.
General Information
The Sentry Keysystem complies with FCC rules Part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
•This device may not cause harmful interference.
•This device must accept any interference that may be
received, including interference that may cause undes-
ired operation.
VEHICLE SECURITY ALARM — IF EQUIPPED
The Vehicle Security Alarm monitors the vehicle doors
for unauthorized entry and the ignition switch (and
Keyless Go Start/Stop button) for unauthorized opera-
tion. If something triggers the alarm, the Vehicle Security
Alarm will prevent the vehicle from starting and provide the following audible and visible signals: the horn will
pulse, the headlights, park lamps and/or turn signals
will flash, and the Vehicle Security Light in the instru-
ment cluster will flash.
Rearming of the System
If something triggers the alarm, and no action is taken to
disarm it, the Vehicle Security Alarm will turn the horn
off after three minutes, turn all of the visual signals off
after 15 minutes, and then the Vehicle Security Alarm will
rearm itself.
To Arm the System
Vehicles Not Equipped with Keyless Go
Remove the key from the ignition switch and either press
a power door LOCK switch while the driver or passenger
door is open or press the LOCK button on the Remote
Keyless Entry (RKE) transmitter. After the last door is
closed, or if all doors are closed, the Vehicle Security
Alarm will arm itself in about 16 seconds. During that
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17

time, the Vehicle Security Light will flash. If it does not
illuminate, the Vehicle Security Alarm is not arming. In
addition, if you open a door during the arming period,
the Vehicle Security Alarm will cancel the arming pro-
cess. If you wish to rearm the Vehicle Security Alarm after
closing the door, you must repeat one of the previously-
described arming sequences.
Vehicles Equipped with Keyless Go
Press the Keyless Go Start/Stop button until the Elec-
tronic Vehicle Information Center (EVIC) indicates that
the vehicle ignition isOFF(refer to “Starting Proce-
dures” in “Starting And Operating” for further informa-
tion). Then either press the power door LOCK switch
while the driver or passenger door is open, press the
Remote Keyless Entry (RKE) transmitter LOCK button or
press the Passive Entry Door Handle LOCK button (refer
to “Door Locks” in “Things To Know Before Starting” for
further information).To Disarm the System
Vehicles Not Equipped with Keyless Go
Either press the UNLOCK button on the RKE transmitter
or insert a valid ignition key into the ignition switch and
turn the key to the ON position.
NOTE:
•The driver’s door key cylinder and the trunk button on
the RKE transmitter cannot arm or disarm the Vehicle
Security Alarm.
•The Vehicle Security Alarm remains armed during
trunk entry. Pressing the TRUNK button will not
disarm the Vehicle Security Alarm. If someone enters
the vehicle through the trunk, and opens any door, the
alarm will sound.
•When the Vehicle Security Alarm is armed, the interior
power door lock switches will not unlock the doors.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

The Vehicle Security Alarm is designed to protect your
vehicle; however, you can create conditions where the
Vehicle Security Alarm will give you a false alarm. If one
of the previously-described arming sequences has oc-
curred, the Vehicle Security Alarm will arm regardless of
whether you are in the vehicle or not. If you remain in the
vehicle and open a door, the alarm will sound. If this
occurs, disarm the Vehicle Security Alarm.
If the Vehicle Security Alarm is armed and the battery
becomes disconnected the Vehicle Security Alarm will
remain armed when the battery is reconnected. The
exterior lights will flash, the horn will sound, and the
ignition will not start the vehicle. If this occurs, disarm
the Vehicle Security Alarm.
Vehicles Equipped with Keyless Go
Either press the UNLOCK button on the RKE transmitter
or grasp the Passive Entry Unlock Door Handle (refer to
“Door Locks” in “Things To Know Before Starting” forfurther information), press the Keyless Go Start/Stop
button (requires at least one valid Key Fob in the vehicle),
or insert a valid Key Fob into the ignition switch (if the
Start/Stop button is removed) and rotate it to the RUN
position.
Tamper Alert
If something has triggered the Vehicle Security Alarm in
your absence, the horn will sound three times when you
disarm the Vehicle Security Alarm. Check the vehicle for
tampering.
ILLUMINATED ENTRY — IF EQUIPPED
The courtesy lights will turn on when you use the
Remote Keyless Entry (RKE) transmitter or unlock any
door.
The lights will fade to off after approximately 30 seconds
or they will immediately fade to off once the ignition
switch is turned ON from the LOCK position.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19

NOTE:None of the courtesy lights will operate if the
dimmer control is in the “defeat” position (extreme
downward position), unless the overhead map/reading
lights are turned on manually.
REMOTE KEYLESS ENTRY (RKE)
The RKE system allows you to lock or unlock the doors,
open the trunk, or activate the Panic Alarm from dis-
tances up to approximately 66 ft (20 m) using a hand-held
Key Fob with RKE transmitter. The RKE transmitter does
not need to be pointed at the vehicle to activate the
system.
NOTE: Inserting the Key Fob with RKE transmitter into
the ignition switch disables all buttons on that RKE
transmitter; however, the buttons on the remaining RKE
transmitters will continue to work. Driving at speeds
5 mph (8 km/h) and above disables all RKE transmitter
buttons for all RKE transmitters.
To Unlock the Doors
Press and release the UNLOCK button on the RKE
transmitter once to unlock the driver’s door or twice
within five seconds to unlock all doors. The turn signal
lights will flash to acknowledge the unlock signal. The
illuminated entry system will also turn on.
Key Fob with RKE Transmitter
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

If your vehicle is equipped with Passive Entry, refer to
“Passive Entry System — If Equipped” under “Door
Locks” for further information.
Remote Key Unlock, Driver Door/All Doors 1st
Press
This feature lets you program the system to unlock either
the driver’s door or all doors on the first press of the
UNLOCK button on the RKE transmitter. Refer to “Elec-
tronic Vehicle Information Center (EVIC)/Personal Set-
tings (Customer-Programmable Features)” in “Under-
standing Your Instrument Panel” for further information.
Flash Lights with Remote Key Lock
This feature will cause the turn signal lights to flash when
the doors are locked with the RKE transmitter. When this
feature is turned on and the vehicle is equipped with the
Passive Entry system, using the Passive Entry system to
LOCK the vehicle will cause the parking lights to flash.
This feature can be turned on or turned off. Refer to“Electronic Vehicle Information Center (EVIC)/Personal
Settings (Customer-Programmable Features)” in “Under-
standing Your Instrument Panel” for further information.
Turn Headlights On with Remote Key Unlock
This feature activates the headlights for up to 90 seconds
when the doors are unlocked with the RKE transmitter.
When this feature is turned on and the vehicle is
equipped with the Passive Entry system, using the Pas-
sive Entry system to UNLOCK the vehicle will cause the
parking lights to flash. The time for this feature is
programmable. Refer to “Electronic Vehicle Information
Center (EVIC)/Personal Settings (Customer-
Programmable Features)” in “Understanding Your In-
strument Panel” for further information.
To Lock the Doors
Press and release the LOCK button on the RKE transmit-
ter to lock all doors. The turn signal lights will flash and
the horn will chirp to acknowledge the signal.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21

If the vehicle is equipped with Passive Entry, refer to
“Passive Entry System — If Equipped” under “Door
Locks” for further information.
Sound Horn with Remote Key Lock
This feature will cause the horn to chirp when the doors
are locked with the RKE transmitter, or locked using the
Passive Entry door handle lock button. This feature can
be turned on or turned off. Refer to “Electronic Vehicle
Information Center (EVIC)/Personal Settings (Customer-
Programmable Features)” in “Understanding Your In-
strument Panel” for further information.
To Unlatch the Trunk
Press the TRUNK button on the RKE transmitter two
times within five seconds to unlatch the trunk.
Refer to “Passive Entry System — If Equipped” under
“Door Locks” for further information
Using the Panic Alarm
To turn the Panic Alarm feature on or off, press and hold
the PANIC button on the RKE transmitter for at least one
second and release. When the Panic Alarm is on, the
headlights and park lights will flash, the horn will pulse
on and off, and the interior lights will turn on.
The Panic Alarm will stay on for three minutes unless
you turn it off by either pressing the PANIC button a
second time or drive the vehicle at a speed of 15 mph
(24 km/h) or greater.
NOTE:
•The interior lights will turn off if you turn the ignition
switch to the ACC or ON position while the Panic
Alarm is activated. However, the exterior lights and
horn will remain on.
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

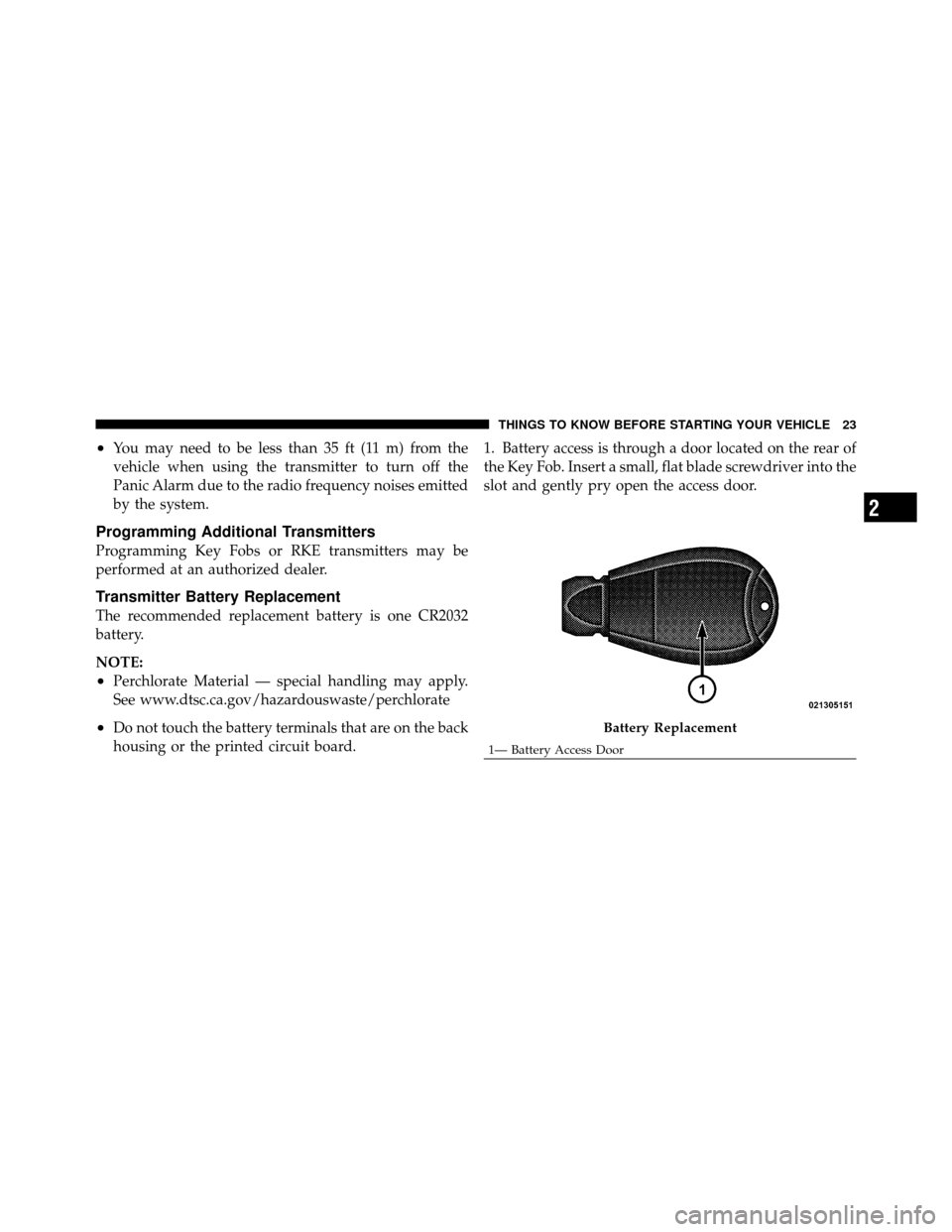

•You may need to be less than 35 ft (11 m) from the
vehicle when using the transmitter to turn off the
Panic Alarm due to the radio frequency noises emitted
by the system.
Programming Additional Transmitters
Programming Key Fobs or RKE transmitters may be
performed at an authorized dealer.
Transmitter Battery Replacement
The recommended replacement battery is one CR2032
battery.
NOTE:
•Perchlorate Material — special handling may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate
•Do not touch the battery terminals that are on the back
housing or the printed circuit board.1. Battery access is through a door located on the rear of
the Key Fob. Insert a small, flat blade screwdriver into the
slot and gently pry open the access door.Battery Replacement
1— Battery Access Door
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23
