2010 CHRYSLER 300 SRT wiper blades

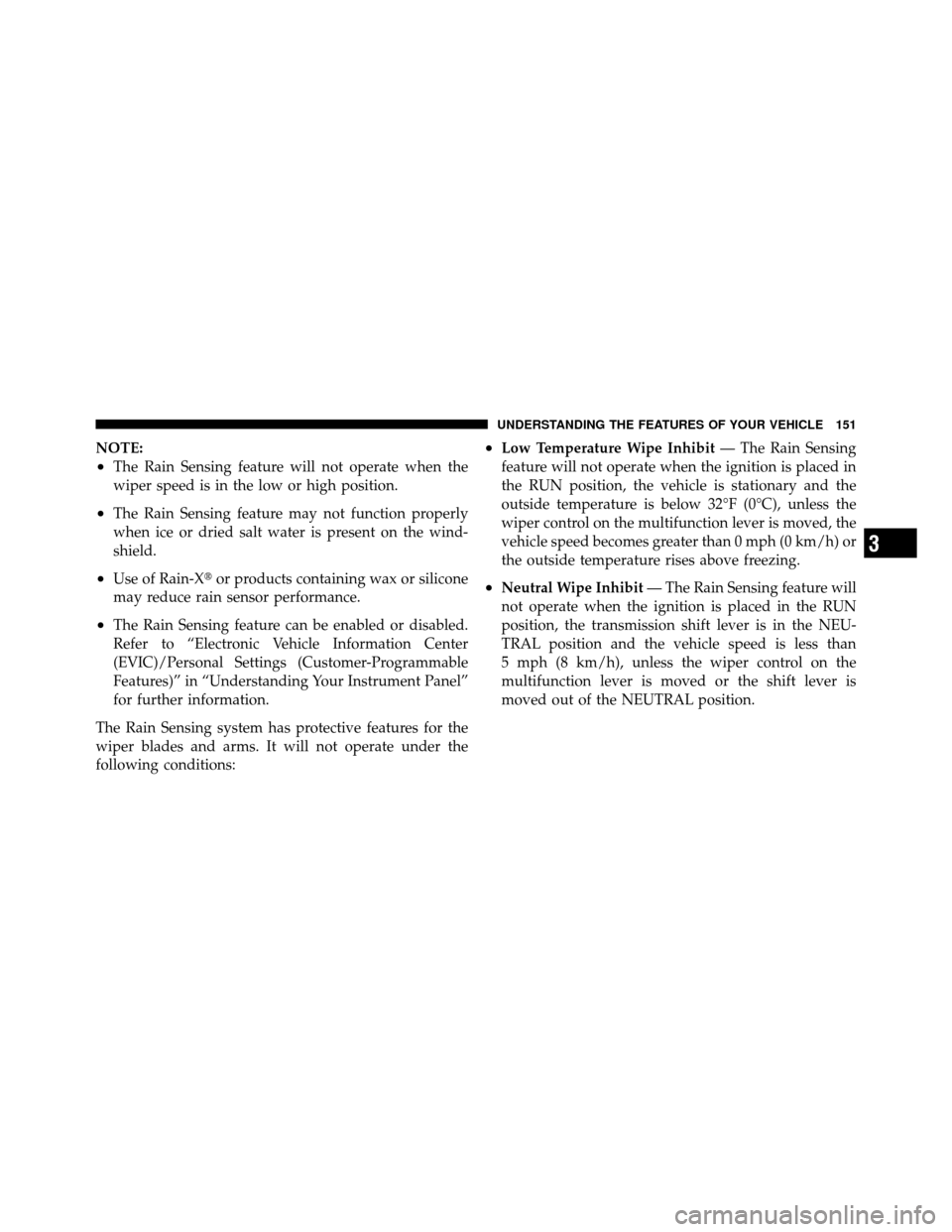

NOTE:
•The Rain Sensing feature will not operate when the
wiper speed is in the low or high position.
•The Rain Sensing feature may not function properly
when ice or dried salt water is present on the wind-
shield.
•Use of Rain-Xor products containing wax or silicone
may reduce rain sensor performance.
•The Rain Sensing feature can be enabled or disabled.
Refer to “Electronic Vehicle Information Center
(EVIC)/Personal Settings (Customer-Programmable
Features)” in “Understanding Your Instrument Panel”
for further information.
The Rain Sensing system has protective features for the
wiper blades and arms. It will not operate under the
following conditions:
•Low Temperature Wipe Inhibit — The Rain Sensing
feature will not operate when the ignition is placed in
the RUN position, the vehicle is stationary and the
outside temperature is below 32°F (0°C), unless the
wiper control on the multifunction lever is moved, the
vehicle speed becomes greater than 0 mph (0 km/h) or
the outside temperature rises above freezing.
•Neutral Wipe Inhibit — The Rain Sensing feature will
not operate when the ignition is placed in the RUN
position, the transmission shift lever is in the NEU-
TRAL position and the vehicle speed is less than
5 mph (8 km/h), unless the wiper control on the
multifunction lever is moved or the shift lever is
moved out of the NEUTRAL position.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 151

MAINTAINING YOUR VEHICLE
CONTENTS
Engine Compartment — 6.1L ............. 365
 Onboard Diagnostic System — OBD II ...... 366
▫ Loose Fuel Filler Cap ................. 366
 Emissions Inspection And Maintenance
Programs ............................ 367
 Replacement Parts ..................... 368
 Dealer Service ........................ 368
 Maintenance Procedures ................. 369
▫ Engine Oil ......................... 370 ▫
Engine Oil Filter ..................... 372
▫ Engine Air Cleaner Filter ............... 372
▫ Maintenance-Free Battery .............. 373
▫ Air Conditioner Maintenance ............ 375
▫ A/C Air Filter ...................... 376
▫ Body Lubrication .................... 377
▫ Windshield Wiper Blades ............... 378
▫ Adding Washer Fluid ................. 379
▫ Exhaust System ..................... 379
7

tailgate, sliding doors and hood hinges, should be lubri-
cated periodically with a lithium based grease, such as
MOPARSpray White Lube or equivalent to assure
quiet, easy operation and to protect against rust and
wear. Prior to the application of any lubricant, the parts
concerned should be wiped clean to remove dust and
grit; after lubricating excess oil and grease should be
removed. Particular attention should also be given to
hood latching components to ensure proper function.
When performing other underhood services, the hood
latch, release mechanism and safety catch should be
cleaned and lubricated.
The external lock cylinders should be lubricated twice a
year, preferably in the Fall and Spring. Apply a small
amount of a high quality lubricant, such as MOPAR
Lock Cylinder Lubricant or equivalent directly into the
lock cylinder.Windshield Wiper Blades
Clean the rubber edges of the wiper blades and the
windshield periodically with a sponge or soft cloth and a
mild nonabrasive cleaner. This will remove accumula-
tions of salt or road film.
Operation of the wipers on dry glass for long periods
may cause deterioration of the wiper blades. Always use
washer fluid when using the wipers to remove salt or dirt
from a dry windshield.
Avoid using the wiper blades to remove frost or ice from
the windshield. Keep the blade rubber out of contact with
petroleum products such as engine oil, gasoline, etc.
NOTE: Life expectancy of wiper blades varies depend-
ing on geographical area and frequency of use. Poor
performance of blades may be present with chattering,
marks, water lines or wet spots. If any condition is
378 MAINTAINING YOUR VEHICLE

present please proceed to clean wiper blades with humid
cloth removing any debris that may be affecting its
function.
Adding Washer Fluid
The windshield washer fluid reservoir is located in the
front of the engine compartment. Be sure to check the
fluid level in the reservoir at regular intervals. Fill the
reservoir with windshield washer solvent (not radiator
antifreeze) and operate the system for a few seconds to
flush out the residual water.
When refilling the washer fluid reservoir, apply some
washer fluid to a cloth or towel and wipe the wiper
blades clean. This will help blade performance.
To prevent freeze-up of your windshield washer system
in cold weather, select a solution or mixture that meets or
exceeds the temperature range of your climate. This
rating information can be found on most washer fluid
containers.The fluid reservoir will hold nearly 1 gal (4 l) of washer
fluid when the message “Low Washer Fluid” appears in
the Electronic Vehicle Information Center (EVIC).WARNING!
Commercially available windshield washer solvents
are flammable. They could ignite and burn you. Care
must be exercised when filling or working around
the washer solution.
Exhaust System
The best protection against carbon monoxide entry into
the vehicle body is a properly maintained engine exhaust
system.
If you notice a change in the sound of the exhaust system;
or if the exhaust fumes can be detected inside the vehicle;
or when the underside or rear of the vehicle is damaged;
7
MAINTAINING YOUR VEHICLE 379

Brightness, Interior Lights.................. 147
Bulb Replacement ..................... 406,407
Bulbs, Light .......................... 83,406
Calibration, Compass ..................... 213
Capacities, Fluid ........................ 412
Caps, Filler Fuel ............................... 337
Oil (Engine) .......................... 371
Power Steering ........................ 294
Radiator (Coolant Pressure) ............... 385
Car Washes ............................ 393
Carbon Monoxide Warning ...............80,337
Cargo (Vehicle Loading) ................... 340
Cellular Phone ........................ 93,263
Certification Label ....................... 340
Chart, Tire Sizing ........................ 309
Check Engine Light
(Malfunction Indicator Light) ............... 367Checking Your Vehicle For Safety
............. 79
Checks, Safety ........................... 79
Child Restraint .................. 69,70,71,74,76
Child Restraint Tether Anchors .............73,74
Child Safety Locks ........................ 34
Clean Air Gasoline ....................... 333
Cleaning Wheels ............................. 394
Windshield Wiper Blades ................ 378
Climate Control ......................... 263
Clock ..................... 221,222,224,227,236
Coin Holder ........................... 178
Cold Weather Operation ................... 278
Compact Disc (CD) Maintenance ............. 262
Compass .............................. 213
Compass Calibration ..................... 213
Compass Variance ....................... 214
Computer, Trip/Travel .................... 206
446 INDEX

Windows.............................. 37
Power ............................... 37
Windshield Defroster ................... 81,267
Windshield Washers ................ 148,149,379
Fluid ............................... 379
Windshield Wiper Blades .................. 378 Windshield Wipers
....................... 148
Wiper Blade Replacement .................. 378
Wiper, Delay ........................... 149
Wipers, Intermittent ...................... 149
Wipers, Rain Sensitive .................... 150
10
INDEX 463
