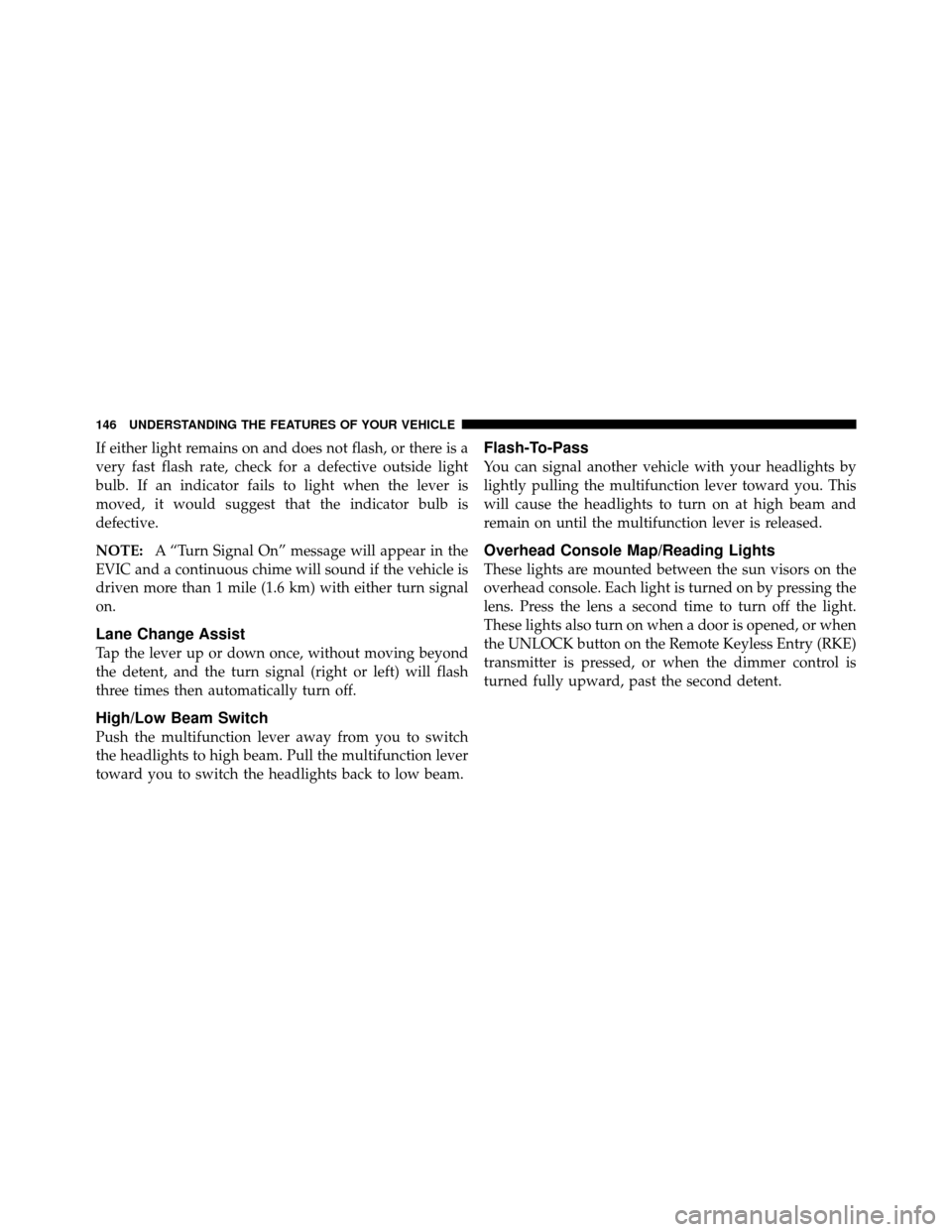

If either light remains on and does not flash, or there is a
very fast flash rate, check for a defective outside light
bulb. If an indicator fails to light when the lever is
moved, it would suggest that the indicator bulb is
defective.
NOTE:A “Turn Signal On” message will appear in the
EVIC and a continuous chime will sound if the vehicle is
driven more than 1 mile (1.6 km) with either turn signal
on.
Lane Change Assist
Tap the lever up or down once, without moving beyond
the detent, and the turn signal (right or left) will flash
three times then automatically turn off.
High/Low Beam Switch
Push the multifunction lever away from you to switch
the headlights to high beam. Pull the multifunction lever
toward you to switch the headlights back to low beam.
Flash-To-Pass
You can signal another vehicle with your headlights by
lightly pulling the multifunction lever toward you. This
will cause the headlights to turn on at high beam and
remain on until the multifunction lever is released.
Overhead Console Map/Reading Lights
These lights are mounted between the sun visors on the
overhead console. Each light is turned on by pressing the
lens. Press the lens a second time to turn off the light.
These lights also turn on when a door is opened, or when
the UNLOCK button on the Remote Keyless Entry (RKE)
transmitter is pressed, or when the dimmer control is
turned fully upward, past the second detent.
146 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

16. High Beam LightThis light will turn on when the high beam
headlights are ON. Push the multifunction lever
away from the steering wheel to switch the headlights to
high beam.
17. Shift Lever Indicator
The Shift Lever Indicator is self-contained within the
instrument cluster. It displays the gear position of the
automatic transmission.
18. Seat Belt Reminder Light This light will turn on for five to eight seconds as
a bulb check when the ignition switch is first
placed in the RUN position. A chime will sound if
the driver’s seat belt is unbuckled during the bulb check.
The Seat Belt Warning Light will flash, or remain on
continuously, if the driver’s seat belt remains unbuckled
after the bulb check or when driving. Refer to “Occupant
Restraints” in “Things To Know Before Starting Your
Vehicle” for further information. 19. Vehicle Security Light — If Equipped
This light will flash at a fast rate for approxi-
mately 15 seconds, when the vehicle security
alarm is arming, and then will flash slowly
until the vehicle is disarmed.
20. Fuel Gauge
The pointer shows the level of fuel in the fuel tank when
the ignition switch is placed in the RUN position.
21. Electronic Throttle Control (ETC) Light This light will turn on briefly as a bulb check
when the ignition switch is placed in the RUN
position. This light will also turn on while the
engine is running if there is a problem with the
Electronic Throttle Control (ETC) system.
If the light comes on while the engine is running, safely
bring the vehicle to a complete stop as soon as possible,
place the shift lever in PARK, and cycle the ignition
through the ACC and RUN positions. The light should
4
UNDERSTANDING YOUR INSTRUMENT PANEL 195

BULB REPLACEMENT
Low Beam Headlamp, High Beam Headlamp, and
Park/Turn Lamp
High Intensity Discharge Headlamps (HID)
The headlamps are a type of high voltage discharge tube.
High voltage can remain in the circuit even with the
headlight switch off and the key removed.Because of
this, you should not attempt to service a headlamp bulb
yourself. If a headlamp bulb fails, take your vehicle to
an authorized dealer for service.
NOTE: When HID headlamps are turned on, there is a
blue hue to the lamps. This diminishes and becomes
more white after approximately 10 seconds, as the system
charges.
Tail/Stop, Tail, Turn Signal Lamp, and Backup
Lamp
1. Open the trunk. 2. Remove the two fasteners from the back of the tail
lamp assembly.
3. Pull back the trunk liner.
4. Remove the remaining fastener from the back of the
tail lamp assembly.
5. Push the electrical connector locking tab to the side.
7
MAINTAINING YOUR VEHICLE 407

Fuel............................... 195
Speedometer ......................... 189
Tachometer .......................... 190
General Information ............17,24,122,290,332
General Maintenance ..................... 369
Glass Cleaning .......................... 396
Gross Axle Weight Rating .................. 340
Gross Vehicle Weight Rating ................ 340
GVWR ............................... 340
Hands-Free Phone (Uconnect™) .............. 93
Hazard Driving Through Flowing, Rising, or Shallow
Standing Water ........................ 291
Hazard Warning Flasher ................... 344
Head Restraints ......................... 130
Head Rests ............................ 130
Headlight Washers ....................... 379
Headlights ............................ 407 Automatic
........................... 142
Bulb Replacement ...................... 407
Cleaning ............................ 396
Delay .............................. 144
High Beam .......................... 146
High Beam/Low Beam Select Switch ........ 146
Lights On Reminder .................... 144
On With Wipers .................... 142,150
Passing ............................. 146
Switch .............................. 141
Time Delay .......................... 144
Washers ............................. 379
Heated Mirrors .......................... 93
Heated Seats ........................... 132
Heater, Engine Block ..................... 280
High Beam/Low Beam Select (Dimmer) Switch . . 146
Holder, Coin ........................... 178
Holder, Cup ........................... 177
HomeLink (Garage Door Opener) Transmitter . . . 164
10
INDEX 451

Leaks, Fluid............................ 83
Life of Tires ............................ 322
Light Bulbs .......................... 83,406
Lights .............................. 83,141
Airbag ........................ 61,66,81,191
Anti-Lock ......................... 190,300
Automatic Headlights ................... 142
Brake Assist Warning ................... 306
Brake Warning ..................... 192,297
Bulb Replacement ................... 406,407
Courtesy/Reading ................... 146,164
Cruise .............................. 189
Daytime Running ...................... 144
Dimmer Switch, Headlight .............145,146
Electronic Stability Program (ESP) Indicator . . . 306
Electronic Throttle Control Warning ......... 195
Engine Temperature Warning .............. 190
Exterior .............................. 83
Fog ............................. 145,189Hazard Warning Flasher
................. 344
Headlight Switch ...................... 141
Headlights ........................ 141,407
Headlights On Reminder ................. 144
Headlights On With Wipers ............142,150
High Beam ........................ 146,195
High Beam Indicator .................... 195
Illuminated Entry ....................... 19
Instrument Cluster .................. 141,189
Intensity Control ...................... 147
Interior .......................... 147,164
License ............................. 410
Lights On Reminder .................... 144
Low Fuel ............................ 189
Malfunction Indicator (Check Engine) ........ 198
Map Reading ...................... 146,164
Oil Pressure .......................... 199
Parade Mode (Daytime Brightness) ......... 148
Passing ............................. 146
10
INDEX 453
