2010 CHRYSLER 300 SRT service indicator

TRIP ODOMETER button to turn off the message. If the
problem continues, the message will appear the next time
the vehicle is started.
A loose, improperly installed, or damaged fuel filler cap
may also turn on the MIL.
EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS
In some localities, it may be a legal requirement to pass
an inspection of your vehicle’s emissions control system.
Failure to pass could prevent vehicle registration.For states that require an Inspection and Mainte-
nance (I/M), this check verifies the “Malfunction
Indicator Light (MIL)” is functioning and is not
on when the engine is running, and that the OBD II
system is ready for testing.
Normally, the OBD II system will be ready. The OBD II
system may notbe ready if your vehicle was recently serviced, recently had a dead battery or a battery replace-
ment. If the OBD II system should be determined not
ready for the I/M test, your vehicle may fail the test.
Your vehicle has a simple ignition key-actuated test,
which you can use prior to going to the test station. To
check if your vehicle’s OBD II system is ready, you must
do the following:
1. Turn the ignition switch to the ON position, but do not
crank or start the engine.
2. If you crank or start the engine, you will have to start
this test over.
3. As soon as you turn the ignition switch to the ON
position, you will see the MIL symbol come on as part of
a normal bulb check.
4. Approximately 15 seconds later, one of two things will
happen:
7
MAINTAINING YOUR VEHICLE 367

REPLACEMENT BULBS
LIGHT BULBS – InteriorBulb Number
Rear Courtesy/Reading Lamps ............. W5W
Rear Compartment (Trunk) Lamp ............. 562
Overhead Console Reading Lamps ............ 578
Visor Vanity Lamps ..................... A6220
Glove Box Lamp – If Equipped ............... 194
Door Courtesy .......................... 562
Shift Indicator Lamp ................. JKLE14140
Optional Door Map Pocket/
Cupholder .... LED (Serviced at Authorized Dealer)
NOTE: For lighted switches, see your authorized dealer
for replacement instructions.
All of the interior bulbs are glass wedge base or glass
cartridge types. Aluminum base bulbs are not approved
and should not be used for replacement. LIGHT BULBS – Exterior
Bulb Number
Low Beam Headlamp – High Intensity Discharge
(HID) .......... D1S (Serviced at Authorized Dealer)
High Beam Headlamp .................... 9005
Front Park/Turn Lamp .................3157AK
Front Fog Lamp ...................... PSX24W
Front Side
Marker ........ W5W (Serviced at Authorized Dealer)
Tail/Stop Lamp ......................... 3057
Tail Lamp ............................. 3057
Turn Signal Lamp ...................... 3757A
Backup Lamp .......................... 3057
Center High Mount Stop Lamp (CHMSL) ....... LED
License .............................. W5W
406 MAINTAINING YOUR VEHICLE

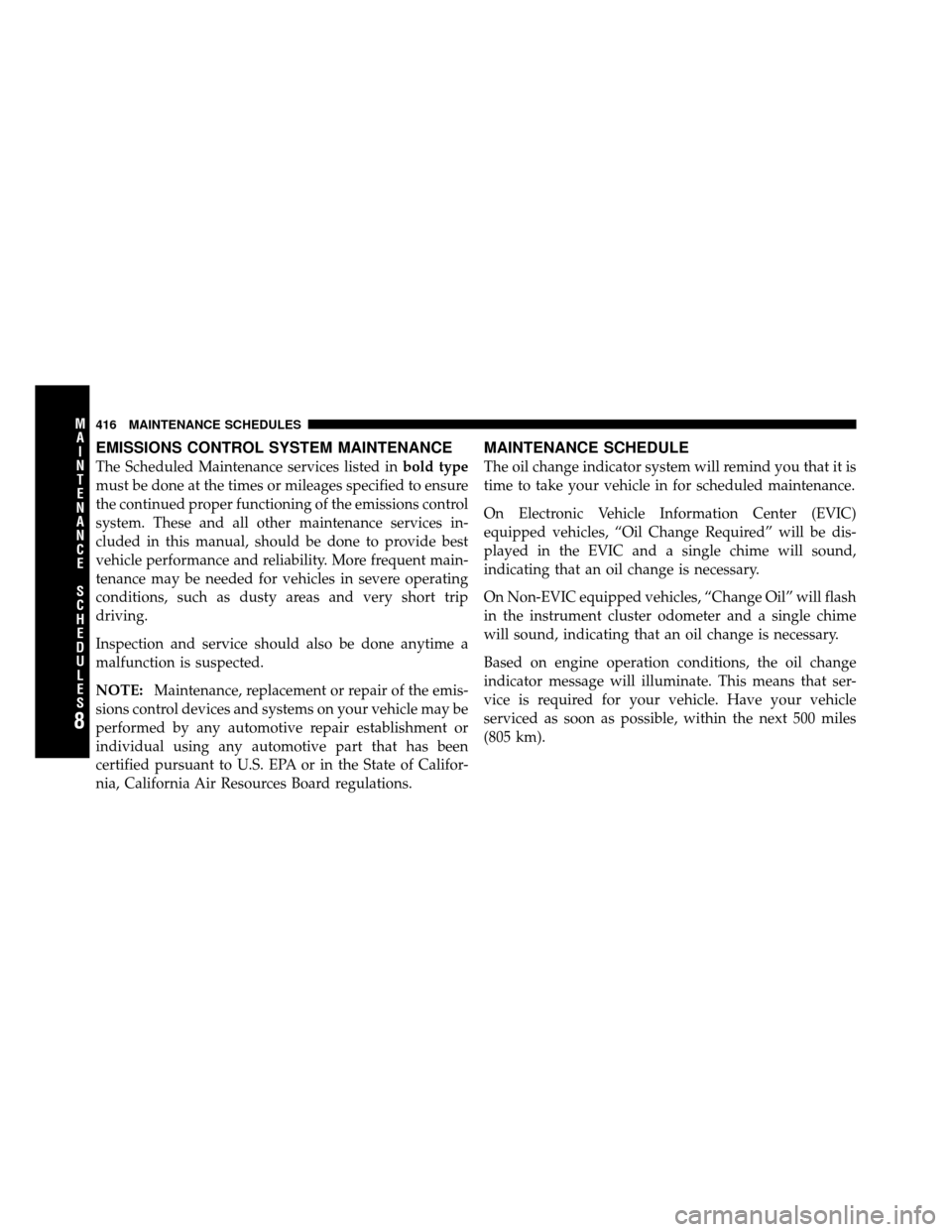

EMISSIONS CONTROL SYSTEM MAINTENANCE
The Scheduled Maintenance services listed inbold type
must be done at the times or mileages specified to ensure
the continued proper functioning of the emissions control
system. These and all other maintenance services in-
cluded in this manual, should be done to provide best
vehicle performance and reliability. More frequent main-
tenance may be needed for vehicles in severe operating
conditions, such as dusty areas and very short trip
driving.
Inspection and service should also be done anytime a
malfunction is suspected.
NOTE: Maintenance, replacement or repair of the emis-
sions control devices and systems on your vehicle may be
performed by any automotive repair establishment or
individual using any automotive part that has been
certified pursuant to U.S. EPA or in the State of Califor-
nia, California Air Resources Board regulations.
MAINTENANCE SCHEDULE
The oil change indicator system will remind you that it is
time to take your vehicle in for scheduled maintenance.
On Electronic Vehicle Information Center (EVIC)
equipped vehicles, “Oil Change Required” will be dis-
played in the EVIC and a single chime will sound,
indicating that an oil change is necessary.
On Non-EVIC equipped vehicles, “Change Oil” will flash
in the instrument cluster odometer and a single chime
will sound, indicating that an oil change is necessary.
Based on engine operation conditions, the oil change
indicator message will illuminate. This means that ser-
vice is required for your vehicle. Have your vehicle
serviced as soon as possible, within the next 500 miles
(805 km).
8
M A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S416 MAINTENANCE SCHEDULES

Reading.......................... 146,164
Seat Belt Reminder ..................... 195
Service ........................... 406,407
Service Engine Soon (Malfunction Indicator) . . . 198
SmartBeams .......................... 143
Tire Pressure Monitoring (TPMS) ........196,326
Traction Control ....................... 306
Turn Signal ...................... 83,145,189
Vanity Mirror .......................... 93
Voltage ............................. 197
Warning (Instrument Cluster Description) ..... 189
Loading Vehicle ...................... 340,341
Capacities ........................... 341
Tires ............................... 313
Locks ................................. 27
Auto Unlock .......................... 30
Automatic Door ........................ 29
Child Protection ........................ 34
Door ................................ 27 Power Door
........................... 28
Low Tire Pressure System .................. 326
Lower Anchors and Tether for CHildren
(LATCH) ............................ 73,74
Lubrication, Body ....................... 377
Lumbar Support ........................ 130
Maintenance Free Battery .................. 373
Maintenance, General ..................... 369
Maintenance Procedures ................... 369
Maintenance Schedule .................... 416
Maintenance, Sunroof ..................... 173
Malfunction Indicator Light (Check Engine) . . 198,367
Manual, Service ......................... 439
Manual Transmission ..................... 391
Fluid Level Check ..................... 392
Map/Reading Lights .................. 146,164
Master Cylinder (Brakes) .................. 388
Memory Feature (Memory Seat) ............. 135
454 INDEX

Tilting.............................. 128
Security Alarm (Theft Alarm) .............17,195
Selection of Coolant (Antifreeze) ..........383,413
Selection of Oil ......................... 371
Sentry Key (Immobilizer) ................... 15
Sentry Key Programming ................... 17
Sentry Key Replacement ................... 16
Service Assistance ....................... 435
Service Contract ......................... 437
Service Engine Soon Light
(Malfunction Indicator) .................... 198
Service Manuals ........................ 439
Setting the Clock .............221,222,224,227,236
Settings, Personal ........................ 216
Shifting ............................... 280
Automatic Transmission ..............280,285
Shoulder Belt Upper Anchorage .............. 49
Shoulder Belts ........................... 44
Side View Mirror Adjustment ................ 91Signals, Turn
...................... 83,145,189
Slippery Surfaces, Driving On ............... 290
SmartBeams ........................... 143
Snow Tires ............................ 323
Sound System Kicker .............................. 257
Spark Plugs ............................ 413
Specifications Fuel (Gasoline) ........................ 413
Oil ................................ 413
Speed Control (Cruise Control) .............. 155
Speedometer ........................... 189
Starting ............................. 24,275
Automatic Transmission ................. 275
Cold Weather ......................... 278
Engine Fails to Start .................... 278
Remote .............................. 24
Starting and Operating .................... 275
Starting Procedures ...................... 275
10
INDEX 459

Life of Tires.......................... 322
Load Capacity ..................... 313,314
Pressure Monitor System (TPMS) ........... 326
Pressure Warning Light .................. 196
Quality Grading ....................... 441
Radial .............................. 320
Replacement ......................... 322
Rotation ............................ 324
Safety ........................... 307,317
Sizes ............................... 309
Snow Tires ........................... 323
Spinning ............................ 320
Tread Wear Indicators ................... 321
To Open Hood .......................... 140
Towing ............................... 342
24-Hour Towing Assistance ............... 108
Behind a Motor Home .................. 342
Disabled Vehicle ....................... 360
Recreational .......................... 342 Towing Assistance
....................... 108
Towing Vehicle Behind a Motor Home ......... 342
Traction Control ......................... 301
Trailer Towing .......................... 342
Transmission ........................... 390
Automatic ...................... 280,285,390
Fluid ............................... 414
Shifting ............................. 280
Transmitter Battery Service
(Remote Keyless Entry) .................... 23
Transmitter, Garage Door Opener (HomeLink) . . 164
Transmitter Programming
(Remote Keyless Entry) .................... 20
Transmitter, Remote Keyless Entry (RKE) ........ 20
Transporting Pets ........................ 78
Tread Wear Indicators .................... 321
Trip Odometer .......................... 194
Trunk Lid (Deck Lid) .................... 40,42
Trunk Release, Emergency .................. 42
10
INDEX 461
