2010 CADILLAC ESCALADE display

The stopover symboldisplays on the map aftera stopover has beenadded to the route.
The stopover symbols are numbered one through three,depending on how many stopovers have been set.
The distance todestination symbolindicates the distance tothe final destination.
This symbol appears when the time to the destination isnot available or while you are scrolling on the map.
The distance and time todestination symbolindicates the distance andthe estimated timeremaining to the finaldestination, depending onthe option selected.
The straight line todistance symbol indicatesthe straight-line distanceto the destination.
This symbol appears before you start driving on theroute or if on a road where navigation guidance cannotbe given.
5-18

The north up symbolindicates the map withNorth Up, known asNorth Up mode.
While in North Up mode, the vehicle icon followsthe north direction on the map regardless of whichdirection the vehicle is traveling. Select this screensymbol to switch between North Up, Heading Up,and 3–D view modes.
The heading up symbolindicates that the vehicleis traveling up on themap and is known asHeading Up mode.
The shaded triangle indicates the North direction.While in Heading Up mode the direction at the top ofthe screen and the way the vehicle icon is headingindicates the direction the vehicle is traveling. Selectthis screen symbol to switch between Heading Up,North Up, and 3–D view modes.
Three-dimensional (3–D) view mode changes theappearance of the map display to a road level view.
The No GPS symbolappears when the vehicleis acquiring or notreceiving a GlobalPositioning System (GPS)satellite signal.
SeeGlobal Positioning System (GPS)on page 5!57formore information.
Select the Mark screenbutton to store thelocation on the screenin the address book.
The system automatically stores the point in theaddress book. See“Adding Destinations to the AddressBook”underDestinationon page 5!24for moreinformation.
5-19

Displaying Points of Interest (POI) on the
Map Screen
Select the POI screenbutton to display or deletePOI icons from the map.
Displaying POI icons on the map shows where POIs(e.g. restaurants, gas stations, etc.) are located. Thisscreen appears after selecting the POI screen button.
1. Select one of the POI categories to display thePOI icon at the top of the map screen. Select thePOI category again to delete the POI icon.
2. Up to five categories can display on the mapscreen.
3. Press the Show POI screen button to add morePOI icons.
More :Select to view more POI categories.
5-20

POI Close to:
1. Once a category has been selected, touch thisbutton to display the list of available POIs for theselected POI category. The list provides the POIicon, the name, the direction, and the distance tothe POI from the vehicle's current position.
2. Use the scroll arrows to move up and down the list.
3. Use the sorting screen buttons: Dist (distance),Icon, Name, and on Route as needed.
Go :Select this screen button, next to the desired POI,to make this POI a destination or a stopover.
Select a POI name to receive information about thePOI. From this screen you can select: Address Book,Go, Map, or Call (if Bluetooth®or OnStar®personalcalling is activated).
Address Book :Press to add this POI to the addressbook. See“Nav”underConfigure Menuon page 5!42for information on editing address book entries.
Go :Select to make this POI a destination or astopover.
Map :Select to display the map showing the location ofthe POI.
Call :Select to dial the phone number using yourBluetooth®phone (if“paired”with the vehicle) or theOnStar HandsFree Calling system. For moreinformation about Bluetooth calling, seeBluetooth®onpage 4!67. For more information about OnStarHandsFree calling, see the OnStar Owner Guide.
OK :Select to display the map screen.
Show POI :Select to display or remove the POI iconsfrom the map screen.
List all Categories :Select to list all POIs sortedalphabetically.
Delete :To delete a specific POI category, select thecategory.
Clear All :Select this screen button to clear all selectedPOI categories.
5-21

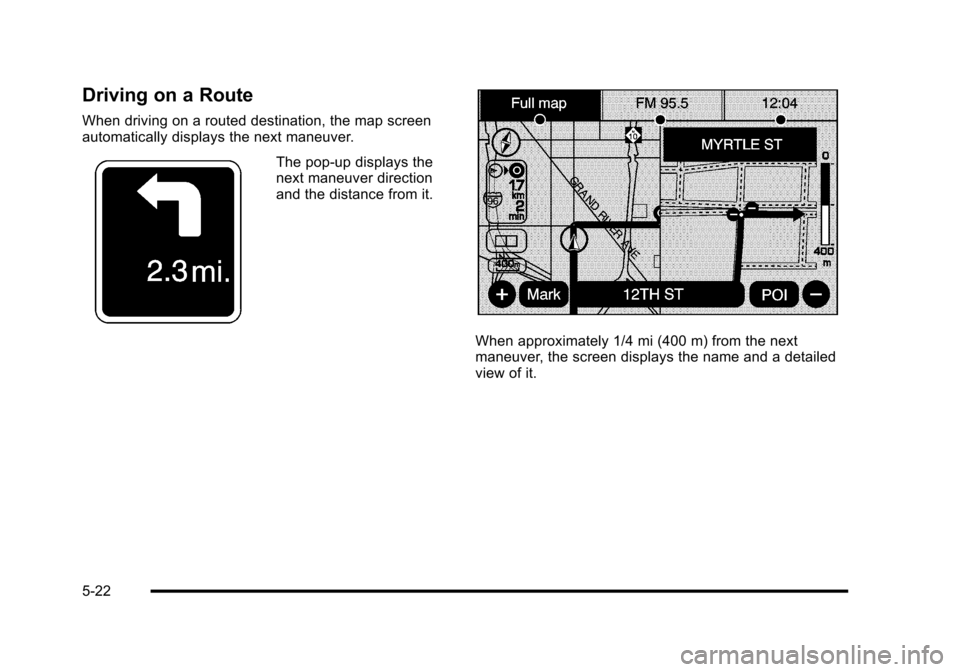

Driving on a Route
When driving on a routed destination, the map screenautomatically displays the next maneuver.
The pop-up displays thenext maneuver directionand the distance from it.
When approximately 1/4 mi (400 m) from the nextmaneuver, the screen displays the name and a detailedview of it.
5-22

3–D Lane Guidance
Some major metropolitan areas may include a 3–D laneguidance feature for highway exits and junctions. Thisfeature gives you an enhanced representation of theexits and junctions on the route. Cities that include thisfeature are New York, Los Angeles, Chicago, Detroit,and San Francisco, and may also include Philadelphia,Washington D.C., and other major highway junctions.
Dual Mode
This dual screen symboldisplays when the screenis in dual mode.
Dual mode displays the route on half of the screen anda maneuver or Interstate Exit list on the other half. TheInterstate Exit list advises of approaching exits. Pressthis button to switch between dual screen and fullscreen which displays the entire route.
Auto Reroute
When a destination is set but is off the planned route,the system automatically plans a new route and beginsto reroute. The new route is highlighted on the screen.
5-23

4. Once a state or province has been selectedthe City name category is automatically selectedfor entry.
Enter the City Name or touch the Last 5 Citiesscreen button.
The Last 5 Cities screen displays a list of the lastfive city names that had been entered. Select a cityfrom the list and it appears in the City name area.
If using the alpha keyboard, finish entering the cityname. If five or less names are available, a listdisplays. If more than five are available, the Listscreen button displays a number. This numberrepresents the number of available cities. Selectthis button to view the list and select a city.
5. Once a city has been selected the Street namecategory is automatically selected for entry.
Start entering the street name. If five or less namesare available, a list displays. If more than five areavailable, the List screen button displays anumber. This number represents the number ofavailable streets. Select this button to view the list.
6. Once a street has been selected, press theHouse # screen button to enter the house number.The system displays the house number range thatis available for the street.
7. Select the Go screen button. The map screen, withthe destination marked displays.
8. Select the route preference (Fastest, Shortest,or Other). The system calculates and highlightsthe route.
9. Select the Start Guidance screen button. The routeis now ready to be started.
See“Getting Started on Your Route”later in thissection for more information.
To enter a destination by entering the street name first:
1. Press the DEST hard key.
2. Select the2screen button.
3. Select the state/province screen button, if needed,to change the current state or province. A list of allof the available states and provinces appear.Select the state or province.
5-25

4. Select the Street screen button and start enteringthe street name or touch the Last 5 Streets screenbutton.
If the street name is common, the city might needto be entered first.
The Last 5 Streets screen displays a list of the lastfive street names that had been entered. Select astreet from the list and it appears in the Streetname area.
If using the alpha keyboard, finish entering thestreet name. If five or less names are available, alist displays. If more than five are available, theList screen button displays a number. This numberrepresents the number of available streets. Selectthis button to view the list and select a street.
5. Once a street has been selected, select the House# screen button to enter the house number. Thesystem displays the house number range that isavailable for the street.
6. Once the house number is selected, the city nameautomatically populates. If there is more than onecity available for selection, a list of cities display.Select the city.
7. Select the Go screen button. The map screen, withthe destination marked displays.
8. Select the route preference (Fastest, Shortest,or Other). The system calculates and highlights theroute.
9. Select the Start Guidance screen button. The routeis now ready to be started.
See“Getting Started on Your Route”later in thissection for more information.
To enter a destination by entering a cross street:
1. Press the DEST hard key.
2. Select the2screen button.
3. Select the state/province screen button, if needed,to change the current state or province. A list of allof the available states and provinces appear.Select the state or province.
5-26
