2010 AUDI S6 technical data

Table of contents
Monitoring the Advanced Airbag Vehicle care .............. 258 Emergency towing with
System ...................... 206 commercial tow truck ........ .
Side airbags ... ......... ...... 211
Cleaning and protection ...... 258 Lift
ing vehicle ............... . 334
336
Side curtain airbags . . . . . . . . . . . . 214
Child Safety .. .. .......... ..... 217
Important things to know . . . . . . 217
Child safety seats . . . . . . . . . . . . . 222
Installing a child safety seat .. .. 227
LATCH Lower anchorages and
tethers for children . . . . . . . . . . . . 230
Additional Information 237
Vehicle operation ...... 240
Intelligent technology ........ 240
Notice abou t data recorded by
vehicle control modules . . . . . . . . 240
E lectronic Stabilization Program
(ESP) ........................ 240
Braking ...................... 243
Servo tronic® -advanced power
steering system . . . . . . . . . . . . . . . 245
Driving with your quattro® . . . . . . 246
Energy management ........... 247
Driving and environment ...... 249
The first 1,000 miles (1,500 km)
and afterwards . . . . . . . . . . . . . . . 249
Avoid damaging the veh icle . . . . . 250
Driving through water on roads . 250
Catalytic converter . . . . . . . . . . . . 250
Operate your vehicle economically
and minimize pollution ......... 251
Trailer towing ................. 254
Driving with a trailer . . . . . . . . . . . 254
T railer towing tips . . . . . . . . . . . . . 256
Controls and equip­
ment Safety first
General informa
tion . . . . . . . . . . . 258
Care of exterior . . . . . . . . . . . . . . . 258
Care of interior . . . . . . . . . . . . . . . 265
Fuel supply and filling your fuel
tank ..........................
271
Gasoline . . . . . . . . . . . . . . . . . . . . . 271
Fuel tank . . . . . . . . . . . . . . . . . . . . . 272
Checking and filling . . . . . . . . . . . 276
Technical data
General information
Explanation of technical data .. .
Vehicle ident ification ......... .
Weights ................... . .
Dimensions ............... .. . 338
338
338
338
339
339
Engine hood . . . . . . . . . . . . . . . . . . 276
Data . . . . . . . . . . . . . . . . . . . . . . . . . . 341
Engine oil . . . . . . . . . . . . . . . . . . . . 279 300 hp, 3.0 liter, 6-cylinder
Engine cooling system . . . . . . . . . 284
Brake fluid . . . . . . . . . . . . . . . . . . . 287
Ba ttery . . . . . . . . . . . . . . . . . . . . . . 288
Windshield/headlight washer container . . . . . . . . . . . . . . . . . . . . 292
Tires and wheels . . . . . . . . . . . . . . 293 engine ......................
.
265 hp, 3.2 liter , 6-cylinder
engine ......... ..... ........ .
350 hp, a-cylinder engine ..... .
Consumer Information ...... .
Warranty coverages .......... . 341
342
343
344
344
T ires ........................ 293 Operating your vehicle outside the
T ire pressure monitoring system 312
Do-it-yourself service . 316
What do I do now? ........... 316
Trunk escape handle ........... 316
Jack, tools and spare wheel ..... 316
Changing a wheel . . . . . . . . . . . . . 318
Fuses and bulbs . . . . . . . . . . . . . . 325
F u ses ........... ............. 325 U.S.A
. or Canada ............. .
Audi Service Repair Manuals and
Literature ................... .
Maintenance ................ .
Additional accessories, modifications and parts replacement ............... . .
Declaration of Compliance,
T elecommunications and
Electronic Systems .......... . .
Bulbs ........................ 329
Alphabetical index ....
Emergency situations ......... 331
General . . . . . . . . . . . . . . . . . . . . . . 331
Starting by pushing or towing 331
Starting with jumper cables .... 331
Use of jumper cables . . . . . . . . . . 332
Vehicle operation Vehicle care Do-it-yourself service
344
344
344
346
347
350
Technical data

About this Owner's Manual
This owner's manual contains important information, t ips, sugges­
tions, an d warnings fo r the use of yo ur ve hicle.
Make s ure that this owne r's manua l is a lways located in the vehicle.
This is especia lly important if you allow other peop le to drive the
vehicle, or if you sell i t.
Th is owner's manual descr ibes the
equipment range specified for
this model at the editorial deadline date. Some of the equipment
described here will only be ava ilable at a later date, or only in spec ific
ma rkets .
Some se ctions in t his owne r's m an ual do no t app ly to a ll vehi cles. In
that case, the
range of applicability is given at the beginning of the
se ct io n, e.g. "Applies to vehicles: with A udi Parking System". In addi ­
tion, optiona l equipment is indicated by an asterisk"*".
Th e detai ls in the
illust rations may be different from those in your
vehicle, and a re intended to be viewed as a bas ic gu ide.
You w ill find a
table of contents at the beginn ing of this book, which
display s all t opi cs described in this m anu al in o rde r of a ppear ance.
You will find an alphabetica l
index at the end of this book.
All
directions , such as "left", "right", "front", "back", are re lative to
the d irec tion of travel.
* optional eq uipment
.,. Th is section continues on the next page.
• Indicates the
end of a section .
® Registered trademarks are ident ified with a®. If this symbol is
m issi ng, i t is no guarantee that t he te rms c an be used freely.
=> & Cross-reference to a "WARNI NG!" within a sect io n. For indica­
tion with a page number, the correspon ding "WARN ING!" can be
found outside of the sect ion .
Controls and equip­
ment Safety first Vehicle operation
About this Owner's Manual
& WARNING
Tex
t with this symbol contains important information on safety
and how to redu ce the risk of pers onal injury or death .
0 Note
Text with this symbol draws your attentio n to potential sources of
damage to yo ur vehicle.
ci' For the sake of the environment
Text w ith th is symbol contai ns information about the environment
and how you can help protect it.
[I) Tips
Text w it h this symbol contains spec ia l tips and other information
abou t gett ing the mo st out o f yo ur vehi cle and its fea tures. •
Vehicle care Do-it-yourself service Technical data

Instruments and controls
General illustration
(D Power window switches . . . . . . . . . . . . . . . . . . . . . . . . . 50
@ Door handle
@ Memory buttons (driver's seat) . . . . . . . . . . . . . . . . . . . 79
© Power locking switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
® Adjuster control for outside mirrors . . . . . . . . . . . . . . . 71
© Air outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
0 Light switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
@ Control lever for:
- Turn signal and high beam . . . . . . . . . . . . . . . . . . . . . 62
- Lane assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
® Control lever for:
- Cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
- Adaptive Cruise Control . . . . . . . . . . . . . . . . . . . . . . . 119
@ Multifunction steering wheel with:
- Horn
- Driver 's airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
- Shift buttons ...... .. .. .... ........ .......... 151, 158
- Button for steering wheel heating . . . . . . . . . . . . . . . 104
@ Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
@ Switches for
- Windshield wiper/washer . . . . . . . . . . . . . . . . . . . . . . 66
- Trip computer ............... .. .. .. .. ....... .
@ Steering lock/ignition/starter switch ... .. ......... .
@ Buttons for
- resetting the trip odometer .......... .. .. .. ... .
- !CHECK] .... .... .. .... .. .... ............... .
-Instrument lighting . ....... .... .. .. .... .. .. . .
Controls and equip ­
ment Safety first
34
108
10
11
11
Instruments and controls
@ MMI Display, see separate manua l
@ Depending on equipment, switches for:
- Electronic Stabili zation Program (ESP)
- Side assist .. ... . .... .. .. .. .. .. .... .. .. .. ... .
- Emergency flashers .. .... .. .. .. ............. .
- Power sunshade . ... ... .. .. .. .. .... .. .. ... .. .
- Valet key function .. .. .. .. .... ....... ...... .. .
@ Buttons for
- Switching MMI display on/off
- Unlocking glove compartment
@ Glove compartment ...... .. .. .. .... .. ......... .
@ Front passenger 's airbag ............... ... .. .. . .
@ Climate controls ... .. .. .. .. .. .... .......... ... .
@ Ashtray .............. .. .... .. .. .. .. .... ..... .
@ Shift lever for automatic transmission
- 6-speed automatic transmission ....... .. ... ... .
- multitronic ® ....................... .. .... .. .
@ MMI contro l console, see separate manua l
@ Storage with cupholder ... .. ... .............. .. .
@) Electromechanical parking brake .............. .. . .
@ ISTAR T]-/ISTOP] button ........ .. ... .......... .
@ Adjustable steering wheel, depending on equipment :
- mechanical ............. .. .. .. ............. .
- electrical . ... ... .. .. .. .. .. .. .. .. .. ....... .. .
@ Data Link Connector for On Board Diagnostics (OBD II)
@ Hood release .......... .. .... .. .. .. .. ......... .
@ Switch for
unlocking the fuel fi ller door .............. .... .
- unlocking the trunk lid . .. ........ .. ... .. .. .. . .
Vehicle care
240
137
61
65
40
94
94
199
98
91
146
154
89
113
110
106
106 23
276
273
46 •
Technical data

If the needle is well in the upper area of the gauge, the coolant
tempe rat ure is too high.
Stop the vehicle , switch the engine off and
allow the engine to cool.
If the warning light comes on again after
driving a short distance, contact an authorized dealer.
& WARNING
• Alway s observe th e warning in => page 269, "Engine comp art ­
ment ", before opening the hood and checking the engine coolant
level.
• Never open the engine hood if you see or hear steam, or if you
s ee engin e coolant dripping from the engine compartment. You
could burn yourself. Let the engine cool off first so that you cannot
hear or see any steam or engine coolant .
0 Note
• Mounting additiona l lights or accessories in fron t of the a ir inlets
reduces the cooling effect of the radiator . At high outside tempera­
t ur es o r high engine load, the engine could overheat.
• The front spo iler has bee n des igned to prope rly d istribute the
coo ling air when the vehicle is moving.
If the spoiler is damaged, this
cou ld reduce the coo ling effect and the eng ine could then overheat .
Ask your author ized A udi dealer for assistance .•
Tachometer (engine rev counter)
The tachometer indicat es th e engine RPM (revolutions
per minutes).
Th e tac home ter @ => page 8, fig. 2 is the left of the two large cloc k­
type displays.
Th e engine tu rns at a speed
1,000 times the si ng le dig it in the
display, e.g. if the need le is po int ing at the "2 " the engi ne is t urning
at 2,000 RP M.
Controls and equip ­
ment Safety first
Instruments and warning
/indicator lights
If e ngine RPM drops below 1,500, you s hould dow nsh ift to t he next
lower ge ar. T he re d area at t he e nd of the s cale i ndic ates m aximum
permissible e ngine RPM after the break-in per iod . Before reaching
this area, move the selector lever to posit ion "D (Drive)" or ease yo ur
foot off the accelerator pedal.
0 Note
T he tachome ter needle s houl d not move into the red range. If it does,
then only fo r a very short period of time . You could damage your
e n g in e by driv ing at h igh RPM .
c£> For the sake of the environment
Upshifting early saves fuel a nd reduces e ngine noise. •
Digital clock with date display
Date and time of day can be set in the MM I.
Fig. 3 Instrumen t
cluster with digital
clock
Th e d ate, t ime o f day, and time and date fo rmat c an be se t in the
MMI. You can find o ut more in the MMI manual.
Vehicle care Technical data

0 Note
Never run the tan k comp letely d ry . An irregular s upply of f ue l can
cause engine misfiring and fue l cou ld enter the ex ha ust system . T he
c ata lytic co nve rter co ul d the n overhea t and be damaged .•
[ C HECK ) button
You can per form differen t functions wi th this button.
Fig . 5 CHE CK button
i n the in strume nt
clu ste r
Th e [ C H ECK] bu tton perfo rms the fo llowing func tions :
Switching on the clock and odometer
With the ignition tu rned off, the odome ter read ing and the dig ita l
clock with date d isplay can be switched on for abo ut 30 seconds by
pressin g the [
CHECK ] button ~ fig . 5.
Starting the Auto-Check sequence
The Auto-Check system~ page 2 4 constantly monitors ce rtain indi­
vidual functions and components of the vehicle when the ignit ion is
tur ned on and w hen the vehicle is movi ng.
With the ignition turned on, yo u can sta rt the "A uto-Check sequence"
by pressing the
!CHECK ] button. You can perform an Auto -Check
sequence whe n the veh icle is st ationa ry a nd the ignition is turned on
or when the vehicle is moving not faster than 3 mph (5 km/h) .
Control s and equ ip­
m ent Vehicle OP-eration
Instruments and warning /indicator lights
The nu mber of keys programmed to the vehicle is a lso displayed . The
di splay
3\3 indic ates th at three keys have been programmed . T his
allows you to make sure you have received all of the keys w hen you
purc hase a used ve hicle.
For example, if you o nly receive two keys, yo u sho uld ta ke tho se keys
to your a uthorized Audi dealer to have the missing key deactivated so
i t ca nn ot be used. You sh ould also re port the mis sing key to you r
insurance compa ny.
Calling up the driver information
A ye llow or red symbol appears in the instrument cluster display,
us ua lly w it h a dr ive r mes sage . T he driver message display di sappe ars
after about 5 seco nds. The driver message can be displayed again by
br iefly p ressing t he
[CHECK ] but to n.
Setting the speed warning
By press ing t he I CH ECK] button br iefly, you can set t hreshold 1 of
the speed warning while yo u are driving ~
page 33. By maintaining
pressure on the
I CHECK ] button, you de lete the warning th reshol d.•
Instrument cluster illumination
The basic brig htness of the illumination for the inst ru ­
ments, the center console and the display can be
a dju sted.
Fig. 6 Instrument
clu ste r illum inat ion .,,_
Vehicle care Do-it-yourselt service iTechnical data

.o. Canada model s: ,;:;..{/
Airbag system
Tire pressure monitoring system*
-
¢ L eft turn signal
Malfunct ion Indicator Lamp (MIL)
/: L ane assist (system is ready)
Lane assist (system is not ready)
~
Safety belt
Adapt ive A ir Suspe nsio n*
-
~ Adaptive Air Suspension"
D H igh beam
--
Q Right turn signal
CRUISE USA models:
Cruise contro l a ct ivated
At:i Canada models:
Cruise control activated
USA models:
Ant i-lock brake system (ABS) defective
Canada models :
Anti-lock brake system (ABS) defective
PARK USA models: BRAKE Elect romechan ica l parking b rake
Controls and equip ­
ment Safety first
=>page
14
=> page 15
=>page 15
=> page 15
=> page 15
=> page 15
=>page 15
-
=> page 16
-
=> page 16
=> page 16
-
=> page 15
=> page 16
=> page 16
=> page 17
=>page 17
=> page 17
Instruments and warning /indicator lights
(® ) Canada models: => page 17
E lectromechanical parking bra ke
BRAKE
USA model s: => page 18
Brake ma lf u nct ion
-- -

Canada models: => page 18
B rake malfunction
Vehicles with the Adaptive Cru ise Control* have the following addi­
ti onal check lamps:
Open road
i;:;::::::, 1111 i;:;::::::, D ri vi n g i n traffic
i;:;::::::, 1111 i;:;::::::, Request for driver to
assume con trol
& WARNING
=> page 12 7
=> page 127
=> page 127
• Failure to heed warning light s and other important vehicle
information may result in serious personal injury or vehicle
damage.
• Whenever stalled or stopped for repair, move the vehicle a safe
distan ce off the road, st op the engine, and turn on the emergency
flasher =>
page 61.
• The engine compartment of any motor vehicle i s a potentially
hazardous area . Befo re you check anyth ing in the engine compart ­
ment, stop the engine and let it cool down. Always exercise
extreme caution when working under the hood=>
page 269,
"Engine compartment". .,.
Vehicle care Technical data

App lies to vehicl es: wi th t ir e pr essure mon it o ring system
Tire pressure monitoring system - telltale
indicator Lamp '
The warning/indicator light appears in the event of a
significant loss of tire pressure or if there is a malfunc­
tion .
The indicator light 'J illuminates to check the func tion when you
switch on the ignition.
If the
I symbol remains on or blinks after you sw itch on the ignit ion,
there is a loss of tire pressure or a system malfunction . If there is a
system malfunction, see your author ized Audi dealer as soon as
possible.
Detailed information on the tire pressure monitoring system can be
found
in::::>page312 .•
Turn signals ¢ ¢
The indicator light blinks when you use either turn signal.
Whenever you use the left¢ or the right¢ turn signal, the indicator
light blinks. When you use the emergency flashers, both indicator
lights flash .
If one of the turn signa l light bu lbs burn out, the turn signal will blink
twice as fast as normal. •
Malfunction Indicator Lamp (MIL) !'.I
The Malfunct ion Indicator Lamp ( MIL) is part of the On-Board Diag­
nostic (OBD II) system . The symbol lights up when the ignition is
t u rned on and will turn off after the engi ne has started and has
sett led at a constant idle speed. This indicates that the MIL is working
properly .
Controls and equip ­
ment Safety first
In
strum ents and warning /indicator lights
The warning light illuminates when there is a malfunction in the
engine electron ic system. Contact your author ized Audi dealer and
have the malfunction corrected .
An imp rope rly clo sed fu el fille r cap ma y al so cau se the M IL l ight to
illum in ate
=> page 2 73.
For more information=> page 23. •
Applies to vehicles : w ith lane ass ist
Lane assist (system is ready) /:
T he ind icator light shows that the system is ready to use . A warn ing
aler ts the driver when the veh icle drives over de tected lane boundary
lines.
More information about lane assist=>
page 134. •
Applies to vehi cles : wit h lane assis t
Lane assist (system is not ready) I
The indicator light shows that the system is turned on but unab le to
send a warn ing .
Mo re information about lane assist =>
page 134. •
Safety belts ,i
This warning/indicator light reminds you to put on your
safety belt.
The 4t warning/indicator light illuminat es when th e ignition is
switched on to rem ind the d river and (on USA models only) any front
pass enger to put on the safety b elt. Add itionally, an acoustic wa rning
(gong) will a lso sound.
For more Information=>
page 185, "Safety belt warning light~".•
Vehicle care Technical data

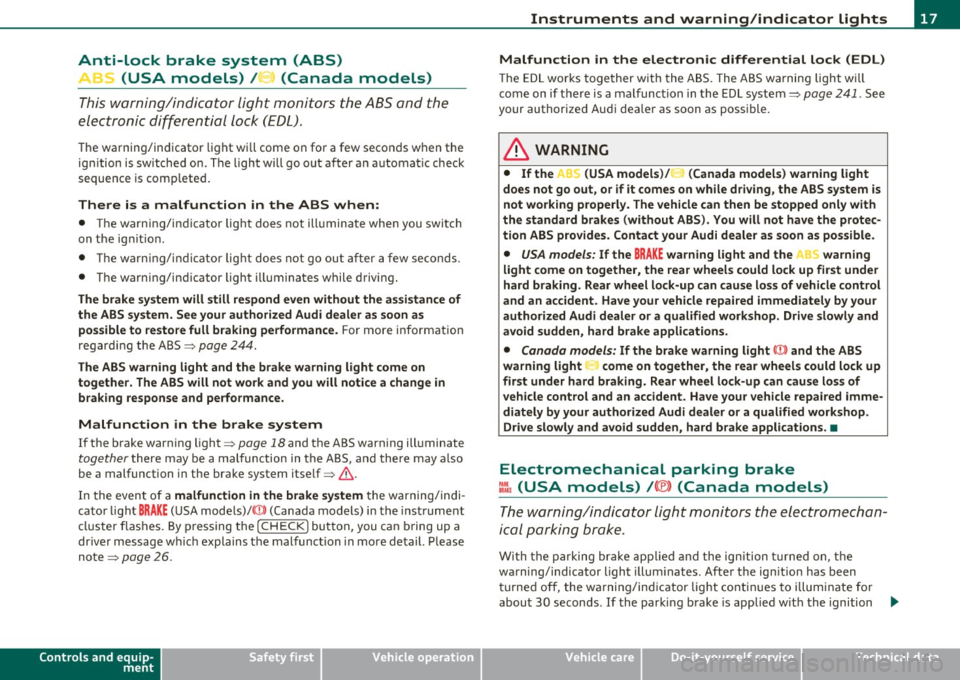

Anti-lock brake system (ABS)
A ...
.j {USA models) /..., {Canada models)
This warning/indicator light monitors the ABS and the
electronic differential lock (EDL) .
The warning/indicator light will come on for a few seconds when the
ign ition is switched on . The light w ill go out after an a utomat ic check
sequence is comp leted .
There is a malfunction in the ABS when:
• Th e warn ing/ indic ator light does not ill uminate when you swi tch
on the ig nit io n.
• Th e warn ing/ in dic ator lig ht does not go out a fter a few se conds .
• The warning/ind icator light illuminates while d riving.
The brake sy stem will still re spond even without the a ssistance of
the ABS system . See your authorized Audi dealer as soon as
possible to restore full braking performance.
For more i nformat ion
regarding the ABS=>
page 244.
The ABS warning l ight and the brake warning light come on
together. The ABS will not work and you will noti ce a change in
brak ing response and performance.
Malfunction in the brake system
If the brake warning light=> page 18 and the ABS warning ill uminate
together there may be a malfu nction in t he A BS, a nd there may a lso
be a malfunction in the brake system itself=>& .
In the even t of a
malfunction in the b rake system the warning/ indi ­
ca tor light
BRAKE (U SA mode ls)/ ((])) (Canada models) in the instrume nt
cl uster flashes . By p ressing the
I C H ECK ) button, you ca n bring up a
dr iver message w hic h explains the malfunc tion in mo re de tail. Please
not e=>
pag e 26.
Controls and equip ­
ment Safety first
Instruments and warning
/indicator lights
Malfunction in the electroni c differential lock (EDL)
Th e ED L wor ks toge ther w it h the ABS . The A BS wa rning light will
come on if t he re is a malfunction in the EDL system=>
page 241. See
your authorized Aud i dea le r as soon as poss ible.
& WARNING
• If the ... Is~ (USA models)/ d (Canada models ) warning light
does not go out , o r if it comes on while driving, the ABS system is
not working properly . The vehicle can then be stopped only with
the standard brakes (without ABS ). You w ill not have the protec­
tion ABS provide s. Contact your Aud i dealer as soon as pos sible.
• USA models: If the BRAKE warning light and the 9 warning
light come on together, the rear wheel s could lock up fir st under
hard braking. Rear wheel lock-up can cau se los s of vehicle control
and an accident . Have your vehicle repaired immediately by you r
authorized Audi dealer or a qualified work shop. Drive slowly and
avoid sudden, hard brake applications.
• Canada models : If the brake warning light «D> and the ABS
warning light come on together , the rear wheels could lock up
first under hard braking . Rear wheel lock -up can cause loss of
vehicle control and an accident. Have your vehicle repaired imme­
diately by your authorized Audi dealer or a qualified work shop.
Drive slowly and a void sudden, hard brake applications. •
Electromechanical parking brake
~E {USA models) /(®) {Canada models)
The warning/indicator light monit ors the electromechan­
ical parking brake.
With the parking bra ke app lied and the ignition turned o n, t he
warning/indicator light illum inates. After the ign ition has been
t u rned
off, the wa rni ng/ind icator light co nti nu es to i llumi nate for
abou t 30 seconds . If the parki ng brake is applied w it h the ignition _,,
Vehicle care Technical data
