2010 AUDI A5 CABRIOLET technical data

Check engine oil 1o
Please top off with ma x. ll of o il. You can keep dri ving.
If the ~ symbo l lights up displaying t his drive r message, t hen ad d a
maximum of
1 liter at your earliest opportunity~ page 285. •
Engine oil level i!:r..,
Please check oil level
When the symbol i lluminates, check the engine oi l level as soo n as
poss ible ~
page 284. Top off the oil at your earliest o pportunity
~ page 285. •
Engine oil sensor defective
" Oil level! Sensor defective
If the symbo l illumina tes, contact your author ized A udi dealer and
have the o il sensor inspected. Until you have this done, check the oil
level each tim e yo u refue l ju st to be on the s afe side ~
page 28 4. •
A pplies t o veh icl es: with eng ine s peed lim itat io n
Engine speed limitation 71
Do not e xceed ma x. engine speed of XXXX rpm
Th e ~ symbo l ill uminates whe n there is an engi ne con trol malfunc­
t ion . The ind icator light
Er"" in the instr ument cluster also i llum inates .
Th e engine speed is limited to the s peed disp laye d in the driver info r­
mation system . Keep in m ind that the engine speed will not exceed
the value disp layed in the driver information system, for examp le
w hen downshifti ng.
Please go to a n author ized Audi dealer or other qualified workshop to
h ave the mal func tion rep aired .•
Controls and equip ­
ment Safety first
Driver information display
• Headlight range control defective
)
Headlight range control defective !
If the sym bo l ~ ill um ina tes, the dynam ic he adl ight range con tro l is
no lo nger work ing properly . H ave t he system checked and repa ired at
your authorize d Aud i dea ler. •
App lies to ve hicle s: wit h ad apti ve light
Adaptive light defective f:.J
adaptive light defective
When this symbol Ji.., ill uminates, it means that adaptive light is
defective. Go to an author ized Audi dealer to h ave the headlig hts o r
the contro l unit for the adaptive lig ht repa ire d.•
Ignition lock malfunction ..c,
~ Ignit ion lock defective
If the sym bol i n the displ ay comes on, t here is a mal func tion in t he
elect ronic ignit ion lock . Please go to an authorized Audi dealer or
o th er qu alified w orkshop to have the mal func tio n re pa ir ed .•
A pp lies to ve hicl es: w it h Aud i d ri ve sele ct
Adaptive dampers~
Adaptive dampers: system malfunction
If the symbol in the dis pl ay comes on , there is a malfunction in the
adaptive dampers . P lease go to an au thorized Aud i dea le r or other
qualifie d wo rks hop to have t he malfunct io n repaire d.•
Vehicle care Technical data

Opening and closing
Keys
Key set
Fig. 23 Key set
© Master key with remote control
You can centrally lock a nd u nlock your ve hicle and start the eng ine
with the master key with remote contro l.
® Emergency key
The emergency key is not intended for cons tant use. It should o nly be
used in an emergency . Keep it in a safe place and do not carry it on
your key ring.
Key replacement
If you lose a key , contact your a uthori zed Audi dea le r immedi ately to
have the
lost key disabled . Be sure to bring all your keys w ith you .
Data in the master key
During driving, service and maintenance-relevant data is cont inu­
o usly s tore d on yo ur maste r key. Your Aud i service adviser can re ad
out this data and tell you about the work your veh icle needs . This
a pp lies a lso to ve hicles with convenience key* .
Controls and equip ­
ment Safety first
Opening and closing
Personal comfort
settings
If two peop le use one veh icle, it is recommended that eac h person
a lw ays uses "t heir own " mas ter key. When t he ig nitio n is tu rned off
or when the vehicle is locked, personal conven ience settings for the
following systems are sto red and assigned to the remo te maste r key .
• Climate co ntrol
• C entra l lo ck ing system
• Seat memory*
• Parking sys tem *
• Audi s ide assist*
• Audi dr ive select*
T he sto red sett ings a re a utomatica lly recalled w hen you unlock the
vehicle, when you open the doors o r when you tu rn o n the ignition .
& WARNING
• Do not leave your vehicle unattended w ith the key in the igni­
tion lock. Entry by unauthorized per sons could endanger you or
result in theft or damage the vehicle. Alway s lock all doors and
take the key.
• Do not leave children unattended in the veh icle, especially with
access to vehicle key s. Unguarded acce ss to the ke ys pro vide s chil­
dren the opportun ity to start the engine and /or activate vehicle
s y stem s such as the power windows etc . Unsupervi sed operation
of any vehicle system by children can result in serious injury.
• Do not remove the ke y from the ignition lock until the vehicle
ha s come to a complete stop. Otherwise the ste ering column lock
could suddenly engage -causing the ri sk of an accident. .,_
Vehicle care Technical data

-Pull the mechanical key® out of the master key.
- Press the release button@=>
page 38, fig. 26 on the
batte ry holder and at the same time pull the battery
holder out of the master key in the direction of the arrow.
- Install the new battery CR 2032 with the"+" sign facing
down.
- Push the battery holder carefully into the master key.
- Install the mechanical key.
~ For the sake of the environment
Dispose of dead batteries properly so as not to pollute the environ­
ment.
(I] Tips
T he replacement battery must be the same specification as the
original. •
Removing the mechanical key
-Press the release button@=> fig. 27.
Con tro ls a nd e quip ­
m en t
Fig. 27 Remote
master key: Removing
the mechanica l key
Vehicle OP-eration
Opening and closing
-Pull the mechanical key ® out of the master key.
Using the mechanical key, you can
• Lock and unlock" the storage compartment on the passenger's
side =>
page 87.
• Lock and unlock the vehicle manually => page 44 if this should not
be poss ible with the master key .•
Emergency unlocking of the ignition key
In the event of malfunctions in the electrical system, it
may happen that you cannot remove the ignition key.
Fig. 28 Ignition
switch with igni tio n
key
If you are unable to remove the ignition key, for example
because the vehicle battery is discharged, proceed as follows:
- Press the release button ©=> fig . 28 for example with a
ball point pen and pull the mechanical key® out of the
master key.
- Lock the vehicle using the mechanical key=>
page 44.
-Have the electrical system inspected by an authorized Audi
dealership. •
Vehicle care Do-it-yourselt service iTechnical data

Power locking system
General description
The power locking system locks or unlocks all doors and
the rear lid simultaneously.
You can lock and u nlock the ve hicle centrally. You have the following
choices:
• Remote master key::::>
page 42
• Door hand les with convenience key* => page 43,
• Lock cylinder at the driver's door ::::> page 44, or
• Powe r locking switch inside~
page 45.
Selecti ve unlocking
When they are closed, the door and rea r lid are locked . When
unlocking, you can set in the radio or in the MMI * whether
only the
dr ive r's door or th e entire vehicl e shou ld b e unloc ked::::>
pag e 42.
Automatic Locking
The automat ic lock ing feature locks all the veh icle doors and the rear
lid when you drive faster than 9 mph (15 km/h).
T he car is unlocked agai n once the ignit io n key is removed. I n add i­
tion, the vehicle can be un locked if the open ing function in the power
lo cki ng sys tem swit ch o r at one of t he d oor leve rs is a ctuated. The
Auto Lock function can be turned on and off in the rad io or in the
MM I*
~ page 42 .
Add itiona lly, in the event of a crash w ith a irbag dep loymen t the doors
are automatically u nlocked to allow access to the ve hicle .
Anti-theft alarm warning system
If the anti -theft alarm warning system detects a break-in into the
vehicle, acoustic and visual warning signals are triggered .
Controls and equip­
ment Safety first
Opening and closing
T
he anti-theft warning system is activated a utomat ica lly when you
lock the vehi cle. It is dea ctivated w hen unl ocking us ing t he
remote
key ,
with the mechanical key , and when you switch on the ignition .
T he alarm a lso turns off when the alarm cycle has expired .
Turn signals
When you unlock the vehi cle, the tu rn s ignals flash twi ce , when yo u
lock it once . If they do not flash, one of the doors, the rear lid or the
hood is not locked.
Unintentionally Locking yourself out
In the following cases there safeguards to preve nt yo u loc king your
remote master key in the vehicle:
• The vehicle does not lock with the centra l locking sw itch
=>
page 45 if the drive r's door is open.
• On vehicles with convenience key*, if the most recently used
master key is in the luggage compartment, the rea r lid is automati­
ca ll y unlo cked again after it is closed;;;> page 46.
Do not lock yo ur vehi cle w it h t he remote m aster key u ntil all doors
and t he rear lid are closed . In this way you avoid locking yourself out
acc iden tally .
& WARNING
• When you leave th e vehicle, alwa ys remove the ignition key
and take it with you. Th is will prevent passengers (children , for
example ) from accidentally being locked in the vehicle should
they accidentally p ress the power locking switch in the front
door s.
• Do not leave child ren inside the vehicle unsupervised . In an
emergency it would be impossible to open the door s from the
outside without the key.
Vehicle care Technical data

- Press button m (@ ) to u nlo ck the ve hicl e=> page 42,
fig. 31 .
- Press button @(@ ) to lock the vehicle=> & in "General
description" on
page 41.
- Press button - Press the button
rear lid.
- P ush the red
!PANIC] button( @) to activate the panic
funct ion . The horn sounds and the turn signals flash. Push
the red
[PANIC ] button aga in to deactivate the panic func­
tion.
If the vehicle is unlocked and no door, the rear lid or the hood is
opened wit hin 60 seconds, the ve hicle locks itse lf aga in automat i­
cally . This feature prevents the vehicle from being accidentally left
unloc ked over a long pe riod of t ime .
It depends on the set tings in the radio or in the MMI* whether the
entire vehicle is unlocked or on ly certain doors:::,
page 42.
On vehicles with automatic transm ission*, the se lector lever must be
in the P position , otherwise the vehicle cannot be locked .
& WARNING
Read and follow all WARNINGS :::, & in "Gene ral de scription " on
page 41.
[I) Tips
• In orde r to make sure the locking funct ion is wo rking, you should
always keep your eye on the vehicle to make sure it is proper ly locked.
• Do no t use the remo te con tro l if you are inside the car, o therwise
yo u may un inten tionally lock the veh icle, and then you would set
off
Controls and equip ­
ment Safety first
Op
ening and closing
the a nti-theft alarm when you try to start the engine or open a door .
In case t his happens any how, p ush t he unlock button
m.
• Use the panic function on ly if you are in an emergen cy si tuat ion. •
App lies to veh icles : w ith conven ience key
Locking and unlocking with convenience
key
The doors and the rear lid can be unlocked and locked
without operating the master key.
Unlocking vehicle
F ig. 3 2 Convenie nce
k ey: Unlo ckin g vehi cle
doo r
F ig. 33 Co nvenie nce
k ey: loc kin g the
vehicle
- Take hold of the door han dle . The door is unlocked auto -
matically .
~
Vehicle care Technical data

-Turn the m echanical key in th e lock of the driv er's door to
the lock position ®=> & in "Gen eral descri ptio n" on
page 41 .
If the power locking system f ails, there is eme rgency locki ng for the
passenger's door=>
page 46.
& WARNING
Read and follow all WARNINGS => & in "General de scription " on
page 41.
(I) Tips
• After the igni tion is swi tched on, t he power locking system swi tch
and the unlocking button for the rear lid
,c::$ i n the door are enabled. •
Locking and unlocking the vehicle from
inside
Fig . 35 Drive r's doo r:
power l ocking sw it c h
- Press the button @to lock the vehicle=> &.
- Press the button
63 to un lock the vehicle=> fig. 35.
Con tro ls a nd e quip ­
m en t Vehicle
OP-eration
Opening and closing
If you lock the ve hicle us ing the power locking switch , please note
t he follow ing :
• If a door is open, the vehicle ca nnot be locked using t he power
locking system switch.
• You cannot open the doors or the rea r lid from the
outside
(increased secu rity, for examp le whe n you are stopped at a red light).
• The diodes in the power lock ing switch illuminate when all the
doors are closed and lo cked .
• You can unlock and open the doors from the inside by pulling on
t he doo r handle.
• If yo u have a crash and the airbag is activated, the doors automat­
ically unloc k.
& WARNING
• The power locking switch works with the ign ition off and auto­
m atically loc ks the entire vehicle when it is actu ated.
• On a vehicle lo cked from the outside the power locking system
switch is inoperat ive.
• Locking doors from the inside can help p re vent inadvertent
door opening during an accident and can al so pre vent unwanted
e ntry from the outside. Locked door s can, however, delay assi s­
tan ce to veh icle occupants and hold up rescue efforts fr om the
outside in an accident or other emergen cy .
(I) Tips
Your vehicle is loc ke d automatically at a speed of 9 mph (15 km/h)
(Auto Lock)=>
page 41. You can unlock the vehicle again using the
opening f unction in the power loc king sys tem switch. •
Vehicle care Do-it-yourselt service iTechnical data

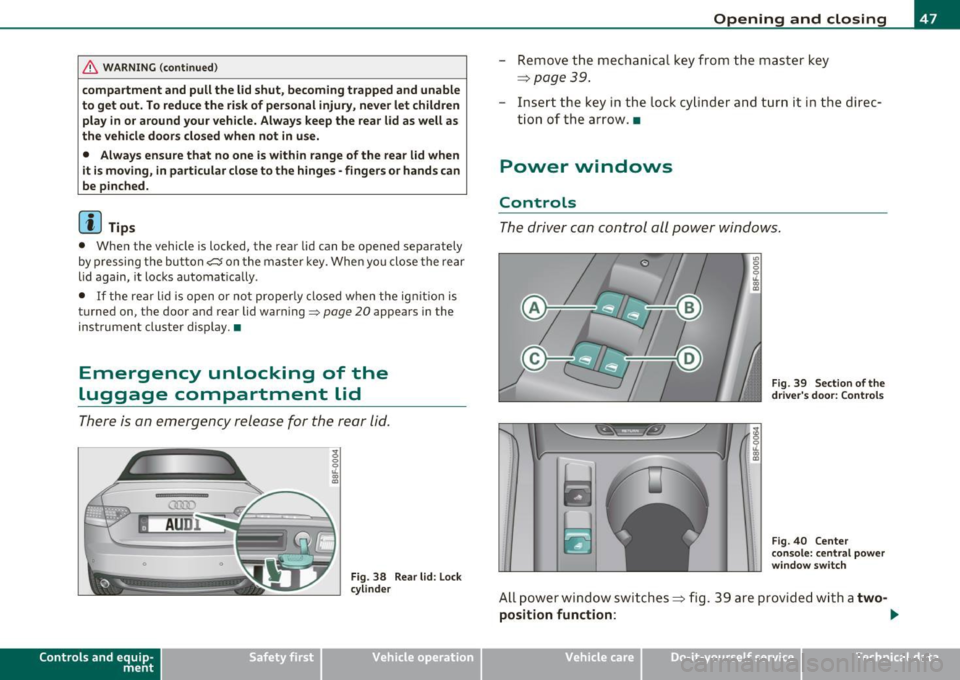

& WARNING (continued)
compartment and pull the lid shut, becoming trapped and unable
to get out. To reduce the risk of personal injury, never let children
play in or around your vehicle. Always keep the rear lid as well as
the vehicle doors closed when not in use.
• Always ensure that no one is within range of the rear lid when
it is moving, in particular close to the hinges· fingers or hands can
be pinched.
[ i ] Tips
• When the vehicle is locked, the rear lid can be opened separately
by pressing the button~ on the master key. When you close the rear
lid again, it locks automatically .
• If the rear l id is open or not properly closed when the ignition is
turned on, the door and rear lid warning:::::,
page 20 appears in the
instrument cluster display.•
Emergency unlocking of the
luggage compartment lid
There is an emergency release for the rear lid.
Con tro ls a nd e quip ­
m en t
Fig. 38 Rear lid: Lock
cylinder
Vehicle OP-eration
Opening and closing
-Remove the mechanical key from the master key
=;,page 39.
-Insert the key in the lock cylinder and turn it in the direc­
tion of the arrow .•
Power windows
Controls
The driver can control all power windows.
Fig. 39 Section of the
driver's door: Controls
Fig. 40 Center
console: central power
window switch
All power window switches=> fig . 39 are provided with a two-
position function:
~
Vehicle care Do-it-yourselt service iTechnical data

Convenience opening feature
-Use the emergency key or pull the mechanical key out of
the master key~
page 39.
- Insert the key into the lock of the driver's door.
- Turn the key to position~
page 48, fig. 41 @until all the
windows have reached the desired position.
Convenience closing feature
- Use the emergency key or pull the mechanical key out of
the master key~
page 39.
- Turn the key in the lock of the driver's door to the lock
position @ until the windows are closed~&.
& WARNING
• Never close the windows inattentively and without checking -
there is risk of injury.
• You must always watch when the windows are being raised so
that no one can be trapped. If you release the key, the closing
action is immediately canceled.
• Always read and heed WARNING~
& in "General description"
on
page 41. •
Correcting window regulator malfunction
After disconnecting the vehicle battery, the one-touch up
and down feature must be activated again.
- Pull and hold the power window switch until the window is
completely closed.
- Release the switch.
Con tro ls a nd e quip ­
m en t Vehicle
OP-eration
Opening and closing
-Pull the switch again for one second. The automatic
closing/opening is now reactivated. •
Valet parking
Through the "valet parking" feature the luggage
compartment of your vehicle is secured from unautho­
rized access during the valet parking service .
Fig. 42 Valet parking
button
- Take the mechanical key out of the master key~ page 39.
- Open the glove box~
page 87 and activate~ fig. 42 the
"valet parking" feature by pressing the
[V ALET ) button.
The indicator light in the switch illuminates.
- Close the glove box and lock it with the mechanical key.
- Leave the master key with the service personnel for
parking and keep the mechanical key with you.
When the "valet parking" feature is activated:
• the button
~ on the master key is inactive
• the opening handle in the rear lid is inactive.
The vehicle can be driven and locked and unlocked with the master
key. Access to the luggage compartment is blocked .•
Vehicle care Do-it-yourselt service iTechnical data
