GETTING TO KNOW YOUR CAR15
1
ON CONSTANTLY:Low engine oil pressure(red)
FLASHING:Engine oil exhausted
(Diesel versions with DPF only - red)
When the ignition key is moved to MAR, the warning
light switches on, and should go out as soon as the engine is start-
ed.
1. Low engine oil pressure
The warning light turns on and stays on constantly (in ver-
sions/markets, where applicable) along with the message on the
display when the system detects that the engine oil pressure is low.
v
If the warning light vturns on when the vehi-
cle is travelling (on certain versions together with
the message on the display) stop the engine im-
mediately and contact Alfa Romeo Authorised Service.
2. Engine oil exhausted(Diesel versions with DPF only)
When the key is turned to the MAR position, the warning light
comes on, but it must switch off after a few seconds. The warn-
ing light will flash and a specific message will appear on the dis-
play (in versions/markets, where applicable). The warning light
may flash in the following ways, depending on the version:
– for 1 minute every two hours;
– for 3 minute cycles with the warning light off for intervals of 5
seconds until oil is changed.After the initial warning, each time the engine is started up, the
warning light will continue to flash for 60 seconds in the same
mode, until the oil is changed. A specific message will appear on
the display (for versions/markets, where applicable) in addition
to the warning light.
If the warning light flashes, this does not mean that the car is de-
fective, but simply informs the driver that it is now necessary to
change the oil as a result of regular vehicle use.
Note that engine oil is exhausted faster under the following cir-
cumstances:
– use of the vehicle prevalently for city driving, requiring more
frequent regeneration of DPF
– use of the vehicle for short drives, in which the engine does not
have time to reach its regular operating temperature
– repeated interruption of the regeneration process, signalled by
the DPF warning light coming on.
Exhausted engine oil should be replaced as soon
as possible after the warning light comes on, nev-
er more than 500 km after the warning light first
comes on. Failure to change the oil within the first 500
km may result in severe damage to the engine and will
result in forfeiture of the warranty. Remember that when
the warning light flashes, it does not mean that the level
of engine oil is low, so if the light flashes you must not top
up the engine oil.
001-130 Alfa MiTo GB 2ed 23-12-2009 12:35 Pagina 15

16GETTING TO KNOW YOUR CAR
Excessive engine coolant
temperature (red)
This warning light comes on when the ignition key is
turned to MAR, but it should go off after a few seconds.
The warning light turns on when the engine is overheated. The dis-
play will show the dedicated message. If the warning light comes
on, proceed as follows:
❍during normal travel: stop the car, stop the engine and check
that the water level in the reservoir is not under the MIN line.
In this case, wait for a few minutes for the engine to cool down,
then slowly and carefully open the cap, top-up with coolant and
check that the level is between the MIN and MAX references
on the reservoir. Also check for leaks. If the warning light comes
on again at the next engine start-up, contact your nearest Al-
fa Romeo Authorised Service.
❍In the case of demanding use (e.g. towing trailers uphill or
car at full load): slow down and stop the car if the warning light
stays on. Stop for 2 or 3 minutes with the engine running and
slightly accelerated to favour better coolant circulation. Then
stop the engine. Check the correct fluid level as described pre-
viously.
IMPORTANT Over demanding routes, it is advisable to keep the
engine on and slightly accelerated for a few minutes before switch-
ing it off.
u
Electric power steering failure (red)
This warning light comes on when the ignition key is
turned to MAR, but it should go off after a few sec-
onds.
If the warning light (or symbol on the display) remains on, you will
not have steering assistance and the effort required to operate
the steering wheel will be increased. Steering is, however, possi-
ble. In this case contact your nearest Alfa Romeo Authorised Ser-
vice. The display will show the dedicated message.g
Start&Stop system deactivation
(amber)
The warning light comes on when the Start&Stop sys-
tem is deactivated by pressing the button on the auxil-
iary control panel next to the steering wheel. On some versions the
display shows the associated message.T
001-130 Alfa MiTo GB 2ed 23-12-2009 12:35 Pagina 16

GETTING TO KNOW YOUR CAR23
1
Insufficient tyre inflation pressure
(for versions/markets, where provided)
This warning light (or symbol in the display) comes on
(on some versions together with a message on the dis-
play) (together with the sounding of a buzzer) if the tyre infla-
tion pressure of one or more tyres goes below a preset value. In
this way the T.P.M.S. system warns the driver that one or more
tyres may be dangerously flat and liable to puncture.
IMPORTANT Do not continue driving with one or more tyres flat
as vehicle driveability may be compromised. Stop the car, avoid-
ing harsh braking or steering manoeuvres. Replace the wheel im-
mediately with the spare wheel (for versions/markets, where pro-
vided) or carry out a repair using the dedicated kit (see the para-
graph on “Replacing a wheel” in chapter 4) and contact an Alfa
Romeo Authorised Service as soon as possible.n
Start&Stop failure
(for versions/markets, where provided)
The warning light comes on when a Start&Stop failure is detect-
ed.
Rain sensor failure
(for versions/markets, where provided)
See description of
uwarning light.
Parking sensor failure
(for versions/markets, where provided)
See description of
twarning light.
Dusk sensor failure
(for versions/markets, where provided)
This warning light comes on when a dusk sensor failure is detect-
ed.
001-130 Alfa MiTo GB 2ed 23-12-2009 12:35 Pagina 23

26GETTING TO KNOW YOUR CAR
DISPLAY
The car may be equipped with the multifunctional display/multi-
functional reconfigurable display which, in accordance with the set-
tings made, can display useful information when driving.
MULTIFUNCTIONAL DISPLAY “STANDARD”

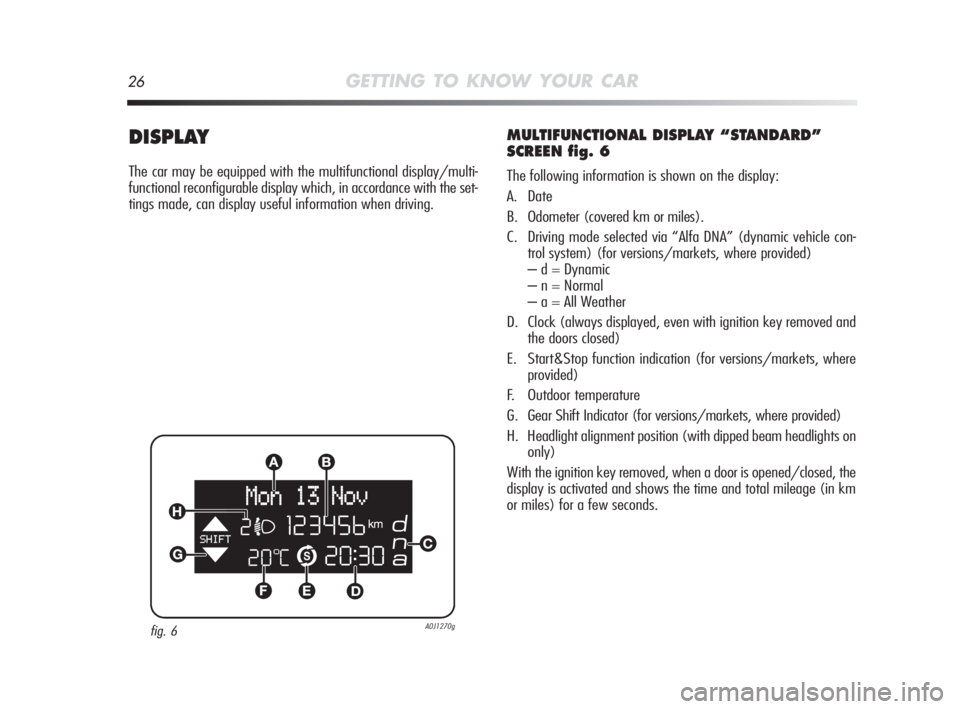

SCREEN fig. 6
The following information is shown on the display:
A. Date
B. Odometer (covered km or miles).
C. Driving mode selected via “Alfa DNA” (dynamic vehicle con-
trol system) (for versions/markets, where provided)
– d = Dynamic
– n = Normal
– a = All Weather
D. Clock (always displayed, even with ignition key removed and
the doors closed)
E. Start&Stop function indication (for versions/markets, where
provided)
F. Outdoor temperature
G. Gear Shift Indicator (for versions/markets, where provided)
H. Headlight alignment position (with dipped beam headlights on
only)
With the ignition key removed, when a door is opened/closed, the
display is activated and shows the time and total mileage (in km
or miles) for a few seconds.
fig. 6A0J1270g
001-130 Alfa MiTo GB 2ed 23-12-2009 12:35 Pagina 26

GETTING TO KNOW YOUR CAR27
1
RECONFIGURABLE MULTIFUNCTIONAL DISPLAY
“STANDARD” SCREEN fig. 7
The following information is shown on the display:
A. Time
B. Partial mileage (in Km or miles)
C. Odometer (distance travelled in kilometres/miles)
D. Car conditions (e.g. doors open, ice on road, etc.)/Start&Stop
function indication (for versions/markets, where provided)/
Gear Shift Indicator (for versions/markets, where provided)
E. Headlight alignment position (with dipped beam headlights on
only).
F. Outdoor temperatureOn some versions when the “DYNAMIC” driving mode is select-
ed, the display shows the turbine pressure fig. 8.
fig. 7A0J0333mfig. 8A0J0228m
001-130 Alfa MiTo GB 2ed 23-12-2009 12:35 Pagina 27

GETTING TO KNOW YOUR CAR29
1
WELCOME MOVEMENT
On some versions, when the key is turned to MAR, the following
occurs:
❍quick movement (up and down) of the speedometer and rpm
gauge;
❍illumination of graphic symbols/display;
❍an animated graphic representation of the vehicle profile ap-
pears on the display.
Gauge movement
❍If the key is removed from the ignition switch whilst the gauges
are moving, they immediately return to their initial position.
❍Once they have reached the end-of-scale values the gauges rest
on the value indicated by the vehicle.
❍The movement of the gauges stops when the engine is started.
Illumination of graphic symbols/display
A few seconds after the key is inserted, the gauges, graphic sym-
bols and display light up in sequence.
Display of graphic animation
When the key is removed from the ignition switch (with the doors
closed), the display remains lit up and shows a graphic animation.
The display illumination is then dimmed gradually until it goes
out completely.
CONTROL BUTTONS fig. 9/9a
“+” or “▲ Ò”(versions with Start&Stop system) To scroll the dis-
played menu and the related options upwards or to increase the
displayed value
“MENU ESC”: press briefly to access the menu and/or go to next
screen or confirm the required menu option. Hold
down to go back to the standard screen.
“–” or “
▼ “ (versions with Start&Stop system) to scroll the
displayed menu and the related options downwards or to decrease
the value displayed.
fig. 9A0J0024m
001-130 Alfa MiTo GB 2ed 23-12-2009 12:35 Pagina 29

30GETTING TO KNOW YOUR CAR
WARNING The buttons "+" and "–" (or “▲ Ò“ and “▼ “ for
versions with Start&Stop system) activate different functions de-
pending on the following situations:
❍to scroll the menu options upwards and downwards;
❍to increase or decrease values during settings.
With the ignition key removed, when a door is opened, the display
is activated and shows the total mileage (in km or miles) for a few
seconds.
SETUP MENU
The menu comprises a series of items which can be selected us-
ing the + and – (or “
▲ Ò“ and “▼ “ for versions with
Start&Stop system) buttons to access the different selection and
setting operations (setup) given in the following paragraphs. Some
items also have a sub-menu. The setup menu can be activated by
briefly pressing the MENU ESC button.
NOTE The following pages describe the buttons + and –. For the
versions with Start&Stop system, the buttons are “
▲ Ò“ and
“
▼ “.
fig. 9a - Start&Stop system versionsA0J0276m
001-130 Alfa MiTo GB 2ed 23-12-2009 12:35 Pagina 30
