INSTALLING A UNIVERSAL ISOFIX CHILD SEAT
Couple the child seat to the specific lower metallic rings B-fig. 104
positioned inside the rear seat backrest (lift the hinge A upwards
to access the rings) and then fix the upper belt (provided with
the seat) to the upper couplings C-fig. 105 located on the back
of the backrest.
Systems can be fitted along side a traditional child seat “Univer-
sal Isofix”. Remember that when using a Universal Isofix child seat,
you can only use approved seats with the marking ECE R44/03
“Universal Isofix”.
The Universal Isofix “Duo Plus” child seat and the special “G 0/1 S”
seat are available from Lineaccessori Alfa Romeo. For any further
installation/details on usage, refer to the “Instruction Manual” sup-
plied with the child seat.
fig. 104A0K0109mfig. 105A0K0108m
Fit the child seat when the car is stationary. The
child seat is correctly anchored to the brackets
when you hear the click. Follow the instructions for
assembly, disassembly and positioning that the child seat
manufacturer must supply.
131-150 Alfa Giulietta EN 4ed 27-04-2010 11:15 Pagina 144

145
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS

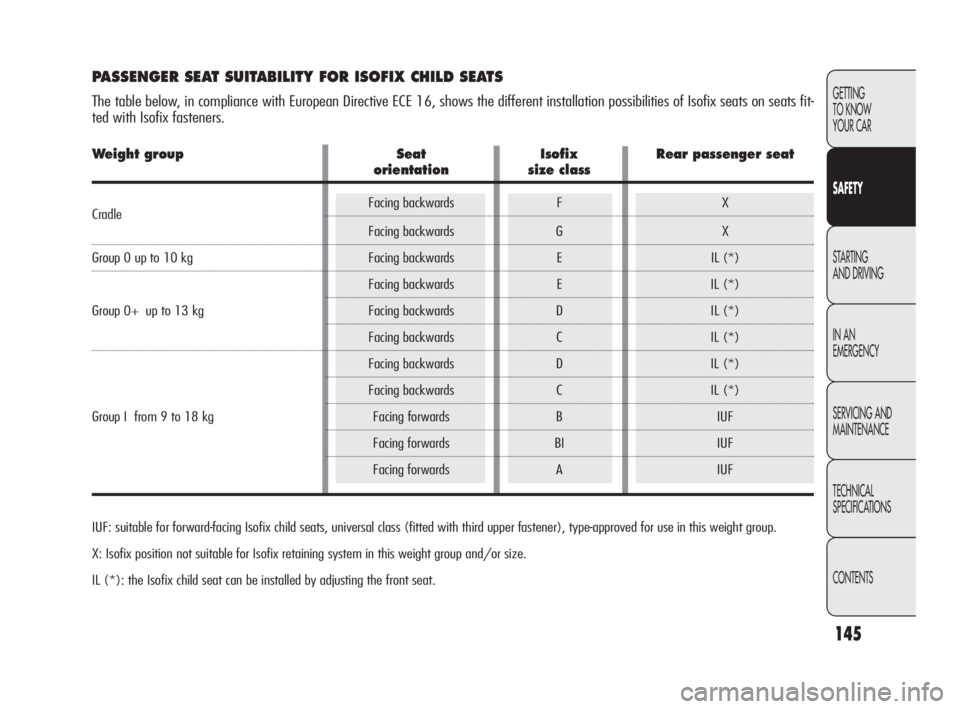

PASSENGER SEAT SUITABILITY FOR ISOFIX CHILD SEATS

The table below, in compliance with European Directive ECE 16, shows the different installation possibilities of Isofix seats on seats fit-
ted with Isofix fasteners.
IUF: suitable for forward-facing Isofix child seats, universal class (fitted with third upper fastener), type-approved for use in this weight group.
X: Isofix position not suitable for Isofix retaining system in this weight group and/or size.
IL (*): the Isofix child seat can be installed by adjusting the front seat.
Weight group Seat Isofix Rear passenger seat
orientation size class
CradleFacing backwards F X
Facing backwards G X
Group 0 up to 10 kg Facing backwards E IL (*)
Facing backwards E IL (*)
Group 0+ up to 13 kg Facing backwards D IL (*)
Facing backwards C IL (*)
Facing backwards D IL (*)
Facing backwards C IL (*)
Group I from 9 to 18 kg Facing forwards B IUF
Facing forwards BI IUF
Facing forwards A IUF
131-150 Alfa Giulietta EN 4ed 27-04-2010 11:15 Pagina 145

146
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
FRONT AIRBAGS
The car is provided with multistage front air bags (“Smart bag”)
for driver and passenger.
“SMART BAG” SYSTEM
(MULTISTAGE FRONT AIR BAGS)
The front driver/passenger air bags are designed to protect occu-
pants in the event of head-on crashes of medium-high severity,
by placing the bag between the occupant and the steering wheel
or dashboard.
The air bag do not replace, but rather complement the use of seat
belts, which should always be worn. In the event of an impact,
someone not wearing a seat belt could move forward and come
into contact with a bag which is still in the opening phase. The pro-
tection offered by the bag is reduced in such a case.
Front air bags may not be activated in the following situations:
❍front collisions against highly deformable objects not affect-
ing the front surface of the car (e.g. bumper collision against
guard rail, etc.);
❍car penetration under other vehicles or protective barriers (e.g.
trucks or guard rails);
in these instances they could not provide any additional protec-
tion compared with seat belts, so their deployment would not be
useful. In these cases, non-deployment of the airbag does not nec-
essarily indicate a system malfunction.
FRONT AIR BAG ON DRIVER’S SIDE fig. 106
This is located in a dedicated compartment in the centre of the steer-
ing wheel.
Do not apply stickers or other objects to the steer-
ing wheel, passenger side air bag cover or upper
side upholstery. Do not place objects on the pas-
senger side dashboard because these could interfere with
the correct opening of the air bag and cause severe injury
to occupants.
fig. 106A0K0080m
Always drive with your hands on the steering wheel
rim so that the air bag can inflate freely if need-
ed. Do not drive with your body bent forward.
Keep your back straight against the backrest.
131-150 Alfa Giulietta EN 4ed 27-04-2010 11:15 Pagina 146

147
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
FRONT AIRBAG ON PASSENGER’S SIDE
fig. 107
This is located in a dedicated compartment in the dashboard.
fig. 107A0K0135m
Do not arrange cradle child seats facing backwards
if the front air bag on the passenger’s side is en-
abled. Deployment of the air bag in an accident
could cause fatal injuries to the baby regardless of
the severity of the collision. Always deactivate the
passenger’s air bag when placing a child seat on the front
seat. Also, the passenger seat should be as far back as
possible to avoid contact between the child seat and the
dashboard. Although this is not mandatory by law, the air
bag should be immediately reactivated when children are
no longer carried to ensure better protection for adults.
To deactivate the air bags see “Knowing your
car” chapter, “Menu Items” paragraph.
Deactivating the passenger front air bag and
side bag
Deactivate the passenger front air bag and chest protection side
bags when carrying a chid on the front seat. With the air bags de-
activated, the
“warning light is lit in the instrument panel.
131-150 Alfa Giulietta EN 4ed 27-04-2010 11:15 Pagina 147

148
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
SIDE AIR BAGS
(SIDE BAG - WINDOW BAG)
The car is fitted with front side bags for driver and passenger for
protecting the chest, and window bags for protecting front and rear
passengers’ heads.
FRONT SIDE BAGS fig. 108
These are comprised of two types of bags located in the front
back/rests, which protect the chest and pelvis area of passengers
in the event of a side impact of medium-high severity.
fig. 108A0K0081mfig. 109A0K0035m
HEAD PROTECTION SIDE AIR BAGS
(WINDOW BAGS) fig. 109
It is formed by two "curtain" window bags are located behind the
side roof upholstery and are covered by special trimming.
They were designed to protect the head of front and rear passen-
gers in case of side collisions, thanks to the wide cushion inflation
surface.
The air bags are not deployed in the event of impact of low sever-
ity (for which the retaining action of the seat belts is sufficient).
It is therefore always necessary to wear seat belts.
In the event of a side impact, the system provides best protection
if the passenger sits on the seat in a correct position, thus allow-
ing correct window bag deployment.
131-150 Alfa Giulietta EN 4ed 27-04-2010 11:15 Pagina 148

149
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
WARNINGS
Do not wash the seats with water or pressurised steam (wash by
hand or at automatic seat washing stations).
The front and/or side air bags may activate in the event of sharp
impacts to the underbody of the car (e.g. impact with steps, pave-
ments, potholes or road bumps etc.).
A small amount of dust will be released when the airbags are de-
ployed. This is not harmful and does not indicate a fire. Dust may
irritate your skin and eyes: in this case, wash with mild soap and
water.
All operations on air bags (inspections, repairs and replacement)
must be carried out by Alfa Romeo Authorized Services.
If the car is to be scrapped, contact Alfa Romeo Authorized Ser-
vices to have the air bags deactivated.
Pretensioners and airbags are deployed according to different log-
ics on the basis of the type of collision. Failure to deploy of one
or more of these devices does not therefore indicate a system fault.Do not hook rigid objects to the clothes hangers or
support handles.
Do not rest your head, arms or elbows on the door,
windows or on the window bag area to avoid in-
juries during inflation.
Never lean your head, arms or elbows out of the
window.
131-150 Alfa Giulietta EN 4ed 27-04-2010 11:15 Pagina 149

150
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
If the warning light ¬does not turn on when the key
is turned to MAR, or if it stays on when travelling (to-
gether with the message on the display on some ver-
sions), there could be a failure in the restraint systems. If
this is the case, the air bags or pretensioners may not be de-
ployed in the event of an accident or, less likely, they may
be deployed accidentally. Do not drive the car and contact
a Alfa Romeo Authorised Service Provider to have the sys-
tem checked immediately.
The expiry dates of the pyrotechnic charge and
clock contact are shown in the plate installed in-
side the glove compartment. Go to an Alfa Romeo
Authorised Service Provider when the time to have them
replaced approaches.
Do not travel with objects on your lap, in front of
your chest, or between your lips (e.g. pipes, pen-
cils, etc.): you may be seriously injured in the event
of a crash with air bag deployment.
If someone tries to steal or damage your car, and
in the event of floods, have the air bag system
checked by an Alfa Romeo Authorised Service
Provider.
With the ignition key inserted and turned to MAR,
the air bags can be deployed also with the car at
a standstill, if it is hit by another vehicle even if the
engine is off. For this reason, children must never sit on
the front seat, even if the car is not moving. Remember
that no safety device (airbag or pretensioner) will be de-
ployed in a crash if the key is inserted and turned to the
STOP position. Failure to deploy in such cases must not
be considered a sign of malfunction.
When the ignition key is turned to MAR, the “
warning light turns on (front airbag on passenger’s
side enabled) and will blinks for a few seconds as
a reminder that the passenger airbag will be deployed
in the event of a crash and then go off.
The front air bags are deployed in the event of
more severe collisions than those required for de-
ploying the pretensioners.
For collisions in the range between the two thresholds, it
is normal for only the pretensioners to be activated.
131-150 Alfa Giulietta EN 4ed 27-04-2010 11:15 Pagina 150

151
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
STARTING AND DRIVING
STARTING PROCEDURE FOR DIESEL VERSIONS
Proceed as follows:
❍engage the handbrake and place the gearbox in neutral;
❍turn the ignition key to the MAR position: warning lights m
and Yon the instrument panel will light up;
❍wait for the warning lights to go out;
❍press the clutch pedal down to the floor without touching the
accelerator;
❍turn the ignition key to AVV as soon as warning light mgoes
out. Waiting too long will waste the heating work carried out
by the glow plugs. Release the key as soon as the engine starts.
If warning light mblinks for approximately 1
minute after starting or during prolonged crank-
ing, this indicates a fault in the glow plug pre-heat-
ing system. Use the car normally if the engine starts and
go to Alfa Romeo Authorized Services as soon as possible.
It is dangerous to have the engine running indoors.
The engine takes in oxygen and discharges carbon
dioxide, carbon monoxide and other toxic gases.
STARTING THE ENGINE
STARTING PROCEDURE FOR PETROL VERSIONS
Proceed as follows:
❍engage the handbrake and place the gearbox in neutral;
❍press the clutch pedal down to the floor without touching the
accelerator;
❍turn the ignition key to AVV and let it go the moment the en-
gine starts.
IMPORTANT
❍If the engine does not start on the first attempt, turn the igni-
tion key to STOP before repeating the operation.
❍If, when the ignition key is at MAR, the instrument panel warn-
ing light
Yremains on together with warning light U, turn
the key to STOP and then back to MAR; if the warning light
remains on, try with the other keys provided with the car. If
you are still unable to start the engine contact Alfa Romeo Au-
thorized Services.
❍Never leave the ignition key on MAR when the engine is off.
