2010 ACURA ZDX display

Press the SEL/RESET button to see
the selections.
Select the desired level by pressing
the INFO (▲/▼ ) button, then enter
your selection by pressing the SEL/
RESET button.
When your selection is successfully
completed, the display changes as
shown above, and then goes back to
the customize item screen.
If the ‘‘SETTING INCOMPLETE ’’
message appears, go back to
‘‘ ADJUST ALARM VOLUME ’’and
repeat the procedure again.
Auto Interior IlluminationTo reduce glare at night, the
instrument lights gradually dim
when you turn the headlight switch
on. You can customize when the
instrument lights dim, according to
the outside light level.
There are MAX, HIGH, MID, LOW
and MIN levels and OFF for the auto
interior illumination settings.
If you want the illuminations to start
dimming as early as possible, select
MAX. For illuminations to start
dimming as late as possible, select
MIN. Choose HIGH, MID, or LOW
for levels in between.
To disable the auto interior
illumination function, select OFF.
CONTINUED
Multi-Information Display
111
Instruments and Controls
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

You can choose this customize item
from‘‘METER SETUP ’’by pressing
the INFO (▲ /▼ ) button repeatedly.
Press the SEL/RESET button to see
the selections.
Select the desired setting by
pressing the INFO (▲ /▼ ) button,
then enter your selection by pressing
the SEL/RESET button.
When your selection is successfully
completed, the display changes as
shown above, and then goes back to
the customize item screen.
If the ‘‘SETTING INCOMPLETE ’’
message appears, go back to ‘‘AUTO
INTERIOR ILLUMINATION ’’and
repeat the procedure again.
Multi-Information Display11209/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

Keyless Start Guidance ScreensOn models with keyless access systemWhen this item is set to ON, you will
see some guidance messages on the
multi-information display. You can
change this setting between on and
off. For more information on start
guidance messages, see page 197.You can choose this item to
customize from‘‘METER SETUP ’’by
pressing the INFO (▲ /▼ ) button
repeatedly.
Press the SEL/RESET button to see
the selections.
Select ON or OFF by pressing the
INFO (▲ /▼ ) button, then enter
your selection by pressing the SEL/
RESET button.
When your selection is successfully
completed, the display changes as
shown above, and then goes back to
the customize item screen.
If the ‘‘SETTING INCOMPLETE ’’
message appears, go back to
‘‘ KEYLESS START GUIDANCE
SCREENS ’’and repeat the procedure
again.
CONTINUED
Multi-Information Display
113
Instruments and Controls
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

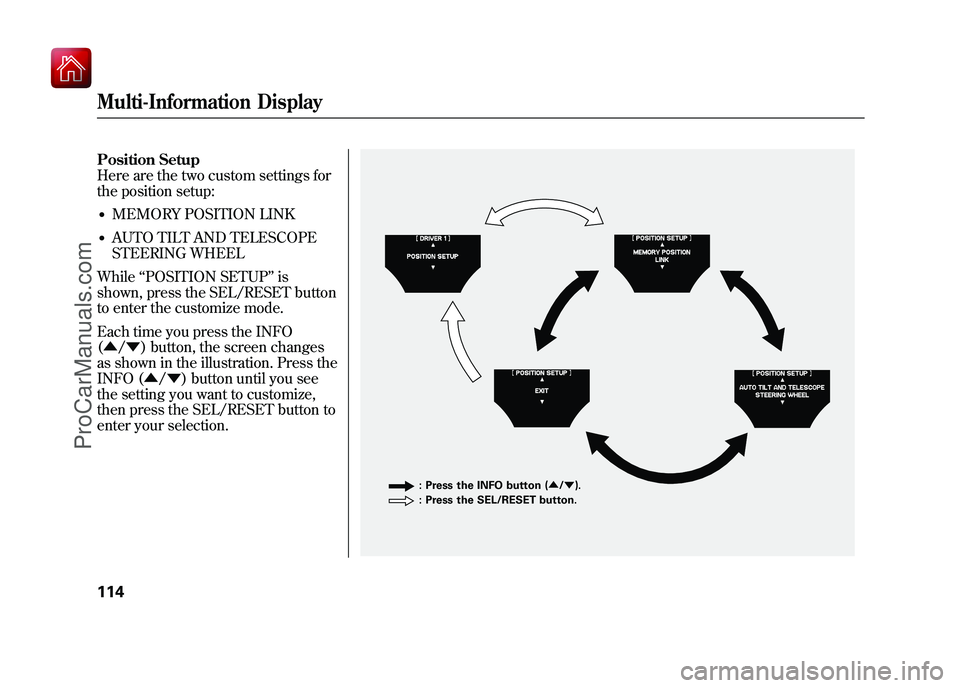

Position Setup
Here are the two custom settings for
the position setup:●MEMORY POSITION LINK●AUTO TILT AND TELESCOPE
STEERING WHEEL
While ‘‘POSITION SETUP ’’is
shown, press the SEL/RESET button
to enter the customize mode.
Each time you press the INFO
(▲ /▼ ) button, the screen changes
as shown in the illustration. Press the
INFO (▲ /▼ ) button until you see
the setting you want to customize,
then press the SEL/RESET button to
enter your selection.
: Press the INFO button ( ▲/▼ ).
: Press the SEL/RESET button.
Multi-Information Display11409/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

Memory Position LinkIf‘‘MEMORY POSITION LINK ’’is
set to ‘‘ON, ’’the driver's seat, the
steering wheel, and outside mirror
positions move to the position stored
in the memory when you open the
driver's door, using the remote
transmitter.
On models with keyless access
system, open the driver's door with
the remote, or grab the door handle
while carrying the remote. To set the memory positions, see
page 180.
On models with keyless access
systemFor information on using the remote,
see page 183.
You can choose this customize item
from ‘‘POSITION SETUP ’’by
pressing the INFO (▲ /▼ ) button
repeatedly.
Press the SEL/RESET button to see
the selections.
Select ON or OFF by pressing the
INFO (▲ /▼ ) button, then enter
your selection by pressing the SEL/
RESET button.
CONTINUED
Multi-Information Display
115
Instruments and Controls
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

When your selection is successfully
completed, the display changes as
shown above, and then goes back to
the customize item screen.
If the‘‘SETTING INCOMPLETE ’’
message appears, go back to
‘‘ MEMORY POSITION LINK ’’and
repeat the procedure again.
Auto Tilt and Telescope Steering WheelWhen ‘‘AUTO TILT AND
TELESCOPE STEERING WHEEL ’’
is set to ‘‘ON, ’’the steering wheel
automatically moves fully up when
you turn the ignition switch to the
LOCK (0) position and remove the
key (or the vehicle is in VEHICLE
OFF mode on models with keyless
access system). You can choose this customize item
from
‘‘POSITION SETUP ’’by
pressing the INFO (▲ /▼ ) button
repeatedly.
Multi-Information Display11609/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

Press the SEL/RESET button to see
the selections.
Select ON or OFF by pressing the
INFO (▲/▼ ) button, then enter
your selection by pressing the SEL/
RESET button.
When your selection is successfully
completed, the display changes as
shown above, and then goes back to
the customize item screen.
If the ‘‘SETTING INCOMPLETE ’’
message appears, go back to ‘‘AUTO
TILT AND TELESCOPE STEERING
WHEEL ’’and repeat the procedure
again.
CONTINUED
Multi-Information Display
117
Instruments and Controls
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

Keyless Access SetupOn models with keyless accesssystemThere are three custom settings for
the keyless access setup:●DOOR UNLOCK MODE●KEYLESS ACCESS LIGHT FLASH●KEYLESS ACCESS BEEP
While ‘‘KEYLESS ACCESS SETUP ’’
is shown, press the SEL/RESET
button to enter the customize mode.
Each time you press the INFO
(▲ /▼ ) button, the screen changes
as shown in the illustration. Press the
INFO (▲ /▼ ) button, until you see
the setting you want to customize,
then press the SEL/RESET button to
enter your selection.
: Press the INFO button ( ▲/▼ ).
: Press the SEL/RESET button.
Multi-Information Display11809/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
