Driving
accompanied by an audible signal.
N flashes in the instrument panel, accompanied by an audible signal and a message in the instrument panel screen, if the gear lever is not in position N on star ting. Foot on brake flashes on the instrument panel, accompanied by an audible signal and a message in the instrument panel screen, if the brake pedal is not pressed on star ting. For optimum acceleration, for example when over taking another vehicle, press the accelerator pedal firmly past the point of resistance.
Displays in the instrument
panel
Gear lever positions
N. Neutral R. Reverse 1, 2, 3, 4, 5, 6. Gears in manual mode A. This comes on when the automatic mode is selected. It switches off on changing to manual mode.
 Place your foot on the brakewhen a message appears in the instrument panel screen.
Moving off
 Select position N .  Press the brake pedal down fully.  Star t the engine.
N appears in the instrument panel screen.
 Select first gear (position M or A ) or Areverse (position R ). R Release the parking brake unless it is programmed to automatic mode.  Take your foot off the brake pedal, then accelerate.
A and 1 or R appear in the instrument panel screen.
Automatic mode
 After star ting the vehicle, select position Afor enter automatic mode.
A and the gear engaged appear in the instrument panel screen.
The gearbox is then operating in auto-active mode, without any action on the par t of the driver. It continuously selects the most suitable gear, depending on the: - style of driving, - profile of the road.

112
i
!
Driving
Manual gear changing
 When the vehicle has moved off, select position M to change to manual mode. - Pull the lever towards the + sign to change up a gear. - Push the lever towards the - sign to change down a gear.
At very low speed, if reverse gear is requested, this will only be taken into account when the vehicle is immobilised. The Foot on brake warning lamp may flash in the instrument panel to prompt you to brake.
On sharp acceleration, the gearbox will not change up unless the driver acts on the gear lever or the steering mounted paddles. Never select neutral N while the vehicle is moving. Only engage reverse gear R when the vehicle is immobilised with the brake pedal pressed.
A disappears and M appears with the gears engaged successively, in the instrument panel screen.
The gear change requests are only carried out if the engine speed permits. It is not necessary to release the accelerator during gear changes. When braking or slowing down, the gearbox
changes down automatically to permit acceleration in the correct gear.
This selective gear change mode enables you to over take, for example, while still remaining in automatic mode.  Operate the + or - steering mounted control paddle. The gearbox engages the gear requested if the engine speed permits. A is still displayed in the instrument panel.
After a few moments without any action on the controls, the gearbox resumes automatic control of the gears.
Manual mode

118
i
Driving
Head-up display
System which projects various information onto a smoked strip in the field of vision of the driver so that they do not have to take their eyes off the road. This system operates when the engine is running and the settings are stored when the ignition is switched off.
1. Head-up display on. 2. Head-up display off (long press). 3. Brightness adjustment. 4. Display height adjustment.

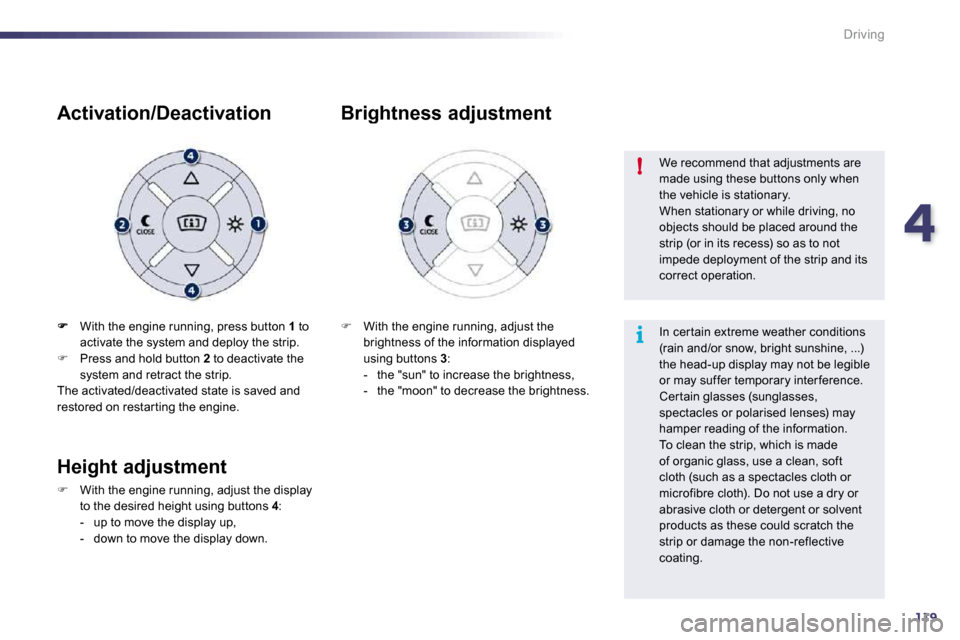

Buttons
Once the system has been activated, the following information is grouped together in the head-up display: A. The speed of your vehicle. B. Cruise control/speed limiter information.
Displays during operation
C. Navigation information (according to version).
For more information on the navigation system, refer to the "Audio and telematic" section.

4119
i
!
Driving
With the engine running, press button 1 to activate the system and deploy the strip.  Press and hold button 2 to deactivate the system and retract the strip. The activated/deactivated state is saved and restored on restar ting the engine.
Activation/Deactivation
 With the engine running, adjust the brightness of the information displayed using buttons 3 : - the "sun" to increase the brightness, - the "moon" to decrease the brightness.
Brightness adjustment
We recommend that adjustments are made using these buttons only when the vehicle is stationary. When stationary or while driving, no
objects should be placed around the strip (or in its recess) so as to not impede deployment of the strip and its correct operation.
In cer tain extreme weather conditions (rain and/or snow, bright sunshine, ...) the head-up display may not be legible or may suffer temporary inter ference. Cer tain glasses (sunglasses, spectacles or polarised lenses) may hamper reading of the information. To clean the strip, which is made of organic glass, use a clean, soft cloth (such as a spectacles cloth or microfibre cloth). Do not use a dry or abrasive cloth or detergent or solvent products as these could scratch the strip or damage the non-reflective coating.
Height adjustment
 With the engine running, adjust the display to the desired height using buttons 4 : - up to move the display up,
- down to move the display down.

120
!
Driving
Memorising speeds
This memorising of speeds applies to both the speed limiter and the cruise control.
You can memorise up to 5 speeds in the system. By default, some speeds are already memorised.  Go to the main menu in the instrument panel screen by pressing the "MENU"button.  Select the "Personalisation-configuration"
menu and confirm.
To select a memorised speed:  press and hold the " + " or " - " button; the system stops at the nearest memorised speed,
For safety reasons, when using the monochrome screen C the driver must only carry out these operations when stationary. These operations are only possible when stationary, when using the central colour screen associated with the
satellite navigation system.
Operation
 Select "Vehicle parameters" menu and confirm.  Select the "Driving assistance" line and conform.  Select the "Speeds memorised" line and confirm.  Modify the speed.  Select " OK " and confirm to save the modifications.
Selection
 press and hold again the " + " or " - " button to select another memorised speed. A reminder of the speed and the state of the system (on/off) is displayed in the instrument panel.

4121
i
i
Driving

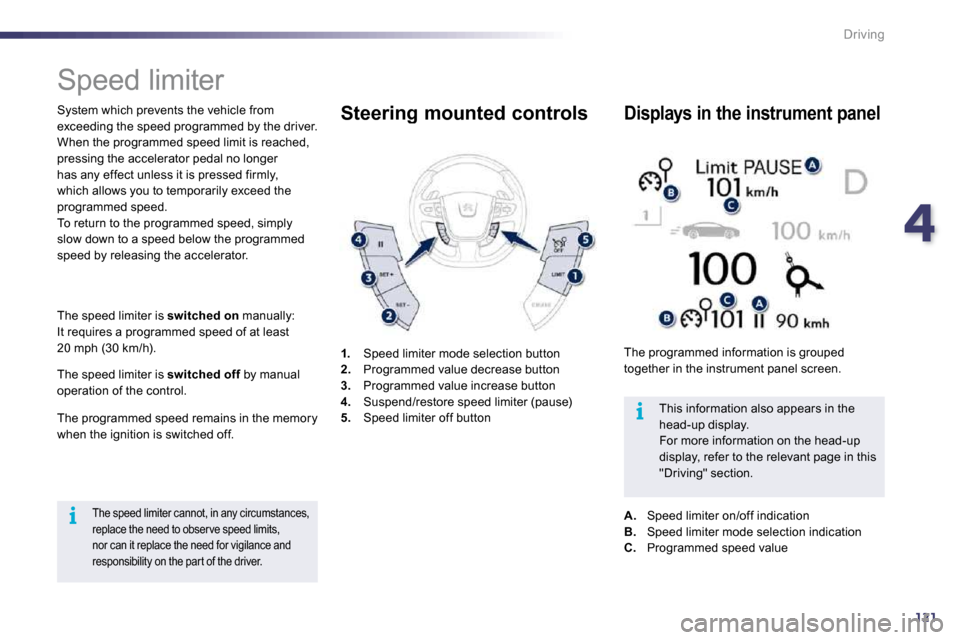

Speed limiter
System which prevents the vehicle from exceeding the speed programmed by the driver. When the programmed speed limit is reached, pressing the accelerator pedal no longer has any effect unless it is pressed firmly, which allows you to temporarily exceed the programmed speed. To return to the programmed speed, simply slow down to a speed below the programmed speed by releasing the accelerator.
The speed limiter is switched on manually: It requires a programmed speed of at least 20 mph (30 km/h).
The speed limiter is switched off by manual d offoperation of the control.
The programmed speed remains in the memory when the ignition is switched off.
The speed limiter cannot, in any circumstances, replace the need to observe speed limits,
nor can it replace the need for vigilance and responsibility on the part of the driver.
This information also appears in the head-up display. For more information on the head-up display, refer to the relevant page in this "Driving" section.
1. Speed limiter mode selection button 2. Programmed value decrease button 3. Programmed value increase button 4. Suspend/restore speed limiter (pause) 5. Speed limiter off button
Steering mounted controls
The programmed information is grouped together in the instrument panel screen.
Displays in the instrument panel
A. Speed limiter on/off indication B. Speed limiter mode selection indication C. Programmed speed value

122
!
Driving

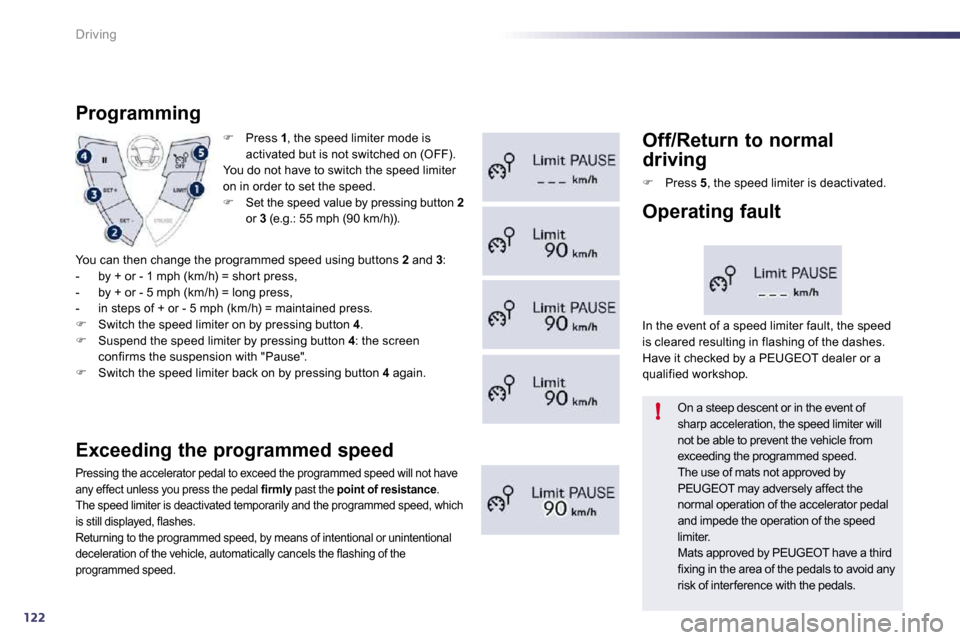

 Press 1 , the speed limiter mode is activated but is not switched on (OFF). You do not have to switch the speed limiter on in order to set the speed.  Set the speed value by pressing button 2or 3 (e.g.: 55 mph (90 km/h)).
Programming
Exceeding the programmed speed
Pressing the accelerator pedal to exceed the programmed speed will not have
any effect unless you press the pedal firmly past the mlypoint of resistance . The speed limiter is deactivated temporarily and the programmed speed, which is still displayed, flashes. Returning to the programmed speed, by means of int entional or unintentional deceleration of the vehicle, automatically cancels the flashing of the programmed speed.
Off/Return to normal
driving
 Press 5 , the speed limiter is deactivated.
On a steep descent or in the event of sharp acceleration, the speed limiter will not be able to prevent the vehicle from exceeding the programmed speed. The use of mats not approved by
PEUGEOT may adversely affect the normal operation of the accelerator pedal and impede the operation of the speed limiter. Mats approved by PEUGEOT have a third fixing in the area of the pedals to avoid any
risk of interference with the pedals.
In the event of a speed limiter fault, the speed is cleared resulting in flashing of the dashes. Have it checked by a PEUGEOT dealer or a qualified workshop.
Operating fault
You can then change the programmed speed using but tons 2 and 3 : - by + or - 1 mph (km/h) = shor t press, - by + or - 5 mph (km/h) = long press, - in steps of + or - 5 mph (km/h) = maintained press.  Switch the speed limiter on by pressing button 4 .  Suspend the speed limiter by pressing button 4 : the screen confirms the suspension with "Pause".  Switch the speed limiter back on by pressing button 4 again.

4123
i
i
Driving

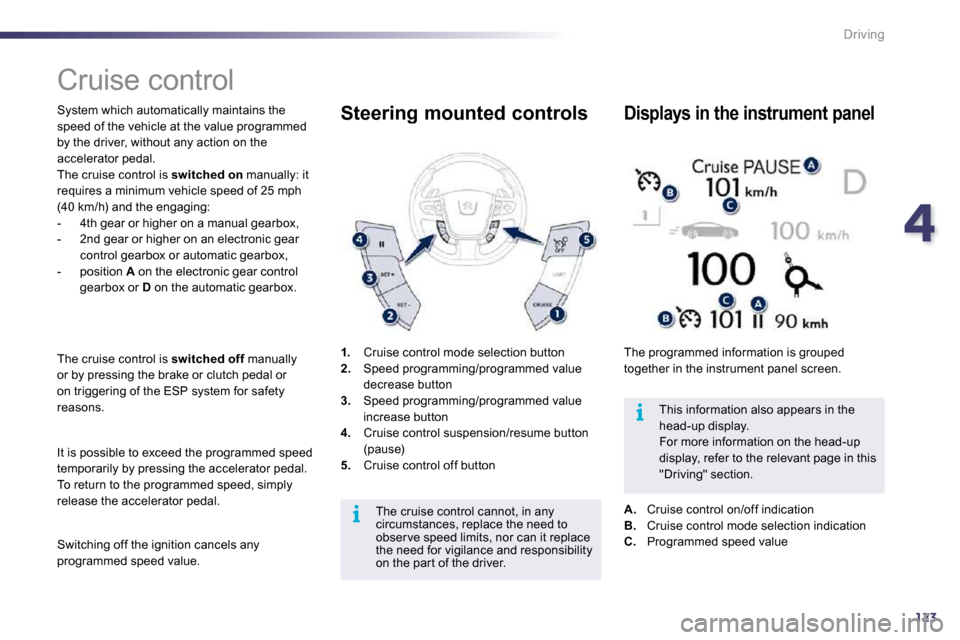

Cruise control
System which automatically maintains the speed of the vehicle at the value programmed by the driver, without any action on the accelerator pedal. The cruise control is switched on manually: it requires a minimum vehicle speed of 25 mph (40 km/h) and the engaging: - 4th gear or higher on a manual gearbox,
- 2nd gear or higher on an electronic gear control gearbox or automatic gearbox, - position A on the electronic gear control gearbox or D on the automatic gearbox.
The cruise control is switched off manually d offor by pressing the brake or clutch pedal or on triggering of the ESP system for safety reasons.
It is possible to exceed the programmed speed temporarily by pressing the accelerator pedal. To return to the programmed speed, simply release the accelerator pedal.
Switching off the ignition cancels any programmed speed value.
1. Cruise control mode selection button 2. Speed programming/programmed value decrease button 3. Speed programming/programmed value increase button 4. Cruise control suspension/resume button (pause) 5. Cruise control off button
Steering mounted controls
The cruise control cannot, in any circumstances, replace the need to obser ve speed limits, nor can it replace the need for vigilance and responsibility on the par t of the driver.
This information also appears in the head-up display.
For more information on the head-up display, refer to the relevant page in this "Driving" section.
The programmed information is grouped together in the instrument panel screen.
Displays in the instrument panel
A. Cruise control on/off indication B. Cruise control mode selection indication C. Programmed speed value
