2010.5 Peugeot 508 Dag headlamp

136
!
Visibility
Exterior welcome
lighting
Remote switching on of the lighting makes your approach to the vehicle easier in poor light. It is activated according to the level of light detected by the sunshine sensor.
Switching on
Switching off
The exterior welcome lighting switches off automatically after a set time, when the ignition is switched on or on locking the vehicle.
Programming
The lighting duration is selected via the instrument panel screen configuration menu.
The duration of the welcome lighting is associated with and identical to that of the automatic guide-me-home lighting.
 Press the open padlock on the remote control. The dipped beam headlamps and the sidelamps come on; your vehicle is also unlocked.
Door mirror spotlamps
Switching on
The spotlamps come on: - when you unlock the vehicle, - when you remove the key from the ignition, - when you open a door, - when you use the remote control.
Switching off
They are timed to go off automatically.
To make your approach to the vehicle easier, these illuminate: - the zones facing the driver’s and passenger’s doors, - the zones for ward of the door mirrors and rear ward of the front doors.

134
!
Visibility
The sidelamps and dipped beam headlamps are switched on automatically, without any action on the par t of the driver, when a low level of external light is detected or in cer tain cases of activation of the windscreen wipers. As soon as the brightness returns to a sufficient level or after the windscreen wipers are switched off, the lamps are switched off automatically.
Automatic illumination of
headlamps
Activation
Turn the ring to the "AUTO" position. The automatic illumination of headlamps is accompanied by a message in the instrument panel screen.
Deactivation
 Turn the ring to another position. Deactivation is accompanied by a message in the instrument panel screen.
Associated with the automatic Guide-me-home lighting
Association with the automatic lighting provides the guide-me-home lighting with the following additional options: - selection of the lighting duration of 15, 30 or 60 seconds, - automatic activation of guide-me-home lighting when the automatic illumination of headlamps is in operation.
Operating fault
In the event of a fault with the sunshine sensor, the lighting comes on, this warning lamp is displayed in the instrument panel and/or a message appears in the instrument panel screen, accompanied by an audible signal. Contact a PEUGEOT dealer or a qualified workshop.
In fog or snow, the sunshine sensor may detect sufficient light. In this case, the lighting will not come on automatically. Do not cover the sunshine sensor, coupled with the rain sensor and located in the centre of the windscreen behind the rear view mirror; the associated functions would no longer be controlled.
Programming
Selection of the duration of the guide-me-home lighting is done in the configuration menu vehicle
parameters, in the instrument panel screen. The duration of the guide-me-home lighting is associated with and identical to that of the welcome lighting.

5
137
i
!
Visibility

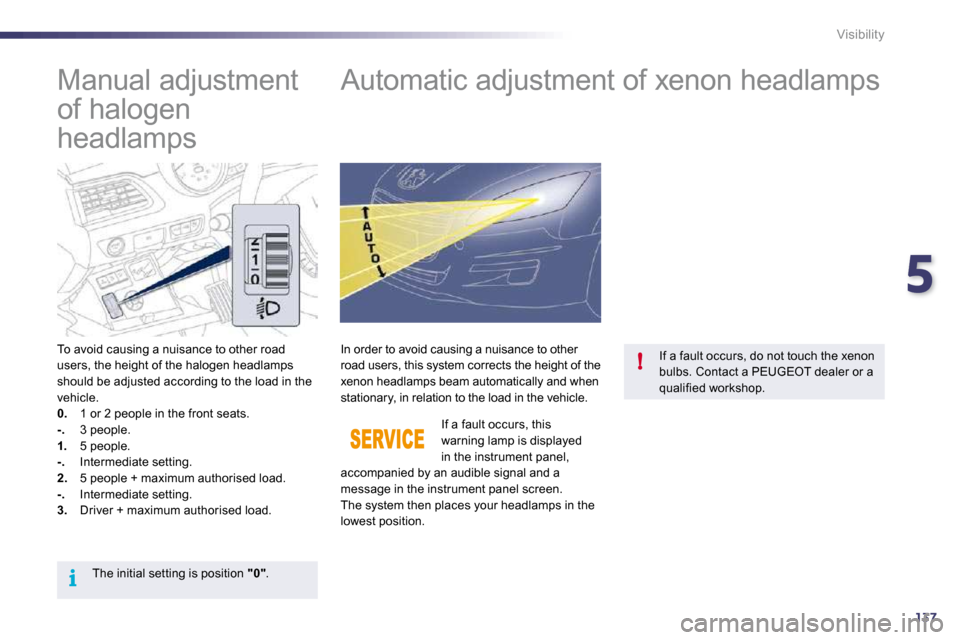

Manual adjustment
of halogen
headlamps Automatic adjustment of xenon headlamps
To avoid causing a nuisance to other road users, the height of the halogen headlamps should be adjusted according to the load in the vehicle. 0. 1 or 2 people in the front seats. -. 3 people. 1. 5 people. -. Intermediate setting. 2. 5 people + maximum authorised load. -. Intermediate setting. 3. Driver + maximum authorised load.
The initial setting is position "0" .
If a fault occurs, this warning lamp is displayed in the instrument panel, accompanied by an audible signal and a message in the instrument panel screen. The system then places your headlamps in the lowest position.
In order to avoid causing a nuisance to other road users, this system corrects the height of the xenon headlamps beam automatically and when stationary, in relation to the load in the vehicle.

If a fault occurs, do not touch the xenon bulbs. Contact a PEUGEOT dealer or a qualified workshop.

138
i
Visibility
When the dipped or main beam headlamps are on, this function enables the light beams to provide improved lighting of the side of the road when cornering. The use of this function, associated with the xenon headlamps only, considerably improves the quality of your lighting when cornering.

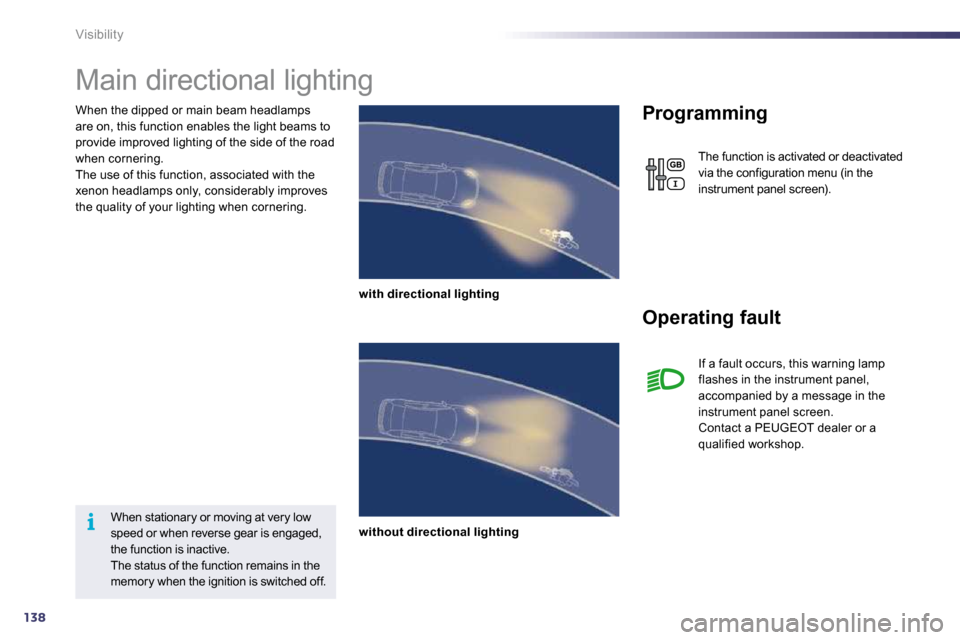

Main directional lighting
with directional lighting
without directional lighting
Programming
Operating fault
The function is activated or deactivated via the configuration menu (in the instrument panel screen).
When stationary or moving at very low speed or when reverse gear is engaged, the function is inactive. The status of the function remains in the memory when the ignition is switched off.
If a fault occurs, this warning lamp flashes in the instrument panel, accompanied by a message in the instrument panel screen. Contact a PEUGEOT dealer or a qualified workshop.

5
141
!
Visibility

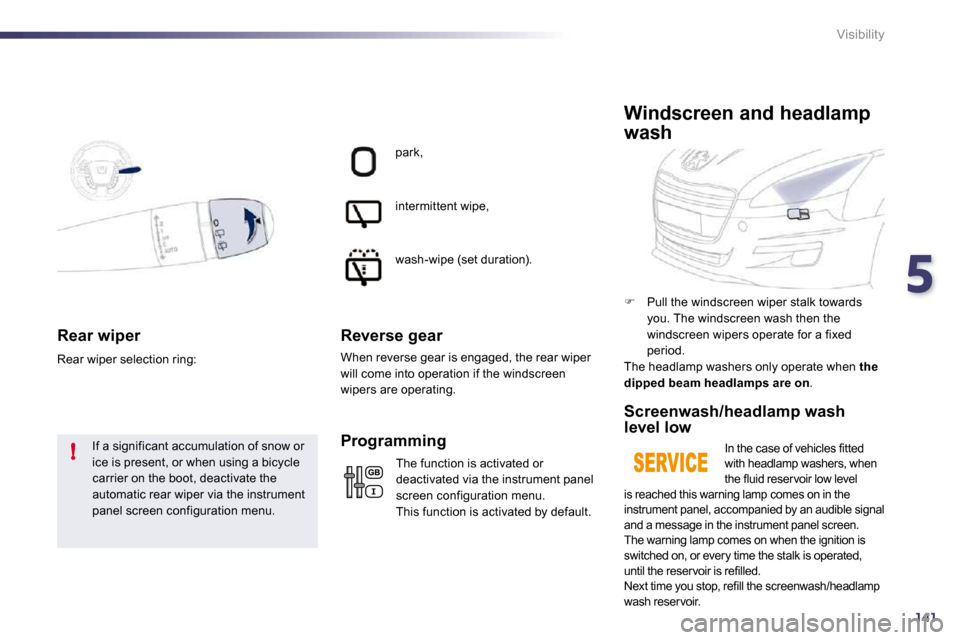

Rear wiper
If a significant accumulation of snow or ice is present, or when using a bicycle
carrier on the boot, deactivate the automatic rear wiper via the instrument panel screen configuration menu.
Rear wiper selection ring:
park,
intermittent wipe,
wash-wipe (set duration).
Reverse gear
When reverse gear is engaged, the rear wiper will come into operation if the windscreen wipers are operating.
The function is activated or deactivated via the instrument panel screen configuration menu. This function is activated by default.
Programming
 Pull the windscreen wiper stalk towards you. The windscreen wash then the windscreen wipers operate for a fixed period. The headlamp washers only operate when the dipped beam headlamps are on .
Windscreen and headlamp
wash
Screenwash/headlamp wash level low
In the case of vehicles fitted with headlamp washers, when the fluid reservoir low level is reached this warning lamp comes on in the instrument panel, accompanied by an audible signal and a message in the instrument panel screen. The warning lamp comes on when the ignition is switched on, or every time the stalk is operated, until the reservoir is refilled. Next time you stop, refill the screenwash/headlamp wash reservoir.

8183
i
Practical information
Changing a bulb
Model with xenon and directional headlamps
1. Daytime running lamps/sidelamps (light emitting diodes - LEDs).2. Directional dipped/main beam headlamps (D1S-35W).
3. Direction indicators (PY21-21W).4. Foglamps (directional according to version) (H8).
Model with halogen headlamps
1. Dipped and main beam headlamps (H7- 55W).2. Sidelamps (W5- 5W).3. Main beam headlamps (H7- 55W).4. Daytime running lamps (SP13-13W).
5. Foglamps (directional according to version) (H8).6. Direction indicators (PY21-21W).
For H7 type bulbs with lugs... take care to obser ve their correct installation so as to ensure the best lighting per formance.
In some weather conditions (e.g. low temperature or humidity), the presence of misting on the internal sur face of the glass of the headlamps and rear lamps is normal; it disappears after the lamps have been on for a few minutes.

184
!!
Practical information
Dipped beam headlamps (halogen model)
 Remove the protective plastic cover by pulling on the tab.  Disconnect the bulb connector.  Extract the bulb by pulling and change it. For reassembly, carry out these operations in reverse order.

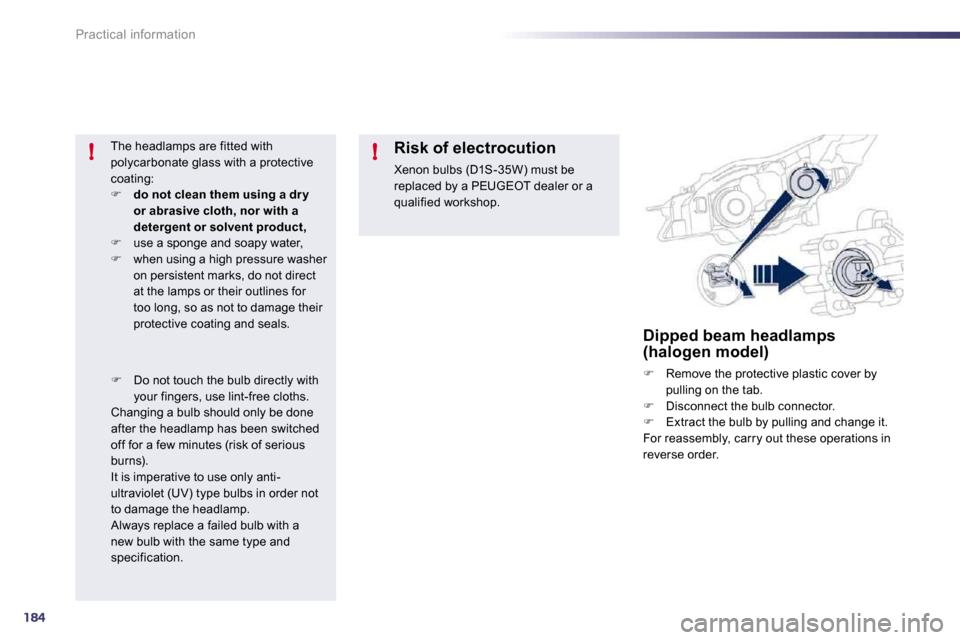

The headlamps are fitted with polycarbonate glass with a protective coating:  do not clean them using a dr y or abrasive cloth, nor with a detergent or solvent product, use a sponge and soapy water,  when using a high pressure washer on persistent marks, do not direct at the lamps or their outlines for too long, so as not to damage their protective coating and seals.
Risk of electrocution
Xenon bulbs (D1S-35W) must be replaced by a PEUGEOT dealer or a qualified workshop.
 Do not touch the bulb directly with your fingers, use lint-free cloths. Changing a bulb should only be done after the headlamp has been switched
off for a few minutes (risk of serious burns). It is imperative to use only anti-ultraviolet (UV) type bulbs in order not to damage the headlamp. Always replace a failed bulb with a new bulb with the same type and specification.

8185
i
Practical information
Sidelamps (halogen model)
 Remove the protective plastic cover by pulling on the tab.  Unclip the bulb holder.  Remove the bulb by pulling it out and change it. For reassembly, carry out these operations in reverse order.
Main beam headlamps (halogen model)
 Remove the protective plastic cover by pulling on the tab.  Disconnect the bulb connector.  Remove the bulb by pulling it out and change it. For reassembly, carry out these operations in reverse order.

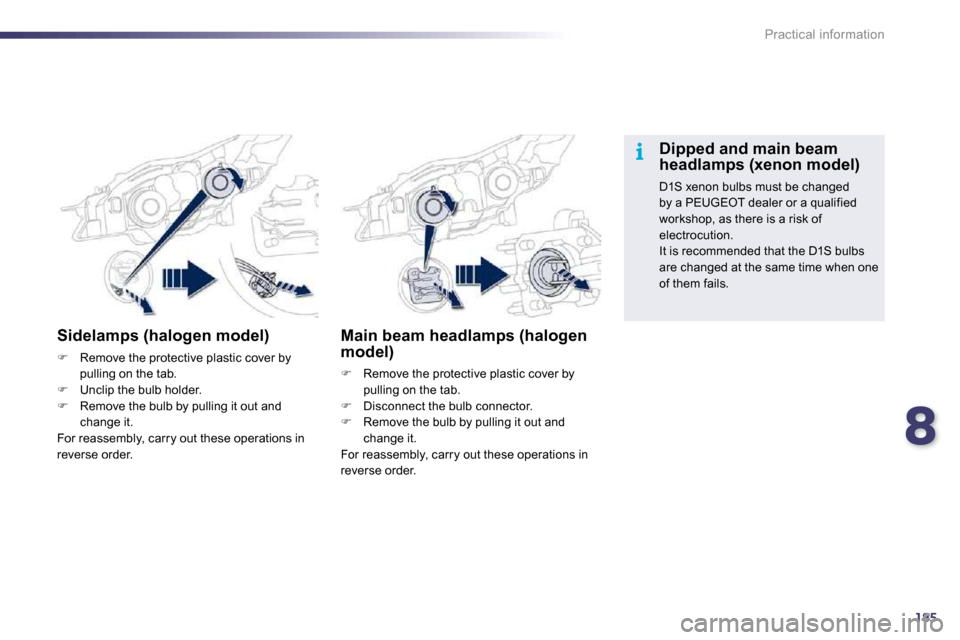

Dipped and main beam headlamps (xenon model)
D1S xenon bulbs must be changed by a PEUGEOT dealer or a qualified workshop, as there is a risk of
electrocution. It is recommended that the D1S bulbs are changed at the same time when one of them fails.
