AUDIO EQUIPMENT
On/Off
With the ignition key in
the accessories posi-
tion or with the ignition
on, press this button to
switch the audio equipment on or off.
After the engine has been switched
off, the audio equipment can only ope-
rate for approximately 30 minutes, to
prevent discharging of the battery.
Press the upper part
of this button several
times in succession to
increase the volume
of the audio equip-
ment or the lower part
of this button to de-
crease it.
Volume adjustment
Setting the clock Press this button seve-
ral times in succes-
sion to gain access
to the bass (BASS) ,
treble (TREB) , front/rear balance
(FAD) and left/right balance (BAL)
settings.
Audio settings
Press this button for
more than 2 seconds,
the clock display
fl a s h e s : Auxiliary socket
An auxiliary socket
"AUX" is provided for
the connection of por-
table equipment (MP3
player, etc.).
When the parameter
is displayed, change
the setting using these
two buttons.
You exit from this mode automati-
cally after a few seconds without any
action. In order to listen to it,
connect your equip-
ment then press this
button.
The audio equipment controls enable
you to adjust the volume and the au-
dio settings.
To exit from the AUX source, press
AM/FM .
When using an MP3 player: increase
t h e v o l u m e o f t h e r a d i o s i g n i fi c a n t l y
(between 30 and 60) to obtain a satis-
factory playing volume.
- to adjust the hours, press this button,
-
to adjust the minutes,
press this button.
You exit from this mode automati-
cally after a few seconds without any
action.
Page 31 of 97
3
33
COMFORT
VENTILATION
Recommendations for use
If the interior temperature
remains very high after
a prolonged period parked in the
s u n , fi r s t v e n t i l a t e t h e p a s s e n g e r
compartment for a few minutes.
For an even air distribution, make
sure that you do not block the outside
air inlet grille, the vents, the air
passages and the air outlets to the
footwells.
Ensure that the passenger
c o m p a r t m e n t fi l t e r , l o c a t e d b e l o w
the windscreen, in the engine
compartment, is in good condition.
H a v e t h e fi l t e r e l e m e n t s r e p l a c e d
regularly. If you drive in dusty
conditions, change them twice as
often.
Operate the air conditioning system for
5 to 10 minutes, once or twice a month,
to keep it in perfect working order.
In order to ensure that your air
conditioning system continues to
operate correctly, you are advised to
have it checked regularly.
The condensation created by the air
c o n d i t i o n i n g r e s u l t s i n a fl o w o f w a t e r
under the vehicle when stationary
which is perfectly normal.
If the system does not produce
cold air, do not use it and contact
a P E U G E O T d e a l e r o r a q u a l i fi e d
workshop.
3. Side vents.
4. Diffusion grille.
5. Air outlets to the footwells.
1. Windscreen demisting/defrosting
vent.
2. Side window demisting/
defrosting vents.
The air conditioning system
does not contain chlorine
and does not present any
danger to the ozone layer.
Page 32 of 97
3
34
COMFORT

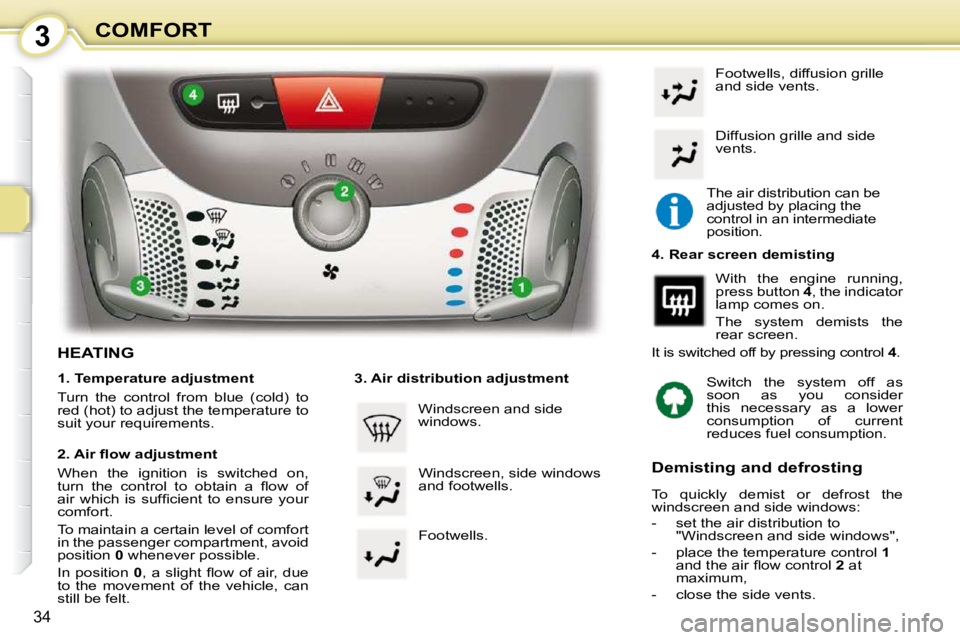

HEATING
1. Temperature adjustment
Turn the control from blue (cold) to
red (hot) to adjust the temperature to
suit your requirements.
2 . A i r fl o w a d j u s t m e n t
When the ignition is switched on,
t u r n t h e c o n t r o l t o o b t a i n a fl o w o f
a i r w h i c h i s s u f fi c i e n t t o e n s u r e y o u r
comfort.
To maintain a certain level of comfort
in the passenger compartment, avoid
position 0 whenever possible.
In position 0 , a s l i g h t fl o w o f a i r , d u e
to the movement of the vehicle, can
still be felt. The air distribution can be
adjusted by placing the
control in an intermediate
position.
Footwells. 4. Rear screen demisting
With the engine running,
press button 4 , the indicator
lamp comes on.
The system demists the
rear screen.
It is switched off by pressing control 4 .
Windscreen, side windows
and footwells. Footwells, diffusion grille
and side vents.
Diffusion grille and side
vents.
3. Air distribution adjustment Windscreen and side
windows. Switch the system off as
soon as you consider
this necessary as a lower
consumption of current
reduces fuel consumption.
Demisting and defrosting
To quickly demist or defrost the
windscreen and side windows:
- set the air distribution to "Windscreen and side windows",
- place the temperature control 1
a n d t h e a i r fl o w c o n t r o l 2 at
maximum,
- close the side vents.
Page 33 of 97
3
35
COMFORT
1. Air conditioning On/Off With the engine running,
press the button, the
indicator lamp comes on.
1. Air conditioning On/Off
2. Temperature adjustment
3. A i r fl o w a d j u s t m e n t

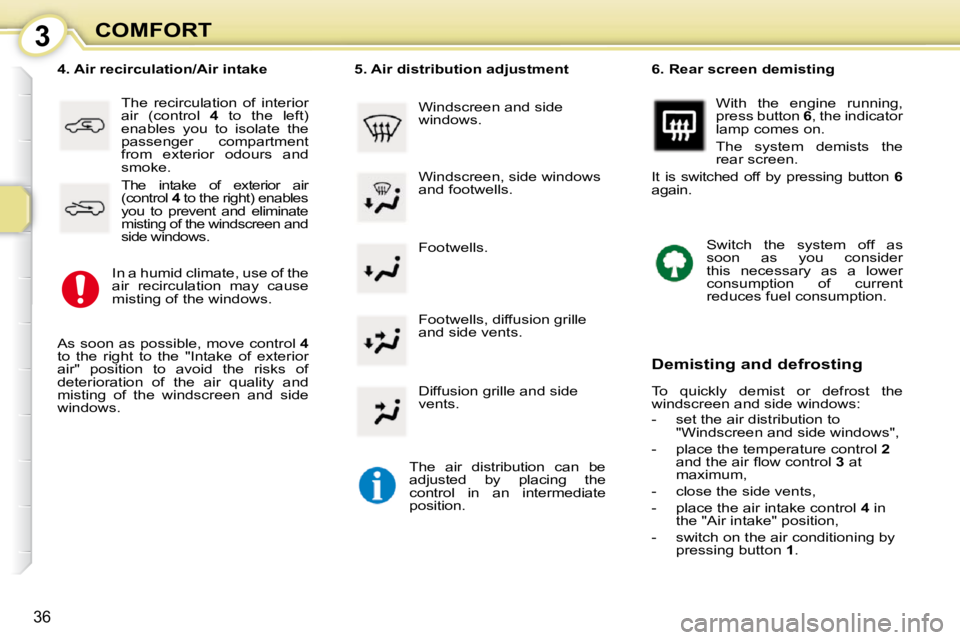

AIR CONDITIONING
2. Temperature adjustment
Turn the control from blue (cold) to
red (hot) to adjust the temperature to
suit your requirements.
4. Air recirculation/Air intake
5. Air distribution adjustment
6. Rear screen demisting 3 . A i r fl o w a d j u s t m e n t
When the ignition is switched on,
t u r n t h e c o n t r o l t o o b t a i n a fl o w o f
a i r w h i c h i s s u f fi c i e n t t o e n s u r e y o u r
comfort.
To maintain a certain level of comfort
in the passenger compartment, avoid
position
0 whenever possible.
In position 0 , a s l i g h t fl o w o f a i r , d u e
to the movement of the vehicle, can
still be felt.
T h e a i r c o n d i t i o n i n g w i l l n o t
o p e r a t e i f t h e a i r fl o w a d j u s t m e n t
c o n t r o l 3 i s i n p o s i t i o n 0 .
Page 34 of 97
3
36
COMFORT Footwells.
4 . A i r r e c i r c u l a t i o n / A i r i n t a k e
The recirculation of interior
air (control 4 to the left)
enables you to isolate the
passenger compartment
from exterior odours and
smoke. 5. Air distribution adjustment
Windscreen and side
windows.
The air distribution can be
adjusted by placing the
control in an intermediate
position. Windscreen, side windows
and footwells.
Footwells, diffusion grille
and side vents.
Diffusion grille and side
vents. 6. Rear screen demisting
As soon as possible, move control 4
to the right to the "Intake of exterior
air" position to avoid the risks of
deterioration of the air quality and
misting of the windscreen and side
windows. The intake of exterior air
(control
4 to the right) enables
you to prevent and eliminate
misting of the windscreen and
side windows. With the engine running,
press button
6 , the indicator
lamp comes on.
The system demists the
rear screen.
It is switched off by pressing button 6
again.
In a humid climate, use of the
air recirculation may cause
misting of the windows. Switch the system off as
soon as you consider
this necessary as a lower
consumption of current
reduces fuel consumption.
Demisting and defrosting
To quickly demist or defrost the
windscreen and side windows:
- set the air distribution to "Windscreen and side windows",
- place the temperature control 2
a n d t h e a i r fl o w c o n t r o l 3 at
maximum,
- close the side vents,
- place the air intake control 4 in
the "Air intake" position,
- switch on the air conditioning by pressing button 1 .
Page 49 of 97
4
49
ACCESS
ELECTRONIC ENGINE IMMOBILISER
This locks the engine management
system as soon as the ignition has
been switched off and therefore pre-
vents starting of the vehicle by any-
one who does not have the key.
The ignition key has an electronic chip
which has a special code. When the ig-
nition is switched on, the code must be
recognised for starting to be possible.
In the event of a malfunction, your ve-
hicle will not start.
Contact a PEUGEOT dealer or a
q u a l i fi e d w o r k s h o p .
Changing the remote control
battery
To change the battery, remove the
screw then unclip the housing using
a coin inserted at the ring.
Battery CR2016/3 volts.
If the remote control does not work
after the battery has been changed,
reinitialise it.
Reinitialising the remote
control
Following replacement of the remote
control battery or in the event of a re-
mote control fault, it may be necessary
to reinitialise the system.
Switch off the ignition.
Switch the ignition on again.
Press one of the remote control
buttons immediately for a few
seconds.
Switch off the ignition and remove
the key from the ignition lock.
The remote control is now working
again.
If the fault persists, contact a PEUGEOT
d e a l e r o r a q u a l i fi e d w o r k s h o p .
Driving with the doors locked
may make access to the pas-
senger compartment by the
emergency services more
d i f fi c u l t i n a n e m e r g e n c y .
As a safety measure (with children
on board), remove the key from the
ignition when leaving the vehicle,
even for a short time.
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e
electronic immobiliser system.
Do not discard the remote
control batteries, they con-
tain metals which are harmful
to the environment.
Take them to a PEUGEOT dealership,
or to any other approved collection
point. The high frequency remote control is
a sensitive system; do not operate it
in your pockets as there is a risk that
it may unlock the vehicle without you
being aware of this.
Avoid pressing the buttons of your
remote control out of range of your
vehicle, you risk rendering it inopera-
tive. It would then have to be reini-
tialised.
Page 50 of 97
4
49
ACCESS
ELECTRONIC ENGINE IMMOBILISER
This locks the engine management
system as soon as the ignition has
been switched off and therefore pre-
vents starting of the vehicle by any-
one who does not have the key.
The ignition key has an electronic chip
which has a special code. When the ig-
nition is switched on, the code must be
recognised for starting to be possible.
In the event of a malfunction, your ve-
hicle will not start.
Contact a PEUGEOT dealer or a
q u a l i fi e d w o r k s h o p .
Changing the remote control
battery
To change the battery, remove the
screw then unclip the housing using
a coin inserted at the ring.
Battery CR2016/3 volts.
If the remote control does not work
after the battery has been changed,
reinitialise it.
Reinitialising the remote
control
Following replacement of the remote
control battery or in the event of a re-
mote control fault, it may be necessary
to reinitialise the system.
Switch off the ignition.
Switch the ignition on again.
Press one of the remote control
buttons immediately for a few
seconds.
Switch off the ignition and remove
the key from the ignition lock.
The remote control is now working
again.
If the fault persists, contact a PEUGEOT
d e a l e r o r a q u a l i fi e d w o r k s h o p .
Driving with the doors locked
may make access to the pas-
senger compartment by the
emergency services more
d i f fi c u l t i n a n e m e r g e n c y .
As a safety measure (with children
on board), remove the key from the
ignition when leaving the vehicle,
even for a short time.
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e
electronic immobiliser system.
Do not discard the remote
control batteries, they con-
tain metals which are harmful
to the environment.
Take them to a PEUGEOT dealership,
or to any other approved collection
point. The high frequency remote control is
a sensitive system; do not operate it
in your pockets as there is a risk that
it may unlock the vehicle without you
being aware of this.
Avoid pressing the buttons of your
remote control out of range of your
vehicle, you risk rendering it inopera-
tive. It would then have to be reini-
tialised.
Page 55 of 97
4
53
ACCESS

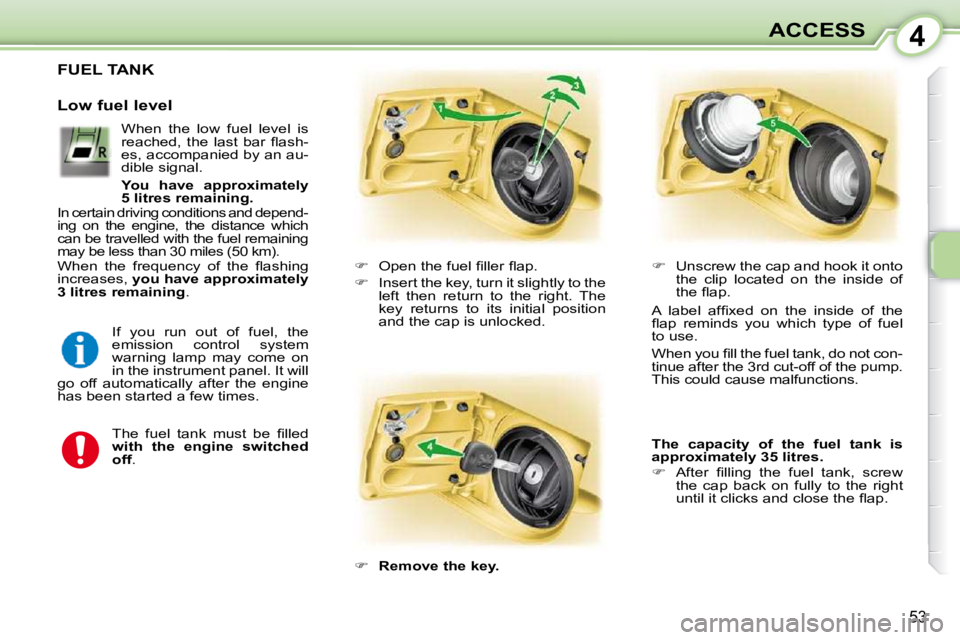

FUEL TANK
O p e n t h e f u e l fi l l e r fl a p .
Insert the key, turn it slightly to the
left then return to the right. The
key returns to its initial position
and the cap is unlocked.
Low fuel level
When the low fuel level is
r e a c h e d , t h e l a s t b a r fl a s h -
es, accompanied by an au-
dible signal.
You have approximately
5 litres remaining.
In certain driving conditions and depend-
ing on the engine, the distance which
can be travelled with the fuel remaining
may be less than 30 miles (50 km).
W h e n t h e f r e q u e n c y o f t h e fl a s h i n g
increases, you have approximately
3 litres remaining .
Unscrew the cap and hook it onto
the clip located on the inside of
t h e fl a p .
A l a b e l a f fi x e d o n t h e i n s i d e o f t h e
fl a p r e m i n d s y o u w h i c h t y p e o f f u e l
to use.
W h e n y o u fi l l t h e f u e l t a n k , d o n o t c o n -
tinue after the 3rd cut-off of the pump.
This could cause malfunctions.
Remove the key.
If you run out of fuel, the
emission control system
warning lamp may come on
in the instrument panel. It will
go off automatically after the engine
has been started a few times.
T h e f u e l t a n k m u s t b e fi l l e d
with the engine switched
off .
The capacity of the fuel tank is
approximately 35 litres.
A f t e r fi l l i n g t h e f u e l t a n k , s c r e w
the cap back on fully to the right
u n t i l i t c l i c k s a n d c l o s e t h e fl a p .
