Page 31 of 342
65Multifunction screens
"SETUP" menu
Press the "SETUP" button for access to its menu. You can choose from the following functions: - Display configuration, - "Voice synthesis".
D i s p l a y c o n fi g u r a t i o n
This menu is used to set the brightness of the screen, the screen colour scheme and the date and time.
Voice synthesis
This menu is used to adjust the volume for guidance messages and to select the type of voice (male or female).
For safety reasons, configuration of the multifunction screen by the driver must
only be done when stationary.
Page 32 of 342
Central colour screen and instrument panel controls
a s s o c i a t e d w i t h t h e s a t e l l i t e n a v i g a t i o n s y s t e m
This group of controls allows: - when stationar y , configuration of the ar yvehicle, central screen and instrument panel parameters (driving and comfor t systems, language, units, sounds...), - w h e n s t a t i o n a r y a n d w h i l e d r i v i n g , scrolling the active functions available (trip computer, navigation-guidance...).
Controls
There is a button and a thumb wheel to control the central colour screen in the instrument panel: 1. button on the end of the wiper stalk: run through the various active functions available. 2. thumb wheel on the left of the steering column, - rotation (other than menu): scroll through the list of active functions available, - press: main menu, confirm the selection, - rotation (in a menu): move up or down in the menu.
Main menu
Press thumb wheel 2 for access to the main menu and select one of the following functions:
- "Vehicle parameters", - "Display adjustment", - "Choice of sounds". Turn the thumb wheel 2 to move around in the central colour screen. Press the thumb wheel 2 again to confirm the selection.
The main menu and its associated functions can only be accessed when stationary. A message appears in the central colour screen, above a cer tain speed threshold, indicating that the main
menu cannot be displayed.
Page 34 of 342

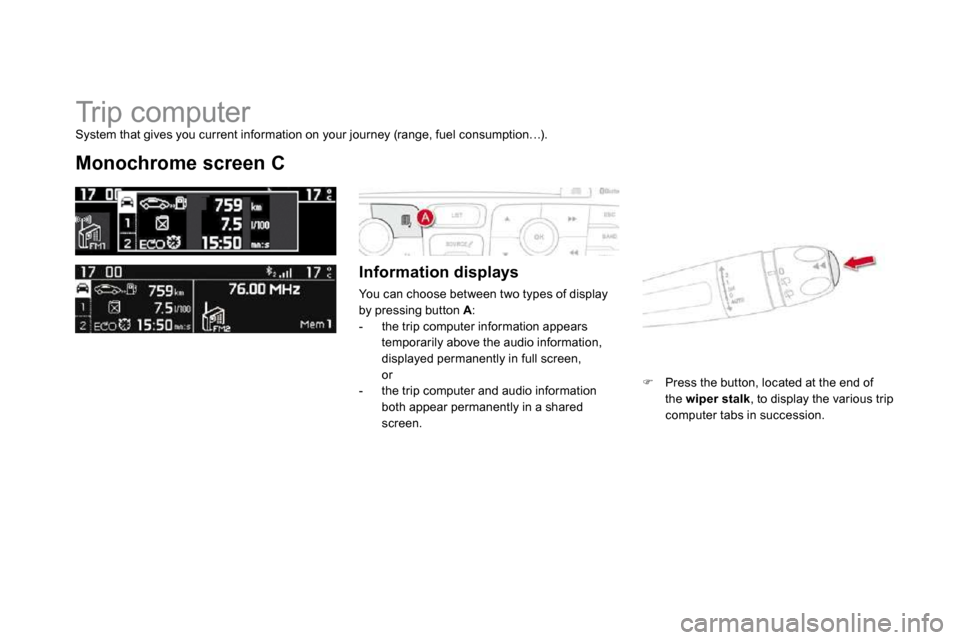

Trip computer
Monochrome screen C
Information displays
You can choose between two types of display by pressing button A : - the trip computer information appears temporarily above the audio information, displayed permanently in full screen, or - the trip computer and audio information both appear permanently in a shared screen.
Press the button, located at the end of the wiper stalk , to display the various trip computer tabs in succession.
System that gives you current information on your journey (range, fuel consumption…).
Page 36 of 342
A few definitions…
This value may vary following a change in the style of driving or the relief, resulting in a significant change in the current fuel consumption.
If dashes are displayed continuously while driving in place of the digits, contact a CITROËN dealer or a qualified workshop.
This function is only displayed from 20 mph (30 km/h).
The fuel consumption of your vehicle will be higher than the official figures obtained by CITROËN during the first 3 000 miles (5 000 km) of the vehicle's life.
Range
(miles or km) This indicates the distance which can still be travelled with the fuel remaining in the tank in relation to the average
fuel consumption over the last few miles (kilometres) travelled.
When the range falls below 20 miles (30 km), dashes are displayed. After filling with at least 5 litres of fuel, the range is recalculated and is displayed when it exceeds 60 miles (100 km).
Current fuel consumption
(mpg or l/100 km or km/l) This is the average fuel consumption during the last few seconds.
A v e r a g e f u e l consumption
(mpg or l/100 km or km/l) This is the average fuel consumption since the last trip computer zero reset.
A v e r a g e s p e e d
(mph or km/h) This is the average speed calculated since the last trip computer zero reset (ignition on).
D i s t a n c e t r a v e l l e d
(miles or km) This indicates the distance travelled since the last trip computer zero reset.
Stop & Start time counter
(minutes/seconds or hours/minutes) I f y o u r v e h i c l e i s f i t t e d w i t h S t o p & Star t, a time counter calculates the time spent in STOP mode during a journey. It resets to zero every time the ignition is switched on with the key.
Page 37 of 342
Central colour screen associated with the satellite
n a v i g a t i o n s y s t e m
Information displays
- Display of instantaneous information with:
Page 38 of 342
71Multifunction screens
Trip zero reset
When the required trip is displayed, press
the thumb wheel located on the left of the steering wheel or the button on the end of the wiper stalk for more than two seconds. Trips "1" and "2" are independent but their use is identical. For example, trip "1" can be used for daily figures and trip "2" for monthly figures.
Page 39 of 342
A few definitions…
This value may vary following a change in the style of driving or the relief, resulting in a significant change in the current fuel consumption.
If dashes are displayed continuously while driving in place of the digits, contact a CITROËN dealer or a qualified workshop.
This function is only displayed from 20 mph (30 km/h).
The fuel consumption of your vehicle will be higher than the official figures obtained by CITROËN during the first 3 000 miles (5 000 km) of the vehicle's life.
Range
(miles or km) This indicates the distance which can still be travelled with the fuel remaining in the tank in relation to the average
fuel consumption over the last few miles (kilometres) travelled.
When the range falls below 20 miles (30 km), dashes are displayed. After filling with at least 5 litres of fuel, the range is recalculated and is displayed when it exceeds 60 miles (100 km).
Current fuel consumption
(mpg or l/100 km or km/l) This is the average fuel consumption during the last few seconds.
A v e r a g e f u e l consumption
(mpg or l/100 km or km/l) This is the average fuel consumption since the last trip computer zero reset.
A v e r a g e s p e e d
(mph or km/h) This is the average speed calculated since the last trip computer zero reset (ignition on).
D i s t a n c e t r a v e l l e d
(miles or km) This indicates the distance travelled since the last trip computer zero reset.
Stop & Start time counter
(minutes/seconds or hours/minutes) I f y o u r v e h i c l e i s f i t t e d w i t h S t o p & Star t, a time counter calculates the time spent in STOP mode during a journey. It resets to zero every time the ignition is switched on with the key.
Page 44 of 342
Dual-zone digital air conditioning The air conditioning system operates when the engine is running.
Automatic operation
1. Automatic comfort programme
We recommend the use of one of the three AUTO modes available: they provide optimised regulation of the temperature in the passenger
compar tment according to the comfor t value that you have chosen. These three modes automatically adjust the air flow, according to the desired setting, while also maintaining the desired comfor t value.
Press the "AUTO" button repeatedly: - a first indicator lamp comes on; the "light" setting mode is selected, - a second indicator lamp comes on; the "medium" setting mode is selected, - a third indicator lamp comes on; the "intense" mode setting is selected.
When the engine is cold, the air flow will reach its optimum level
progressively, taking account of the weather and the desired comfor t level so as to avoid too great a distribution of cold air. On entering the vehicle, if the interior temperature is much colder or warmer than the comfor t value, there is no need to change the value displayed in order to obtain the comfor t required. The system corrects the difference in temperature automatically and as quickly as possible.
This system is designed to operate effectively in all seasons, with the windows closed.
