2010.5 Citroen C4 PICASSO DAG engine
[x] Cancel search: enginePage 86 of 355
IV
80
A C C E S S
STARTING
1. "S": Steering lock
To unlock the steering, gently move
the steering wheel while turning the
key, without forcing it.
2. "M": Ignition on
Depending on the version of your
vehicle, the orange and red warn-
ing lamps should also come on for
a short time.
3. "D": Starter
Release the key as soon the engine
has started.
I f t h e fi r s t a t t e m p t f a i l s , s w i t c h o f f t h e
ignition. Wait ten seconds then oper-
ate the starter again. Steering lock
1. "
S": After removing the key, turn
the steering wheel to lock the
steering. The key can only be
removed in position S .
2. "M": Ignition switched on, the
steering is unlocked (by turning
the key to position M , move
the steering wheel gently if
necessary).
3. "D": Starter position.
Key left in position "M"
audible warning
If you forget to remove the key from
the ignition, the ignition is switched
off automatically after one hour.
To switch the ignition back on, turn
the key to position S then back to
position M .
Do not run the engine in an en-
closed space or where there is
i n s u f fi c i e n t v e n t i l a t i o n
.
You must always to keep the
engine running when moving in
order to retain braking and steer-
ing power assistance .
Never remove the ignition key
before the vehicle has come to a
complete stop.
STOPPING
Vehicles equipped with a
turbocharger
Never stop the engine without having
allowed it to run for a few seconds at
idle, this being the time required for
the turbocharger to return to a normal
speed.
Flicking the accelerator at the mo-
ment of switching off the ignition
could cause serious damage.
A heavy object (key fob...), attached
to the key and weighing down on
its shaft in the ignition switch, could
cause a malfunction.
Never turn the key to this position
when the engine is running.
Page 94 of 355
IV
89
A C C E S S
After unlocking the vehicle com-
pletely using the remote control
or the key, with the rear screen
closed, pull on the lever 1 and
raise the tailgate.
Lower the tailgate using one of
the two handholds 3 , located on
the interior trim. -
when the engine is
running , this warning
lamp comes on, accom-
panied by a message on
the multifunction screen
for a few seconds,
- when the vehicle is moving
(speed above 6 mph (10 km/h)),
this warning lamp comes on, ac-
companied by an audible signal
and a message in the multifunc-
tion screen for a few seconds.
If the tailgate is not closed correctly:
REAR SCREEN
This opening gives easy access
to the boot, even if you are parked
close to a wall or another vehicle. Closing
Lower the rear screen guiding
it with the wiper arm until it is
closed.
If the rear screen is not closed cor-
rectly: - when the engine is
running , this warning
lamp comes on, accom-
panied by a message in
the multifunction screen
for a few seconds,
- when the vehicle is moving
(speed above 6 mph (10 km/h)),
this warning lamp comes on, ac-
companied by an audible signal
and a message in the multifunc-
tion screen for a few seconds.
The boot and the rear screen
cannot both be open at the same
time.
When the rear screen is open,
you can access the boot by rais-
ing the rear shelf using its tab
(C4 Picasso).
After unlocking the vehicle com-
pletely using the remote control
or the key, with the boot closed,
press the control 2 and raise the
rear screen using the base 4 of
the wiper arm.
Past the balancing point, allow
the tailgate to lower and close
itself (do not assist it or slow it
down).
Opening
Opening
Closing
Page 97 of 355
IV
91
A C C E S S
FUEL TANK
Capacity of the tank: approxi-
mately 60 litres.
Low fuel level When the low fuel level is
reached, this warning lamp
on the instrument panel
comes on, accompanied by
an audible warning and a message
on the multifunction screen.
W h e n i t fi r s t c o m e s o n , about 7 litres
of fuel remain in the tank.
U n t i l s u f fi c i e n t f u e l h a s b e e n
added, this warning lamp appears
every time the ignition is switched
on, accompanied by an audible
warning and a message. Depending
on version, this audible warning
and message are repeated with
increasing frequency as the fuel
level drops towards " 0 ".
Refuel as soon as possible to avoid
running out. A l a b e l o n t h e i n s i d e o f t h e f u e l fi l l e r
fl a p r e m i n d s y o u o f t h e t y p e o f f u e l
to use, depending on your engine
type.
Additions of fuel must be of at least
5 litres to be registered by the fuel
gauge.
Refuelling
I f y o u a r e fi l l i n g y o u r t a n k t o
the top, do not persist after the
3rd cut-off; this could cause
malfunctions.
With Stop & Start, never refuel with
the system in STOP mode; you
must switch off the ignition with the
key. O p e n i n g t h e fi l l e r c a p m a y r e s u l t i n
an inrush of air. This is entirely nor-
mal and results from the sealing of
the fuel system.
Press control switch A , situated
on the switch panel on the left of
t h e d a s h b o a r d , u n t i l t h e f u e l fl a p
opens.
This control switch remains ac- tive for a few minutes after
switching of the ignition. If nec-
essary, switch the ignition on
again to reactivate it.
Take care to select the pump
that delivers the correct type of
fuel for your vehicle.
Introduce the nozzle so as to push
i n t h e m e t a l n o n - r e t u r n fl a p B.
Make sure that the nozzle is
pushed in as far as possible
before starting to refuel (risk of
blowback).
Maintain this position throughout
the refuelling operation.
P u s h t h e f u e l fl a p t o c l o s e i t .
Page 98 of 355
IV
92
A C C E S S
The petrol or Diesel engine of your ve-
h i c l e i s fi t t e d w i t h a c a t a l y t i c c o n v e r t e r , a
device which helps to reduce the level of
harmful emissions in the exhaust gases.
For petrol engines, you must use
unleaded fuel.
T h e fi l l e r n e c k i s n a r r o w e r , a l l o w i n g o n l y
unleaded petrol nozzles to be intro-
duced.
If you have put in the wrong fuel
for your vehicle, you must have
t h e f u e l t a n k d r a i n e d a n d fi l l e d
with the correct fuel before start-
ing the engine. Quality of the fuel used for
petrol engines
Quality of the fuel used for
Diesel engines
Fuel cut-off
Your vehicle is equipped with a safe-
ty device which cuts off the fuel sup-
ply in the event of a collision. The petrol engines are perfectly
compatible with E10 type petrol
biofuels (containing 10 % ethanol),
conforming to European standards
EN 228 and EN 15376.
E85 type fuels (containing up to 85 %
ethanol) are reserved exclusively for
vehicles marketed for the use of this
type of fuel (BioFlex vehicles). The
quality of the ethanol must comply
with European standard EN 15293.
For Brazil only, special vehicles are
marketed to run on fuels containing
up to 100 % ethanol (E100 type).
The Diesel engines are perfectly
compatible with biofuels which con-
form to current and future European
standards (Diesel fuel which com-
plies with standard EN 590 mixed
with a biofuel which complies with
standard EN 14214) available at the
pumps (containing up to 7 % Fatty
Acid Methyl Ester).
The B30 biofuel can be used in cer-
tain Diesel engines; however, this
use is subject to strict application
of the special servicing conditions.
Consult a CITROËN dealer.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or di-
luted, domestic fuel...) is strictly pro-
hibited (risk of damage to the engine
and fuel system).
Page 101 of 355
V
95
V I S I B I L I T Y
Daytime running lamps
Daytime lighting, compulsory in cer-
tain countries, which comes on auto-
matically when the engine is started
making the vehicle more visible to
other users. Manual guide-me-home
lighting
The temporary lighting of dipped
headlamps after the vehicle's igni-
tion has been switched off makes
the driver's exit easier when the light
is poor.
Switching on
W i t h t h e i g n i t i o n o f f , " fl a s h " t h e
headlamps using the lighting
stalk B .
A s e c o n d " h e a d l a m p fl a s h "
switches the function off again.
Switching off
The manual guide-me-home lighting
switches off automatically after a set
time.
The manual guide-me-home light-
ing is also available by pressing the
lighting button on the remote con-
trol (refer to the section "Access - §
R e m o t e c o n t r o l k e y " ) .
This function is assured:
- in countries where it is imposed
by regulations,
by illumination of the dipped beam headlamps with the side-
lamps and number plate lamps.
- for other countries where it is provided,
by the use of dedicated LED lamps.
The instruments and controls (mul-
tifunction screen, air conditioning
c o n t r o l p a n e l , . . . ) a r e n o t i l l u m i n a t e d ,
except in night mode with manual or
automatic illumination of headlamps.
LED lamps
They come on when the engine is
started.
Depending on the destination coun-
try, they are used for:
- daytime running lamps in day mode and sidelamps in night
mode,
or
- sidelamps in day and night mode
W h e r e L E D l a m p s a r e fi t t e d , t h e fi l a -
ment bulbs for the sidelamps in the
front lamp units are not used.
Activation or deactivation of this
lighting is done via the vehicle con-
fi g u r a t i o n m e n u . This function can be activated or
d e a c t i v a t e d v i a t h e v e h i c l e c o n fi g u -
ration menu.
Page 110 of 355
V
101
V I S I B I L I T Y
Special position of the
windscreen wipers
This position permits release of the
windscreen wiper blades.
It is used for cleaning or replacement
of the blades. It can also be useful,
in winter, to detach the blades from
the windscreen.
In the moment following switching
off of the ignition, any action on the
stalk positions the wipers vertically
on the windscreen. To park the wipers after this has
been done, switch on the ignition
and operate the stalk.
For maintain the effectiveness of
t h e " fl a t - b l a d e " w i p e r b l a d e s , i t i s
advisable to:
- handle them with care,
- clean them regularly using soapy water,
- avoid using them to retain card- board on the windscreen.
- r e p l a c e t h e m a t t h e fi r s t s i g n s of wear.
COURTESY LAMPS
1. Front courtesy lamp
2. Map reading lamps
Front courtesy lamp In this position, the courtesy
lamp comes on gradually: Permanently off.
Permanent lighting.
In permanent lighting mode, differ-
ent lighting times are available:
- with the ignition off, approxi- mately ten minutes,
- in energy economy mode, approximately thirty seconds,
- with the engine running, unlimited.
- when the vehicle is unlocked,
- when a door or the boot is opened,
- when the key is removed from the ignition,
- when the remote control locking button is activated, in order to lo-
cate your vehicle.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is closed. Map reading lamps
With the ignition on, press the
corresponding switch.
Panoramic sunroof courtesy
lamps
These courtesy lamps have two oper-
ating modes:
- automatic lighting when a door is opened or when the front cour-
tesy lamp is in the "permanent
lighting" position,
- permanent lighting.
Opening the boot switches on the
third row courtesy lamp and the boot
lamps.
Page 112 of 355
V
101
V I S I B I L I T Y
Special position of the
windscreen wipers
This position permits release of the
windscreen wiper blades.
It is used for cleaning or replacement
of the blades. It can also be useful,
in winter, to detach the blades from
the windscreen.
In the moment following switching
off of the ignition, any action on the
stalk positions the wipers vertically
on the windscreen. To park the wipers after this has
been done, switch on the ignition
and operate the stalk.
For maintain the effectiveness of
t h e " fl a t - b l a d e " w i p e r b l a d e s , i t i s
advisable to:
- handle them with care,
- clean them regularly using soapy water,
- avoid using them to retain card- board on the windscreen.
- r e p l a c e t h e m a t t h e fi r s t s i g n s of wear.
COURTESY LAMPS
1. Front courtesy lamp
2. Map reading lamps
Front courtesy lamp In this position, the courtesy
lamp comes on gradually: Permanently off.
Permanent lighting.
In permanent lighting mode, differ-
ent lighting times are available:
- with the ignition off, approxi- mately ten minutes,
- in energy economy mode, approximately thirty seconds,
- with the engine running, unlimited.
- when the vehicle is unlocked,
- when a door or the boot is opened,
- when the key is removed from the ignition,
- when the remote control locking button is activated, in order to lo-
cate your vehicle.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is closed. Map reading lamps
With the ignition on, press the
corresponding switch.
Panoramic sunroof courtesy
lamps
These courtesy lamps have two oper-
ating modes:
- automatic lighting when a door is opened or when the front cour-
tesy lamp is in the "permanent
lighting" position,
- permanent lighting.
Opening the boot switches on the
third row courtesy lamp and the boot
lamps.
Page 115 of 355
VI
104
F I T T I N G S

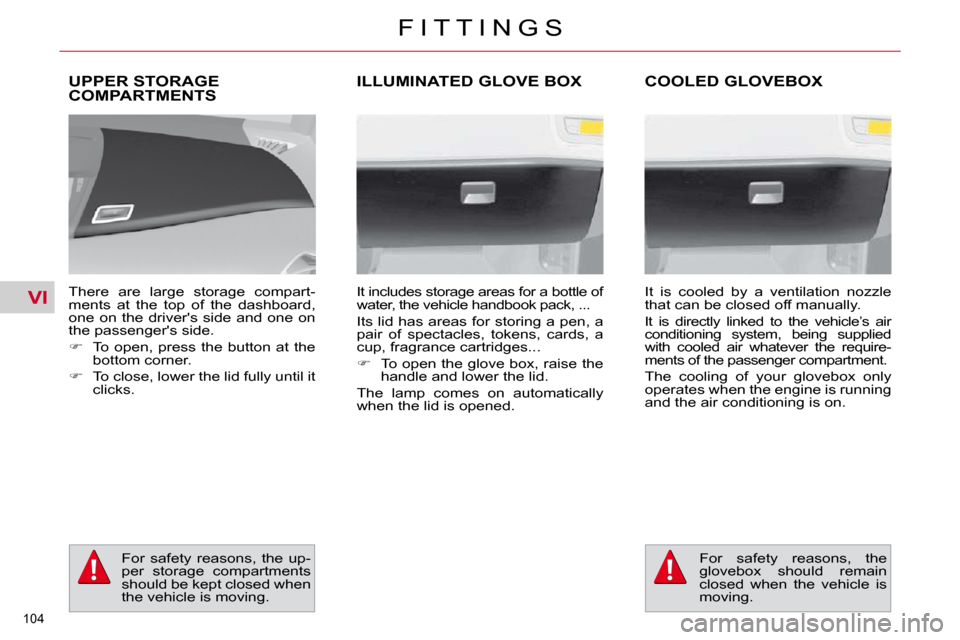

UPPER STORAGE COMPARTMENTS
There are large storage compart-
ments at the top of the dashboard,
one on the driver's side and one on
the passenger's side.
To open, press the button at the
bottom corner.
To close, lower the lid fully until it
clicks.
ILLUMINATED GLOVE BOX
It includes storage areas for a bottle of
water, the vehicle handbook pack, ...
Its lid has areas for storing a pen, a
pair of spectacles, tokens, cards, a
cup, fragrance cartridges...
To open the glove box, raise the
handle and lower the lid.
The lamp comes on automatically
when the lid is opened.
COOLED GLOVEBOX
It is cooled by a ventilation nozzle
that can be closed off manually.
It is directly linked to the vehicle’s air
conditioning system, being supplied
with cooled air whatever the require-
ments of the passenger compartment.
The cooling of your glovebox only
operates when the engine is running
and the air conditioning is on.
For safety reasons, the
glovebox should remain
closed when the vehicle is
moving.
For safety reasons, the up-
per storage compartments
should be kept closed when
the vehicle is moving.
