V
102
V I S I B I L I T Y
LIGHTING PACK
Interior mood lighting
You can adjust the lighting by press-
ing this control.
This activates the light sources
which are located as follows:
- on the sides of the front and rear doors,
- on the front and rear interior door handles,
- on the dashboard,
- at the roof. Operation
This control:
- activates/deactivates the interior
mood lighting,
- selects the lighting intensity.
The setting is stored.
To increase the lighting intensity:
Press a few times on the right of
the control to obtain the desired
level.
To decrease the lighting intensity:
Press a few times on the left of
the control to obtain the desired
level.
Welcome lighting
The automatic welcome lighting
consists of the footwell lamps, the
interior lamps and the interior mood
lighting. Front door pockets with
automatic lighting
The lighting for the door pockets
comes on automatically when you
place a hand inside one of the com-
partments.
It goes off after a few seconds when
you take your hand away.
Reading lamps on front seat
backrests
There are reading lamps in the back-
rests of the front seats, behind the
rear tables. They can operate only
when the table is lowered.
Press the "On/Off" button to
switch the reading lamp on or off.
System providing warm and con-
vivial lighting which casts a gentle
orange-tinted light.
This lighting is available at night or
in conditions of poor daylight.
Page 115 of 355
VI
104
F I T T I N G S
UPPER STORAGE COMPARTMENTS
There are large storage compart-
ments at the top of the dashboard,
one on the driver's side and one on
the passenger's side.
To open, press the button at the
bottom corner.
To close, lower the lid fully until it
clicks.
ILLUMINATED GLOVE BOX
It includes storage areas for a bottle of
water, the vehicle handbook pack, ...
Its lid has areas for storing a pen, a
pair of spectacles, tokens, cards, a
cup, fragrance cartridges...
To open the glove box, raise the
handle and lower the lid.
The lamp comes on automatically
when the lid is opened.
COOLED GLOVEBOX
It is cooled by a ventilation nozzle
that can be closed off manually.
It is directly linked to the vehicle’s air
conditioning system, being supplied
with cooled air whatever the require-
ments of the passenger compartment.
The cooling of your glovebox only
operates when the engine is running
and the air conditioning is on.
For safety reasons, the
glovebox should remain
closed when the vehicle is
moving.
For safety reasons, the up-
per storage compartments
should be kept closed when
the vehicle is moving.
Page 116 of 355
VI
105
F I T T I N G S
COOL STORAGE CENTRE CONSOLE
The centre console contains, de-
pending on version:
- two cup-holders,
- two storage compartments,
-
a 12 V accessory socket (Maximum
power: 120 W); this is operational
when the ignition is on.
There may be an additional 12 V accessory socket in the boot,
- a USB port.
For safety reasons, the
cooled storage compart-
ment should be kept closed
when the vehicle is moving.
SMOKER'S KIT
This kit consists of a cigar lighter
and a portable ashtray.
These are located on the centre
console. The portable ashtray can
be placed in a cup holder.
To use the cigar lighter, press it
in and wait a few seconds until it
pops out automatically.
Vehicles with the
electronic gearbox
system or an automatic gearbox
possess an additional storage space
in the middle of the dashboard.
To open, pull the handle and low-
er the lid.
The cooled storage has automatic
lighting.
It can accommodate a 1.5 litre bottle
and two 0.5 litre bottles, for example.
Two cup-holders are available when
the lid is open. The cooled storage has a ventilation
nozzle. It is directly linked to the ve-
hicle’s air conditioning system, and
is supplied with cooled air whatever
the settings for the passenger com-
partment.
The cooling of this storage area only
operates when the engine is running
and the air conditioning is on.
Page 121 of 355
VI
104
F I T T I N G S
UPPER STORAGE COMPARTMENTS
There are large storage compart-
ments at the top of the dashboard,
one on the driver's side and one on
the passenger's side.
To open, press the button at the
bottom corner.
To close, lower the lid fully until it
clicks.
ILLUMINATED GLOVE BOX
It includes storage areas for a bottle of
water, the vehicle handbook pack, ...
Its lid has areas for storing a pen, a
pair of spectacles, tokens, cards, a
cup, fragrance cartridges...
To open the glove box, raise the
handle and lower the lid.
The lamp comes on automatically
when the lid is opened.
COOLED GLOVEBOX
It is cooled by a ventilation nozzle
that can be closed off manually.
It is directly linked to the vehicle’s air
conditioning system, being supplied
with cooled air whatever the require-
ments of the passenger compartment.
The cooling of your glovebox only
operates when the engine is running
and the air conditioning is on.
For safety reasons, the
glovebox should remain
closed when the vehicle is
moving.
For safety reasons, the up-
per storage compartments
should be kept closed when
the vehicle is moving.
Page 122 of 355
VI
105
F I T T I N G S
COOL STORAGE CENTRE CONSOLE
The centre console contains, de-
pending on version:
- two cup-holders,
- two storage compartments,
-
a 12 V accessory socket (Maximum
power: 120 W); this is operational
when the ignition is on.
There may be an additional 12 V accessory socket in the boot,
- a USB port.
For safety reasons, the
cooled storage compart-
ment should be kept closed
when the vehicle is moving.
SMOKER'S KIT
This kit consists of a cigar lighter
and a portable ashtray.
These are located on the centre
console. The portable ashtray can
be placed in a cup holder.
To use the cigar lighter, press it
in and wait a few seconds until it
pops out automatically.
Vehicles with the
electronic gearbox
system or an automatic gearbox
possess an additional storage space
in the middle of the dashboard.
To open, pull the handle and low-
er the lid.
The cooled storage has automatic
lighting.
It can accommodate a 1.5 litre bottle
and two 0.5 litre bottles, for example.
Two cup-holders are available when
the lid is open. The cooled storage has a ventilation
nozzle. It is directly linked to the ve-
hicle’s air conditioning system, and
is supplied with cooled air whatever
the settings for the passenger com-
partment.
The cooling of this storage area only
operates when the engine is running
and the air conditioning is on.
Page 157 of 355
VIII
132
S A F E T Y
AIRBAGS
S y s t e m d e s i g n e d t o m a x i m i s e t h e
safety of the occupants (with the
e x c e p t i o n o f t h e r e a r c e n t r e p a s -
senger) in the event of violent col-
lisions. It supplements the action of
the force-limiting seat belts.
If a collision occurs, the electronic
detectors record and analyse the
front and side impacts sustained in
the impact detection zones:
- in the case of a serious impact,
the airbags are triggered instant-
ly and protect the occupants of
t h e v e h i c l e ( w i t h t h e e x c e p t i o n o f
the rear centre passenger); im-
mediately after the impact, the
a i r b a g s d e fl a t e r a p i d l y s o t h a t
they do not hinder visibility or the
e x i t o f t h e o c c u p a n t s ,
- in the case of a minor or rear impact or in certain roll-over
conditions, the airbags will not
be triggered; the seat belt alone
i s s u f fi c i e n t t o p r o v i d e o p t i m u m
protection in these situations.
The airbags do not operate
when the ignition is switched
off.
This equipment will only operate
once. If a second impact occurs (dur-
ing the same or a subsequent acci-
dent), the airbag will not operate. Impact detection zones
A. Front impact zone.
B. Side impact zone.
Triggering of the airbag(s) is ac-
companied by a slight emission of
harmless smoke and a noise, due to
the activation of the pyrotechnic car-
tridge incorporated in the system.
This smoke is not harmful, but sen-
s i t i v e i n d i v i d u a l s m a y e x p e r i e n c e
slight irritation.
The noise of the detonation may
result in a slight loss of hearing for
a short time. Front airbags
System which protects the head and
chest of the driver and front passenger
in the event of a front impact.
The driver's airbag is incorporated
in the centre of the steering wheel;
the front passenger's airbag is incor-
porated in the dashboard above the
g l o v e b o x .
Activation
The airbags are triggered simultane-
ously, unless the passenger's front
airbag is deactivated, in the event of
a serious front impact applied to all
or part of the front impact zone
A ,
in the longitudinal centreline of the
vehicle on a horizontal plane and di-
rected from the front to the rear of
the vehicle.
T h e f r o n t a i r b a g i n fl a t e s b e t w e e n t h e
front occupant of the vehicle and the
dashboard to cushion their forward
movement.
Page 159 of 355
VIII
135
S A F E T Y

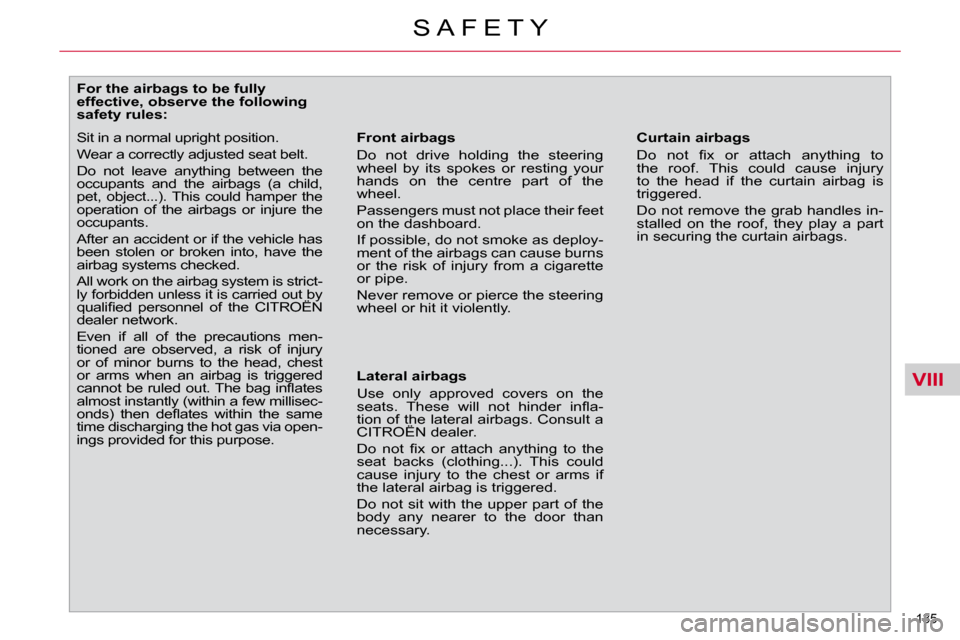

For the airbags to be fully
effective, observe the following
safety rules: Front airbags
Do not drive holding the steering
wheel by its spokes or resting your
hands on the centre part of the
wheel.
Passengers must not place their feet
on the dashboard.
If possible, do not smoke as deploy-
ment of the airbags can cause burns
or the risk of injury from a cigarette
or pipe.
Never remove or pierce the steering
wheel or hit it violently.
Lateral airbags
Use only approved covers on the
s e a t s . T h e s e w i l l n o t h i n d e r i n fl a -
tion of the lateral airbags. Consult a
CITROËN dealer.
D o n o t fi x o r a t t a c h a n y t h i n g t o t h e
seat backs (clothing...). This could
cause injury to the chest or arms if
the lateral airbag is triggered.
Do not sit with the upper part of the
body any nearer to the door than
necessary. Curtain airbags
D o n o t fi x o r a t t a c h a n y t h i n g t o
the roof. This could cause injury
to the head if the curtain airbag is
triggered.
Do not remove the grab handles in-
stalled on the roof, they play a part
in securing the curtain airbags.
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the airbags (a child,
pet, object...). This could hamper the
operation of the airbags or injure the
occupants.
After an accident or if the vehicle has
been stolen or broken into, have the
airbag systems checked.
All work on the airbag system is strict-
ly forbidden unless it is carried out by
q u a l i fi e d p e r s o n n e l o f t h e C I T R O Ë N
dealer network.
Even if all of the precautions men-
tioned are observed, a risk of injury
or of minor burns to the head, chest
or arms when an airbag is triggered
c a n n o t b e r u l e d o u t . T h e b a g i n fl a t e s
almost instantly (within a few millisec-
o n d s ) t h e n d e fl a t e s w i t h i n t h e s a m e
time discharging the hot gas via open-
ings provided for this purpose.
Page 161 of 355
VIII
135
S A F E T Y
For the airbags to be fully
effective, observe the following
safety rules: Front airbags
Do not drive holding the steering
wheel by its spokes or resting your
hands on the centre part of the
wheel.
Passengers must not place their feet
on the dashboard.
If possible, do not smoke as deploy-
ment of the airbags can cause burns
or the risk of injury from a cigarette
or pipe.
Never remove or pierce the steering
wheel or hit it violently.
Lateral airbags
Use only approved covers on the
s e a t s . T h e s e w i l l n o t h i n d e r i n fl a -
tion of the lateral airbags. Consult a
CITROËN dealer.
D o n o t fi x o r a t t a c h a n y t h i n g t o t h e
seat backs (clothing...). This could
cause injury to the chest or arms if
the lateral airbag is triggered.
Do not sit with the upper part of the
body any nearer to the door than
necessary. Curtain airbags
D o n o t fi x o r a t t a c h a n y t h i n g t o
the roof. This could cause injury
to the head if the curtain airbag is
triggered.
Do not remove the grab handles in-
stalled on the roof, they play a part
in securing the curtain airbags.
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the airbags (a child,
pet, object...). This could hamper the
operation of the airbags or injure the
occupants.
After an accident or if the vehicle has
been stolen or broken into, have the
airbag systems checked.
All work on the airbag system is strict-
ly forbidden unless it is carried out by
q u a l i fi e d p e r s o n n e l o f t h e C I T R O Ë N
dealer network.
Even if all of the precautions men-
tioned are observed, a risk of injury
or of minor burns to the head, chest
or arms when an airbag is triggered
c a n n o t b e r u l e d o u t . T h e b a g i n fl a t e s
almost instantly (within a few millisec-
o n d s ) t h e n d e fl a t e s w i t h i n t h e s a m e
time discharging the hot gas via open-
ings provided for this purpose.
