2010.5 Citroen C3 PICASSO service indicator

i
18
MONITORING
PETROL - DIESEL INSTRUMENT PANEL
Panel grouping together the digital indicator, the multifunction screen and the
vehicle operation indicator lamps.

1. Rev counter.
Indicates the speed of rotation of the engine (x 1 000 rpm).

2. Rev counter zone indicating that you
must change up a gear.

3. Speed limiter
or
Cruise control.
(mph or km/h)

4. Electric child lock indicator lamp.
Indicates, for a few seconds, the activation of the electric child lock
(deactivation of the rear windows
and doors).
Translucent digital instrument panel
This screen groups together the warn-
ing and information messages.
Multifunction screen
Indicator lamps display zone
This zone groups together the vehicle
operation indicator lamps.
Display zero reset button
This permits resetting of the function
selected to zero (trip distance recorder
or service indicator).
Instrument panel lighting button
This adjusts the brightness of the light-
ing of the instruments and controls.
For more information, refer to the
paragraph relating to the button or
function and its associated display.

5. Fuel level.
Indicates the quantity of fuel remain- ing in the tank.

6. Vehicle speed.
Indicates the current speed of the moving vehicle (mph or km/h).

7. Trip distance recorder.
(miles or km)

8. Service indicator.
(miles or km) then,
Distance recorder.
(miles or km)

9. Engine oil level indicator.

21
MONITORING
Deactivation indicator lamps
If one of the following indicator lamps comes on, this confi rms that the corresponding system has bee n switched off intentionally.
This is may be accompanied by an audible signal and a message on the multifunction screen.

Warning lamp is on Cause Action/Observations

Passenger’s
airbag
system fi xed. The control switch, located
at the driver’s end of the
dashboard, is set to the

"OFF
" position.
The passenger’s front airbag
is deactivated.
In this case you can install a
"rear facing" child seat. Set the control switch to the
"ON" position to acti-
vate the passenger’s front airbag. In this case, do
not fi t a child seat in the rear-facing position.
The passenger’s airbag system is put into service
automatically when the vehicle is started ( "ON"
position).

ESP/ASR fi xed. The button, located in the
middle of the dashboard, is
pressed. Its indicator lamp
is on.
The ESP/ASR is deactivated.
ESP: electronic stability pro-
gramme.
ASR: anti-skid regulation. Press the button to activate the ESP/ASR. Its
indicator lamp switches off.
The ESP/ASR system is activated automatically
when the vehicle is started.
If deactivated, the system is reactivated automati-
cally from approximately 30 mph (50 km/h).

26
MONITORING
Service indicator
System which informs the driver when the
next service is due, in accordance with
the manufacturer's servicing schedule.
The point at which the service is due is
calculated from the last indicator zero
reset. It is determined by two param-
eters:
- the distance travelled,
- the time elapsed since the last ser- vice.
A few seconds after the ignition is
switched on, the spanner goes off ; the
distance recorder resumes its normal
operation. The display then indicates
the total and trip distances. Less than 600 miles (1 000 km)
remain before the next service is due

Example: 400 miles (900 km) remain
before the next service is due.
For a few seconds after the ignition is
switched on, the display indicates:
A few seconds after the ignition is switched
on, the distance recorder resumes its nor-
mal operation. The spanner remains on
to indicate that a service must be carried
out soon.
Between 600 miles (1 000 km) and
1 800 miles (3 000 km) remain before
the next service is due
For a few seconds after the ignition is
switched on, the spanner symbolising the
service operations comes on. The distance
recorder display line indicates the distance
remaining before the next service is due.

Example: 1 739 miles (2 800 km) re-
main before the next service is due.
For a few seconds after the ignition is
switched on, the display indicates:
More than 1 800 miles (3 000 km)
remain before the next service is due
When the ignition is switched on, no ser-
vice information appears on the display.

i
i
27
MONITORING
Following this operation, if you wish
to disconnect the battery, lock the
vehicle and wait at least fi ve minutes
for the zero reset to be taken into ac-
count.
Service indicator zero reset
After each service, the service indicator
must be reset to zero.
The procedure for resetting to zero is as
follows:

 switch off the ignition,

 press and hold the trip distance re-
corder zero reset button,

 switch on the ignition; the distance
recorder display begins a count-
down,

 when the display indicates "=0" , re-
lease the button; the spanner disap-
pears.
The distance remaining may be
weighted by the time factor, de-
pending on the type of driving.
Therefore, the spanner may also
come on if you have exceeded the
two year service interval.
Service overdue
For a few seconds after the ignition is
switched on,
the spanner fl ashes to in-
dicate that the service must be carried
out as soon as possible.

Example: the service is overdue by
300 miles (300 km).
For a few seconds after the ignition is
switched on, the display indicates:
A few seconds after the ignition is
switched on, the distance recorder re-
sumes its normal operation. The span-
ner remains on . Retrieving the service information
You can access the service information
at any time.

 Press the trip distance recorder zero
reset button.
The service information is displayed for a few seconds, then disappears.

i
28
MONITORING
The level read will only be correct if
the vehicle is on level ground and
the engine has been off for more
than 15 minutes.
Engine oil level indicator
System which informs the driver whether
the engine oil level is correct or not.
This information is indicated for a few
seconds when the ignition is switched
on, after the service information.
Oil level correct
Oil level low
Oil level indicator fault
Dipstick
This is indicated by the fl ashing of

"OIL" , linked with the service warning
lamp, accompanied by an audible sig-
nal and a message in the multifunction
screen.
If the low oil level is confi rmed by a
check using the dipstick, the level must
be topped up to prevent damage to the
engine. This is indicated by the fl ashing of
"OIL

--" . Consult a CITROËN dealer.
Refer to the "Checks" section to locate
the dipstick and the oil fi ller cap on your
engine. There are 2 marks on the
dipstick:
- A = max; never exceed
this level (risk of damage
to the engine),
- B = min; top up the level
via the oil fi ller cap, using
the grade of oil suited to
your engine.

i
i
110
DRIVING
Deactivation
The system will be deactivated au-
tomatically when towing a trailer
or when a bicycle carrier is fi tted
(vehicle fi tted with a towbar or bi-
cycle carrier recommended by
CITROËN). Reactivation
Press button
A again to reactivate
the system. The indicator lamp in the
button goes off.
If there is an operating fault, when
reverse gear is engaged, the service
warning lamp comes on, accompanied
by an audible signal (short beep) and a
message in the multifunction screen.
With the engine running, press but-
ton A to deactivate the system perma-
nently. The indicator lamp in the button
comes on. In bad or wintry weather, ensure
that the sensors are not covered
with mud, frost or snow.

154

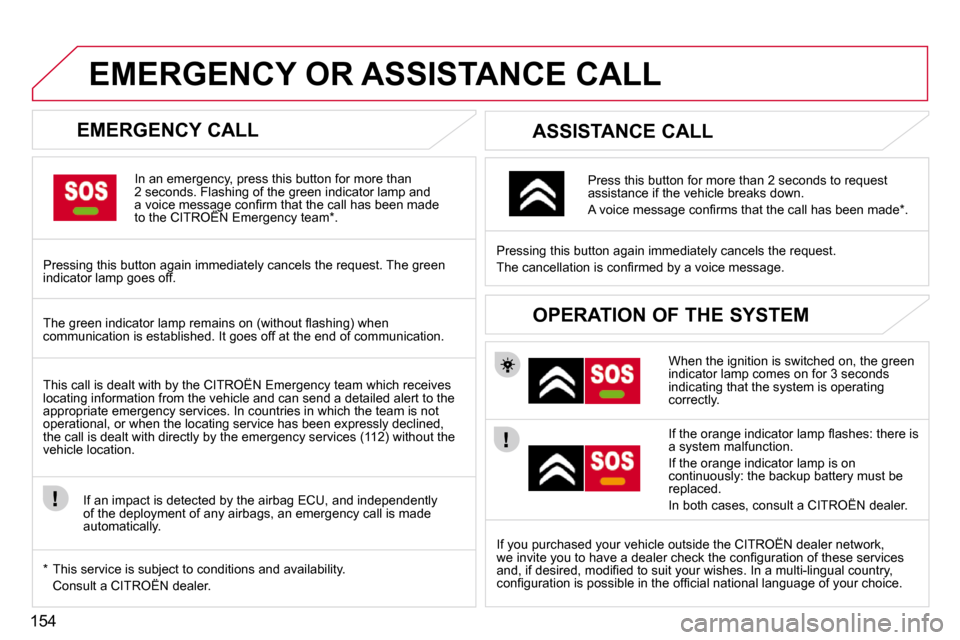

EMERGENCY OR ASSISTANCE CALL
EMERGENCY CALL
In an emergency, press this button for more than 2 seconds. Flashing of the green indicator lamp and a voice message confi rm that the call has been made to the CITROËN Emergency team * . a voice message confi rm that the call has been made a voice message confi rm that the call has been made
Pressing this button again immediately cancels the request. The green indicator lamp goes off.
ASSISTANCE CALL
If you purchased your vehicle outside the CITROËN dealer network, we invite you to have a dealer check the confi guration of these services and, if desired, modifi ed to suit your wishes. In a multi-lingual country, confi guration is possible in the offi cial national language of your choice.
When the ignition is switched on, the green indicator lamp comes on for 3 seconds indicating that the system is operating correctly.
Pressing this button again immediately cancels the request.
The cancellation is confi rmed by a voice message.
Press this button for more than 2 seconds to request assistance if the vehicle breaks down.
A voice message confi rms that the call has been made * .
OPERATION OF THE SYSTEM The green indicator lamp remains on (without fl ashing) when communication is established. It goes off at the end of commun ication.
This call is dealt with by the CITROËN Emergency team which re ceives locating information from the vehicle and can send a detailed alert to the appropriate emergency services. In countries in which the team is no t operational, or when the locating service has been expressly declined, the call is dealt with directly by the emergency services (112) without the vehicle location.
If an impact is detected by the airbag ECU, and independently of the deployment of any airbags, an emergency call is made automatically.
If the orange indicator lamp fl ashes: there is a system malfunction.
If the orange indicator lamp is on continuously: the backup battery must be replaced.
In both cases, consult a CITROËN dealer.
* This service is subject to conditions and availability.
Consult a CITROËN dealer.
