2010.5 Citroen C3 PICASSO DAG Owner's Manual

!
i
i

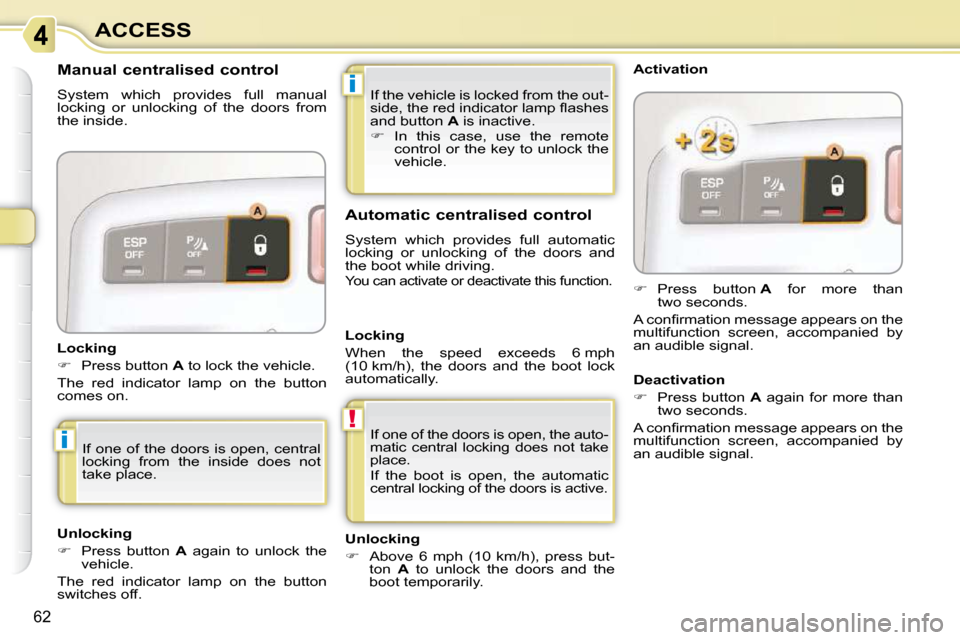

62
ACCESS If the vehicle is locked from the out-
side, the red indicator lamp fl ashes
and button A is inactive.

 In this case, use the remote
control or the key to unlock the
vehicle.
If one of the doors is open, the auto-
matic central locking does not take
place.
If the boot is open, the automatic
central locking of the doors is active.
Manual centralised control
System which provides full manual
locking or unlocking of the doors from
the inside.
Locking

 Press button A to lock the vehicle.
The red indicator lamp on the button
comes on. Automatic centralised control
System which provides full automatic
locking or unlocking of the doors and
the boot while driving.

You can activate or deactivate this function.
Activation

 Press button A for more than
two seconds.
A confi rmation message appears on the
multifunction screen, accompanied by
an audible signal.
Unlocking

 Above 6 mph (10 km/h), press but-
ton A to unlock the doors and the
boot temporarily.
If one of the doors is open, central
locking from the inside does not
take place.
Unlocking

 Press button A again to unlock the
vehicle.
The red indicator lamp on the button
switches off. Locking
When the speed exceeds 6 mph
(10 km/h), the doors and the boot lock
automatically.
Deactivation

 Press button A again for more than
two seconds.
A confi rmation message appears on the
multifunction screen, accompanied by
an audible signal.

i
63
ACCESS
Emergency control
System which locks or unlocks the
doors mechanically in the event of a
malfunction of the battery or of the cen-
tral locking.

 Insert the key in the lock, located on
the edge of the door, then turn it one
eighth of a turn . Opening

 After unlocking the vehicle using the
remote control or the key, pull the
handle and raise the tailgate.
BOOT
- when the engine is running ,
this warning lamp comes on,
accompanied by a message
on the multifunction screen
for a few seconds,
- when the vehicle is moving (speed
above 6 mph (10 km/h)), this warn-
ing lamp comes on, accompanied
by an audible signal and a message
on the multifunction screen for a
few seconds.
Tailgate release
System for mechanical unlocking of the
boot in the event of a battery or central
locking malfunction.
Unlocking

 Fold back the rear benchseat to
gain access to the lock from inside
the boot.

 Insert a small screwdriver into
hole A of the lock to unlock the
tailgate.
Locking the driver's door

 Insert the key in the lock, then turn it
to the right.
Unlocking the driver's door

 Insert the key in the lock, then turn it
to the left.
Locking the front and rear
passenger doors Unlocking the front and rear
passenger doors

 Pull the interior door opening control.
Closing

 Lower the tailgate using the interior
grab handle. If the tailgate is not closed correctly:
In the event of a fault with the cen-
tral locking, you must disconnect
the battery to lock the boot and so
ensure the complete locking of the
vehicle.

i
63
ACCESS
Emergency control
System which locks or unlocks the
doors mechanically in the event of a
malfunction of the battery or of the cen-
tral locking.

 Insert the key in the lock, located on
the edge of the door, then turn it one
eighth of a turn . Opening

 After unlocking the vehicle using the
remote control or the key, pull the
handle and raise the tailgate.
BOOT
- when the engine is running ,
this warning lamp comes on,
accompanied by a message
on the multifunction screen
for a few seconds,
- when the vehicle is moving (speed
above 6 mph (10 km/h)), this warn-
ing lamp comes on, accompanied
by an audible signal and a message
on the multifunction screen for a
few seconds.
Tailgate release
System for mechanical unlocking of the
boot in the event of a battery or central
locking malfunction.
Unlocking

 Fold back the rear benchseat to
gain access to the lock from inside
the boot.

 Insert a small screwdriver into
hole A of the lock to unlock the
tailgate.
Locking the driver's door

 Insert the key in the lock, then turn it
to the right.
Unlocking the driver's door

 Insert the key in the lock, then turn it
to the left.
Locking the front and rear
passenger doors Unlocking the front and rear
passenger doors

 Pull the interior door opening control.
Closing

 Lower the tailgate using the interior
grab handle. If the tailgate is not closed correctly:
In the event of a fault with the cen-
tral locking, you must disconnect
the battery to lock the boot and so
ensure the complete locking of the
vehicle.

i
64
ACCESS
PANORAMIC SUNROOF
System which consists of an area of
panoramic tinted glass to increase the
light and visibility in the passenger com-
partment. It is fi tted with 2 independent
manual blinds to help maintain a com-
fortable temperature. Closing
Rear blind

 Pull the blind forwards until it locks in.
Front blind

 Pull the blind rearwards until it locks in.
Opening

 Raise the blind's handle and re-
lease.
Each blind is fi tted with a roller
which stores it once you release it.

i
65
ACCESS
Additions of fuel must be of at least
5 litres, in order to be taken into
account by the fuel gauge.
The key cannot be removed from
the lock until the cap is refi tted.
Opening the fi ller cap may create
a noise caused by an inrush of air.
This vacuum is entirely normal, re-
sulting from the sealing of the fuel
system.
FUEL TANK

Fuel tank capacity: approximately
50 litres (petrol) or 48 litres (Diesel).
Low fuel level Filling
A label affi xed to the inside of the fl ap
reminds you of the type of fuel to be
used depending on your engine.
When the fuel tank minimum
level is reached this warning
lamp comes on on the instru-
ment panel. When it fi rst comes
on there remains approximately
5 litres of fuel in the tank.
You must refuel as soon as possible to
avoid running out of fuel.
If you run out of fuel (Diesel), refer also
to the "Checks" section. To fi ll the tank safely:

 the engine must be switched off,

 open the fuel fi ller fl ap,

 insert the key in the cap, then turn it
to the left,

 remove the cap and hook it onto
the clip located on the inside of the
fl ap,

 fi ll the tank, but do not continue
after the 3rd cut-off of the pump ;
this could cause malfunctions.
When you have fi lled the tank:

 put the cap back in place,

 turn the key to the right, then remove
it from the cap,

 close the fl ap.

i
66
ACCESS
Quality of the fuel used for
petrol engines
The petrol engines are perfectly com-
patible with E10 type petrol biofuels
(containing 10 % ethanol), conforming
to European standards EN 228 and
EN 15376.
E85 type fuels (containing up to 85 %
ethanol) are reserved exclusively for ve-
hicles marketed for the use of this type
of fuel (BioFlex vehicles). The quality of
the ethanol must comply with European
standard EN 15293.
For Brazil only, special vehicles are
marketed to run on fuels containing up
to 100 % ethanol (E100 type). Quality of the fuel used for
Diesel engines
The Diesel engines are perfectly com-
patible with biofuels which conform to
current and future European standards
(Diesel fuel which complies with stan-
dard EN 590 mixed with a biofuel which
complies with standard EN 14214)
available at the pumps (containing up
to 7 % Fatty Acid Methyl Ester).
The B30 biofuel can be used in cer-
tain Diesel engines; however, this use
is subject to strict application of the
special servicing conditions. Consult a
CITROËN dealer.
The use of any other type of (bio) fuel
(vegetable or animal oils, pure or dilut-
ed, domestic fuel...) is strictly prohibited
(risk of damage to the engine and fuel
system).
MISFUEL PREVENTION
Operation
It is still possible to use a fuel can
to fi ll the reservoir.
In order to ensure a good fl ow of
fuel, do not place the nozzle of
the fuel can in direct contact with
the fl ap of the misfuel prevention
device.
This equipment will become avail-
able during the year.
Mechanical device which prevents fi ll-
ing the tank of a Diesel vehicle with
petrol. It avoids the risk of engine dam-
age that can result from fi lling with the
wrong fuel.
Located in the fi ller neck, the misfuel
prevention device appears when the
fi ller cap is removed.
When a petrol fi ller nozzle is introduced into
the fuel fi ller neck of your Diesel vehicle, it
comes into contact with the fl ap. The sys-
tem remains closed and prevents fi lling.

Do not persist but introduce a Diesel
type fi ller nozzle.

i
66
ACCESS
Quality of the fuel used for
petrol engines
The petrol engines are perfectly com-
patible with E10 type petrol biofuels
(containing 10 % ethanol), conforming
to European standards EN 228 and
EN 15376.
E85 type fuels (containing up to 85 %
ethanol) are reserved exclusively for ve-
hicles marketed for the use of this type
of fuel (BioFlex vehicles). The quality of
the ethanol must comply with European
standard EN 15293.
For Brazil only, special vehicles are
marketed to run on fuels containing up
to 100 % ethanol (E100 type). Quality of the fuel used for
Diesel engines
The Diesel engines are perfectly com-
patible with biofuels which conform to
current and future European standards
(Diesel fuel which complies with stan-
dard EN 590 mixed with a biofuel which
complies with standard EN 14214)
available at the pumps (containing up
to 7 % Fatty Acid Methyl Ester).
The B30 biofuel can be used in cer-
tain Diesel engines; however, this use
is subject to strict application of the
special servicing conditions. Consult a
CITROËN dealer.
The use of any other type of (bio) fuel
(vegetable or animal oils, pure or dilut-
ed, domestic fuel...) is strictly prohibited
(risk of damage to the engine and fuel
system).
MISFUEL PREVENTION
Operation
It is still possible to use a fuel can
to fi ll the reservoir.
In order to ensure a good fl ow of
fuel, do not place the nozzle of
the fuel can in direct contact with
the fl ap of the misfuel prevention
device.
This equipment will become avail-
able during the year.
Mechanical device which prevents fi ll-
ing the tank of a Diesel vehicle with
petrol. It avoids the risk of engine dam-
age that can result from fi lling with the
wrong fuel.
Located in the fi ller neck, the misfuel
prevention device appears when the
fi ller cap is removed.
When a petrol fi ller nozzle is introduced into
the fuel fi ller neck of your Diesel vehicle, it
comes into contact with the fl ap. The sys-
tem remains closed and prevents fi lling.

Do not persist but introduce a Diesel
type fi ller nozzle.

67
VISIBILITY
LIGHTING CONTROLS
System for selection and control of the
various front and rear lamps providing
the vehicle's lighting.
Main lighting
The various front and rear lamps of the
vehicle are designed to adapt the driver's
visibility progressively according to cli-
matic conditions:
- sidelamps, to be seen,
- dipped beam headlamps to see without dazzling other drivers,
- main beam headlamps to see clearly when the road is clear.
Additional lighting
Other lamps are installed to fulfi l the
requirements of particular conditions of
visibility:
- a rear foglamp to be seen from afar,
- front foglamps for even better for- ward vision.
Programming
Various automatic lighting control
modes are also available according to
the following options:
- guide-me-home lighting,
- automatic illumination of headlamps. Model without AUTO lighting
Model with AUTO lighting
Automatic illumination of
headlamps.
Manual controls
The lighting commands are issued direct-
ly by the driver by means of the ring
A
and the stalk B .

A. Main lighting mode selection ring:
turn it to position the symbol re-
quired facing the mark.
Lamps off.
Sidelamps only.

B. Stalk for switching headlamps: pull
to switch the lighting between dipped
headlamps/main beam headlamps.
In the lamps off and sidelamps modes,
the driver can switch on the main beam
headlamps temporarily ("headlamp
fl ash") by maintaining a pull on the
stalk. Dipped headlamps or main
beam headlamps.
Displays
Lighting of the corresponding indicator
lamp on the instrument panel confi rms
the switching on of the lighting selected.
