Page 4 of 97
7
1. Bonnet release
2. Headlamp adjustment
3. Passenger's airbag deactivation
4. Adjustable side air vent
5. Lighting and direction indicator
stalk
6. Driver's front airbag
Horn
7. Dashboard fusebox (under the
i n s t r u m e n t p a n e l t r i m , o n t h e
right and on the left)
8. Rev counter
9. Passenger's door mirror control
10. Passenger's electric window
control
11. Gear lever
12. Cup holder
13. Steering wheel height adjustment
INSTRUMENTS AND CONTROLS
Page 73 of 97
8
69
CHECKS
1.0 LITRE PETROL ENGINE
1. Coolant reservoir
2. Screenwash reservoir
3. B r a k e fl u i d r e s e r v o i r
4. Fusebox
5. Battery
6. A i r fi l t e r
7. Engine oil dipstick
8. E n g i n e o i l fi l l e r c a p
Page 81 of 97
9
77

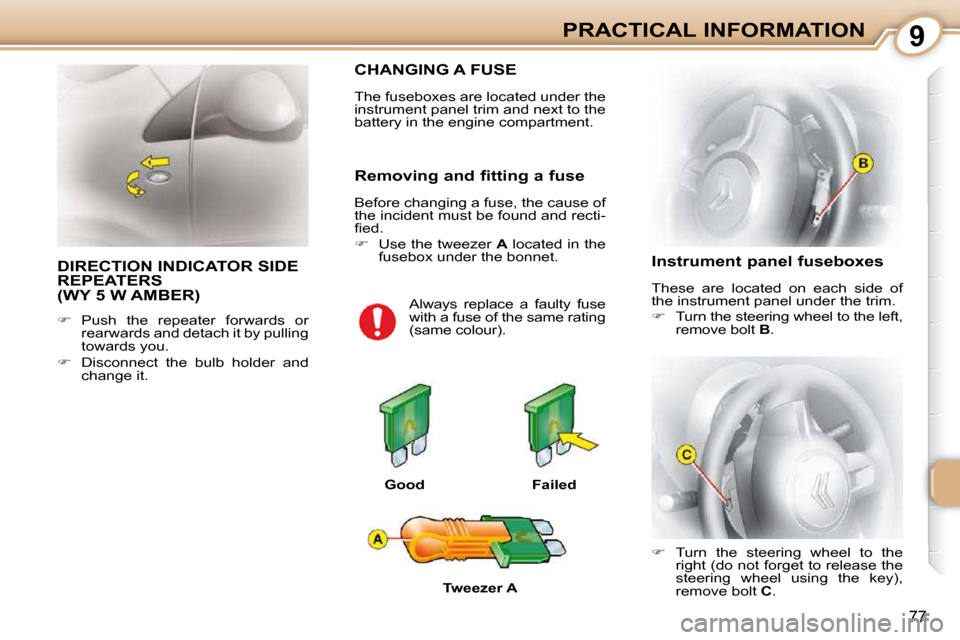

PRACTICAL INFORMATION
DIRECTION INDICATOR SIDE REPEATERS (WY 5 W AMBER)
Push the repeater forwards or
rearwards and detach it by pulling
towards you.
Disconnect the bulb holder and
change it.
CHANGING A FUSE
The fuseboxes are located under the
instrument panel trim and next to the
battery in the engine compartment.
Good
Removing and fitting a fuse
Before changing a fuse, the cause of
the incident must be found and recti-
fi e d .
Use the tweezer A located in the
fusebox under the bonnet.
Failed
Tweezer A Instrument panel fuseboxes
These are located on each side of
the instrument panel under the trim.
Turn the steering wheel to the left,
remove bolt B .
Turn the steering wheel to the
right (do not forget to release the
steering wheel using the key),
remove bolt C .
Always replace a faulty fuse
with a fuse of the same rating
(same colour).
Page 84 of 97
9
77
PRACTICAL INFORMATION
DIRECTION INDICATOR SIDE REPEATERS (WY 5 W AMBER)
Push the repeater forwards or
rearwards and detach it by pulling
towards you.
Disconnect the bulb holder and
change it.
CHANGING A FUSE
The fuseboxes are located under the
instrument panel trim and next to the
battery in the engine compartment.
Good
Removing and fitting a fuse
Before changing a fuse, the cause of
the incident must be found and recti-
fi e d .
Use the tweezer A located in the
fusebox under the bonnet.
Failed
Tweezer A Instrument panel fuseboxes
These are located on each side of
the instrument panel under the trim.
Turn the steering wheel to the left,
remove bolt B .
Turn the steering wheel to the
right (do not forget to release the
steering wheel using the key),
remove bolt C .
Always replace a faulty fuse
with a fuse of the same rating
(same colour).
Page 85 of 97
9
77
PRACTICAL INFORMATION
DIRECTION INDICATOR SIDE REPEATERS (WY 5 W AMBER)
Push the repeater forwards or
rearwards and detach it by pulling
towards you.
Disconnect the bulb holder and
change it.
CHANGING A FUSE
The fuseboxes are located under the
instrument panel trim and next to the
battery in the engine compartment.
Good
Removing and fitting a fuse
Before changing a fuse, the cause of
the incident must be found and recti-
fi e d .
Use the tweezer A located in the
fusebox under the bonnet.
Failed
Tweezer A Instrument panel fuseboxes
These are located on each side of
the instrument panel under the trim.
Turn the steering wheel to the left,
remove bolt B .
Turn the steering wheel to the
right (do not forget to release the
steering wheel using the key),
remove bolt C .
Always replace a faulty fuse
with a fuse of the same rating
(same colour).
Page 87 of 97
9
79
PRACTICAL INFORMATION
* F u s e s l o c a t e d b e h i n d t h e i n s t r u m e n t p a n e l . T o c h a n g e t h e m , c o n t a c t a C I T R O Ë N d e a l e r o r a q u a l i fi e d w o r k s h o p .
Fuse
N° Rating (A)
Functions
1 10 Brake lamps - ABS - "SensoDrive" gearbox
2 25 Central locking/unlocking
3 20 Rear screen demisting
4 7.5 Rear lamps - Number plate lamps - Instrument panel - Screen
5 7.5 Diagnostic socket
6 7.5 Rear foglamp - Instrument panel - "SensoDrive" gearbox
7 - Not used
8 7.5 ABS - Power steering - Air conditioning - Fan assembly
9 10 Rear lamps - Central locking/unlocking - Electric windows - Rear scree
n demisting -
Speedometer - Air conditioning - Heating - Rev counter
10 20 Front and rear wipers
11 15 Audio equipment - Electronic engine immobiliser - 12 V socket (120 W max)
12 7.5 Rear screen demisting - ABS - Fan assembly - Front and rear wipers - Powe
r steering -
Central locking/unlocking - Air conditioning - Electric windows - Speedometer - Rev counter
13 15 Airbag - Engine control unit - Electronic engine immobiliser - "Sen
soDrive" gearbox -
Instrument panel
14 7.5 Air conditioning
15 * 40 Accessories - Demisting - ABS - Fan assembly relay - Front and rear wipe rs
16 * 30 Electric windows
17 * 40 Heating - Air conditioning
Page 88 of 97
9
80
PRACTICAL INFORMATION
Engine compartment fusebox
Unclip the cover, pressing on the
right on lug E , to gain access to
the fuses. Your vehicle's electrical cir-
cuit is designed to operate
with standard or optional
equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a CITROËN dealer
o r a q u a l i fi e d w o r k s h o p .
The tweezer A and the replacement
fuses B a r e fi x e d a t t h e f r o n t o f t h e
box.
W h e n y o u h a v e fi n i s h e d , c l o s e t h e
cover very carefully. Some electrical accessories or the
w a y i n w h i c h t h e y a r e fi t t e d m a y
have an adverse effect on the opera-
tion of your vehicle (audio circuits,
control circuit and electrical charging
circuit).
CITROËN will not accept any re-
sponsibility for the costs incurred in
repairing your vehicle or for the mal-
functions resulting from the installa-
tion of auxiliary accessories which
were not supplied or recommended
by CITROËN and which were not in-
stalled in accordance with its instruc-
tions, in particular in the case of any
equipment the consumption of which
exceeds 10 milliamps.
Page 89 of 97
9
81
PRACTICAL INFORMATION
Fuse
N° Rating (A)
Functions
1 50 "SensoDrive" gearbox
2
10 Headlamps
20 Headlamps with daytime running lamps
3 30 ABS/ESP control unit
4 30 Ignition switch supply
5 10 Hazard warning lamps - Instrument panel warning lamps - Direct ion indicators
6 10 Headlamps
7 15 Courtesy lamp - Speedometer - Audio equipment - Instrument pan el - Rev counter
8 15/25 Petrol/Diesel engine control unit
9 10 Horn
10 30 Fan assembly (petrol)
11 50 ABS/ESP
12 50 Power steering
