16

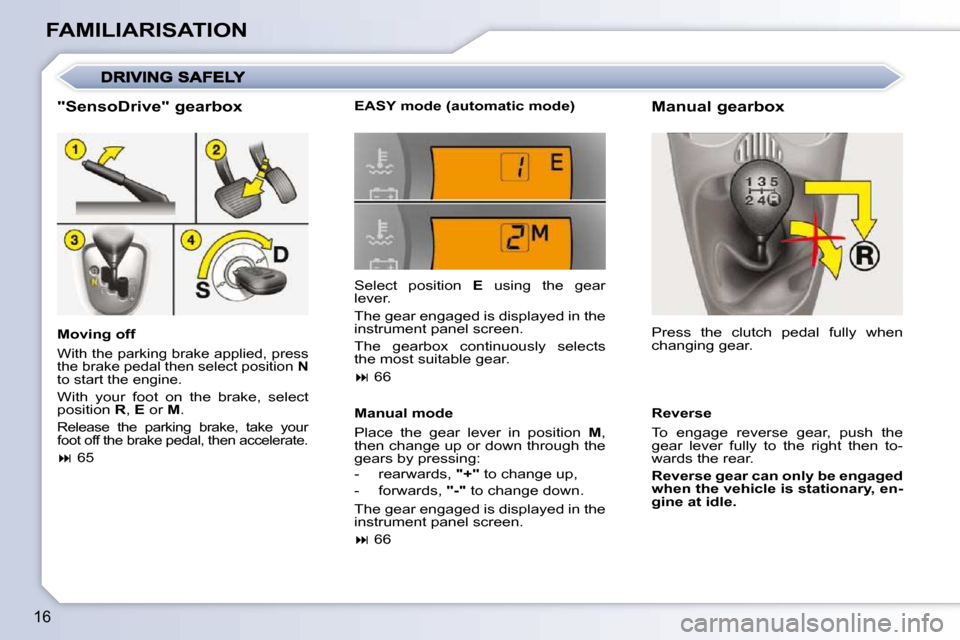

FAMILIARISATION "SensoDrive" gearbox
Moving off
W i t h t h e p a r k i n g b r a k e a p p l i e d , p r e s s
the brake pedal then select position N
to start the engine.
W i t h y o u r f o o t o n t h e b r a k e , s e l e c t
position R , E or M .
R e l e a s e t h e p a r k i n g b r a k e , t a k e y o u r
f o o t o f f t h e b r a k e p e d a l , t h e n a c c e l e r a t e .
65 Select position
E using the gear
lever.
The gear engaged is displayed in the
instrument panel screen.
The gearbox continuously selects
the most suitable gear.
66
Manual mode
Place the gear lever in position M ,
then change up or down through the
gears by pressing:
- r e a r w a r d s , "+" t o c h a n g e u p ,
- f o r w a r d s , "-" to change down.
The gear engaged is displayed in the
instrument panel screen.
66 Press the clutch pedal fully when
changing gear.
Reverse
T o e n g a g e r e v e r s e g e a r , p u s h t h e
g e a r l e v e r f u l l y t o t h e r i g h t t h e n t o -
wards the rear.
Reverse gear can only be engaged
when the vehicle is stationary, en-
gine at idle.
EASY mode (automatic mode)
Manual gearbox
Page 14 of 97
1
17
MONITORING
INSTRUMENT PANEL
1. Total/trip distance recorder zero
reset button
2. Warning lamps and indicators
display
3. Direction indicators
4. Speedometer
5. Fuel gauge
6. Total/trip distance recorder
7. Rear foglamp warning lamp
8. Main beam headlamp warning
lamp
9. Dipped beam headlamp warning
lamp
REV COUNTER
Approaching the maximum engine
speed, when the rev counter needle
crosses into the red zone, you must
change up.
10. "SensoDrive" gearbox gear and
gear lever positions indicator
Page 19 of 97
1
22
MONITORING
TOTAL/TRIP DISTANCE
RECORDER
FUEL GAUGE
This indicates the quantity of fuel
available:
- 1/1 and six bars, the fuel tank is full.
- R a n d o n e b a r fl a s h i n g , t h e f u e l
tank is on the reserve.
Low fuel level
When the minimum level in the fuel
t a n k i s r e a c h e d , t h e l a s t b a r fl a s h e s
accompanied by an audible signal.
In certain driving conditions and depend-
ing on the engine, the distance which
can be travelled with the fuel remaining
may be less than 30 miles (50 km).
You have approximately 5 litres remaining. W h e n t h e f r e q u e n c y o f t h e fl a s h i n g
increases, you have approximately
3 litres remaining .
At least 5 litres must be
added after running out of
fuel.
When the ignition is switched on,
the distance recorder selected
when the engine was switched off is
displayed.
Press button
1 to alternate the
distance display:
- total with "ODO" displayed,
- trip with "TRIP" displayed. To reset the trip recorder to zero,
when it is displayed, press and hold
button
1 .
Page 20 of 97
1
22
MONITORING
TOTAL/TRIP DISTANCE
RECORDER
FUEL GAUGE
This indicates the quantity of fuel
available:
- 1/1 and six bars, the fuel tank is full.
- R a n d o n e b a r fl a s h i n g , t h e f u e l
tank is on the reserve.
Low fuel level
When the minimum level in the fuel
t a n k i s r e a c h e d , t h e l a s t b a r fl a s h e s
accompanied by an audible signal.
In certain driving conditions and depend-
ing on the engine, the distance which
can be travelled with the fuel remaining
may be less than 30 miles (50 km).
You have approximately 5 litres remaining. W h e n t h e f r e q u e n c y o f t h e fl a s h i n g
increases, you have approximately
3 litres remaining .
At least 5 litres must be
added after running out of
fuel.
When the ignition is switched on,
the distance recorder selected
when the engine was switched off is
displayed.
Press button
1 to alternate the
distance display:
- total with "ODO" displayed,
- trip with "TRIP" displayed. To reset the trip recorder to zero,
when it is displayed, press and hold
button
1 .
Page 21 of 97
1
23
MONITORING
"SENSODRIVE" GEARBOX
INDICATOR
Lever in EASY mode
(automatic mode)
"E" is displayed when this
operating mode is selected.
It goes off on switching to manual
mode.
Lever in manual mode
"M" is displayed when this
operating mode is selected.
It is switched off on switching
to EASY mode.
"Neutral"
"Reverse"
Operating mode:
1 st
gear
2 nd
gear
3 rd
gear
4 th
gear
5 th
gear
If this warning lamp comes
on with the engine running,
this indicates a fault with the
" SensoDrive " gearbox.
"!" warning lamp
Contact a CITROËN dealer or a
q u a l i fi e d w o r k s h o p .
Page 23 of 97
2
25
AUDIO
On/off With the ignition key in
the accessories posi-
tion or with the ignition
on, press this button to
switch the audio equipment on or off.
After the engine has been switched off, the audio equipment can
only operate for approximately
30 mi nutes, to prevent discharging
of the battery. Press the upper part
of this button several
times in succession to
increase the volume
of the audio equip-
ment or the lower part
of this button to de-
crease it.
Volume adjustment
Setting the clock Press this button sev-
eral times in succes-
sion to gain access
to the bass (BASS) ,
treble (TREB) , front/rear balance
(FAD) and left/right balance (BAL)
settings.
Audio settings
Press this button for
more than 2 seconds,
the clock display
fl a s h e s : Auxiliary socket
An auxiliary socket
"AUX" is provided for
the connection of por-
table equipment (MP3
player, etc.).
When the parameter
is displayed, change
the setting using these two buttons.
You exit from this mode automati-
cally after a few seconds without any
action. In order to listen to it,
connect your equip-
ment then press this
button.
The audio equipment controls enable
you to adjust the volume and the au-
dio settings.
To exit from the AUX source, press
AM/FM .
When using an MP3 player: in-
crease the volume of the radio signifi-
cantly (between 30 and 60) to obtain
a satisfactory playing volume.
- to adjust the hours, press this button,
-
to adjust the minutes,
press this button.
You exit from this mode automati-
cally after a few seconds without any
action.
Page 25 of 97
2
27
AUDIO
Stereo reception
When the audio equipment receives
a station broadcasting in stereo it au-
tomatically transmits stereo sound
and the screen displays "ST" . If the
reception conditions deteriorate, the
audio equipment returns to mono
transmission and "ST" is no longer
displayed. Press one of these
t w o b u t t o n s b r i e fl y t o
increase or decrease
the frequency dis-
played respectively.
If you maintain the
pressure on the button
in the chosen direc-
tion, the frequency will be scanned
continuously.
The scan stops when you release the
button.
Manual station search
Automatic station search
Manual station storing
Selection of the radio source
Selection of a waveband
Press this button. Press this button twice
to select the next sta-
tion.
P r e s s t h i s b u t t o n b r i e fl y t o l i s t e n t o
each station available on the FM
waveband for three seconds. To stop
the station scan, press this button
again.
I f t h e t r a f fi c i n f o r m a t i o n p r o g r a m m e
TA is selected, only stations which
broadcast this type of programme
are selected.
Press the button suc-
cessively to select
the wavebands FM1,
FM2, FM3 and AM. Select the required station.
Press one of the buttons "1" to "6"
for more than 2 seconds.
A n a u d i b l e s i g n a l c o n fi r m s t h a t t h e
station has been stored.
Page 26 of 97
2
28
AUDIO Radio reception
Your audio equipment will
be subjected to phenomena
which do not affect domestic radio
sets. Both MW/LW and FM reception
are subject to various forms of inter-
f e r e n c e . T h i s i s n o r e fl e c t i o n o n t h e
quality of the equipment but is due to
the nature of the signals and the way
in which they are transmitted.
On MW/LW, interference may be no-
ticed when passing under high voltage power lines or bridges, or in tunnels.
On FM, interference may be the re-
sult of increasing distance from the
t r a n s m i t t e r , d e fl e c t i o n o f t h e s i g n a l
by obstacles (mountains, hills, build-
ings, etc) or of being in an area which
is not covered by a transmitter.
Automatic storing of FM
stations (autostore)
Press this button.
Your audio equipment
automatically stores
the six best transmit-
ters received on AM and FM in your
current location. These stations are
stored on the AM and FM3 wave-
bands. The end of the search is sig-
nalled by two audible signals. Recalling stored stations
On each waveband, a brief press on
one of the buttons
"1" to "6" recalls
the corresponding stored station.
I f i t w a s n o t p o s s i b l e t o fi n d
six transmitters, the remain-
ing memories remain empty:
three dashes are displayed
on the audio equipment screen for
each empty memory.
