M O N I T O R I N G
21
Warning
lamp is on Cause Actions/Observations
Diesel
preheating Fixed This comes on when the
ignition switch is in the
ON position. Wait until this goes off before starting.
The duration for which this is on is determined
by the exterior climatic conditions.
Parking brake/ B r a k e fl u i d level Fixed This comes on for a
few seconds when the
ignition is turned to "ON"
then goes off.
It is accompanied by a message on the
instrument panel screen.
The parking brake is
applied or has not been
released fully. It is accompanied by a message on the
instrument panel screen. Release the parking
brake to switch off the warning lamp.
T h e b r a k e fl u i d l e v e l i s
too low. It is accompanied by a message on the
i n s t r u m e n t p a n e l s c r e e n . T o p u p w i t h b r a k e fl u i d
and contact a CITROËN dealer.
Emission
control system Fixed or
fl a s h i n g T h i s c o m e s o n o r fl a s h e s
if the system fails. Consult a CITROËN dealer.
It should go off a few seconds after starting the
engine.
Battery charge Fixed This comes on if a
charging circuit fault
occurs. It should go off when the engine is started.
It is accompanied by a message on the
instrument panel screen. Check the battery
terminals (refer to the "Battery" section).
Page 4 of 217
I
M O N I T O R I N G
22
Warning
lamp is on Cause Actions/Observations
Driver's
seat belt not fastened Fixed The driver has not
fastened or has
unfastened their seat belt. This is accompanied by a message on the
instrument panel screen.
Fasten the driver's seat belt.
ABS Fixed
This comes on if an
anti-lock braking system
fault occurs. It is accompanied by a message on the
instrument panel screen. The vehicle retains
conventional braking without assistance but
you are advised to stop. Have it checked by a
CITROËN dealer.
Airbags and
pretensioners Fixed This comes on for a few
seconds when the ignition
is turned to "ON" then
goes off.
It should go off when the engine is started. If it
d o e s n o t g o o f f , c o n t a c t a C I T R O Ë N d e a l e r .
This comes on if an
airbag or pretensioner
fault occurs. It is accompanied by a message on the
instrument panel screen. Have the system
checked by a CITROËN dealer without delay.
Dynamic
stability control system (ASC) Fixed This comes on if a
dynamic stability control
system fault occurs. It is accompanied by a message on the
instrument panel screen. Have the system
checked by a CITROËN dealer without delay.
Page 5 of 217
I
M O N I T O R I N G
23
E a c h t i m e t h e e n g i n e i s s t a r t e d : a s e r i e s o f w a r n i n g l a m p s a n d / o r m e s s a g e s c o m e o n , a p p l y i n g a c h e c k i n g s e l f t e s t . T h e y g o
off after a few seconds. Engine running: the warning lamp o r the message becomes a warning if it remains on continuously
o r fl a s h e s . T h i s i n i t i a l w a r n i n g m a y b e a c c o m p a n i e d b y a n a u d i b l e s i g n a l a n d a m e s s a g e o n t h e s c r e e n . D o n o t i g n o r e t h e s e
warnings.
The messages displayed may differ between the type 1 instrument panel and the type 2 instrument panel.
W h e n t h e c a u s e o f t h e a p p e a r a n c e o f t h e w a r n i n g l a m p o r w a r n i n g m e s s a g e h a s b e e n r e c t i fi e d , t h e w a r n i n g d i s a p p e a r s
f r o m t h e s c r e e n a u t o m a t i c a l l y . I f t h e c a u s e o f t h e w a r n i n g i s n o t r e c t i fi e d , y o u c a n r e t u r n t o t h e p r e v i o u s s c r e e n a t a n y t i m e
by pressing the INFO button on the dashboard.
The symbol "!" is displayed.
To return to the previous screen (with the "!" s y m b o l ) , y o u m u s t p r e s s t h e INFO button several times.
Warning messages (ignition at "OFF")
You can close the warning messages which show these symbols in ord er to move on to the next screen.
T o d o t h i s , p r e s s t h e INFO button according to the symbol displayed.
Press b r i e fl y . Press and hold .
S y m b o l s w h i c h a p p e a r i n t h e t o p r i g h t c o r n e r o f t h e s c r e e n .
Message is on Cause Solution - action Observations
K e y i n
ignition Fixed The driver's door is open
and you have forgotten
to remove the key from
the ignition. Turn the ignition switch
to the LOCK position
and remove the key. Only if the engine has
been started.
An intermittent audible
signal is heard.
Lighting
l e f t
on Fixed You have forgotten to
switch off the vehicle
lighting. Switch off the vehicle
lighting by placing the
stalk at OFF.
An intermittent audible
signal is heard.
Page 6 of 217
I
M O N I T O R I N G
24
Warning messages (ignition at "ON")
Message is on Cause Solution - action Observations
ABS Fixed Anti-lock braking system
(ABS) fault. Consult a CITROËN
dealer. The vehicle retains
conventional braking
without assistance
but you are advised
to stop.
Braking system Fixed Associated warning
lamp.
The level of brake
fl u i d i n t h e r e s e r v o i r
is too low.
S t o p a n d t o p u p , o t h e r w i s e
contact a CITROËN dealer.
If the message
remains on after
t o p p i n g u p , c o n t a c t
a CITROËN dealer.
Associated warning
lamp.
Braking system fault. Consult a CITROËN
dealer.
You must
stop.
Parking brake on Fixed You have moved off with
the parking brake still
applied. Release the parking brake.
Coolant
temperature Flashing
High engine temperature. If the message
fl a s h e s ,
wait for the engine to cool
b e f o r e t o p p i n g u p t h e l e v e l ,
if necessary.
You must
stop
y o u r v e h i c l e
as
soon as it
is
s a f e
to
do so
.
Flashing If the message
fl a s h e s and the
s e r v i c e w a r n i n g l i g h t
comes on , c o n t a c t
a CITROËN dealer
without delay.
Seat belt Fixed The driver has not fastened
or has unfastened his seat
belt. Fasten your seat belt. There is an
intermittent audible
signal above 5 mph
(8 km/h).
Page 7 of 217
I
M O N I T O R I N G
25

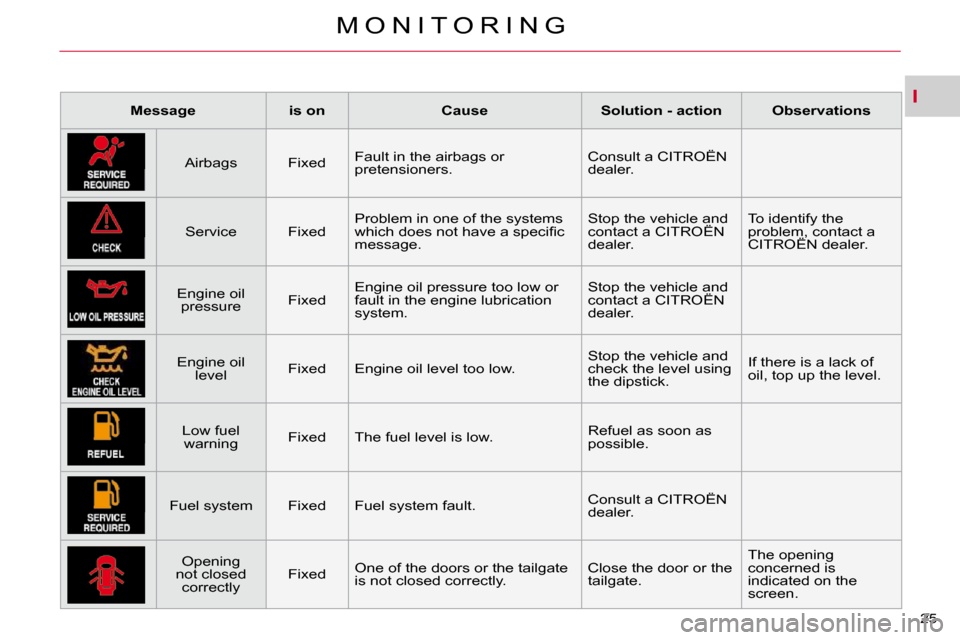

Message is on Cause Solution - action Observations
Airbags Fixed Fault in the airbags or
pretensioners. Consult a CITROËN
dealer.
Service Fixed Problem in one of the systems
w h i c h d o e s n o t h a v e a s p e c i fi c
message. Stop the vehicle and
contact a CITROËN
dealer. To identify the
p r o b l e m , c o n t a c t a
CITROËN dealer.
Engine oil pressure Fixed Engine oil pressure too low or
fault in the engine lubrication
system. Stop the vehicle and
contact a CITROËN
dealer.
Engine oil level Fixed Engine oil level too low. Stop the vehicle and
check the level using
the dipstick. If there is a lack of
o i l , t o p u p t h e l e v e l .
Low fuel warning Fixed The fuel level is low. Refuel as soon as
possible.
Fuel system Fixed Fuel system fault. Consult a CITROËN
dealer.
Opening
not closed correctly Fixed
One of the doors or the tailgate
is not closed correctly. Close the door or the
tailgate. The opening
concerned is
indicated on the
screen.
Page 9 of 217
I
M O N I T O R I N G
27
Message is on Cause Solution - action Observations
Saturation of the particle
e m i s s i o n fi l t e r Fixed
Start of saturation of the particle
e m i s s i o n fi l t e r . A s s o o n a s t r a f fi c
c o n d i t i o n s p e r m i t ,
r e g e n e r a t e t h e fi l t e r
by driving at a speed
of at least 35 mph
(60 km/h) until the
message is cleared. If the message is still
d i s p l a y e d , c o n t a c t a
CITROËN dealer.
Diesel
additive level Fixed Low Diesel additive level. Have the level
topped up by a
CITROËN dealer
without delay.
Water in the D i e s e l fi l t e r
(according to country) Fixed The presence of water in the
D i e s e l fi l t e r i s i n d i c a t e d .
Risk of damage to the injection
system on Diesel engines. Contact a CITROËN
dealer without delay.
Page 11 of 217
I
29
The total distance is dis-
played in zone 1 of the
screen and the trip dis-
tance in zone 2 (refer to
the "Distance recorders"
section).
Distance recorder (A and B)
INFORMATION ON THE
INSTRUMENT PANEL SCREEN
I n f o r m a t i o n d i s p l a y
W i t h t h e i g n i t i o n o n , p r e s s t h e
INFO
b u t t o n , l o c a t e d o n t h e f a s c i a t o t h e l e f t
o f t h e i n s t r u m e n t p a n e l , t o d i s p l a y t h e
various types of information in succes-
sion:
- d i s t a n c e r e c o r d e r A ,
- d i s t a n c e r e c o r d e r B ,
- s e r v i c e i n d i c a t o r ,
- c o o l a n t t e m p e r a t u r e ,
- r a n g e ,
- t r i p c o m p u t e r ,
- setting menu. This displays the dis-
tance and the number of
months remaining before
t h e n e x t s e r v i c e , i n l i n e
with the manufacturer's
servicing schedule (refer
to the "Service indicator"
section).
Service indicator
When the engine is run-
n i n g , t h i s i n d i c a t e s t h e
temperature of the cool-
ant (refer to the "Coolant
temperature indicator"
section).
Coolant temperature When the engine is run-
n i n g , t h i s i n d i c a t e s t h e
number of miles (kilo-
metres) which can still
be travelled with the fuel
r e m a i n i n g i n t h e t a n k ,
based on the average
fuel consumption over
the last few miles (kilometres) travelled
(refer to the "Range" section).
Range
This indicates the aver-
a g e f u e l c o n s u m p t i o n ,
the average speed and
the current fuel con-
sumption (refer to the
"Trip computer" section).
Trip computer
When the vehicle is sta-
t i o n a r y , t h i s a l l o w s t h e
user to change the follow-
ing settings (refer to the
"Setting menu" section):
- t h e d i s p l a y l a n g u a g e ,
- the temperature dis- p l a y u n i t s ,
- t h e f u e l c o n s u m p t i o n u n i t s ,
- the option to reinitialise the average fuel consumption and the average
s p e e d ,
- the break (rest) reminder display in- terval.
Setting menu
Page 12 of 217
I
!
!
M O N I T O R I N G
30
The total distance is dis-
played in zone 1 of the
screen and the trip dis-
tance in zone 2 .
DISTANCE RECORDERS (A/B)
System for measuring the total dis-
tance travelled by the vehicle during its
service life and the distance travelled in
a day or other period until it is reset to
zero by the driver.
Zero reset
W i t h t h e i g n i t i o n o n , p r e s s t h e INFO
button for more than 2 seconds until
zeros appear.
When the engine is run-
n i n g , t h i s i n d i c a t e s t h e t e m -
perature of the coolant.
COOLANT TEMPERATURE
If the bar is close to the
critical position
l o c a t e d o n t h e r i g h t , t h e t e m p e r a t u r e i s
too high.
T h e s y m b o l fl a s h e s w h e n y o u r e n g i n e
is overheating.
You must
s t o p y o u r v e h i c l e
as soon
as it
is
s a f e t o d o s o
.
W a i t a f e w m i n u t e s b e f o r e s w i t c h i n g
o f f t h e e n g i n e .
Wait for the engine to cool before
topping up the level. The cooling
system is pressurised.
When the engine is
running , t h i s i n d i c a t e s
the distance which can
still be travelled with
the fuel remaining in the
tank based on the aver-
age fuel consumption
over the last few miles/
kilometres travelled.
When the range is less than 30 miles
(50 km) , d a s h e s a r e d i s p l a y e d .
Refuel as soon as possible. The display
of the range is updated.
T o a v o i d a n y r i s k o f s c a l d i n g , u n s c r e w
the cap by two turns to allow the pres-
sure to drop.
W h e n t h e p r e s s u r e h a s d r o p p e d , r e -
m o v e t h e c a p a n d t o p u p t h e l e v e l , i f
necessary.
Consult a CITROËN dealer. T h i s fi g u r e m a y i n c r e a s e f o l l o w i n g a
change in the style of driving or the
r e l i e f , r e s u l t i n g i n a r e d u c t i o n i n t h e
current fuel consumption.
I f y o u o n l y a d d a f e w l i t r e s , t h e v a l u e
displayed will be incorrect. There-
f o r e , y o u m u s t fi l l t h e t a n k w h e n e v e r
possible.
When you disconnect the bat-
t e r y , t h e p r e v i o u s f u e l c o n s u m p -
tion data is lost and the value
displayed will be different from that
displayed before the battery was dis-
connected. The distance displayed
must be considered an approximate
indication.
