2010.5 Citroen C CROSSER DAG engine

I
!
!
M O N I T O R I N G
30
The total distance is dis-
played in zone 1 of the
screen and the trip dis-
tance in zone 2 .
DISTANCE RECORDERS (A/B)
System for measuring the total dis-
tance travelled by the vehicle during its
service life and the distance travelled in
a day or other period until it is reset to
zero by the driver.
Zero reset
With the ignition on, press the INFO
button for more than 2 seconds until
zeros appear.
When the engine is run-
ning, this indicates the tem-
perature of the coolant.
COOLANT TEMPERATURE
If the bar is close to the
critical position
located on the right, the temperature is
too high.
The symbol fl ashes when your engine
is overheating.

You must
stop your vehicle
as soon
as it
is
safe to do so
.

Wait a few minutes before switching
off the engine.
Wait for the engine to cool before
topping up the level. The cooling
system is pressurised.
When the engine is
running , this indicates
the distance which can
still be travelled with
the fuel remaining in the
tank based on the aver-
age fuel consumption
over the last few miles/
kilometres travelled.
When the range is less than 30 miles
(50 km) , dashes are displayed.
Refuel as soon as possible. The display
of the range is updated.
To avoid any risk of scalding, unscrew
the cap by two turns to allow the pres-
sure to drop.
When the pressure has dropped, re-
move the cap and top up the level, if
necessary.
Consult a CITROËN dealer. This fi gure may increase following a
change in the style of driving or the
relief, resulting in a reduction in the
current fuel consumption.
If you only add a few litres, the value
displayed will be incorrect. There-
fore, you must fi ll the tank whenever
possible.
When you disconnect the bat-
tery, the previous fuel consump-
tion data is lost and the value
displayed will be different from that
displayed before the battery was dis-
connected. The distance displayed
must be considered an approximate
indication.

II
C O M F O R T
44

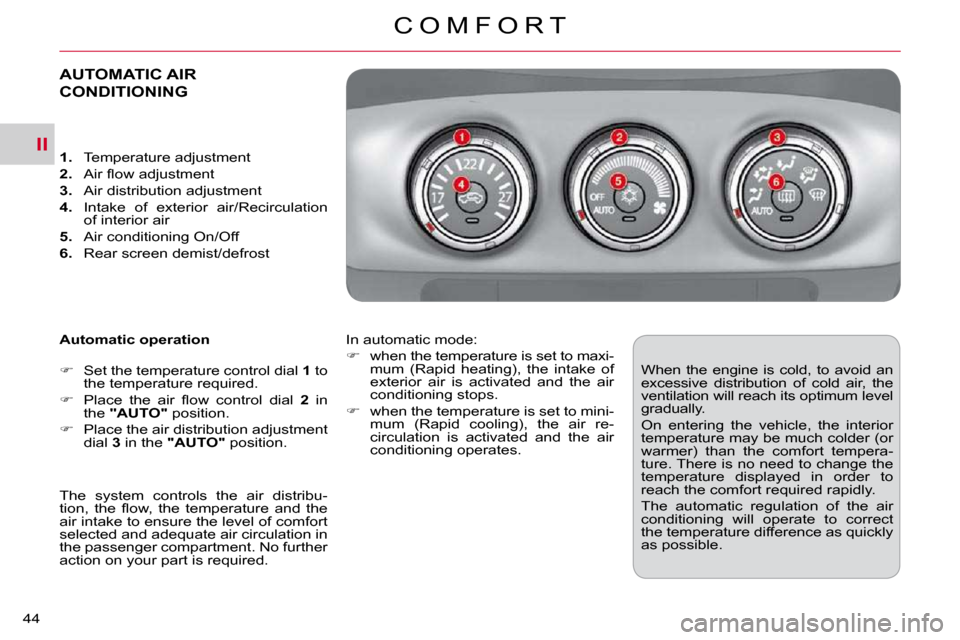

AUTOMATIC AIR
CONDITIONING
Automatic operation

 Set the temperature control dial 1 to
the temperature required.

 Place the air fl ow control dial 2 in
the "AUTO" position.

 Place the air distribution adjustment
dial 3 in the "AUTO" position. When the engine is cold, to avoid an
excessive distribution of cold air, the
ventilation will reach its optimum level
gradually.
On entering the vehicle, the interior
temperature may be much colder (or
warmer) than the comfort tempera-
ture. There is no need to change the
temperature displayed in order to
reach the comfort required rapidly.
The automatic regulation of the air
conditioning will operate to correct
the temperature difference as quickly
as possible.

1. Temperature adjustment

2. Air fl ow adjustment

3. Air distribution adjustment

4. Intake of exterior air/Recirculation
of interior air

5. Air conditioning On/Off

6. Rear screen demist/defrost
In automatic mode:

 when the temperature is set to maxi-
mum (Rapid heating), the intake of
exterior air is activated and the air
conditioning stops.

 when the temperature is set to mini-
mum (Rapid cooling), the air re-
circulation is activated and the air
conditioning operates.
The system controls the air distribu-
tion, the fl ow, the temperature and the
air intake to ensure the level of comfort
selected and adequate air circulation in
the passenger compartment. No further
action on your part is required.

II
C O M F O R T
49
Electric mode (driver's seat only)
Forwards-backwards adjustment
Push the control forwards or rearwards to
move the seat to the position required. Driver's seat cushion height and
angle adjustment
Pull or push the front of the control to raise
or lower the front of the seat cushion.
Pull or push the rear of the control to raise
or lower the rear of the seat cushion.
Pull or push the entire control to raise or
lower the entire seat cushion. Seat back angle adjustment
Tilt the control forwards or rearwards to
straighten or tilt the seat back.
FRONT SEATS
To avoid discharging the battery, use
the electric mode with the engine
running.

II
!
C O M F O R T
50
Front armrest
You can move the console housing cover
in order to use it as an armrest.

With the engine running , tilt the button
to the position required.
The temperature of the seat is regulated
automatically.
There are two setting positions:
- "HI": High heating
- "LO": Low heating
When the button is in the intermediate
position, the heating is switched off.
The indicator lamps A come on when
the system is activated.
Heated seats adjustment
To raise the head restraint, pull it up-
wards.
To lower the head restraint, push it
downwards pressing the height adjust-
ment button at the same time.
To remove the head restraint, bring it to
the uppermost position then remove it
pressing the height adjustment button
at the same time.
To refi t the head restraint, engage the
stems of the head restraint in the holes
pressing the height adjustment button
at the same time.
Head restraint height adjustment
Never drive with the removed
head restraints in the vehicle as
they could be thrown around the
vehicle on sharp braking. They must
be in place and adjusted correctly.
After installing the head restraint,
check that the height adjustment but-
ton is locked correctly.
The adjustment is correct when the
top of the head restraint is aligned
with the top of the head of the seated
person.

II
!
C O M F O R T
59
DOOR MIRRORS
Adjustment
The mirrors can be adjusted when the
ignition switch is in the "ON" or "ACC"
position.

 Move control A to the right or to the left
to select the corresponding mirror.

 Direct control B in all four directions
to adjust the mirror.
When adjustment is complete, return
control A to the central position. Electric folding/unfolding
- from inside, with the ignition switch
in the "ON" or "ACC" position

 by pressing the control C .
- from inside, with the ignition switch in the "LOCK" position:

 by pressing the control C, within
30 seconds.
- from outside using the remote control:
 by pressing the "closed pad-
lock button briefl y 3 times to fold
them,

 by pressing the "open padlock"
button briefl y 3 times to unfold
them.
The folding and unfolding of the door
mirrors can be confi gured via the
colour screen "Equipment" menu or
deactivated by a CITROËN dealer. The mirrors can also be folded
manually.
If you have folded the mirrors
using the control C , you must use
this control to unfold them, otherwise
the mirrors will not be lock in place
correctly.
If you switch the engine off then
re-start it with the mirrors folded, they
will unfold automatically when the
vehicle reaches 20 mph (30 km/h).
If the mirrors have been folded manu-
ally or electrically after starting the
engine, they are not unfolded auto-
matically.
In this case:

 Press the control C to unfold them.

II!
C O M F O R T
65
12 volt socket (120 W max) Removable ashtray
This operates when the ignition switch is
in the "LOCK", "ACC" or "ON" position.
Open the cover to gain access to the
socket. Check that the electrical equip-
ment operates with 12 volts and
that its maximum electrical power
is 120 W.
When you use the two sockets at the
same time, ensure that the two items
of equipment together operate on
12 V and that their combined electrical
power is 120 W maximum.
The prolonged use of electrical equip-
ment without running the engine may
discharge the battery.
Pull the cover to open the ashtray.
To empty, remove the ashtray by pulling
it upwards.

II
!
C O M F O R T
69 * On 5-seat version only.
Raise the boot fl oor to gain access to
this compartment.
Right-hand side enclosed storage
compartment
This storage compartment contains the
tools for changing a wheel. Storage compartment in the fl oor *
12 volt socket (120 W max)
There are four stowing rings in the boot
for securing luggage:
- two rings are located on the boot fl oor,
- two rings are located on the rear side pillars.
This operates when the ignition switch
is in the "ON" or "ACC" position.
Lift the cover to gain access to the
socket.
Check that the electrical equip-
ment operates on 12 volts and
that its maximum electrical power
is 120 W.
The prolonged use of electrical equip-
ment without running the engine may
discharge the battery.
Stowing rings

III
A C C E S S
72
The vehicle will relock automatically
after thirty seconds unless a door or
the tailgate is opened. This function
prevents inadvertent unlocking.
The duration which precedes the au-
tomatic relocking of the vehicle can
be confi gured via the colour screen
"Equipment" menu.
Folding the key

 First press button A to fold the key. Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the igni-
tion is switched on, this code must be
recognised to permit starting.
This electronic engine immobiliser locks
the engine management system a few
moments after the ignition is switched
off and prevents starting of the engine
by anyone who does not have the key.
Anti-theft protection
In the event of a malfunction and if
your vehicle does not start; contact a
CITROËN dealer as soon as possible.
