2009 YAMAHA XV1900A display

INSTRUMENT AND CONTROL FUNCTIONS
3-5
3 When the key is turned to “OFF” and 30
seconds have passed, the indicator
light will start flashing indicating the im-
mobilizer system is enabled. After 24
hours have passed, the indicator light
will stop flashing, however the immobi-
lizer system is still enabled.
This model is also equipped with a self-
diagnosis device for the immobilizer
system. (See page 3-8 for an explana-
tion of the self-diagnosis device.)
EAU40738
Multi-function meter unit
WARNING
EWA12422
Be sure to stop the vehicle before
making any setting changes to the
multi-function meter unit. Changing
settings while riding can distract the
operator and increase the risk of anaccident.
The multi-function meter unit is
equipped with the following:

a speedometer (which shows the
riding speed)


a tachometer (which shows the en-
gine speed)


a fuel gauge


an odometer (which shows the to-
tal distance traveled)


two tripmeters (which show the
distance traveled since they were
last set to zero)


a fuel reserve tripmeter (which
shows the distance traveled on the
fuel reserve)


a clock


a self-diagnosis device


a brightness control mode
TIP

Be sure to turn the key to “ON” be-
fore using the “SELECT” and reset
switches, except for setting the
brightness control mode.


For the U.K. only: To switch the
speedometer and odometer/trip-
meter displays between kilometers
and miles, press the “SELECT”switch for at least two seconds.
1. Speedometer
2. Fuel gauge
3. Odometer/tripmeter/fuel reserve tripme-
ter/clock
4. Tachometer
U5C4E3E0.book Page 5 Tuesday, September 16, 2008 10:25 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-7
3 Fuel gauge
The fuel gauge indicates the amount of
fuel in the fuel tank. The needle moves
towards “E” (Empty) as the fuel level
decreases. When the needle reaches
“E”, approximately 3.0 L (0.79 US gal,
0.66 Imp.gal) remain in the fuel tank. If
this occurs, refuel as soon as possible.
When the key is turned to “ON”, the fuel
gauge needle will sweep once across
the fuel level range and then return to
the current amount in order to test the
electrical circuit.
TIPThe fuel gauge does not indicate the
correct fuel level for the first 5 km/h (3mi/h) after refueling.Odometer, tripmeters, fuel reserve
tripmeter and clock
Push the “SELECT” switch to switch
the display between the odometer
mode “ODO”, the tripmeter modes
“TRIP 1” and “TRIP 2” and the clock
mode in the following order:
ODO → TRIP 1 → TRIP 2 → Clock →
ODO
If the fuel level warning light comes on
(see page 3-4), the odometer display
will automatically change to the fuel re-
serve tripmeter mode “F-TRIP” and
start counting the distance traveled
from that point. In that case, push the
“SELECT” switch to switch the displaybetween the various tripmeter, odome-
ter, and clock modes in the following or-
der:
F-TRIP → TRIP 1 → TRIP 2 → Clock
→ ODO → F-TRIP
To reset a tripmeter, select it by push-
ing the “SELECT” switch, and then
push the reset switch for at least one
second. If you do not reset the fuel re-
serve tripmeter manually, it will reset it-
self automatically, and the display will
return to the prior mode after refueling
and traveling 5 km (3 mi).
To set the clock:
1. Push the “SELECT” switch to
change the display to the clock
mode.
1. Fuel gauge
1. Odometer/tripmeter/fuel reserve tripme-
ter/clock
1. Clock
U5C4E3E0.book Page 7 Tuesday, September 16, 2008 10:25 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-8
32. Push the “SELECT” and reset
switches together for at least two
seconds.
3. When the hour digits start flashing,
push the reset switch to set the
hours.
4. Push the “SELECT” switch, and
the minute digits will start flashing.
5. Push the reset switch to set the
minutes.
6. Push the “SELECT” switch and
then release it to start the clock.
Self-diagnosis device
This model is equipped with a self-diag-
nosis device for various electrical cir-
cuits.
If a problem is detected in any of those
circuits, the engine trouble warning light
will come on or flash, and the odome-
ter/tripmeter/clock display will indicate
a two-digit error code.
The self-diagnosis device also detects
problems in the immobilizer system cir-
cuits.If a problem is detected in the immobi-
lizer system circuits, the immobilizer
system indicator light will flash, and the
display will indicate a two-digit error
code.
TIPIf the display indicates error code 52,
this could be caused by transponder in-
terference. If this error code appears,try the following.
1. Use the code re-registering key to
start the engine.TIPMake sure there are no other immobi-
lizer keys close to the main switch, and
do not keep more than one immobilizer
key on the same key ring! Immobilizer
system keys may cause signal interfer-
ence, which may prevent the enginefrom starting.
2. If the engine starts, turn it off and
try starting the engine with the
standard keys.
3. If one or both of the standard keys
do not start the engine, take the
vehicle, the code re-registeringkey and both standard keys to a
Yamaha dealer and have the stan-
dard keys re-registered.
If the odometer/tripmeter/clock display
indicates any error codes, note the
code number, and then have a Yamaha
dealer check the vehicle.
NOTICE
ECA11590
If the display indicates an error
code, the vehicle should be checked
as soon as possible in order to avoidengine damage.
U5C4E3E0.book Page 8 Tuesday, September 16, 2008 10:25 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-9

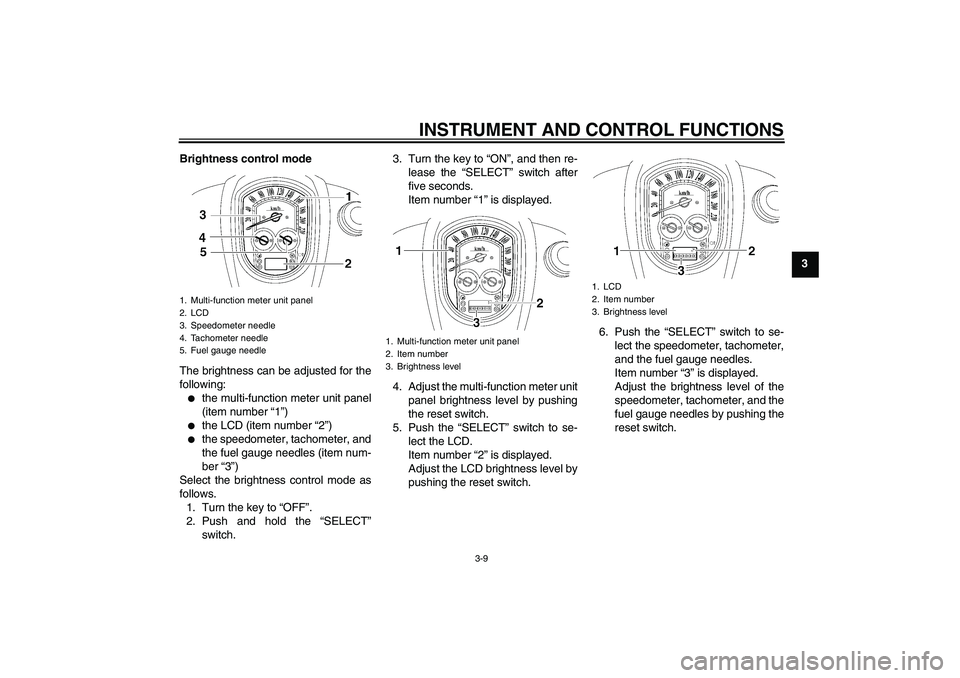

3 Brightness control mode
The brightness can be adjusted for the
following:


the multi-function meter unit panel
(item number “1”)


the LCD (item number “2”)


the speedometer, tachometer, and
the fuel gauge needles (item num-
ber “3”)
Select the brightness control mode as
follows.
1. Turn the key to “OFF”.
2. Push and hold the “SELECT”
switch.3. Turn the key to “ON”, and then re-
lease the “SELECT” switch after
five seconds.
Item number “1” is displayed.
4. Adjust the multi-function meter unit
panel brightness level by pushing
the reset switch.
5. Push the “SELECT” switch to se-
lect the LCD.
Item number “2” is displayed.
Adjust the LCD brightness level by
pushing the reset switch.6. Push the “SELECT” switch to se-
lect the speedometer, tachometer,
and the fuel gauge needles.
Item number “3” is displayed.
Adjust the brightness level of the
speedometer, tachometer, and the
fuel gauge needles by pushing the
reset switch.
1. Multi-function meter unit panel
2. LCD
3. Speedometer needle
4. Tachometer needle
5. Fuel gauge needle
1. Multi-function meter unit panel
2. Item number
3. Brightness level
1. LCD
2. Item number
3. Brightness level
U5C4E3E0.book Page 9 Tuesday, September 16, 2008 10:25 AM

OPERATION AND IMPORTANT RIDING POINTS
5-1
5
EAU15951
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING
EWA10271
Failure to familiarize yourself with
the controls can lead to loss of con-
trol, which could cause an accidentor injury.
EAU46632
TIPThis model is equipped with:

a lean angle sensor to stop the en-
gine in case of a turnover. In this
case, the multi-function display in-
dicates error code 30, but this is
not a malfunction. Turn the key to
“OFF” and then to “ON” to clear the
error code. Failing to do so will pre-
vent the engine from starting even
though the engine will crank when
pushing the start switch.


an engine auto-stop system. The
engine stops automatically if left
idling for 20 minutes. In this case,
the multi-function display indicates
error code 70, but this is not a mal-
function. Push the start switch to
clear the error code and to restartthe engine.
EAU36743
Starting the engine In order for the ignition circuit cut-off
system to enable starting, one of the
following conditions must be met:

The transmission is in the neutral
position.


The transmission is in gear with
the clutch lever pulled and the sid-
estand up.
See page 3-20 for more informa-
tion.
1. Turn the key to “ON” and make
sure that the engine stop switch is
set to“”.
The following warning lights and
indicator light should come on for a
few seconds, then go off.

Fuel level warning light


Engine trouble warning light


Immobilizer system indicator
light
NOTICE
ECA11831
If a warning or indicator light does
not go off, see page 3-4 for the corre-
sponding warning and indicatorlight circuit check.
