INSTRUMENT AND CONTROL FUNCTIONS
3-5
3 When the key is turned to “OFF” and 30
seconds have passed, the indicator
light will start flashing indicating the im-
mobilizer system is enabled. After 24
hours have passed, the indicator light
will stop flashing, however the immobi-
lizer system is still enabled.
This model is also equipped with a self-
diagnosis device for the immobilizer
system. (See page 3-8 for an explana-
tion of the self-diagnosis device.)
EAU40738
Multi-function meter unit
WARNING
EWA12422
Be sure to stop the vehicle before
making any setting changes to the
multi-function meter unit. Changing
settings while riding can distract the
operator and increase the risk of anaccident.
The multi-function meter unit is
equipped with the following:

a speedometer (which shows the
riding speed)


a tachometer (which shows the en-
gine speed)


a fuel gauge


an odometer (which shows the to-
tal distance traveled)


two tripmeters (which show the
distance traveled since they were
last set to zero)


a fuel reserve tripmeter (which
shows the distance traveled on the
fuel reserve)


a clock


a self-diagnosis device


a brightness control mode
TIP

Be sure to turn the key to “ON” be-
fore using the “SELECT” and reset
switches, except for setting the
brightness control mode.


For the U.K. only: To switch the
speedometer and odometer/trip-
meter displays between kilometers
and miles, press the “SELECT”switch for at least two seconds.
1. Speedometer
2. Fuel gauge
3. Odometer/tripmeter/fuel reserve tripme-
ter/clock
4. Tachometer
U5C4E3E0.book Page 5 Tuesday, September 16, 2008 10:25 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-11
3 Right
EAU40750
Dimmer“/”/Pass“” switch
Set this switch to“” for the high
beam and to“” for the low beam.
To flash the high beam, press on the
low-beam side“” of the dimmer
switch while the headlight is on low-
beam.
EAU12460
Turn signal switch“/”
To signal a right-hand turn, push this
switch to“”. To signal a left-hand
turn, push this switch to“”. When re-
leased, the switch returns to the centerposition. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12500
Horn switch“”
Press this switch to sound the horn.
EAU12660
Engine stop switch“/”
Set this switch to“” before starting
the engine. Set this switch to“” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
EAU12711
Start switch“”
Push this switch to crank the engine
with the starter. See page 5-1 for start-
ing instructions prior to starting the en-
gine.
EAU41700
The engine trouble warning light will
come on when the key is turned to “ON”
and the start switch is pushed, but this
does not indicate a malfunction.
EAU12733
Hazard switch“”
With the key in the “ON” or“” posi-
tion, use this switch to turn on the haz-
ard lights (simultaneous flashing of all
turn signal lights).
The hazard lights are used in case of
an emergency or to warn other drivers
when your vehicle is stopped where it
might be a traffic hazard.NOTICE
ECA10061
Do not use the hazard lights for an
extended length of time with the en-
gine not running, otherwise the bat-tery may discharge.
EAU44600
“SELECT” switch
This switch is used to perform selec-
tions in the odometer, tripmeter, to set
the clock and to set the brightness
mode of the multi-function meter unit.
See “Multi-function meter unit” on page
3-5 for detailed information.
1. Engine stop switch“/”
2. Hazard switch“”
3. Start switch“”
U5C4E3E0.book Page 11 Tuesday, September 16, 2008 10:25 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-21
3

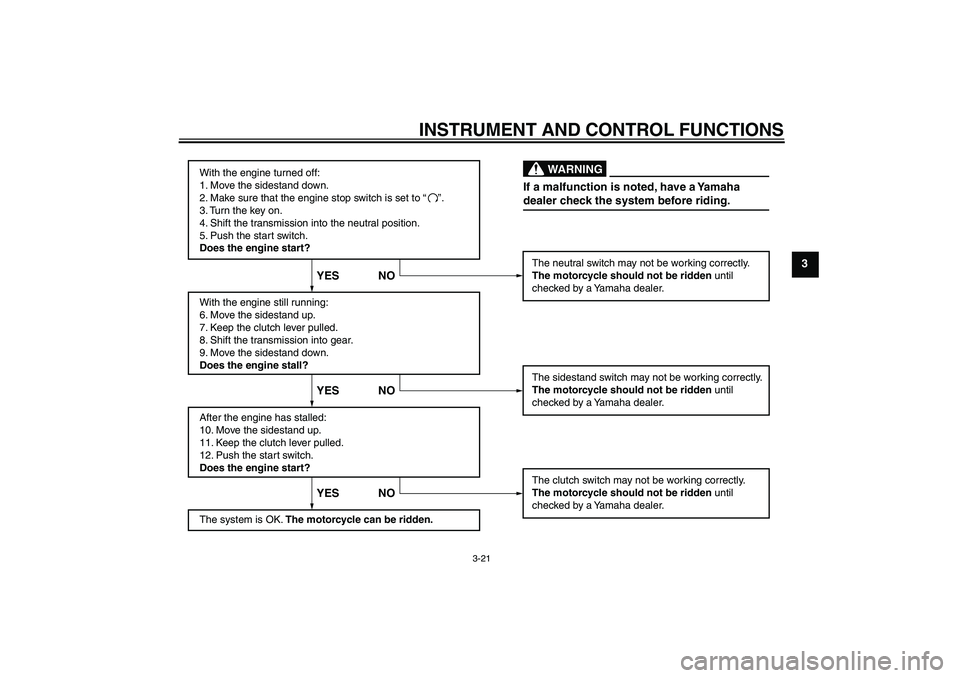

With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is set to “
3. Turn the key on.
4. Shift the transmission into the neutral position.
5. Push the start switch.
Does the engine start?
With the engine still running:
6. Move the sidestand up.
7. Keep the clutch lever pulled.
8. Shift the transmission into gear.
9. Move the sidestand down.
Does the engine stall?
After the engine has stalled:
10. Move the sidestand up.
11. Keep the clutch lever pulled.
12. Push the start switch.
Does the engine start?
The system is OK. The motorcycle can be ridden.The neutral switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
The sidestand switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
The clutch switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
YES NO YES NO YES NO
If a malfunction is noted, have a Yamaha
dealer check the system before riding.
WARNING
”.
U5C4E3E0.book Page 21 Tuesday, September 16, 2008 10:25 AM

OPERATION AND IMPORTANT RIDING POINTS
5-1
5
EAU15951
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING
EWA10271
Failure to familiarize yourself with
the controls can lead to loss of con-
trol, which could cause an accidentor injury.
EAU46632
TIPThis model is equipped with:

a lean angle sensor to stop the en-
gine in case of a turnover. In this
case, the multi-function display in-
dicates error code 30, but this is
not a malfunction. Turn the key to
“OFF” and then to “ON” to clear the
error code. Failing to do so will pre-
vent the engine from starting even
though the engine will crank when
pushing the start switch.


an engine auto-stop system. The
engine stops automatically if left
idling for 20 minutes. In this case,
the multi-function display indicates
error code 70, but this is not a mal-
function. Push the start switch to
clear the error code and to restartthe engine.
EAU36743
Starting the engine In order for the ignition circuit cut-off
system to enable starting, one of the
following conditions must be met:

The transmission is in the neutral
position.


The transmission is in gear with
the clutch lever pulled and the sid-
estand up.
See page 3-20 for more informa-
tion.
1. Turn the key to “ON” and make
sure that the engine stop switch is
set to“”.
The following warning lights and
indicator light should come on for a
few seconds, then go off.

Fuel level warning light


Engine trouble warning light


Immobilizer system indicator
light
NOTICE
ECA11831
If a warning or indicator light does
not go off, see page 3-4 for the corre-
sponding warning and indicatorlight circuit check.
U5C4E3E0.book Page 1 Tuesday, September 16, 2008 10:25 AM

INDEXAAir filter element .................................... 6-12
Anti-theft alarm (optional)...................... 3-10
Auxiliary DC connector ......................... 3-22
Auxiliary light bulb, replacing ................ 6-28BBattery................................................... 6-22
Brake and clutch fluid levels,
checking ............................................. 6-16
Brake and clutch fluids, changing ......... 6-17
Brake and clutch levers, checking and
lubricating ........................................... 6-20
Brake and shift pedals, checking and
lubricating ........................................... 6-19
Brake lever ............................................ 3-12
Brake pedal ........................................... 3-13CCables, checking and lubricating .......... 6-18
Care ........................................................ 7-1
Catalytic converter ................................ 3-15
Clutch lever .................................. 3-12, 6-15DDimmer switch ...................................... 3-11
Drive belt slack...................................... 6-18EEngine break-in ....................................... 5-3
Engine oil and oil filter cartridge .............. 6-8
Engine stop switch ................................ 3-11
Engine trouble warning light.................... 3-4
EXUP system ........................................ 3-19FFront and rear brake pads, checking .... 6-15
Front fork, checking .............................. 6-21
Fuel ....................................................... 3-14Fuel consumption, tips for reducing........ 5-3
Fuel level warning light ........................... 3-4
Fuel tank breather hose........................ 3-15
Fuel tank cap ........................................ 3-13
Fuses, replacing ................................... 6-24
HHandlebar switches .............................. 3-10
Hazard switch ....................................... 3-11
Headlight bulb, replacing ...................... 6-25
Helmet holder ....................................... 3-17
High beam indicator light ........................ 3-4
Horn switch ........................................... 3-11IIdentification numbers ............................ 9-1
Ignition circuit cut-off system ................ 3-20
Immobilizer system ................................. 3-1
Immobilizer system indicator light........... 3-4
Indicator and warning lights .................... 3-4KKey identification number ....................... 9-1LLicense plate light ................................. 6-28MMain switch/steering lock........................ 3-2
Maintenance and lubrication, periodic .... 6-3
Maintenance, emission control system... 6-2
Matte color, caution ................................ 7-1
Model label ............................................. 9-2
Multi-function meter unit ......................... 3-5NNeutral indicator light .............................. 3-4PParking ................................................... 5-4
Part locations .......................................... 2-1
RRear brake light switch, adjusting ......... 6-15
Rear suspension, lubricating ................. 6-21
Rider seat .............................................. 3-16SSafety information ................................... 1-1
SELECT switch ..................................... 3-11
Shifting .................................................... 5-2
Shift pedal ............................................. 3-12
Shock absorber assembly, adjusting .... 3-18
Sidestand .............................................. 3-20
Sidestand, checking and lubricating...... 6-20
Spark plugs, checking ............................. 6-7
Specifications .......................................... 8-1
Starting the engine .................................. 5-1
Start switch............................................ 3-11
Steering, checking................................. 6-22
Storage.................................................... 7-3
Supporting the motorcycle .................... 6-29TTail/brake light ....................................... 6-27
Throttle cable free play, checking ......... 6-12
Throttle grip and cable, checking and
lubricating ........................................... 6-19
Tires ...................................................... 6-13
Tool kit..................................................... 6-1
Transfer case oil.................................... 6-11
Troubleshooting .................................... 6-29
Troubleshooting chart ........................... 6-31
Turn signal indicator lights ...................... 3-4
Turn signal light bulb, replacing ............ 6-27
Turn signal switch ................................. 3-11VValve clearance..................................... 6-12
